Description

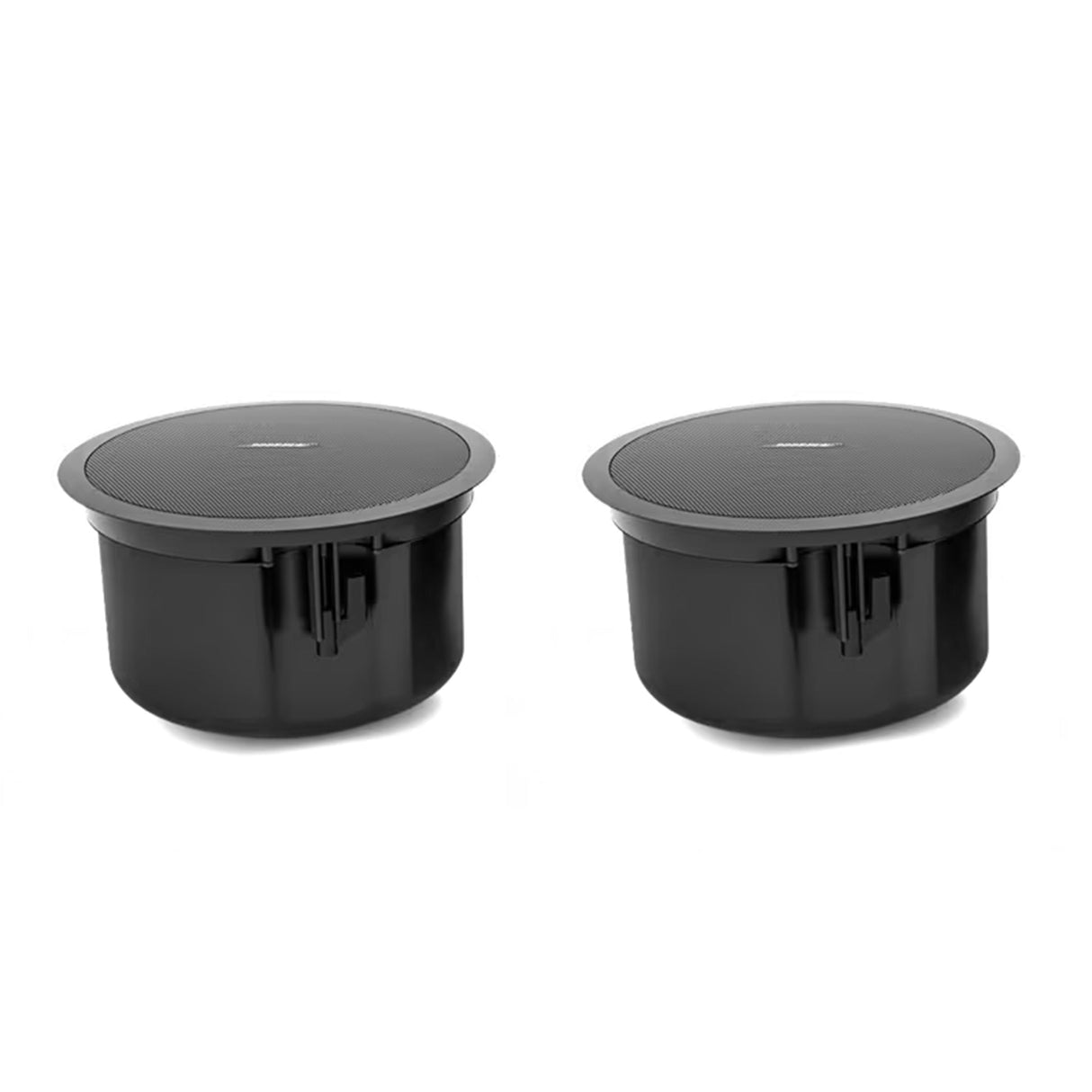

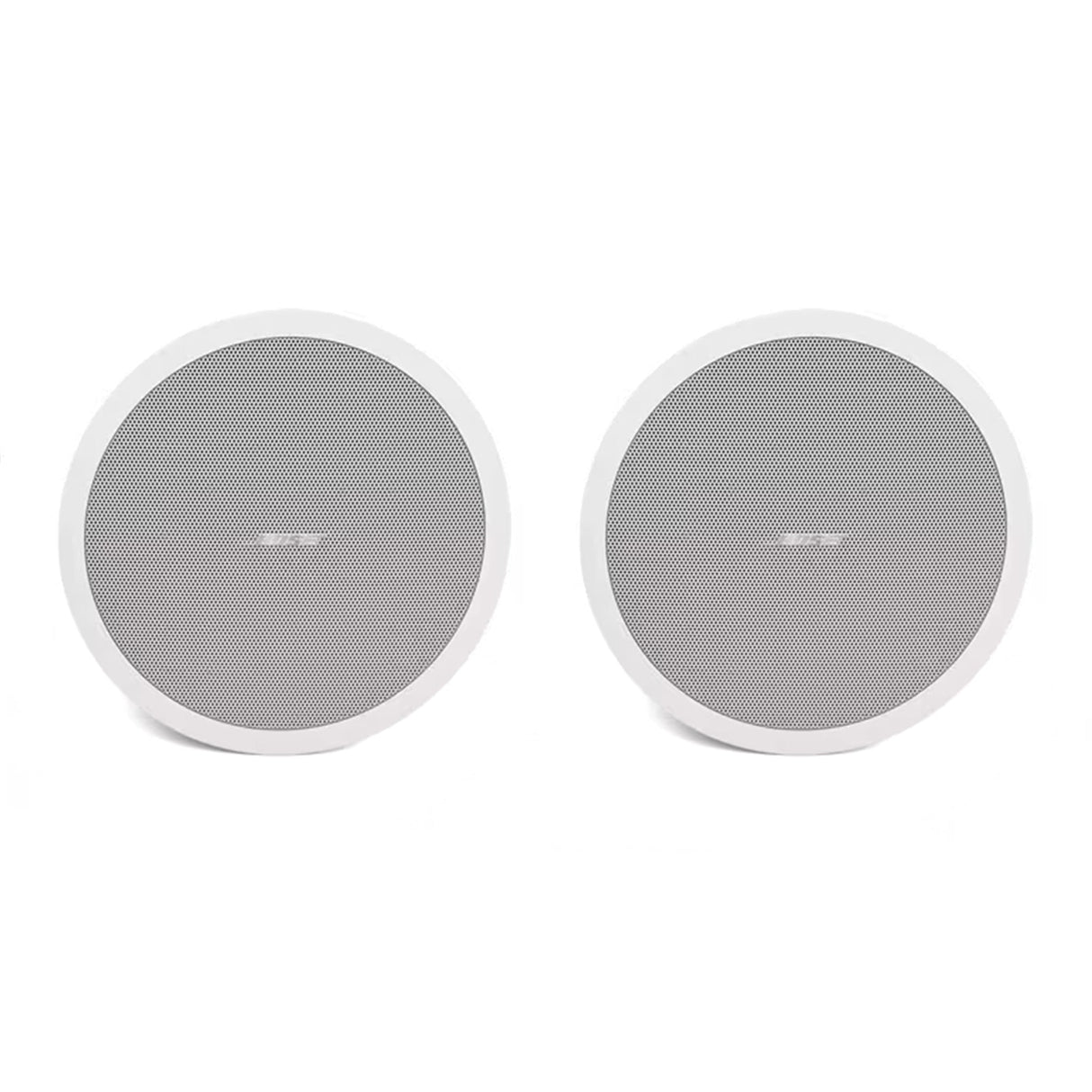

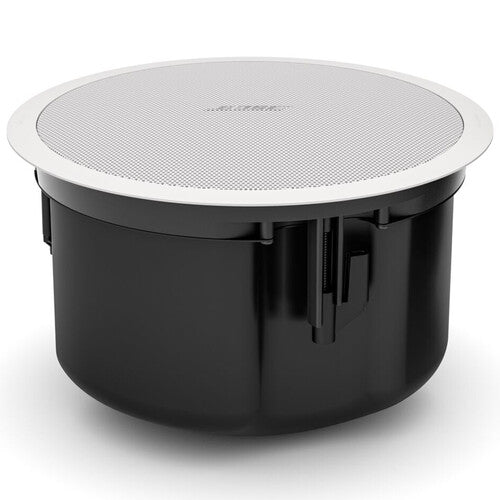

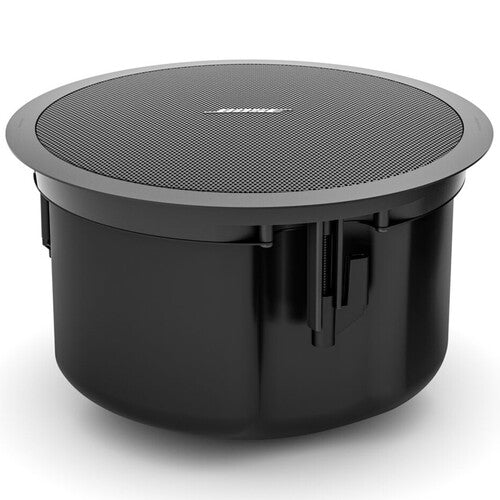

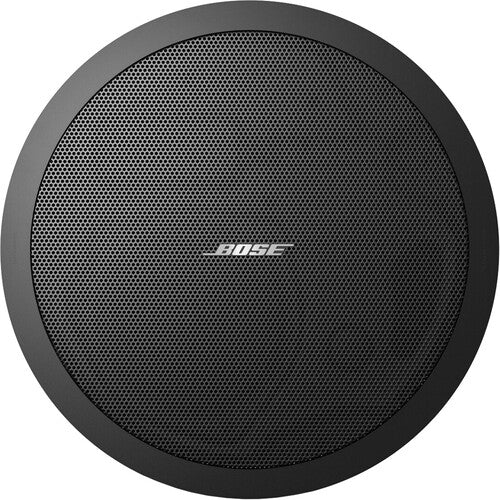

Bose Professional FreeSpace FS4CE In-Ceiling Loudspeakers (Pair)
Bose Professional FreeSpace FS4CE is an in-ceiling loudspeaker system designed for indoor and outdoor commercial installations. It enables background music playback and voice announcements for system designers and integrators, supporting distributed audio workflows. This makes it ideal for public and commercial spaces where consistent coverage and environmental durability are critical.
The loudspeakers operate using a full-range transducer housed in an integrated backcan enclosure. They support low-impedance operation as well as 70V and 100V distributed systems through selectable transformer taps. The enclosure and components are engineered to maintain functional operation in wet and outdoor-rated installations.
The system supports applications that require ceiling-mounted loudspeakers with wide dispersion and consistent tonal balance. It is suited for retail, hospitality, transportation, and public safety environments. The design allows integration with other FreeSpace FS loudspeakers for uniform system voicing.
Key Features
- In-ceiling loudspeaker system for background music and voice announcement applications
- 4.5-inch full-range driver for balanced music and voice reproduction
- Wide 145° coverage for consistent sound distribution
- Consistent tonal voicing across FreeSpace FS loudspeakers for multi-zone systems
- Outdoor-rated construction with IP55 design for wet and outdoor installations
- 70V/100V transformer support with low-impedance bypass for distributed audio systems
- EN 54-24 certified for voice alarm and life safety applications
- Flush in-ceiling design for clean, discreet integration
- Durable construction with UV-resistant materials for long-term reliability
- Rotatable, removable logo for flexible installation aesthetics
Technical Specifications
-
General
- Product Model: FS4CE
- Product Type: Passive in-ceiling loudspeaker (pair)
- Application: Background music, paging, and voice alarm systems
- Environment: Indoor and outdoor (IP55 rated)
- EN 54-24 Certified: Yes
- Colors: Black, White
-
Driver
- Low-Frequency Driver: 1 × 4.5" (114 mm) woofer
- Driver Protection: Recommended high-pass protection at 70 Hz (minimum 24 dB/octave)
-
Performance
- Frequency Range (-10 dB): 70 Hz – 17,000 Hz
- Coverage (Horizontal): 145°
- Coverage (Vertical): 145°
- Sensitivity (SPL/1 W @ 1 m): 88 dB
- Maximum SPL @ 1 m: 104 dB
-
Amplification
- Power Handling (Continuous): 40 W
- Power Handling (Peak): 160 W
- Nominal Impedance: 8 Ω (transformer bypass)
-
Electrical
- Transformer Taps (70V): 2.5 W, 5 W, 10 W, 20 W, 40 W, bypass
- Transformer Taps (100V): 5 W, 10 W, 20 W, 40 W, bypass
- Recommended Signal Processing: Not required; Bose EQ voicing and SmartBass processing available
-
Physical
- Enclosure Material: Engineered-plastics front baffle with integrated steel backcan, UV fade-resistant
- Grille: Perforated steel, powder-coated finish
- Ingress Protection: IP55
- Ceiling Cutout: 9.8 in (249 mm)
- Dimensions (Speaker): 10.7" × 6.8" (diameter × depth)
- Dimensions (Backcan): 8.7" × 6.4" (diameter × depth)
- Net Weight: 7.7 lb per speaker (with grille)
- Shipping Weight: 20.0 lb (pair)
- Logo: Rotatable and removable
-
Installation & Mounting
- Mounting System: (3) mounting arms
- Safety Attachment: (1) safety cable attachment point
-
Environmental
- Operating Temperature Range: -25 °C to 70 °C (-13 °F to 158 °F)
Installation & Use Case
The FS4CE is designed for distributed ceiling audio systems requiring wide coverage and consistent sound quality.
- Retail stores
- Restaurants and cafés
- Offices and conference rooms
- Hospitality environments
- Public spaces and commercial buildings
Package Contents
- (2) Bose FreeSpace FS4CE loudspeakers
- (2) Weather-resistant input covers
- (1) Cutout template
- Installation hardware
Frequently Asked Questions
What is the Bose FreeSpace FS4CE used for?
The Bose FreeSpace FS4CE is designed for in-ceiling commercial audio systems, delivering background music and voice announcements in spaces such as retail stores, restaurants, and offices.
Is the Bose FS4CE suitable for outdoor or wet locations?
Yes, the FS4CE is IP55-rated, making it suitable for indoor and outdoor installations, including wet locations.
Does the Bose FS4CE require an amplifier?
Yes, the FS4CE is a passive loudspeaker and requires an external amplifier or a 70V/100V distributed audio system.
What type of driver does the Bose FS4CE use?
The FS4CE uses a single 4.5-inch full-range driver designed for clear music playback and voice intelligibility.
Can the Bose FS4CE be used in distributed audio systems?
Yes, it includes built-in transformer taps for 70V and 100V systems, along with an 8-ohm bypass option.
What makes the FS4CE different from smaller FS2C models?
The FS4CE provides higher output and deeper low-frequency performance compared to smaller models, making it better suited for medium-sized commercial spaces.
