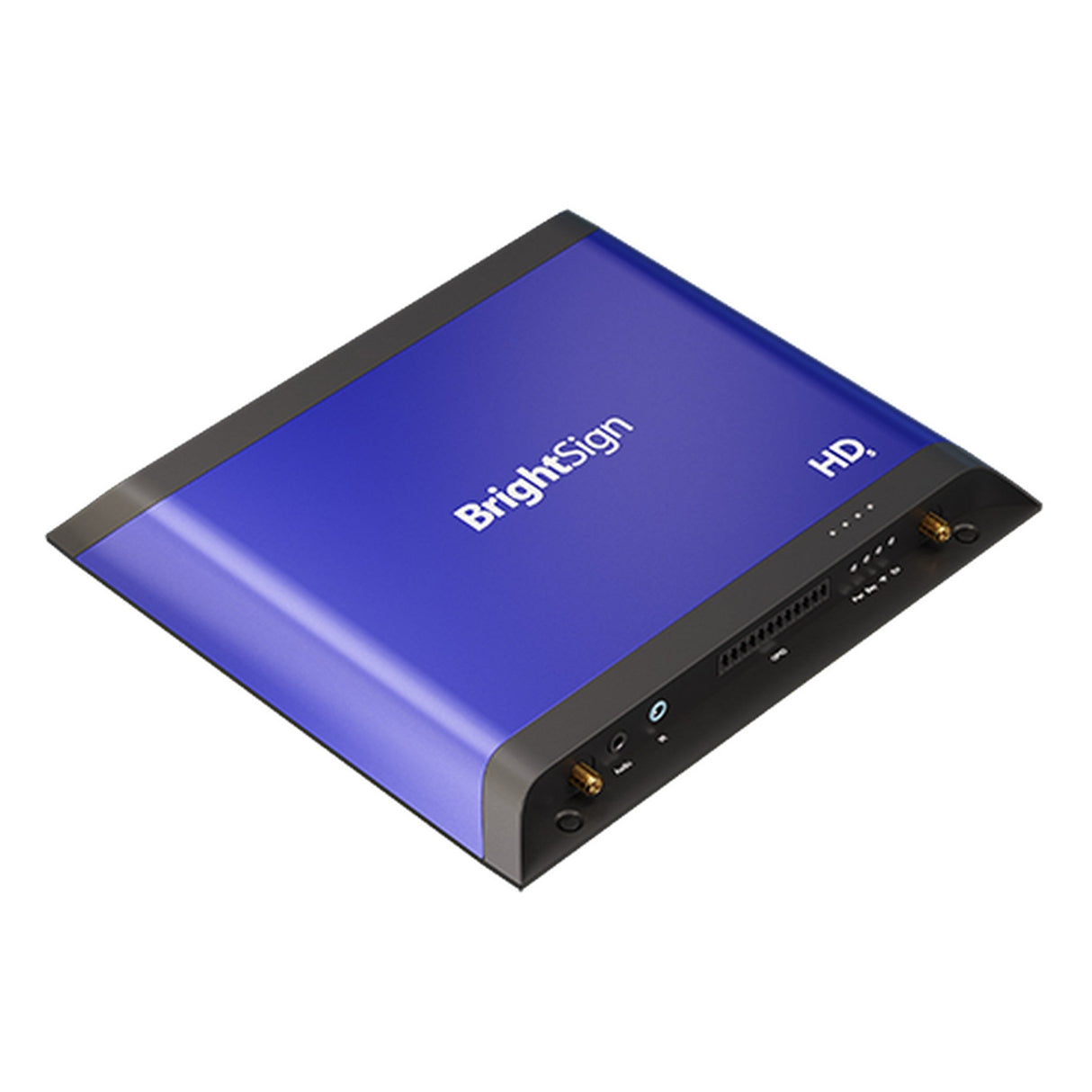

BrightSign HD224 H.265 Full HD Mainstream HTML5 Player with Standard I/O Package

Enjoy flawless 4K and Full HD single video decoding, mainstream HTML5 performance and simultaneous playback from local, networked and streaming sources. Includes the standard I/O package of gigabit Ethernet, GPIO (GPIO connectors sold separately), analog and digital audio.

4K CORPORATE LOBBY INFORMATION KIOSKS
Deliver relevant and timely messages to your corporate audience using mainstream 4K video, touch interactivity and simultaneous content playback from local, networked and streaming sources.

EYE-CATCHING VIDEOWALLS
Capture attention with frame-accurate synchronization across a multitude of screens to set the stage for some serious retail therapy - now in true 4K resolution.

Technical Specifications

VIDEO ENGINE DECODER
True 4K@60p video decoding
Single 4K or 1080p60 video decoding
MEDIA FORMATS
Video Codecs for 4K content: H.265/H.264
Video Containers for 4K H.265/H.264 content: .ts, .mov, .mp4
Video Codecs for Full HD: H.265, H.264(MPEG-4, Part 10), MPEG-2, MPEG-1
Video Containers for Full HD: .ts, .mpg, .vob, .mov, .mp4, .m2ts
Images: BMP, JPEG, PNG
Audio: MP2, MP3, AAC, and WAV (AC3 is passed through)
HTML5 (Mainstream)
DISPLAY RESOLUTIONS
4K resolutions: 4096x2160, 3840x2160, 3840x600
Upscaling to: 3840x2160x24/25/29.97/30p
1920x1200, 1920x1080x24/25/29.97/30/50/59.94/60p,
1920x1080x50/59.94/60i, 1600x1200x60p, 1440x1050x60/75p,
1440x900x60/75p, 1360x768x60p, 1280x1024x60/75p,
1280x960x60p, 1280x800x60p/75p, 1280x768x60p,
1280x720x50/59.94/60p, 1024x768x60p, 800x600x60/75p,
720x576x50p/50i, 720x480x59.94/60p/60i, 640x480x60p
HARDWARE INTERFACES
External micro SD Slot (SDHC and SDXC); SDHC storage up to 32GB SDXC storage up to 2TB
12-pin Phoenix GPIO port with 8 bi-directional GPIOs
3.5mm RS-232 Serial Port
3.5mm IR In/Out
3.5mm Audio Out (analog -or- SPDIF digital, nonsimultaneous)
HDMI 2.0a Out
Ethernet (Gigabit)
M.2 (E) Keyed Wi-Fi/Bluetooth Connector
Wi-Fi External Antenna Connector (optional)
Status LEDs: Power, Error, Busy, Update
Reset and Service Buttons
Real Time Clock
FEATURES
H.265 Decoding: smaller file sizes and lower bitrates than H.264
HTML5: hardware-accelerated engine that plays modular
HTML assets flawlessly alongside high-bandwidth video (Mainstream)
BrightBeaconTM: 2-way Bluetooth/Beacon communication between mobile devices & signage (requires: wireless/ Bluetooth module)
BrightWall: synchronized playback across multiple displays
AutoWall: embraces the power of HTML5 to create unique multimedia video walls
Zones: playback multiple content types on a single screen
Mosaic Mode: simultaneously play a multitude of smaller resolution videos that add up to the maximum video resolution of the player
IP Streaming: play streaming media
Interactivity: connect virtually any type of interactive device to a multitude of interactive ports (GPIO, UDP)
Live Feeds: Live Data, Live Text, MRSS, Twitter, Flickr, etc.
Tagging: BrightSign Network users can assign media and player tags for highly targeted content distribution
BrightSign App: update signs with an iOS device
Sign Preview: preview presentation playback in BrightAuthor
Remote Snapshot: remotely view a snapshot image of the display’s playback
Networking: update, manage and schedule your signage
B-deploy: A setup feature to deploy many players at once
Extended Thermal: supports ambient temperatures between 0 deg & 70 deg C at 90% max relative humidity, non-condensing
SOFTWARE
Free BrightAuthor Software
BrightSign Networking Options
ACCESSORIES
Wireless/Bluetooth Module
MicroSD Class 10 Cards (various capacities)
MISCELLANEOUS
Dimensions (W H D) 159.9 x 22 x 144.2mm or 6.3 x 0.87 x 5.7 in
Weight 12 oz
Power 12V / 1.5A (18 Watts)
Multi-Country Power & Regulatory Approvals
Built-in Wall Mounting Brackets
1 year warranty, parts and labor
