BSS BLU-3 Simple Wall Panel Controller
BSS BLU-3 Simple Wall Panel Controller
Free Shipping
BSS BLU-3 Simple Wall Panel Controller
The BLU-3 wall panel is a simple controller which allows the designer to provide level control and source selection or preset recall in a simple wall-mounted panel.
These controllers connect to the control ports on the rear of any BLU-16, BLU-32 or BLU-80 device.

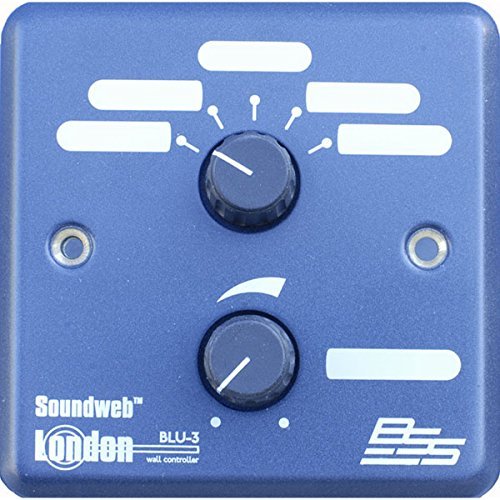

The BLU-3 offers a rotary fader and a five-way switch. The switch could select system presets (configurations specific to times of the day for example) while the rotary control could be assigned to act as a zone volume control.
The switches on both units have blank areas for marking the switch functions, either directly onto the white area, or on self-adhesive labels.
Key Features
- Cost-Effective Control Solution
- Familiar Control Interface
Technical Specifications

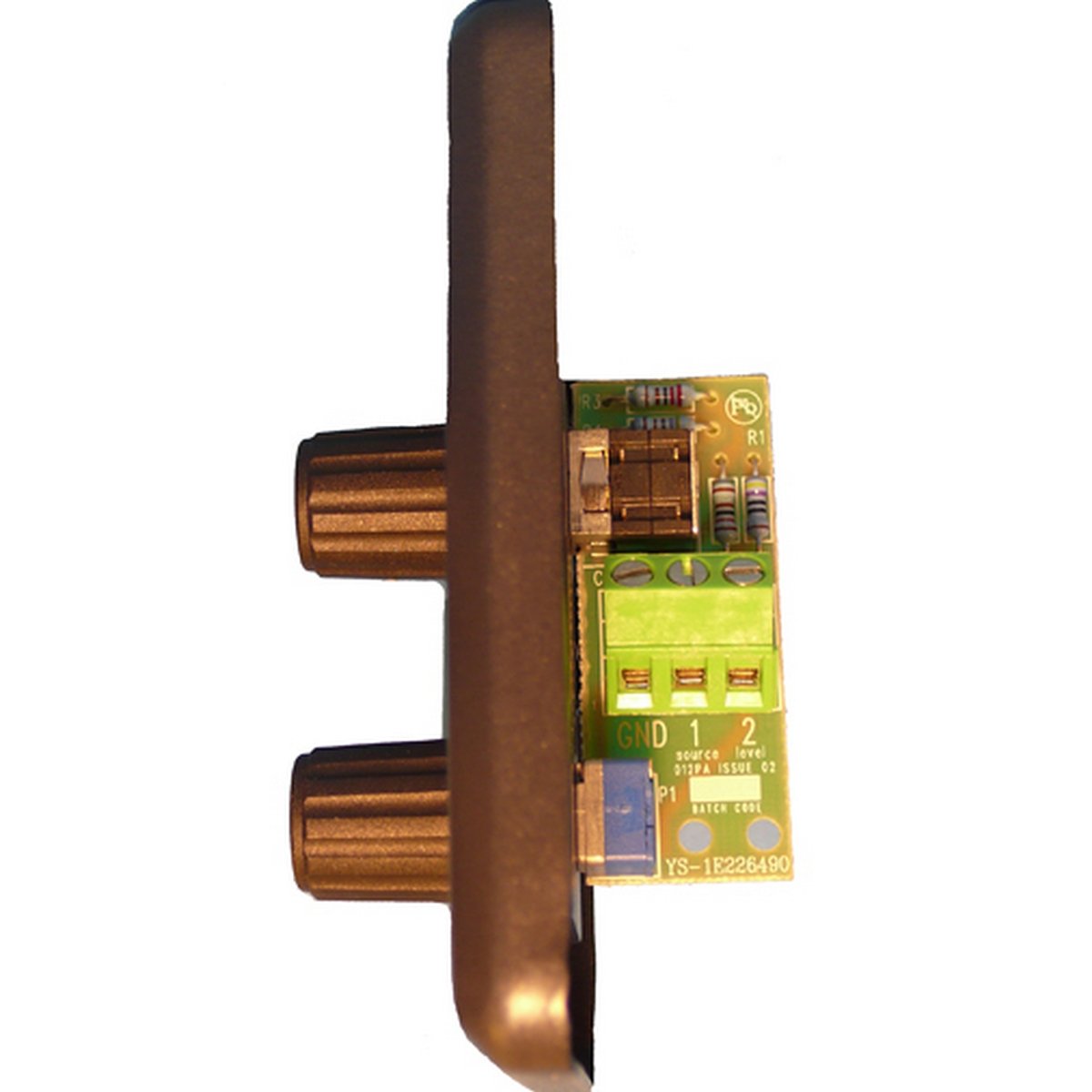

Connector (BLU-3 and SW9012US):
Screw Terminals x 3: GND connection (to Control Ports COMMON pin)
SOURCE / PRESET SELECT connection
LEVEL connection
Colors: BLU-3 and BLU-6: Blue
sw9012US and sw9012US: Beige
Dimensions (BLU-3 and BLU-6):
Dimensions (H x W): 3.35" x 3.35" (85mm x 85mm)
Dimensions (SW9012US and SW9015US):
Dimensions (H x W): 4.5" x 2.75" (114.3mm x 69.85mm)
