BSS BLU-BOB1 Break Out Box Output Expander

The Soundweb London BLU-BOB1 or “break-out box” offers 8 channels of analog audio output expansion via the Soundweb London high bandwidth, fault tolerant digital audio bus.
This expander features a low latency, fault tolerant digital audio bus of 256 channels which uses standard Category 5e cabling giving a distance of 100m between compatible devices. The BSS Audio MC-1 fiber optic media converter can be used to increase the distance between devices to over 10km (6.2 miles) using single mode fiber.

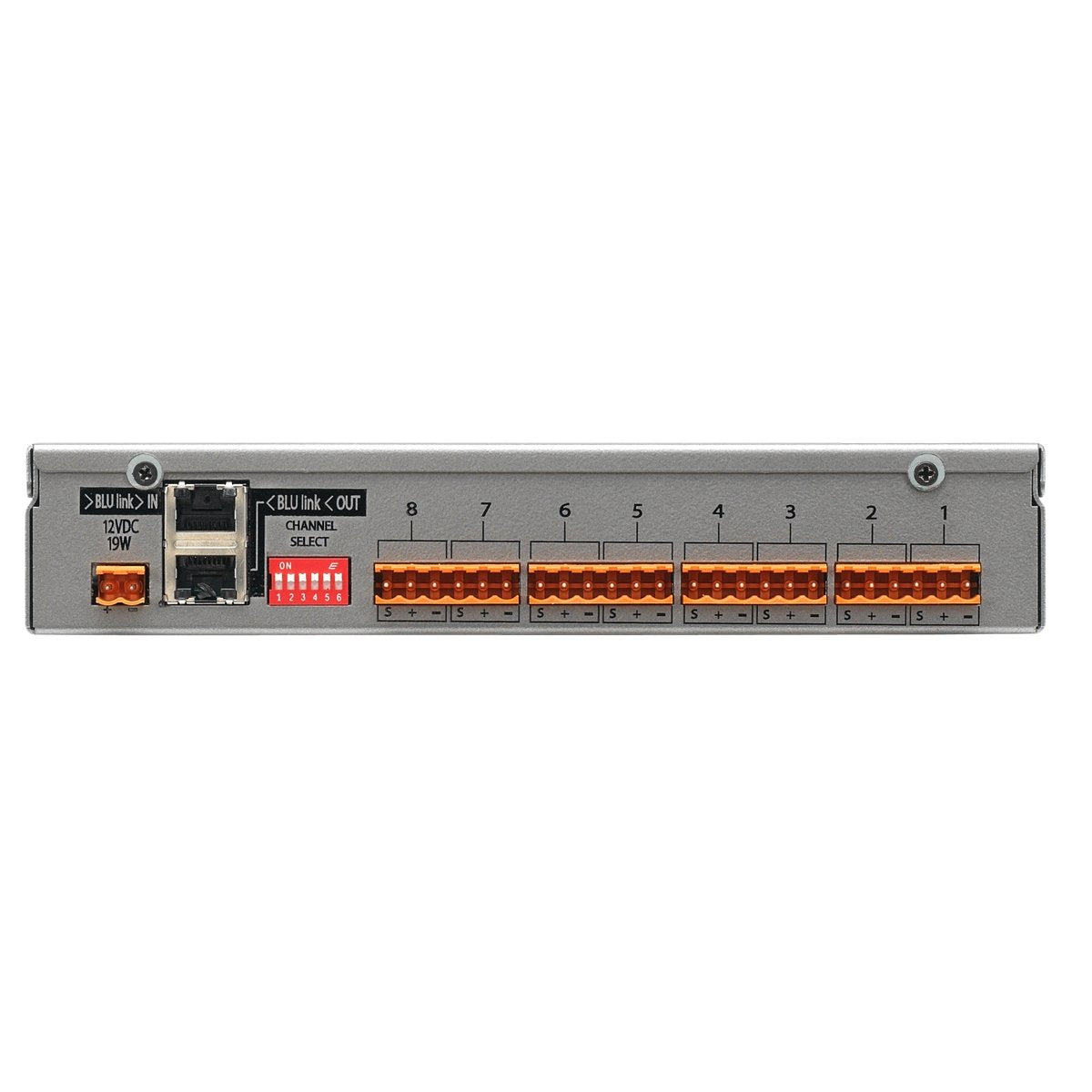

The BLU-BOB1 output channels are easily configured by six DIP switches located on the rear of the device, which select consecutive channels in groups of eight. This simple configuration allows selection of any 8-channel range from the 256 channels available on the digital audio bus. Output channel assignments are configured by DIP switch selection only. The BLU-BOB1 is not configured by HiQnet™ London Architect.
Two chassis styles are available, the first (BLU-BOB1) is a half rack width, desk or wall mounted version and the second (BLU-BOB2) is a 19” single rack space version with mounting ears for equipment racks. Front panel indication and rear panel connections are identical on both versions.
The BLU-BOB1 break-out box output expanders are powered by a 12V DC adapter which is included with the devices.
The BLU-BOB1 and the other members of the Soundweb London family provide the building blocks of the perfectly tailored system solution.

Key Features

• 8 Analog Audio Outputs
• Standard Terminal Block Connectors for Analog Audio Connections
• DIP Switches for Channel Range Selection
• 256 Channel, Low Latency, Fault Tolerant Digital Audio Bus
• Clear Front Panel LED Indication
• 12VDC External Power included
• Terminal Block Connectors for Power Connection
• Half Rack Width, Desk Mount or Wall Mount Chassis

Technical Specifications

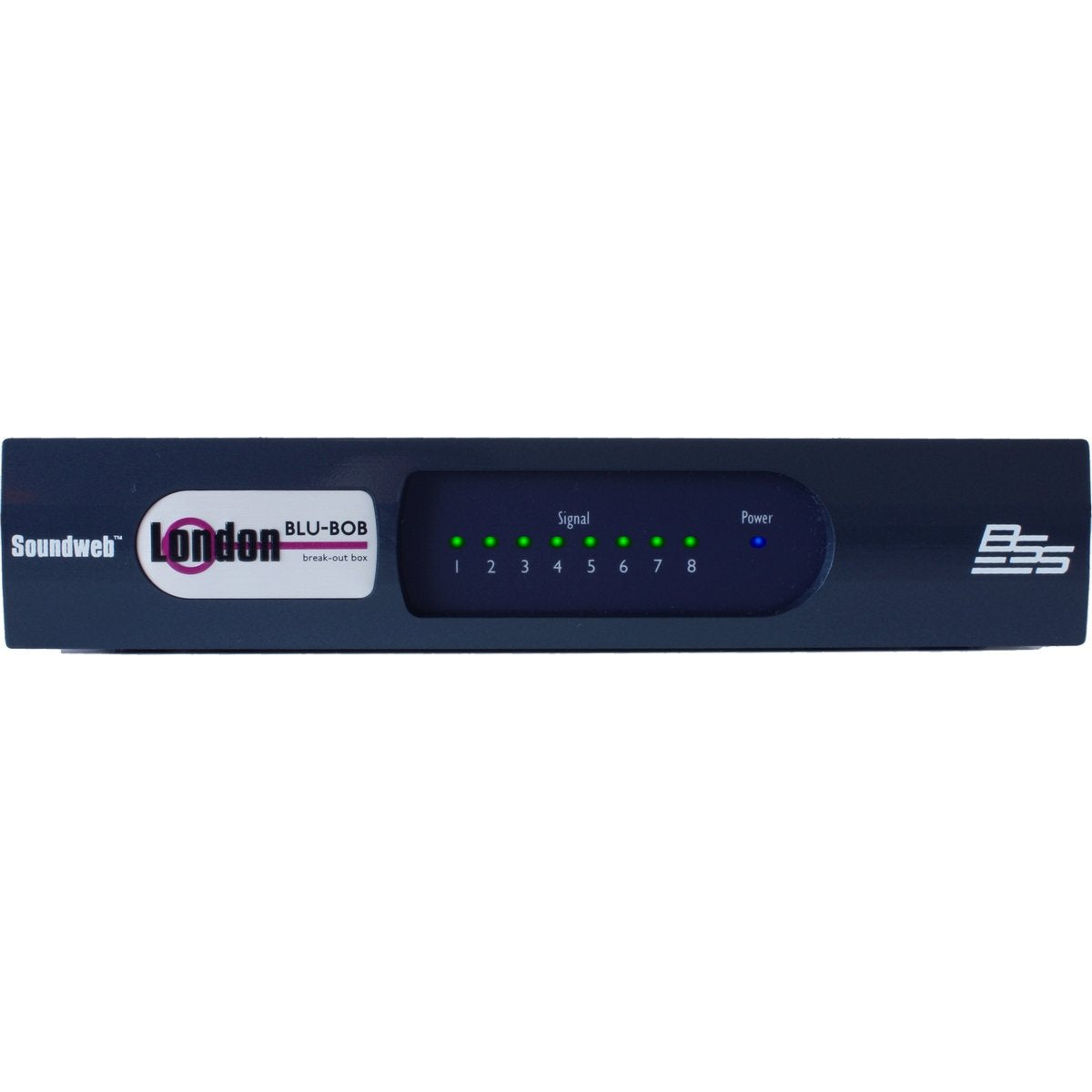

Front Panel LED Indicators: Signal present per output, and Power
Analog Outputs: 8 electronically balanced on Phoenix/Combicon
removable screw connectors
Maximum Output Level: +19dBu
Frequency Response: 20Hz-20KHz (+0.5dB/-1dB)
THD: <0.01% 20Hz to 20KHz, +10dBu output
Dynamic Range: 108dB typical, 22Hz-22KHz unweighted
Crosstalk: <-75dB
D/A Latency: 28/Fs <0.58ms@48K, 0.29ms@96K>
Digital Audio Bus:
Connectors: 2 x RJ45 Ethernet connectors
Maximum Cable Length: 100m/300ft on Category 5e cable between devices
Maximum Number of Nodes: 60
Latency Per Node: 4/Fs <0.08ms@48K, 0.04ms@96K>
Power and Dimensions:
Mains Voltage: 12V DC external power supply included
AC Power Input to Adapter: 19W
BTU Rating: <65 BTU/hr
Operating Temperature Range: 5 (41) to 35 (95) degrees C (degrees F)
Dimensions BLU-BOB1 (H(U) x W x D): 1.65” x 8.63” x 7.75” (42mm x 219mm x 197mm)
Dimensions BLU-BOB2 (H(U) x W x D): 1.75” x 19” x 7.75” (45mm x 483mm x 197mm)
Weight BLU-BOB1: 2.96 lbs / 1.34 kg
Weight BLU-BOB2: 5.13 lbs / 2.33 kg
