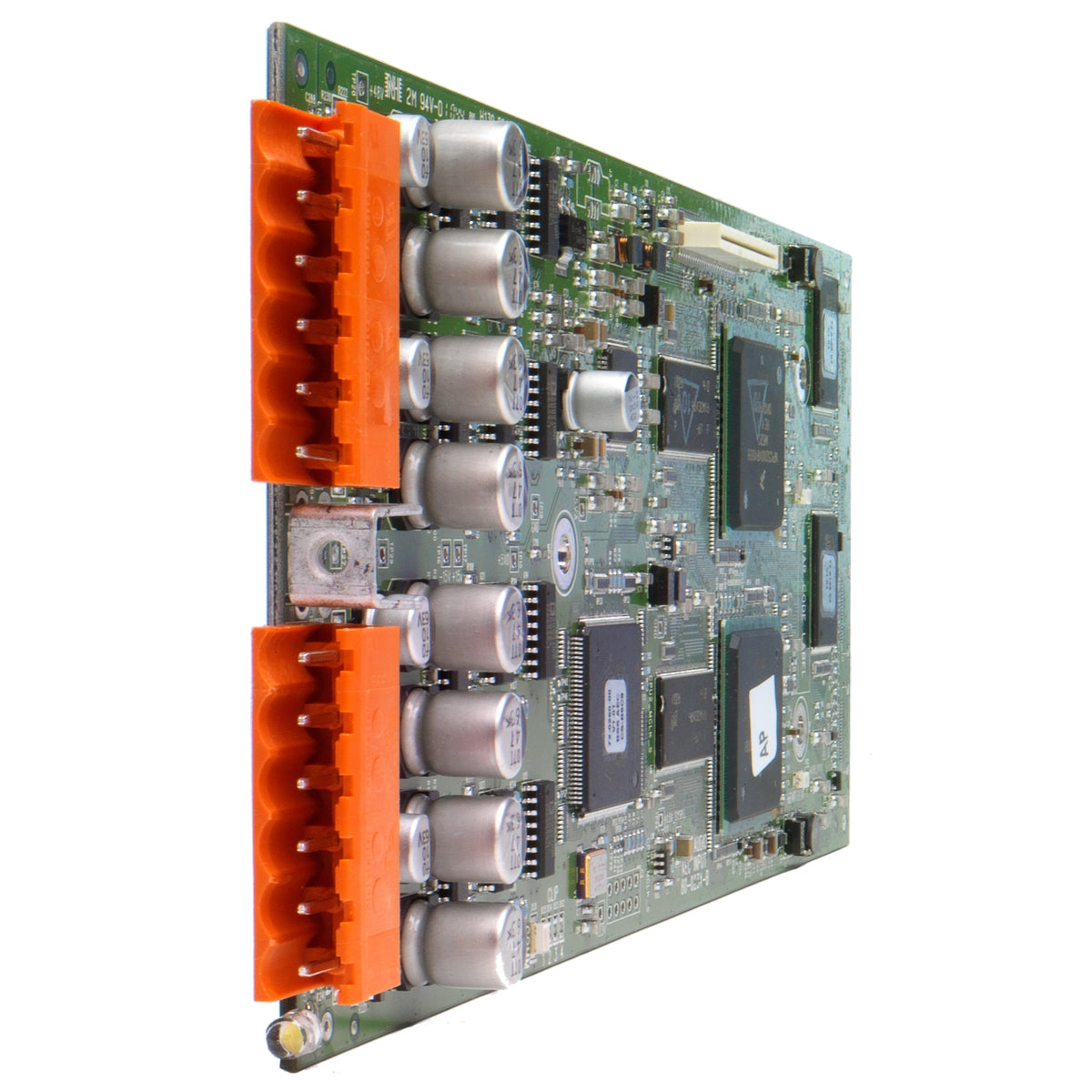

BSS BLUDIGITAL-OUT AES/EBU S/PDIF Outputs Plus Wordclock Digital Output Card
The Soundweb London Digital Output card is designed to populate any of the four card slots on Soundweb London BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32 and BLU-16 devices. These digital cards enable Soundweb London devices to receive AES/EBU and S/PDIF audio signals.
Key Features
- Digital Outputs : 4
- Digital Output Type : AES/EBU and S/PDIF
- Word Sync Input : yes
Technical Specifications
Digital Inputs: Up to 2 pairs of AES/EBU or S/PDIF on Phoenix/Combicon removable screw connectors
Input Impedance: 110 ohm (AES/EBU), 75 ohm (S/PDIF)
Sample Rate: 48kHz or 96kHz
Sample Rate Conversion: 8kHz-96kHz
THD+N: <-140dB
Latency: 3/Fso + (56.581/Fsi) + (55.658/Fso)
Digital Outputs: Up to 2 pairs of AES/EBU or S/PDIF on Phoenix/Combicon removable screw connectors
Output Impedance: 110 ohm (AES/EBU), 75 ohm (S/PDIF)
Sample Rate: 48kHz or 96kHz
Sample Rate Conversion: 8kHz-96kHz
THD+N: <-140dB
Latency: 3/Fso + (56.581/Fsi) + (55.658/Fso)
