BZBGEAR 4K 2x1 18G 60Hz 4:4:4 Presentation 2-Port KVM Switcher with HDMI and USB-C Inputs

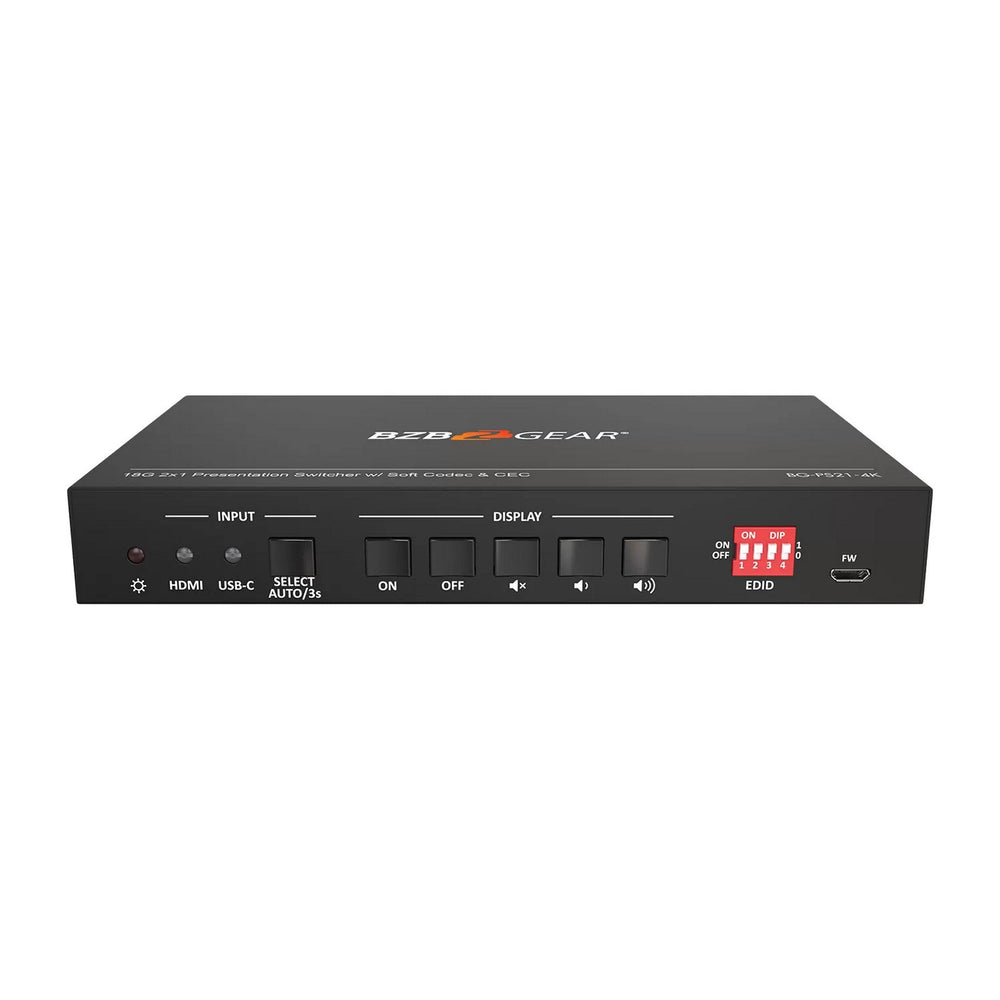

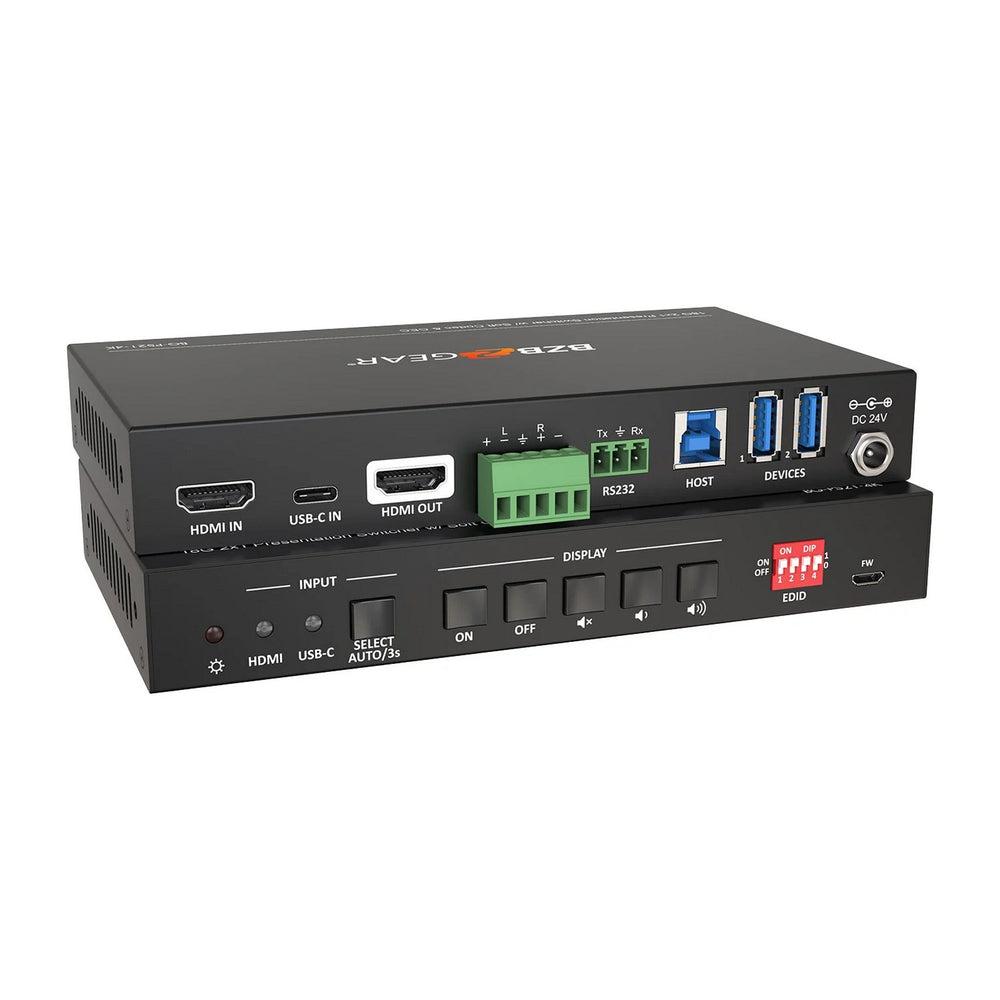

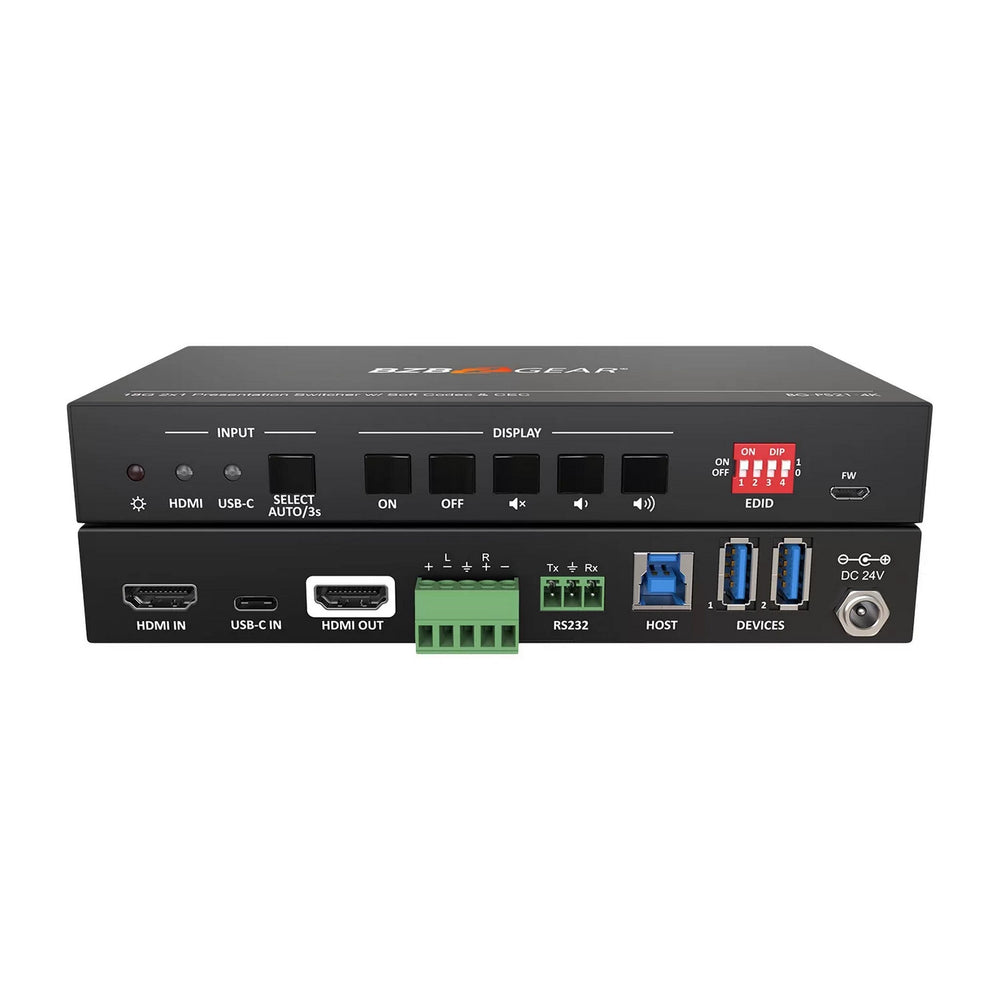

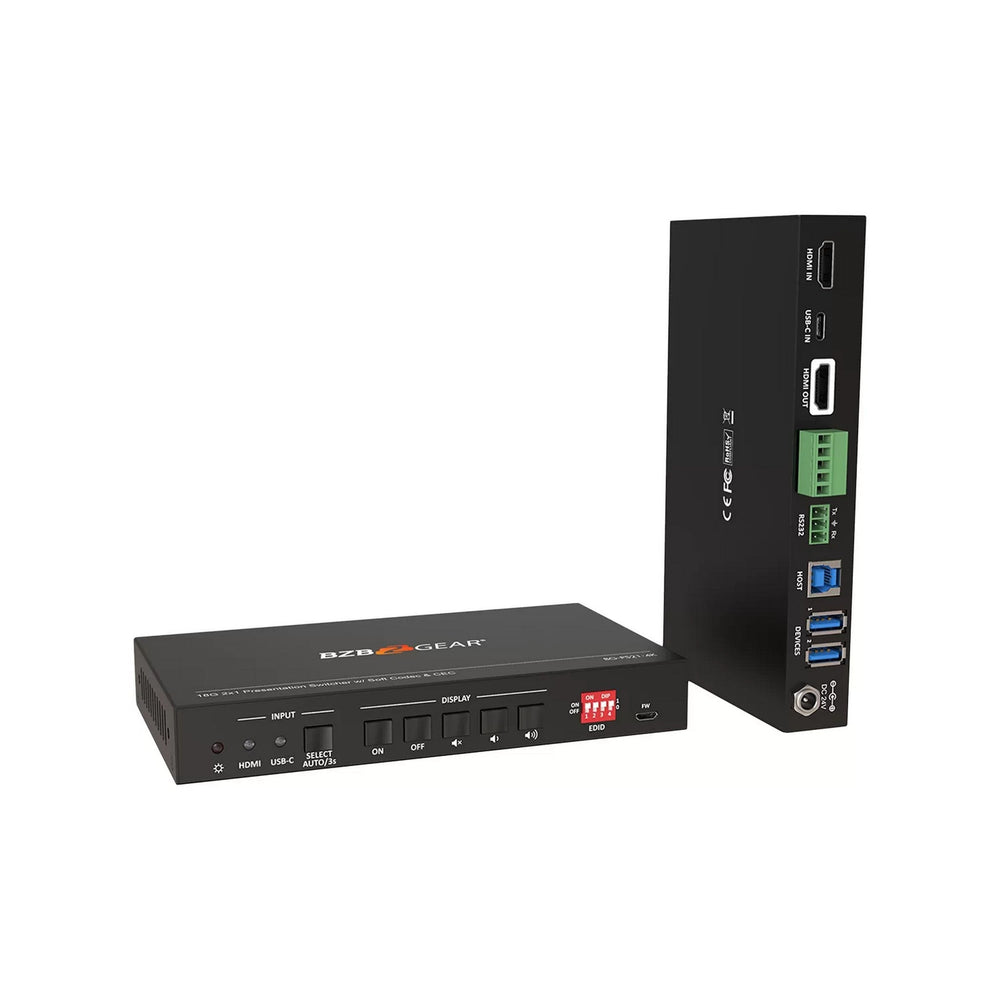

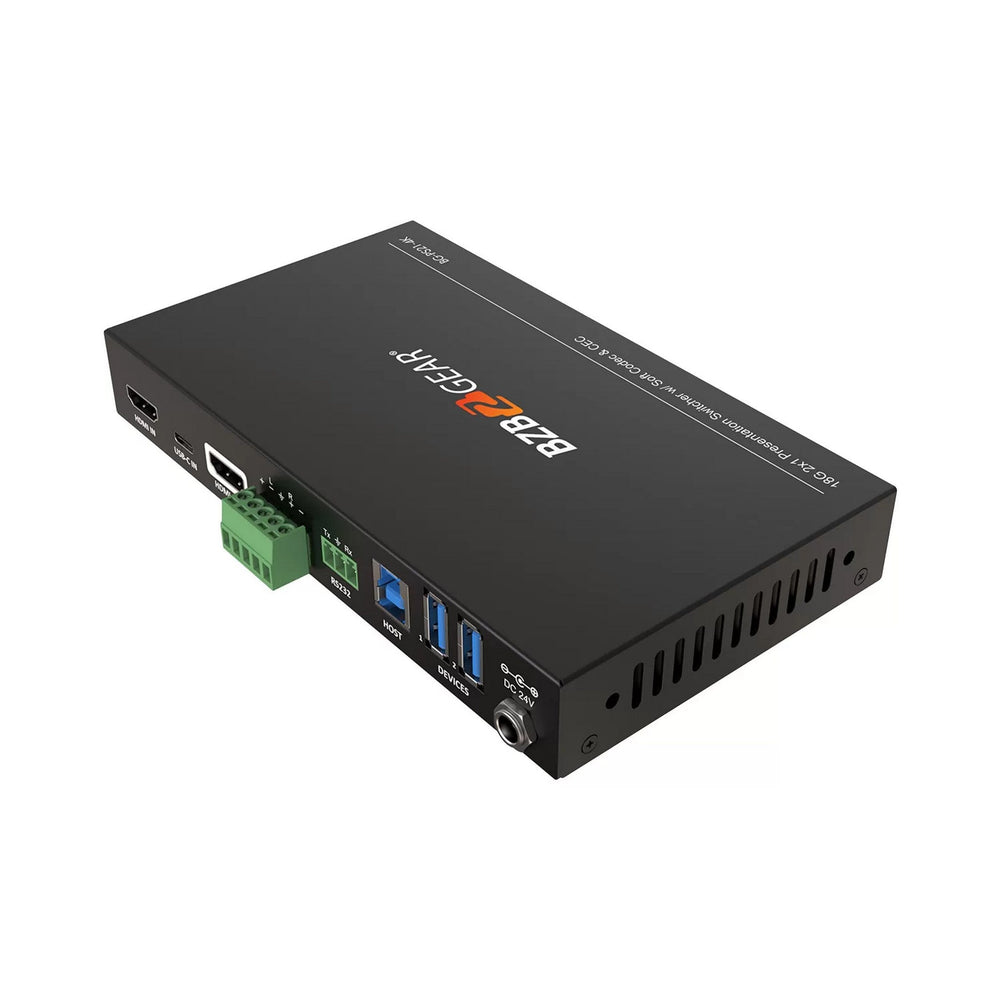

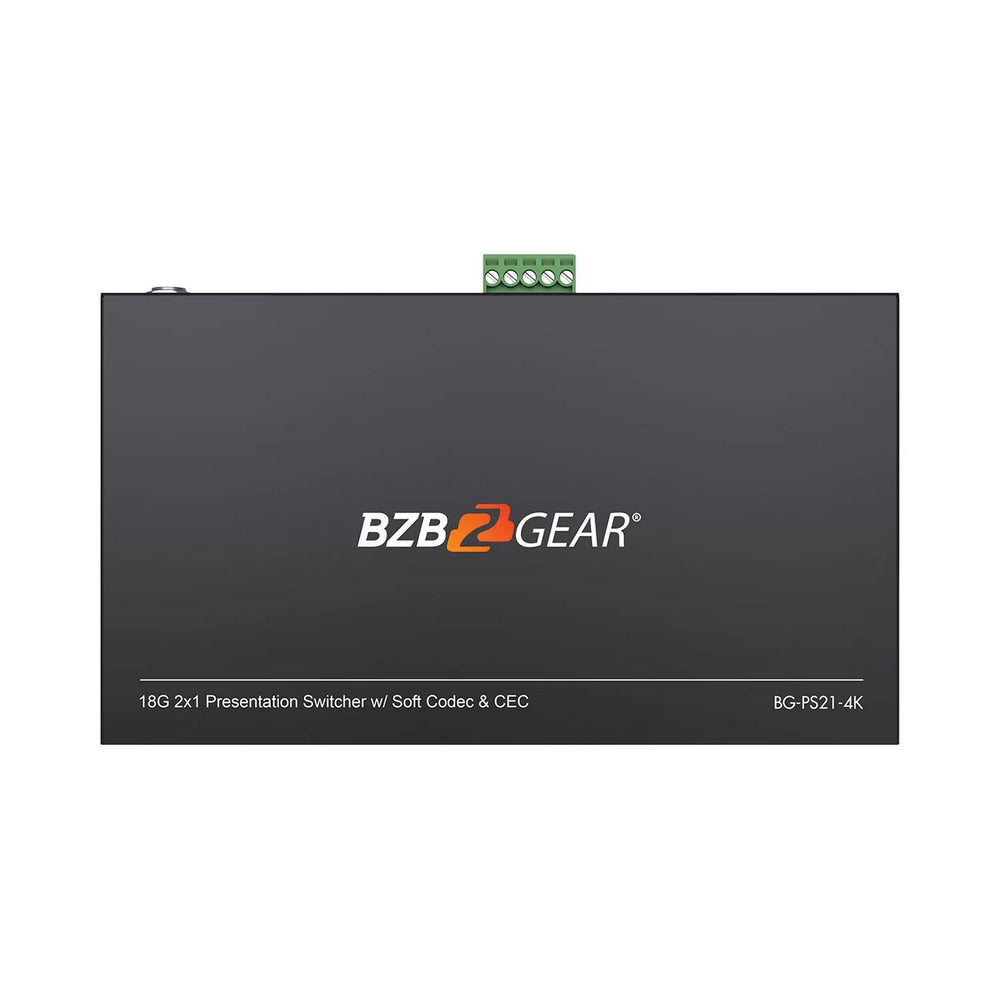

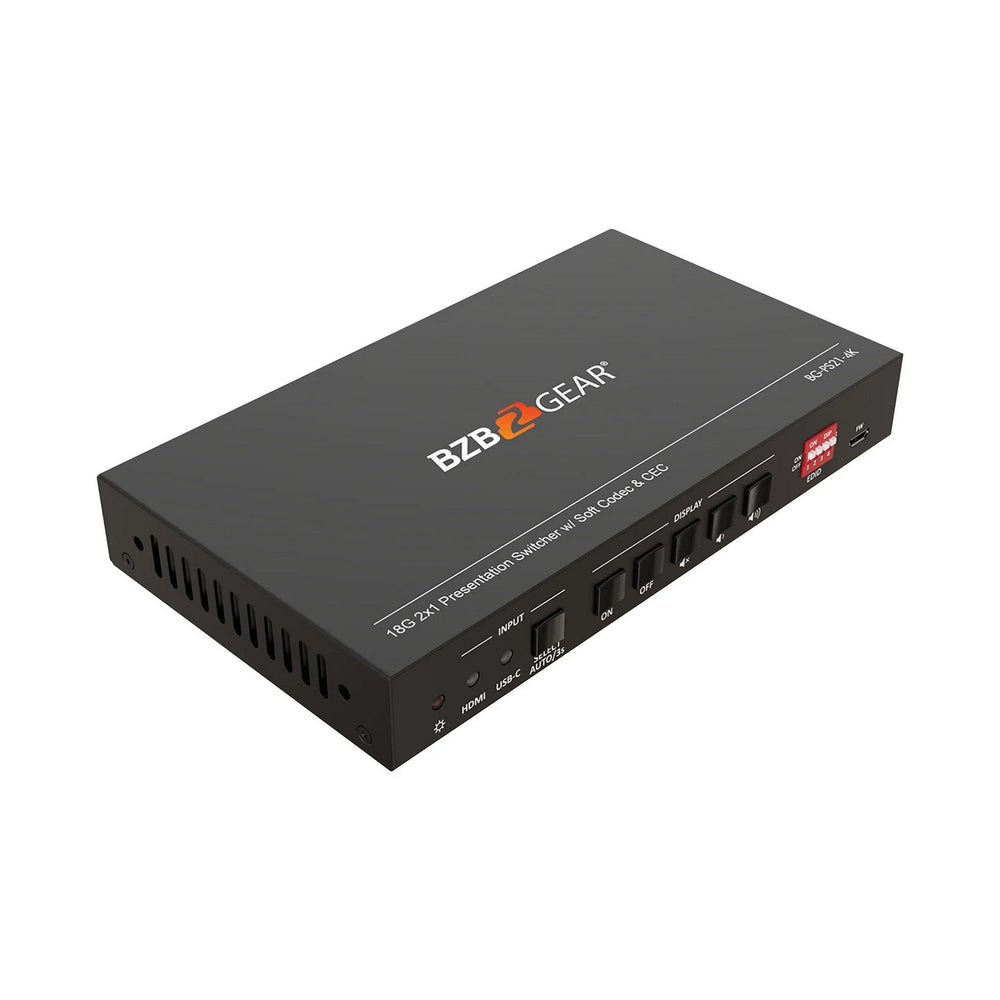

BZBGEAR BG-PS21 4K 2x1 18G 60Hz 4:4:4 Presentation 2-Port KVM Switcher with HDMI and USB-C Inputs

The BZBGEAR BG-PS21 4K 2x1 Presentation KVM Switcher is a powerful and versatile device that simplifies switching between two devices using HDMI or USB-C input sources. Perfect for professional and home office use, it supports resolutions up to 4K at 60Hz with 4:4:4 color depth, ensuring crisp and vibrant video output. Whether you're working with high-definition presentations or streaming 4K content, this switcher offers a seamless transition between your input sources to a single HDMI output.

Designed with convenience and high-performance in mind, the BZBGEAR BG-PS21 KVM Switcher features both HDMI and USB-C connectivity options for compatibility with a wide range of devices. The HDMI port supports full 4K at 60Hz with HDR10, making it ideal for those looking to leverage high-definition displays. Additionally, the USB-C input supports 4K at 30Hz for devices that require this alternative connection, providing flexibility in various setups.

With comprehensive support for modern audio formats, including LPCM 7.1, Dolby Atmos®, Dolby® TrueHD, and DTS:X™, this KVM switcher also ensures high-quality sound output. It features balanced stereo audio outputs and a variety of control options for user convenience. Whether you're connecting multimedia devices, controlling video switching, or managing audio output, the BZBGEAR BG-PS21 offers an all-in-one solution to meet the needs of the most demanding environments.

Key Features:

• Supports 4Kx2K resolutions at 60Hz with 4:4:4 color depth for exceptional video quality.
• Flexible connectivity with HDMI and USB-C inputs for wide device compatibility.
• HDR10 support for enhanced video clarity and vibrancy.
• Pass-through audio support for advanced formats including LPCM 7.1, Dolby Atmos®, and DTS-X™.
• Supports HDCP 2.2 for reliable content protection.
• Compact and efficient design with a space-saving profile.

Technical Specifications:

Video

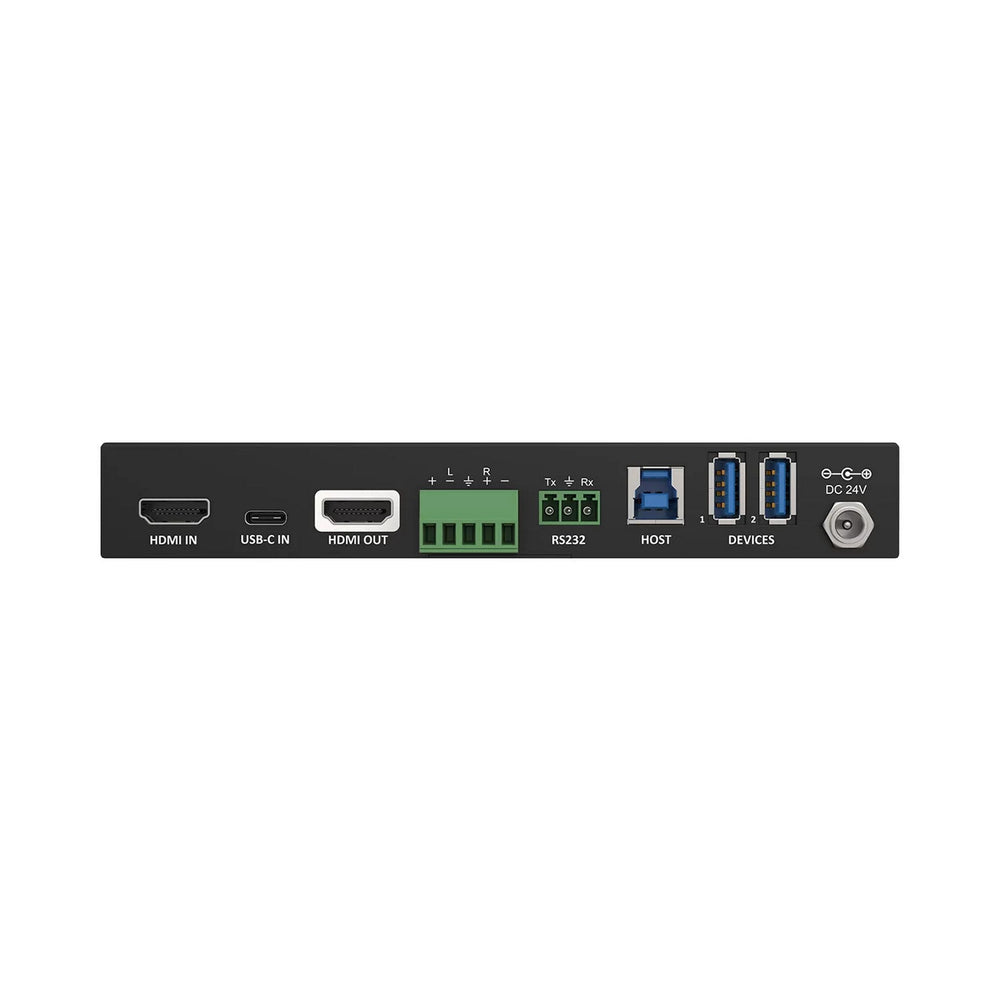

Video Input: (1) HDMI, (1) USB-C
Video Input Connector: (1) Type-A female HDMI, (1) Type-C USB
HDMI Input Resolution: Up to 4Kx2K@60Hz 4:4:4 8bit
USB-C Input Resolution: Up to 4Kx2K@30Hz 4:4:4
Video Output: (1) HDMI
Video Output Connector: (1) Type-A female HDMI
HDMI Output Resolution: Up to 4Kx2K@60Hz 4:4:4 8bit
HDMI Version: 2.0
HDCP Version: 2.2
USB Version: 3.0
HDR 10: Supported
CEC: Supported
HPD: Supported

Audio
Audio Output: (1) AUDIO OUT (Stereo balanced L/R)
Audio Output Connector: (1) 5-pin terminal block
HDMI Audio Format: LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS: X™, and DTS-HD® Master Audio™ pass-through
Stereo balanced L/R audio Format: PCM
Max Output Level: 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal
THD+N: <0.05% (-80dB), 20Hz ~ 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level)
SNR: >80dB, 20Hz ~ 20KHz bandwidth
Crosstalk Isolation: >70dB, 10KHz sine at 0dBFS level (or max level before clipping)
L-R Level Deviation: < 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping)
Frequency Response Deviation: <±0.5dB 20Hz ~ 20KHz
Output Load Capability: 1KΩ and higher (supports 10x paralleled 10KΩ loads)
Stereo Channel Separation: >70dB@1KHz

Control Part

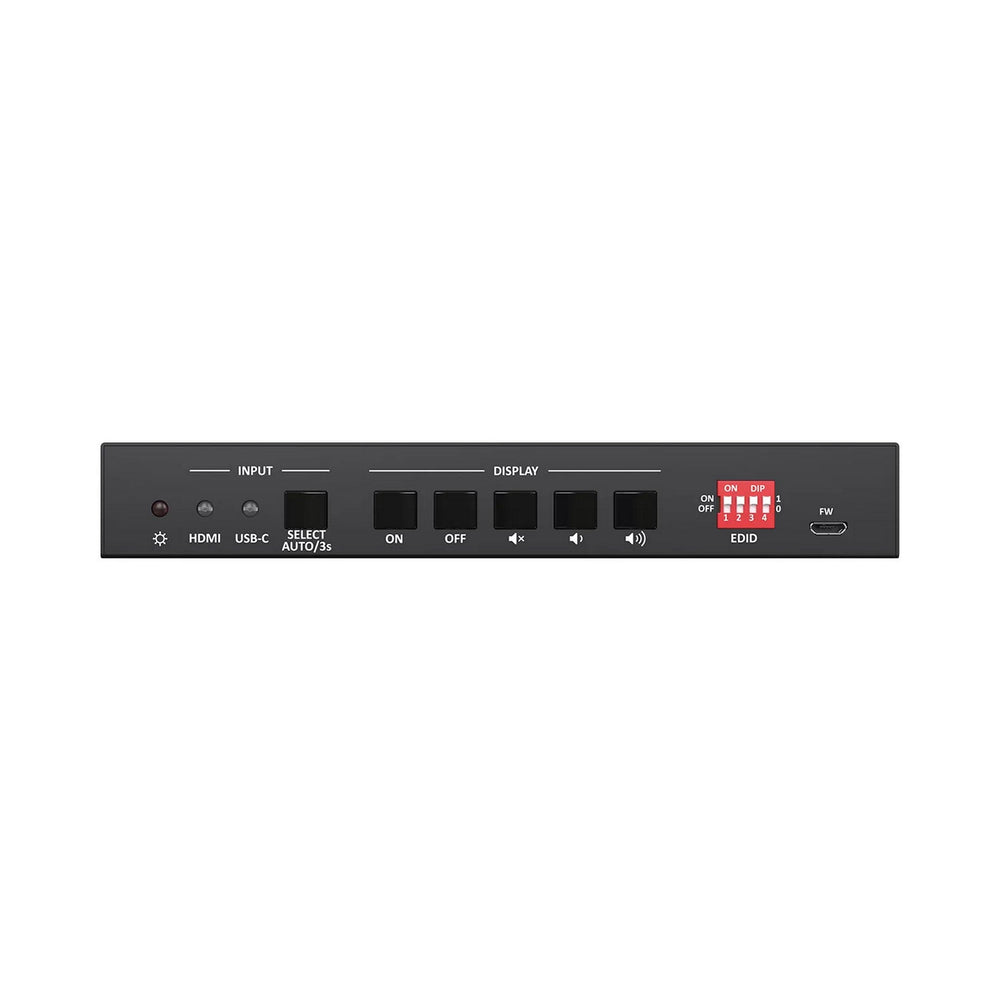

Control: (1) EDID, (1) FW, (1) RS232, (1) HOST, (2) DEVICE
Control Connector: (1) 4-pin DIP switch, (1) Micro-USB, (1) 3-pin terminal block, (1) Type-B USB 3.0, (2) Type-A USB 3.0

General
HDMI 2.0 Cable Length: 4K@60Hz 4:4:4 ≤ 16.4 ft, 4K@60Hz 4:2:0 ≤ 32.8 ft, 1080P ≤ 49.2 ft
Bandwidth: 18Gbps
Operation Temperature: 14°F ~ 131°F / -10°C ~ +55°C
Storage Temperature: -13°F ~158°F / -25°C ~ +70°C
Relative Humidity: 10% ~ 90%
External Power Supply: Input: AC 100~240V, 50/60Hz, Output: 24V DC 2.71A
Power Consumption: 54W (Max)
Dimension (W*H*D): 6.6" x 1.0" x 3.7" [168.0mm x 24.5mm x 95.0mm]
Net Weight: 0.54lbs [245g]

What's Included:

• 1x BG-PS21-4K 2x1 Presentation Switcher
• 2x Mounting Ears with 4 Screws
• 4x Plastic Cushions
• 1x 5-pin Terminal Block
• 1x RS232 Cable (3-pin terminal block to DB9)
• 1x Power Cord
• 1x Power Adapter (24V DC, 2.71A)
• 1x User Manual
