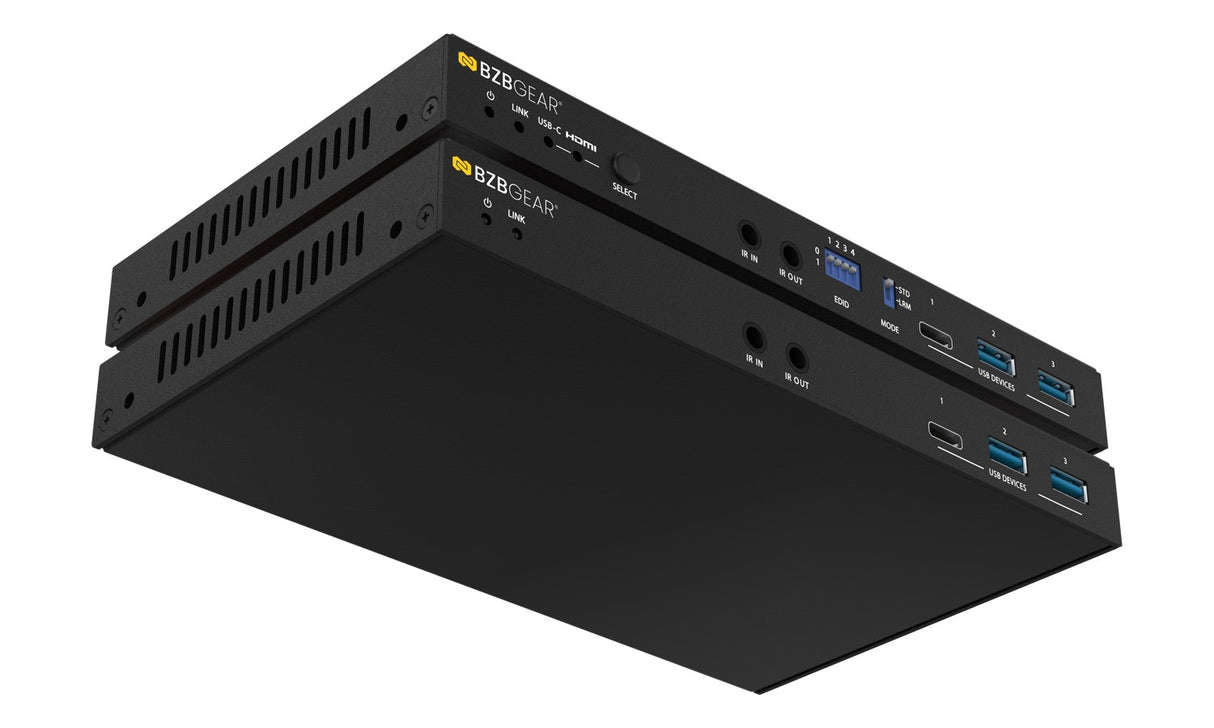

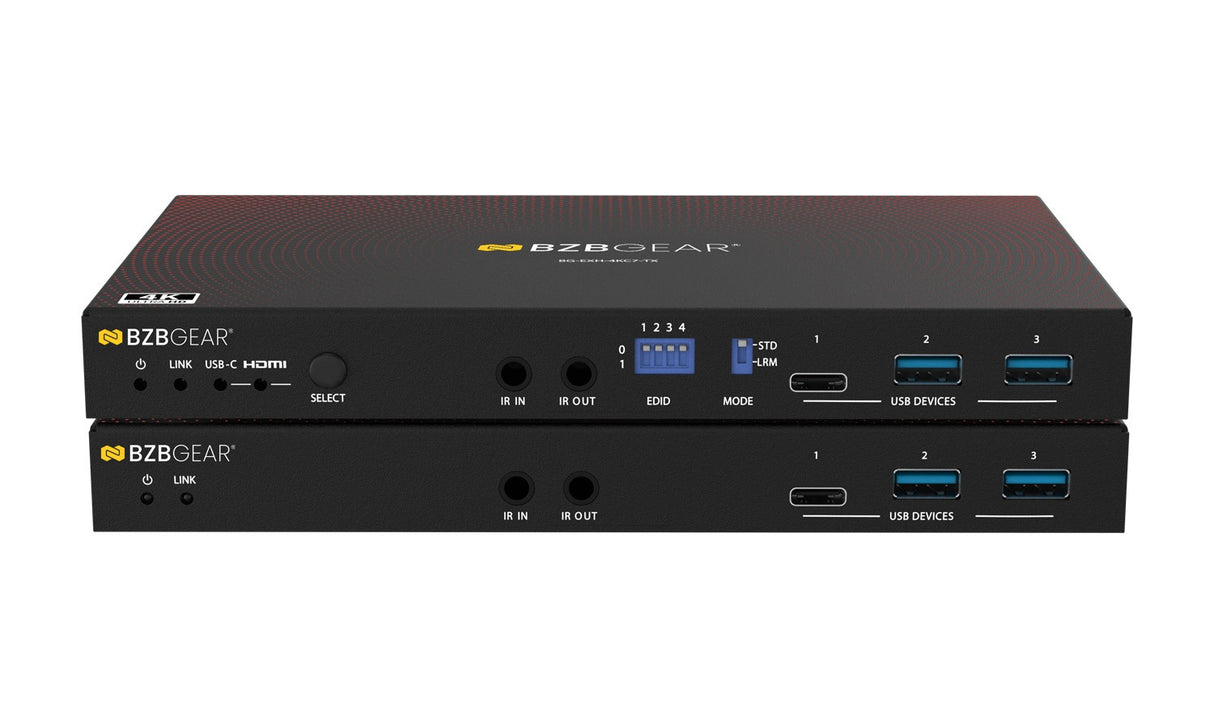

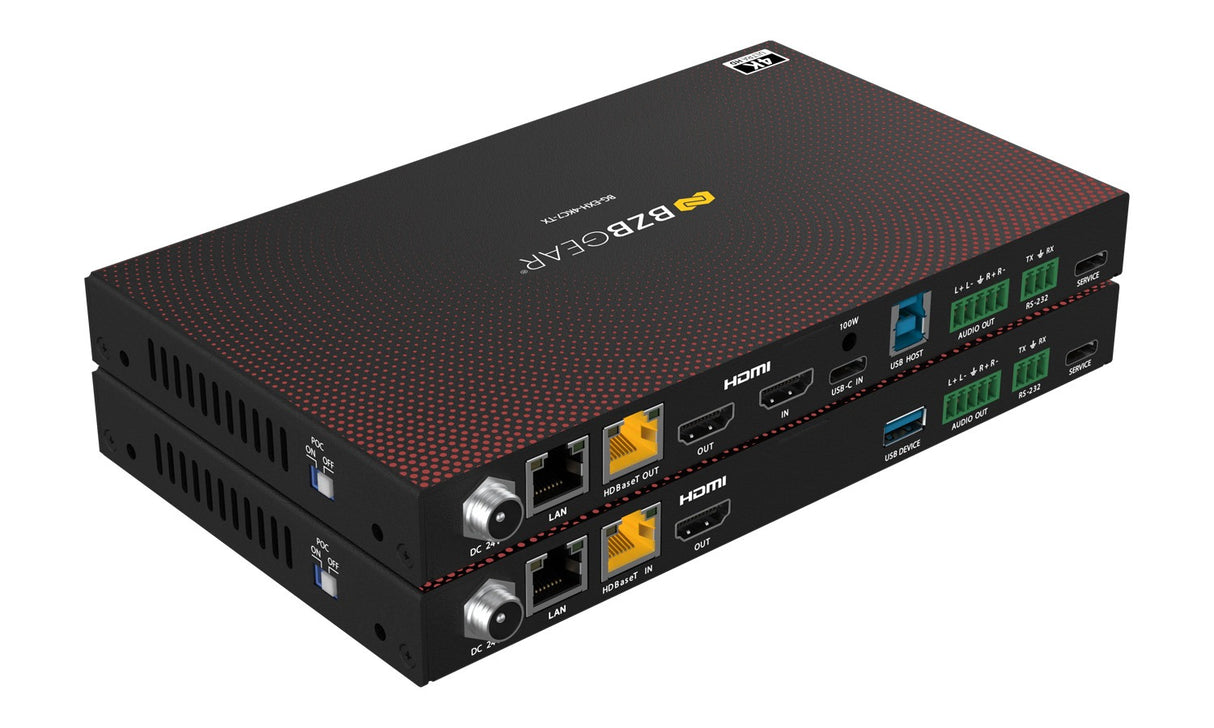

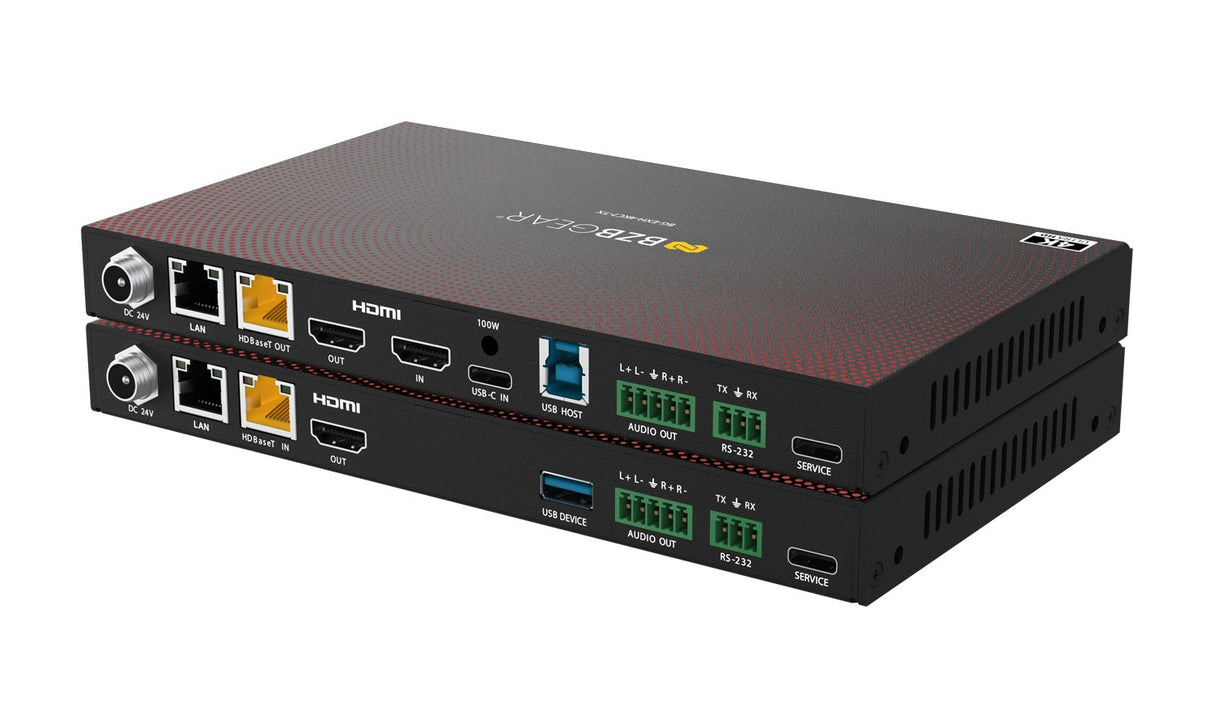

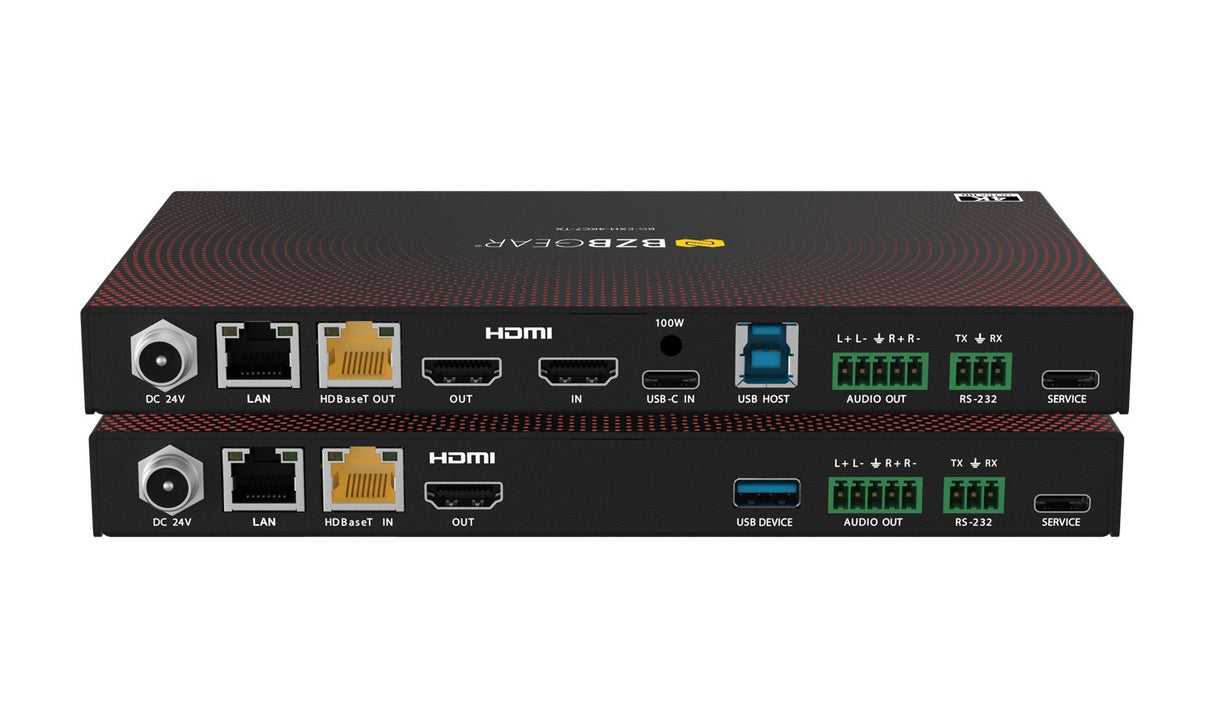

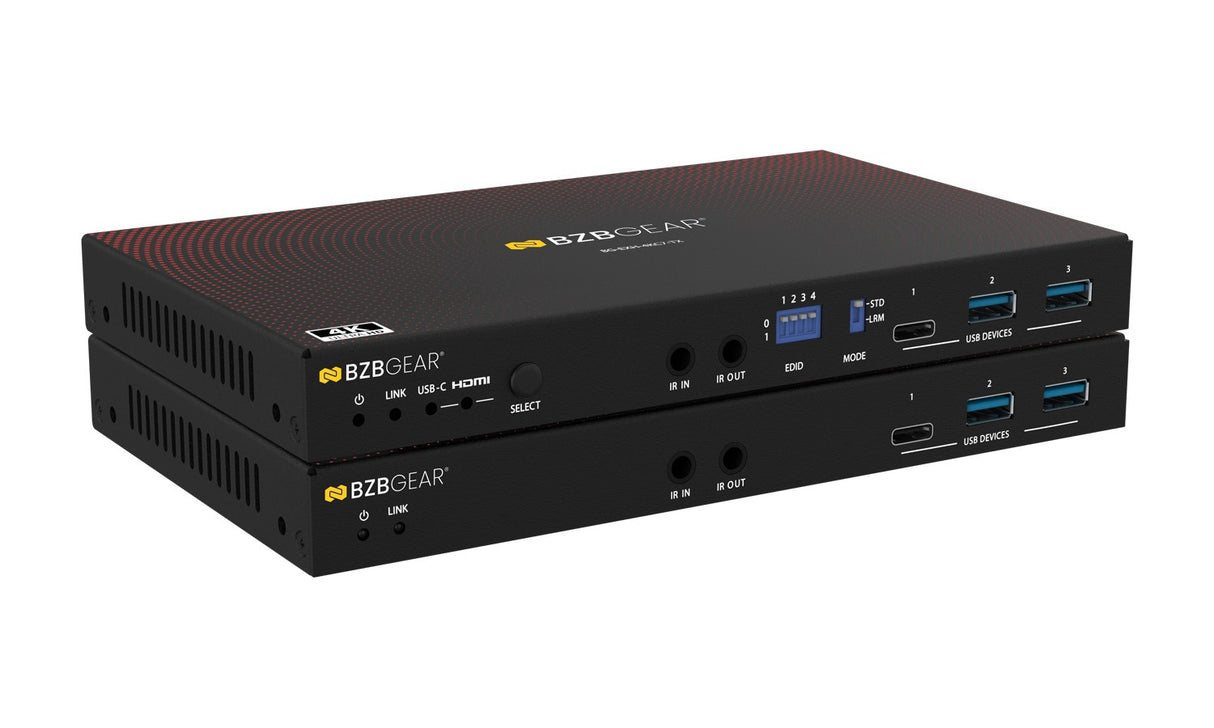

BZBGEAR BG-EXH-4KC7 4K HDMI & USB-C KVM HDBaseT 3.0 Extender Switcher

The BZBGEAR BG-EXH-4KC7 is a professional-grade 4K UHD HDMI and USB-C KVM HDBaseT 3.0 extender and switcher designed for high-performance AV, IT, and control system environments. Built to support modern workstations and multimedia sources, it enables long-distance transmission of uncompressed 4K video, USB, audio, Ethernet, and control signals over a single CAT6A/7 cable.

Engineered for reliability and flexibility, this HDBaseT 3.0 solution supports HDMI and USB-C input switching, full KVM functionality, 100W USB-C charging, and Power over Cable (PoC) to the receiver. It is ideally suited for conference rooms, classrooms, command centers, medical imaging, and control room applications where seamless signal extension and device control are essential.

Key Features

• 4K UHD HDBaseT 3.0 Extension: Transmits up to 4K60 video up to 328 ft (100 m) over CAT6A/7 and up to 492 ft (150 m) at 1080p.
• HDMI & USB-C Input Switching: Supports both HDMI and USB-C sources with seamless switching for modern AV workflows.
• Full KVM Functionality: Extends keyboard, mouse, USB peripherals, and video for remote workstation control.
• 100W USB-C Power Delivery: Provides up to 100W charging to connected USB-C host devices.
• Power over Cable (PoC): Powers the receiver directly from the transmitter via HDBaseT.
• Advanced Audio Support: Supports HDMI and analog audio with Dolby Atmos, DTS-HD Master Audio, and high-resolution PCM formats.
• Comprehensive Control Options: Includes IR, RS-232, and Ethernet pass-through for system integration.
• HDR & Wide Color Support: Compatible with HDR, HDR10, HDR10+, Dolby Vision, and HLG.
• Rugged Metal Enclosure: Built for continuous professional operation in demanding environments.

Technical Specifications

• HDMI Compliance: HDMI 2.0b
• HDCP Compliance: HDCP 2.2
• DisplayPort Compliance: DisplayPort 1.4a (via USB-C)
• Video Bandwidth: 18 Gbps
• Maximum Resolution: Up to 4096×2160p60 and 3840×2160p120
• Color Space: RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
• Color Depth: 8-bit / 10-bit / 12-bit
• HDR Formats: HDR, HDR10, HDR10+, Dolby Vision, HLG
• Audio Formats (HDMI/USB-C/HDBT): LPCM 2/5.1/7.1CH, Dolby Digital/Plus/TrueHD/Atmos, DTS-HD Master Audio, DSD
• Analog Audio Output: LPCM 2CH, 32–192 kHz
• USB Support: TX: USB 3.2 Gen 1 (5 Gbps), RX: USB 2.0
• Ethernet: 1G Ethernet pass-through
• Transmission Distance: 328 ft @ 4K60, 492 ft @ 1080p over CAT6A/7
• ESD Protection: IEC 61000-4-2 ±8kV air, ±4kV contact
• Housing: Metal enclosure, black
• Dimensions (Each Unit): 8.2 × 4.8 × 0.87 inches (W × D × H)
• Operating Temperature: 32°F to 104°F (0°C to 40°C)

What’s Included

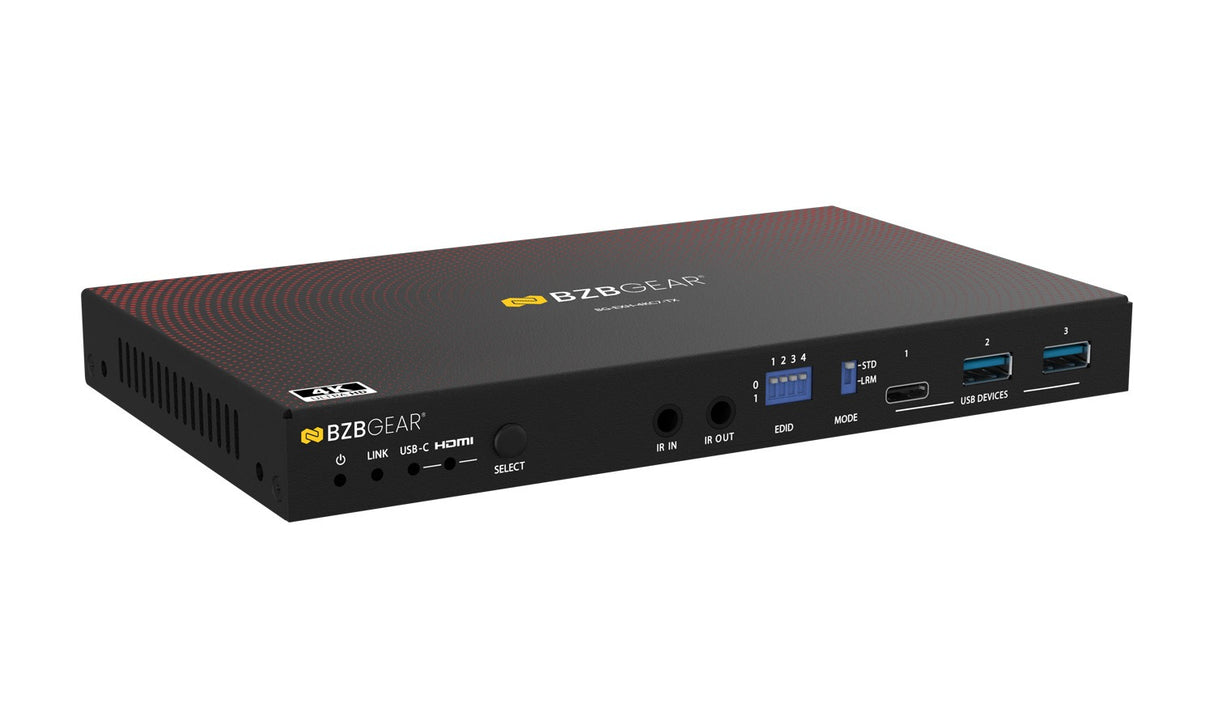

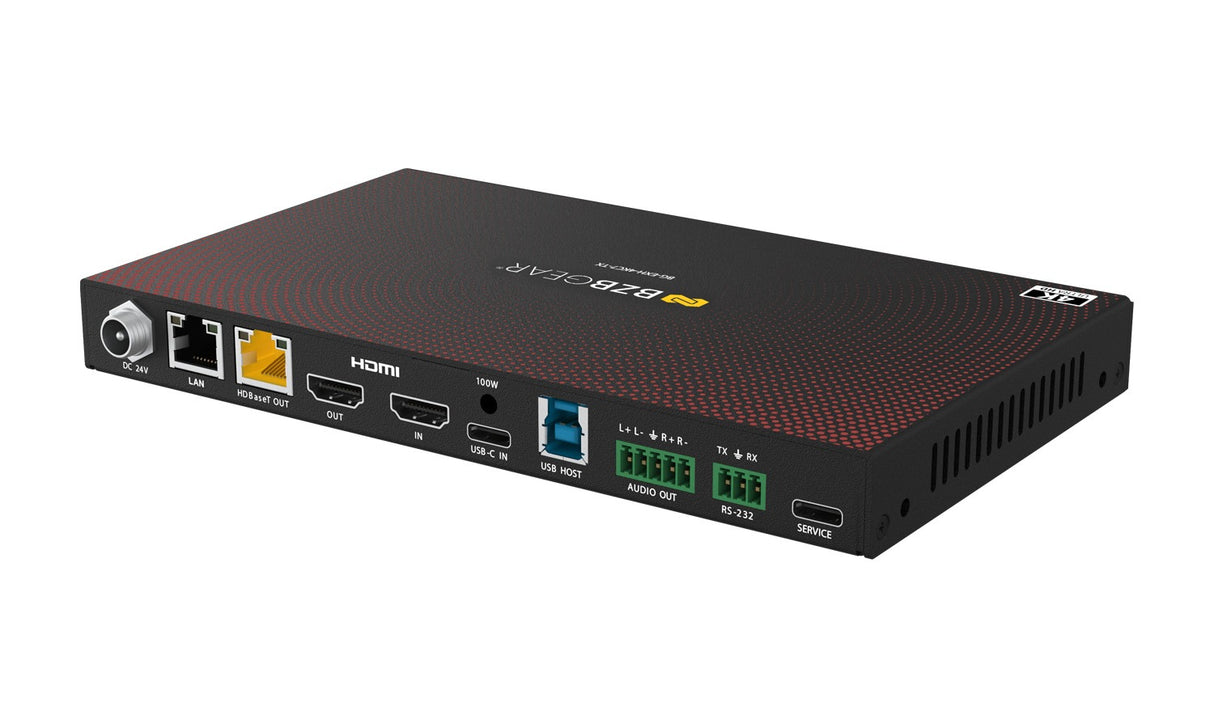

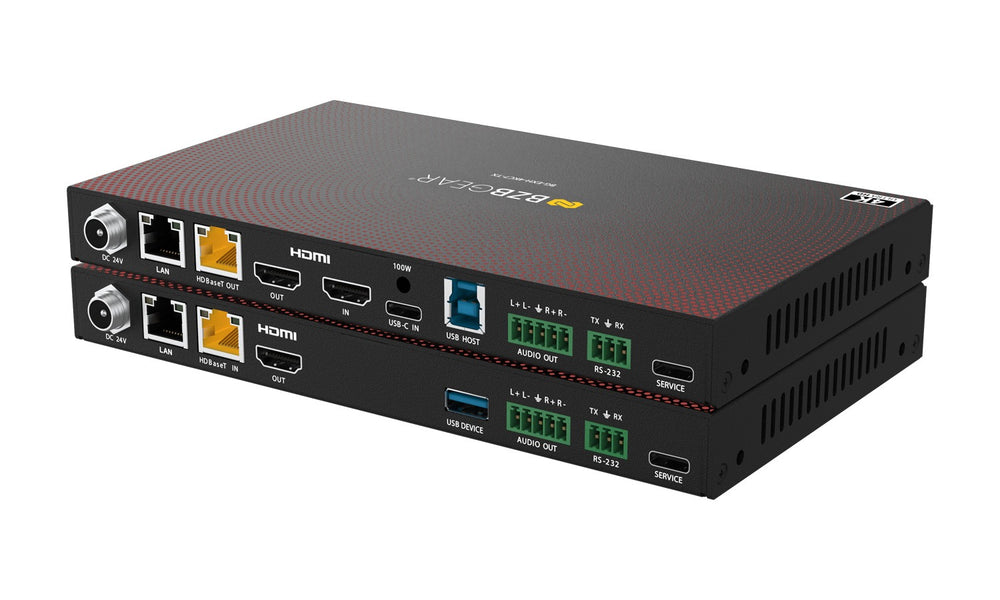

• 1 × 4K HDMI/USB-C over HDBaseT 3.0 Transmitter

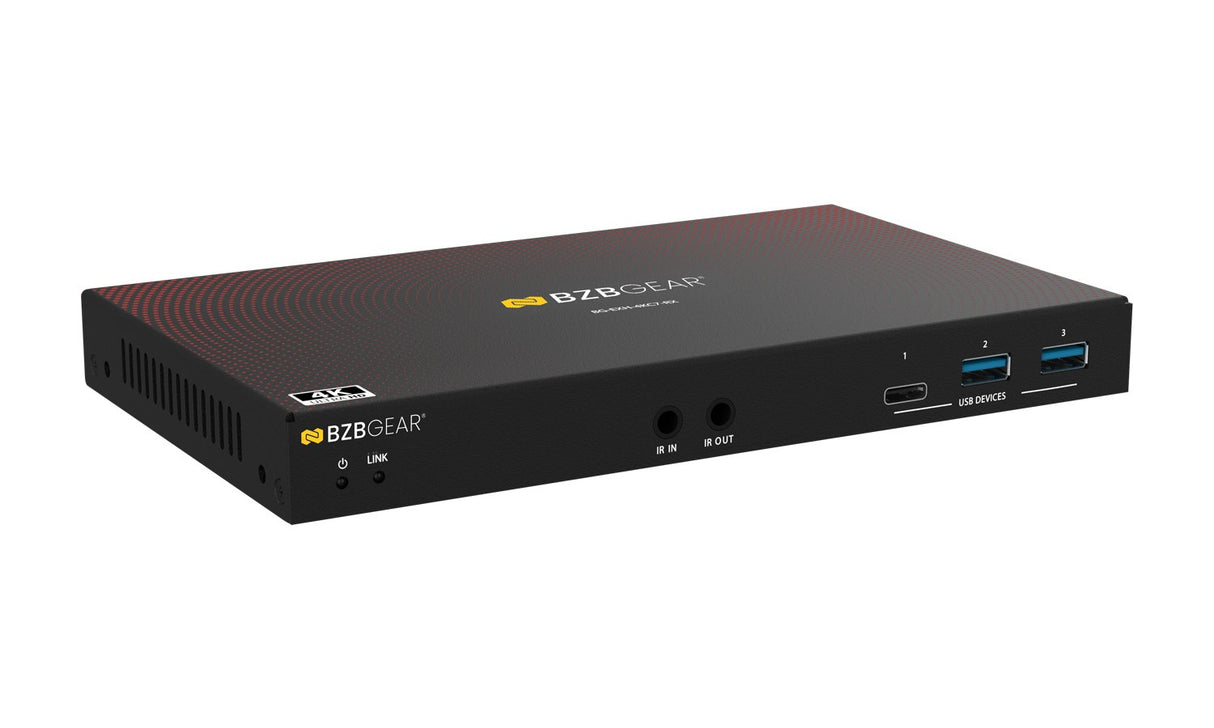

• 1 × 4K HDMI/USB-C over HDBaseT 3.0 Receiver
• 2 × 3-pin 3.5 mm Phoenix connectors (male)
• 2 × 5-pin 3.5 mm Phoenix connectors (male)
• 4 × Mounting ears
• 8 × Machine screws (KM3×6)
• 1 × IR blaster cable (1.5 m)
• 1 × IR receiver cable (1.5 m)
• 1 × 24V / 7.5A desktop power supply
• 1 × User manual
