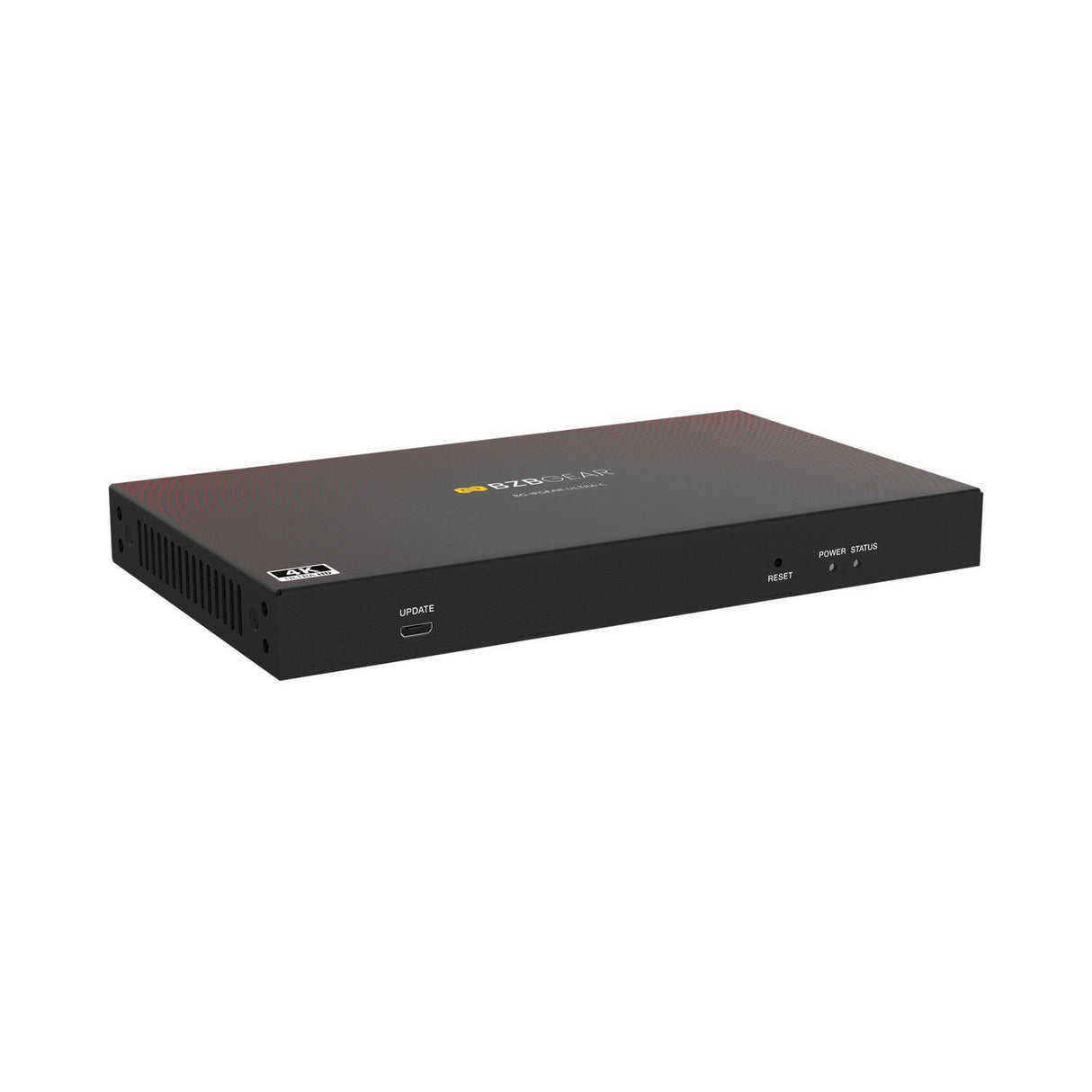

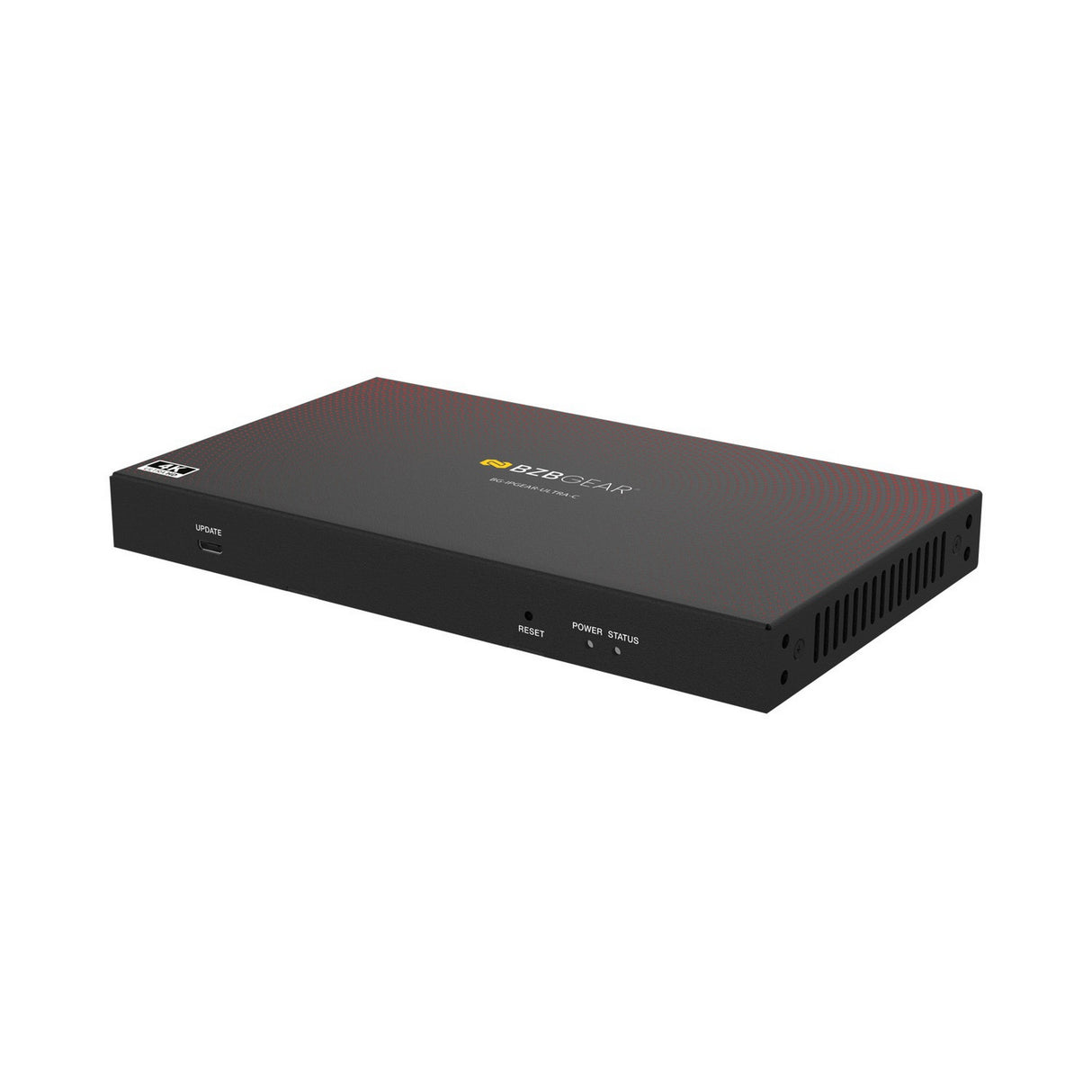

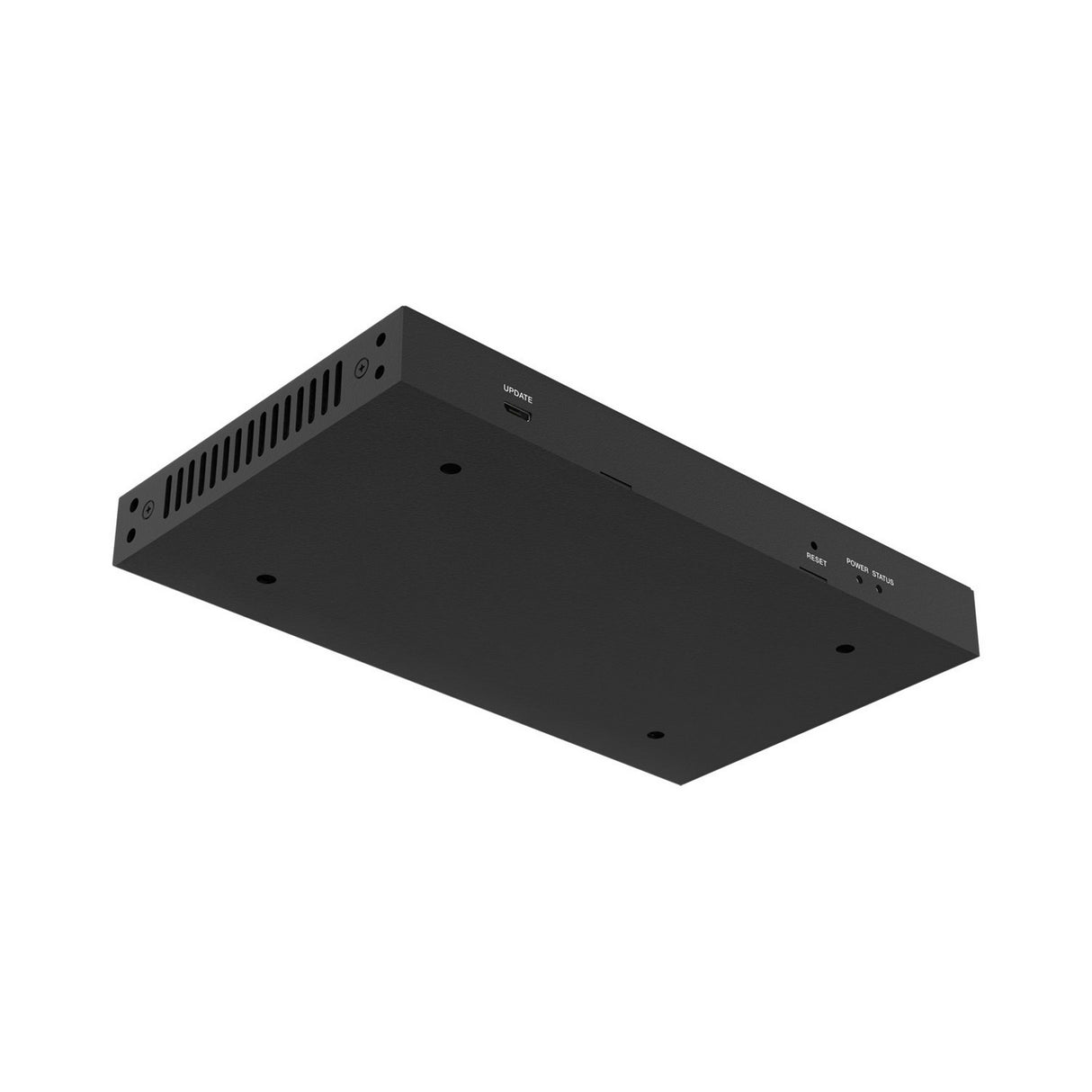

BZBGEAR BG-IPGEAR-ULTRA-C Smart Controller for IPGEAR Ultra HDMI over IP

Product Overview

The BZBGEAR BG-IPGEAR-ULTRA-C Smart Controller is a dedicated centralized control solution designed specifically for the IPGEAR Ultra HDMI over IP series. Engineered for professional AV installations, this controller enables streamlined management of video distribution, control signals, and system communication across a gigabit network.

Built for reliability in commercial environments such as conference rooms, classrooms, control rooms, and digital signage systems, the BG-IPGEAR-ULTRA-C supports long-distance transmission over standard CAT5e/6/6A/7 cabling while offering flexible control interfaces including LAN, RS-232, IR, and digital I/O. Its compact metal enclosure ensures durability while allowing easy rack or surface mounting.

Key Features

• Dedicated IPGEAR Ultra Control: Purpose-built smart controller for centralized management of IPGEAR Ultra HDMI over IP systems.
• Gigabit Network Performance: Supports 1G network bandwidth for stable and responsive system communication.
• Long-Distance Transmission: Enables control and video network operation up to 100 meters over CAT5e/6/6A/7 cabling.

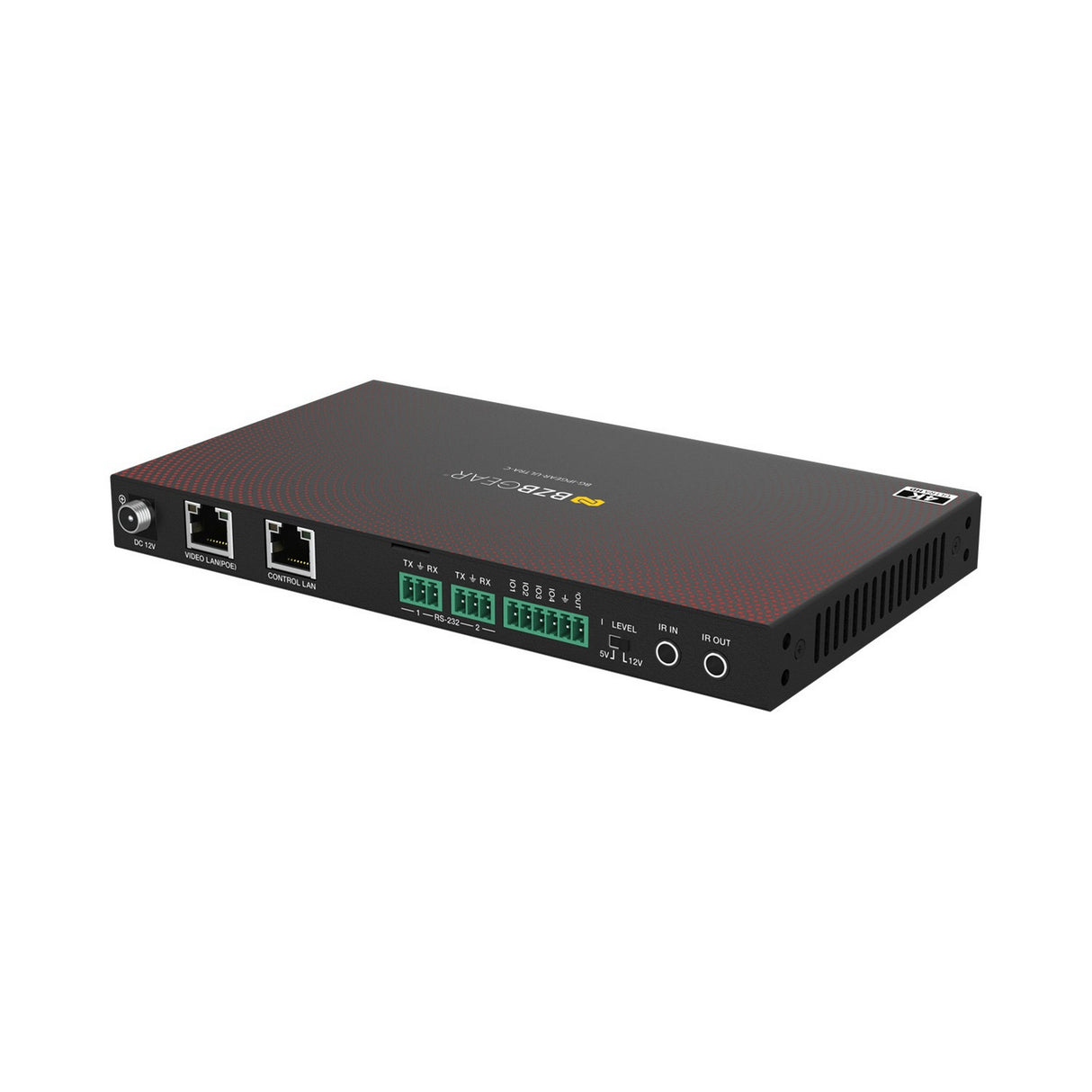

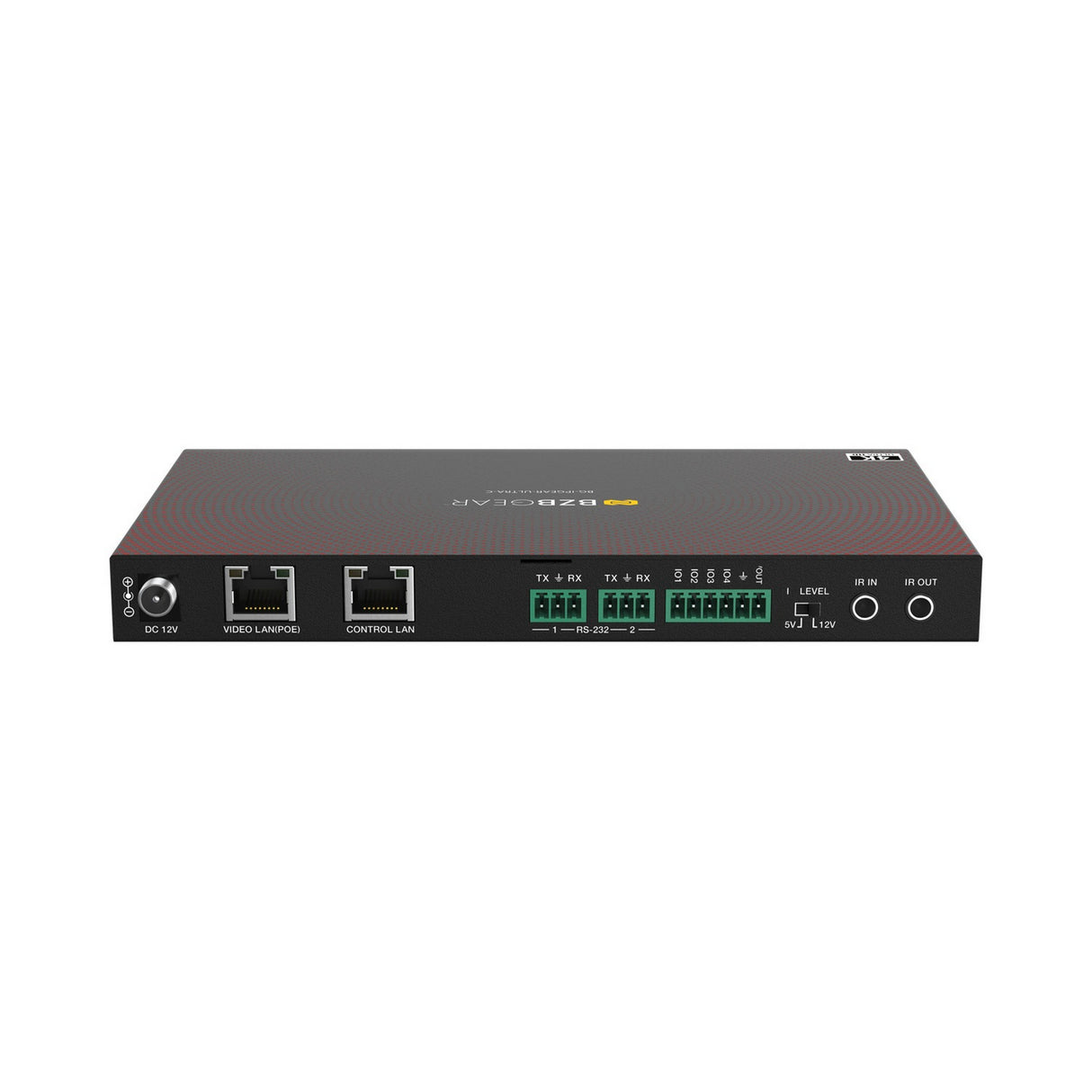

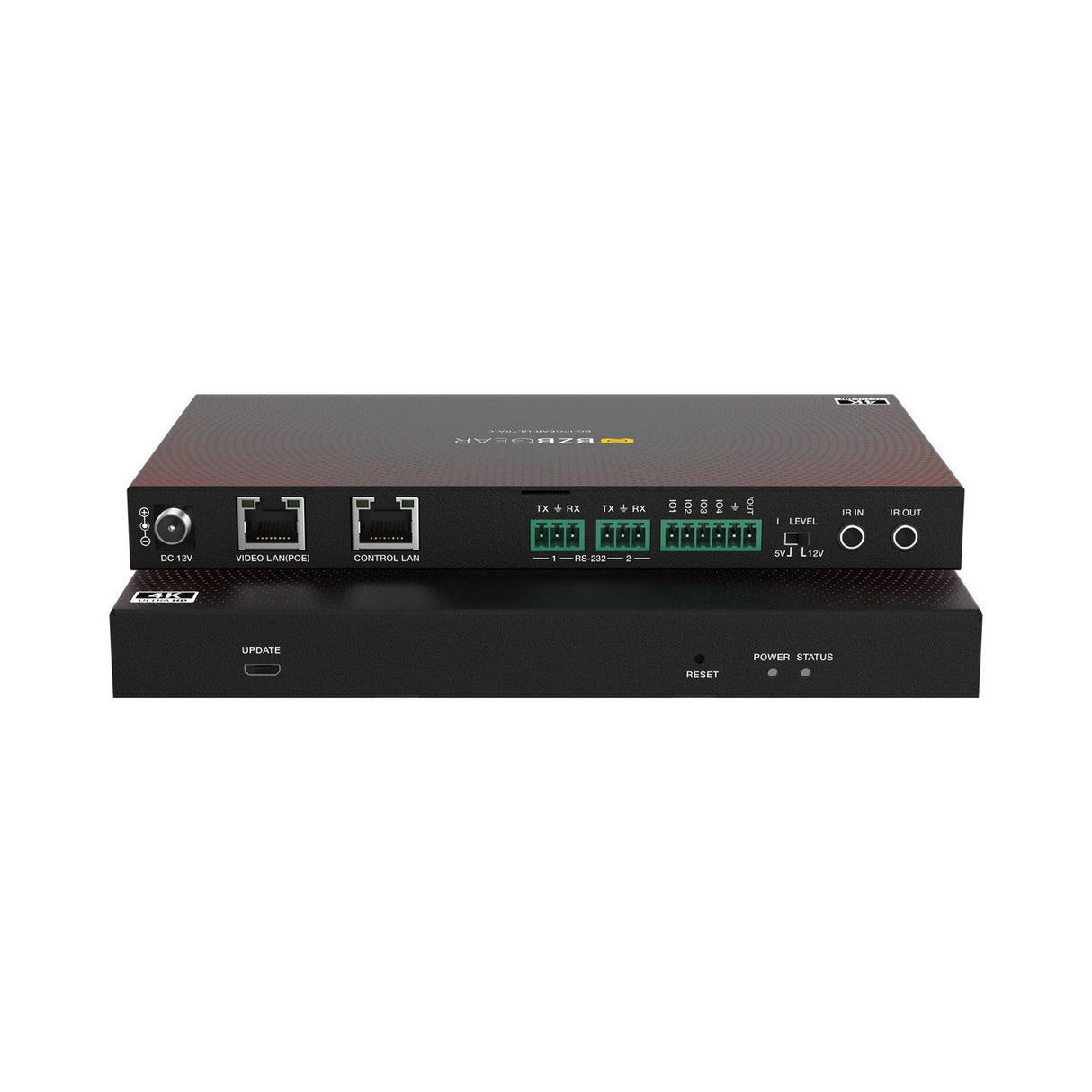

• Comprehensive Control Interfaces: Includes dual LAN ports, RS-232, IR input/output, and digital I/O for advanced system integration.
• PoE-Compatible Video LAN: Video LAN port supports Power over Ethernet for simplified deployment.
• Professional Metal Enclosure: Durable black metal housing designed for commercial AV installations.

Technical Specifications

• Network Bandwidth: 1G
• Transmission Distance: Up to 100 ft (CAT5e/6/6A/7)
• LAN Ports: 2 × 1G RJ45 (Video LAN supports PoE)
• IR Input: 1 × 3.5mm jack, 12V level
• IR Output: 1 × 3.5mm jack, 5V level
• Digital I/O: 1 × 6-pin 3.81mm Phoenix connector
• RS-232: 2 × 3-pin 3.81mm Phoenix connectors
• Update Port: Micro USB (5-pin female)
• Power Supply: 12V / 2.5A
• Power Consumption: 6.84 W
• Operating Temperature: 32°F to 104°F
• Storage Temperature: -4°F to 140°F
• Operating Humidity: 20% to 80% RH, non-condensing
• Storage Humidity: 10% to 90% RH, non-condensing
• Dimensions (W × D × H): 8.0 in × 4.6 in × 0.85 in
• Housing: Metal enclosure
• Color: Black
• Weight: 1.3 lbs

What's Included

• 1 × H.264/H.265 Video over IP Controller
• 1 × 12V IR Receiver Cable (1.5 m, 20 kHz–60 kHz)
• 1 × IR Blaster Cable (1.5 m)
• 2 × 3-pin 3.81mm Phoenix Connectors (Male)
• 1 × 6-pin 3.81mm Phoenix Connector (Male)
• 2 × Mounting Ears
• 4 × Machine Screws (KM3 × 6)
• 1 × 12V / 2.5A Locking Power Adapter
• 1 × User Manual
