Description

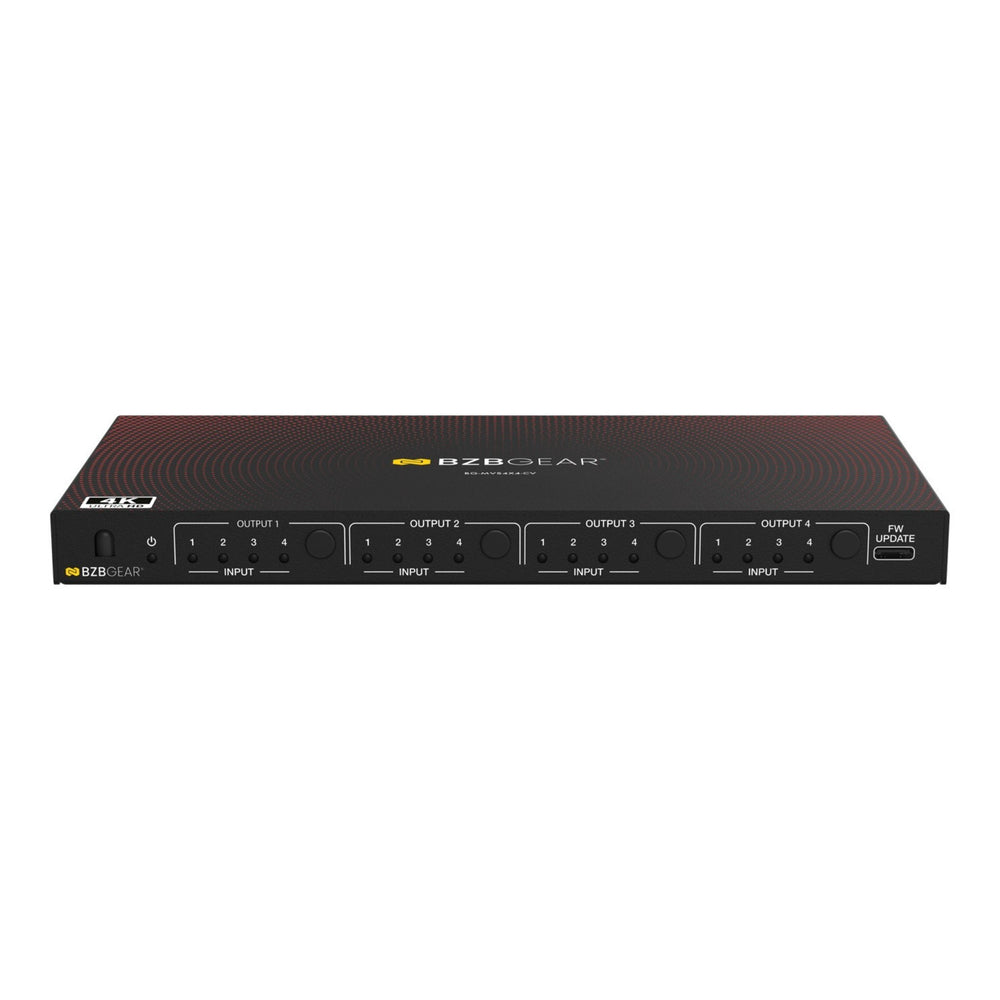

4x4 4K HDMI Seamless Matrix Switcher and Video Wall Processor
The BZBGEAR BG-MVS4X4-CV is a professional-grade 4x4 HDMI seamless matrix switcher and video wall processor designed for commercial AV environments requiring flexible signal routing, real-time switching, and advanced display control. Supporting up to 4K UHD resolution at 30Hz, this compact yet powerful unit enables seamless HDMI switching without signal interruption, making it ideal for control rooms, digital signage, conference spaces, and broadcast applications.
With integrated scaling and video wall processing, the BG-MVS4X4-CV allows users to configure multiple display layouts, route any HDMI source to any display, and maintain optimal image quality across mixed-resolution screens. Support for IR remote control and RS-232 integration ensures compatibility with professional control systems, while the durable metal enclosure supports reliable 24/7 operation.
Key Features
- 4x4 HDMI Matrix Switching: Seamlessly route four HDMI sources to four HDMI displays with instant, glitch-free transitions.
- Integrated Video Wall Processing: Supports multi-display video wall configurations for dynamic visual presentations.
- Built-In Scaling: Automatically scales input signals to match output display resolutions for consistent image quality.
- 4K UHD Support: Handles input resolutions up to 4K@30Hz with support for multiple UHD and HD output formats.
- Advanced Audio Support: Passes multi-channel HDMI audio including Dolby Digital Plus and DTS formats.
- Professional Control Options: Includes IR remote control and RS-232 interface for system integration.
- Compact Metal Enclosure: Durable, space-saving design suitable for rack shelves or surface mounting.
Technical Specifications
- HDMI Compliance: HDMI 1.4b
- HDCP Compliance: HDCP 1.4
- Video Bandwidth: 10.2Gbps
- Input Video Resolution: Up to 4K2K@30Hz
- Output Video Resolutions: 4096x2160p30Hz, 3840x2160p30Hz, 1920x1200p60Hz, 1920x1080p60Hz/50Hz, 1600x1200p60Hz, 1600x900p60Hz, 1440x900p60Hz, 1360x768p60Hz, 1280x1024p60Hz, 1280x720p60Hz/50Hz, 1024x768p60Hz
- Color Depth: 8-bit / 10-bit / 12-bit
- Color Space: RGB 4:4:4, YCbCr 4:4:4, 4:2:2, 4:2:0
- HDMI Audio Formats: LPCM 2.0/5.1, Dolby 2.0/5.1, Dolby Digital Plus, DTS 2.0/5.1
- IR Level: 5Vp-p
- IR Frequency: 38KHz
- Transmission Distance: 16 ft (4K30), 33 ft (1080p 4:4:4)
- ESD Protection: IEC 61000-4-2 ±8kV air, ±4kV contact
- HDMI Inputs: 4 × HDMI Type A (19-pin female)
- HDMI Outputs: 4 × HDMI Type A (19-pin female)
- Control Interfaces: RS-232 (3-pin 3.5mm Phoenix), USB-C (Service)
- Power Supply: DC 12V / 1A (AC 100–240V, 50/60Hz)
- Power Consumption: 3.6W (max)
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Operating Humidity: 20%–80% non-condensing
- Storage Humidity: 10%–90% non-condensing
What's Included
- 4K 4x4 HDMI Seamless Matrix Switcher and Video Wall Processor
- IR Remote Control
- 3-pin 3.5mm Phoenix Connector (Male)
- Mounting Ears (Pair)
- Machine Screws (KM3×4)
