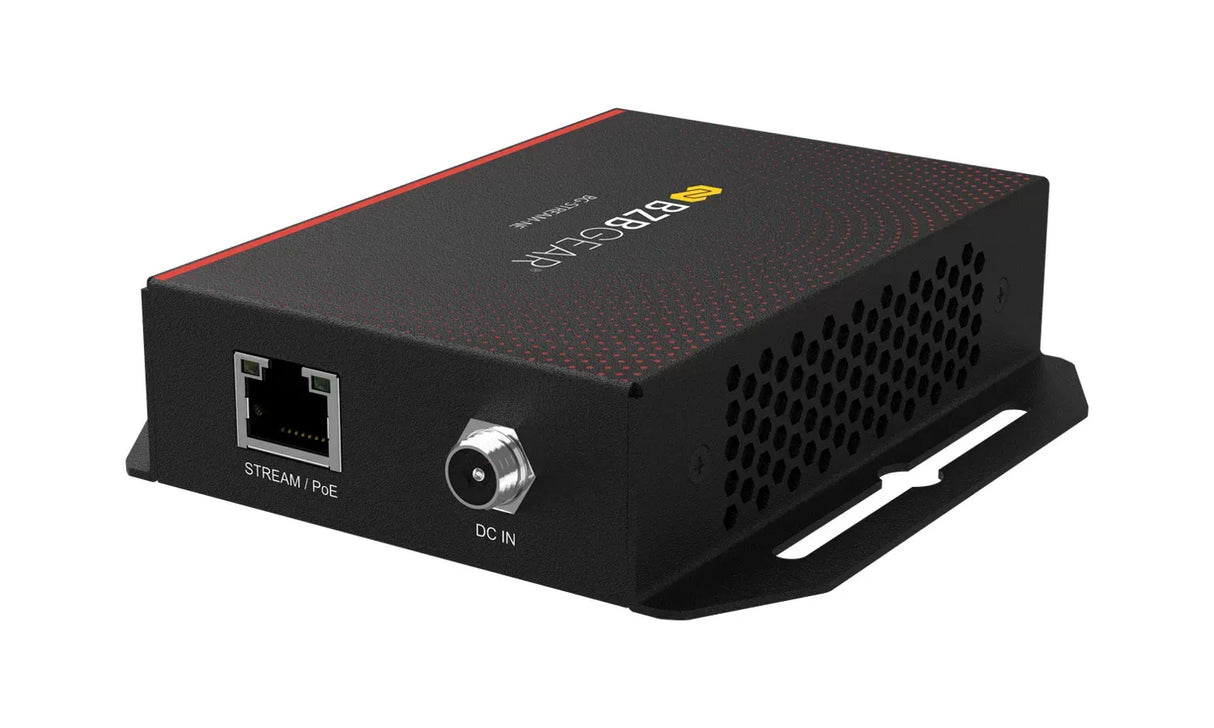

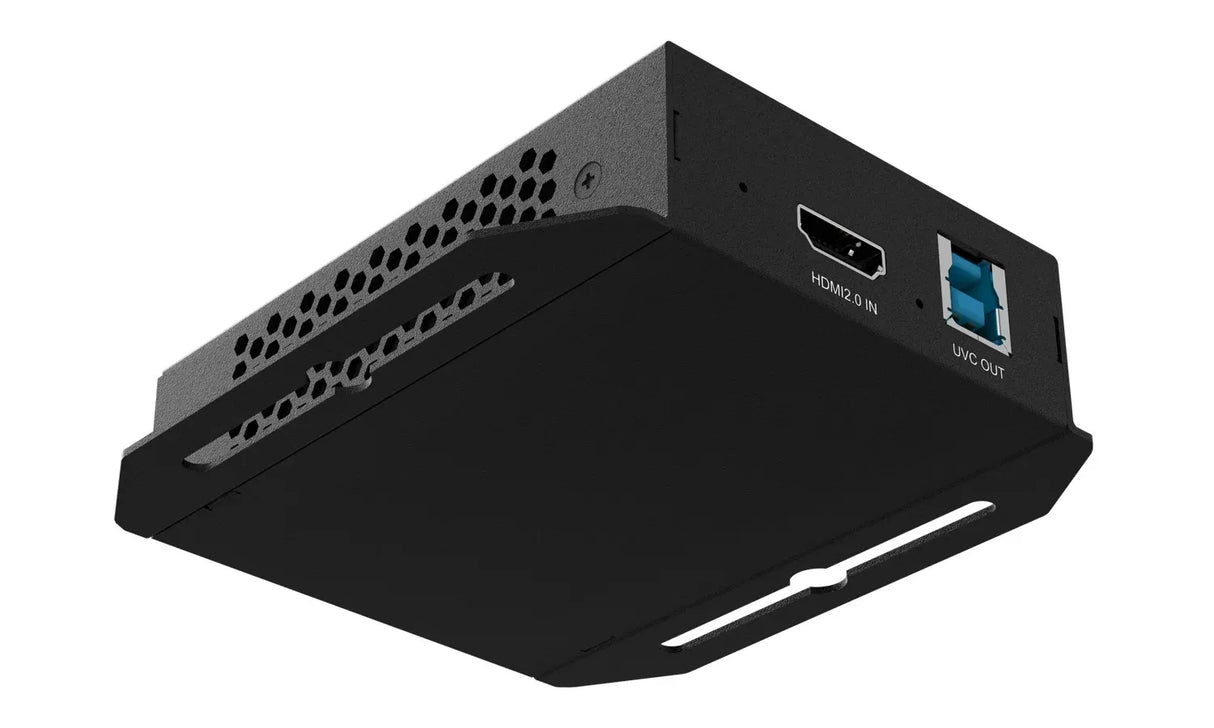

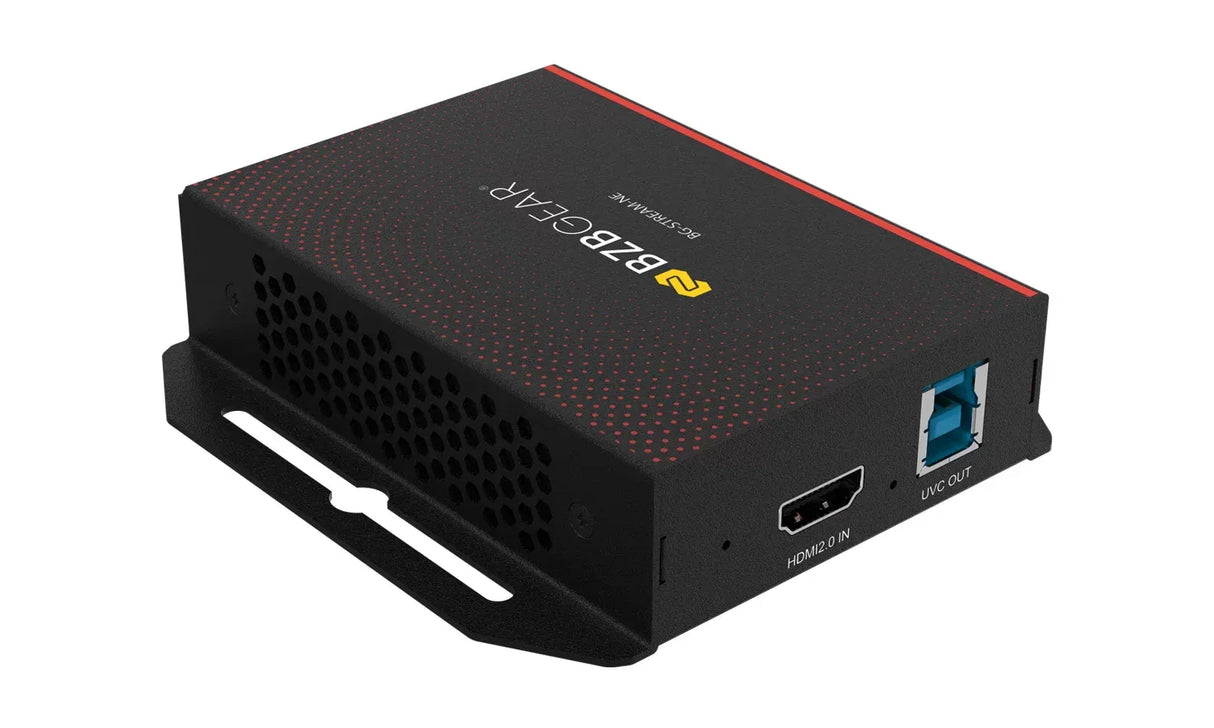

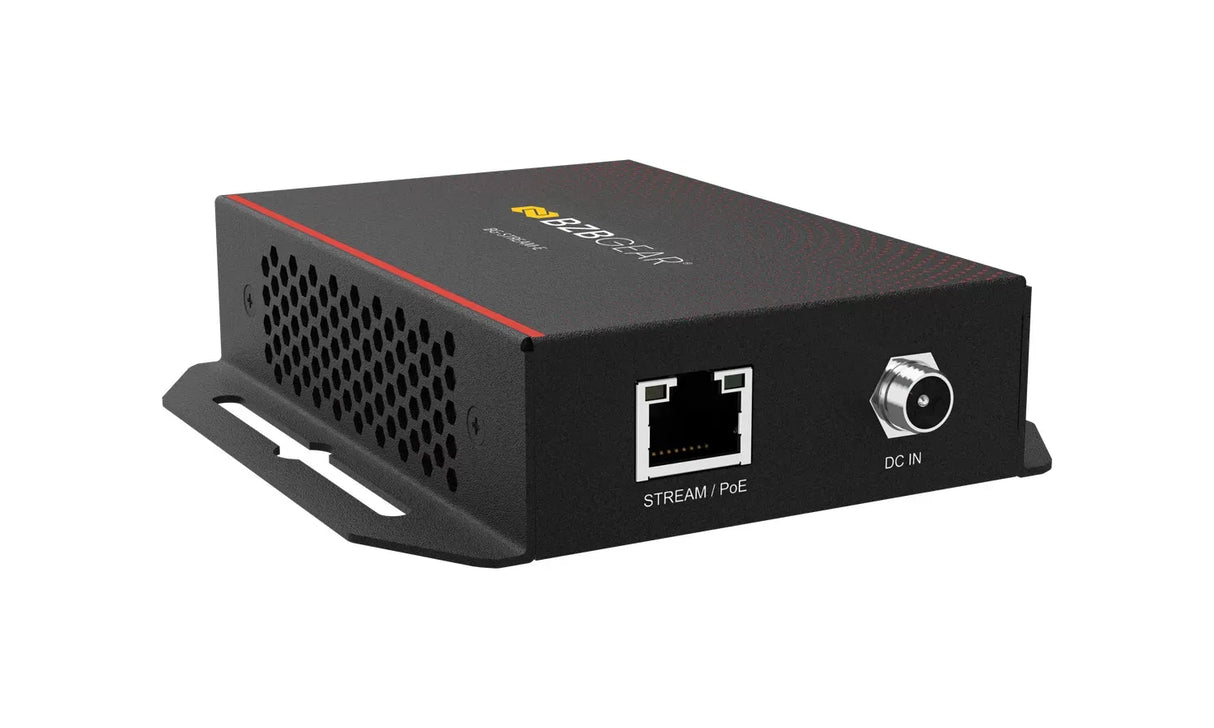

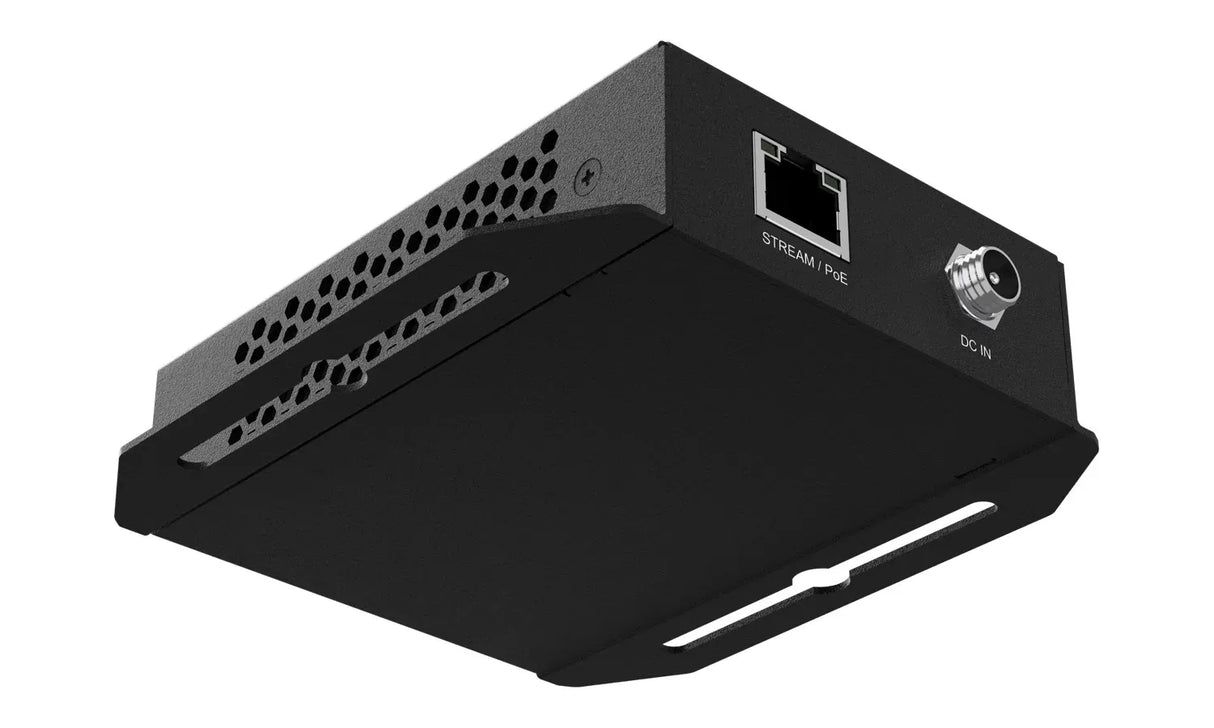

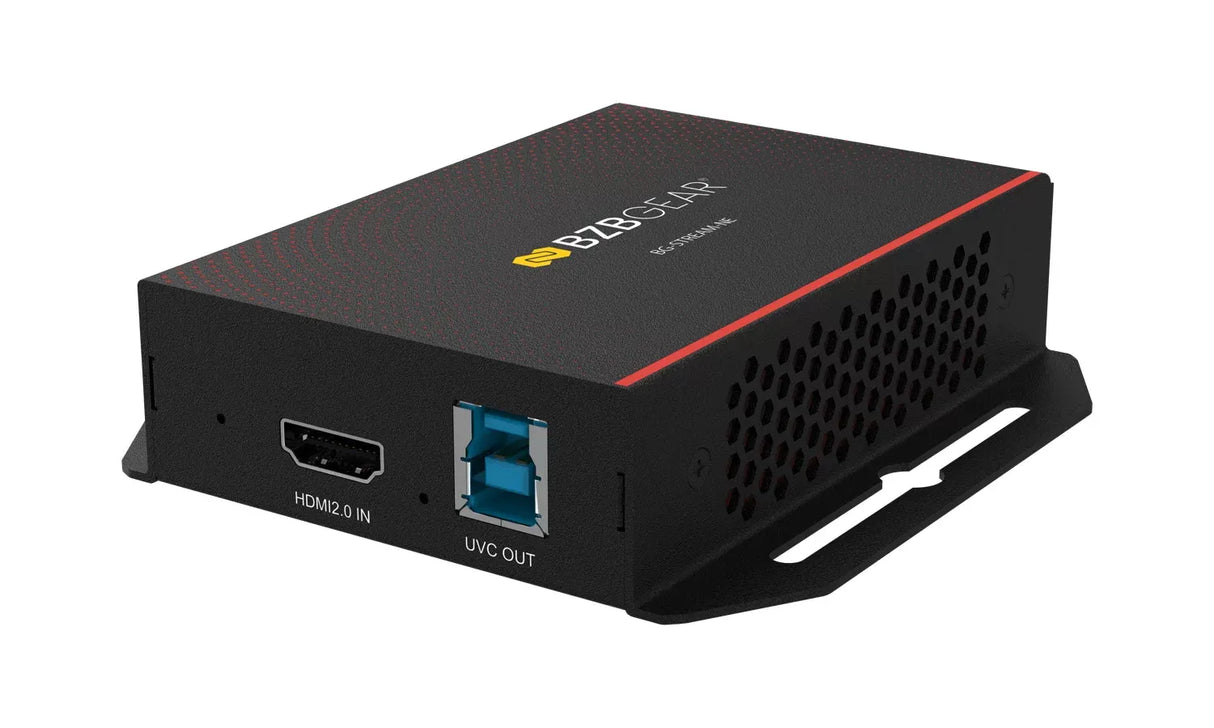

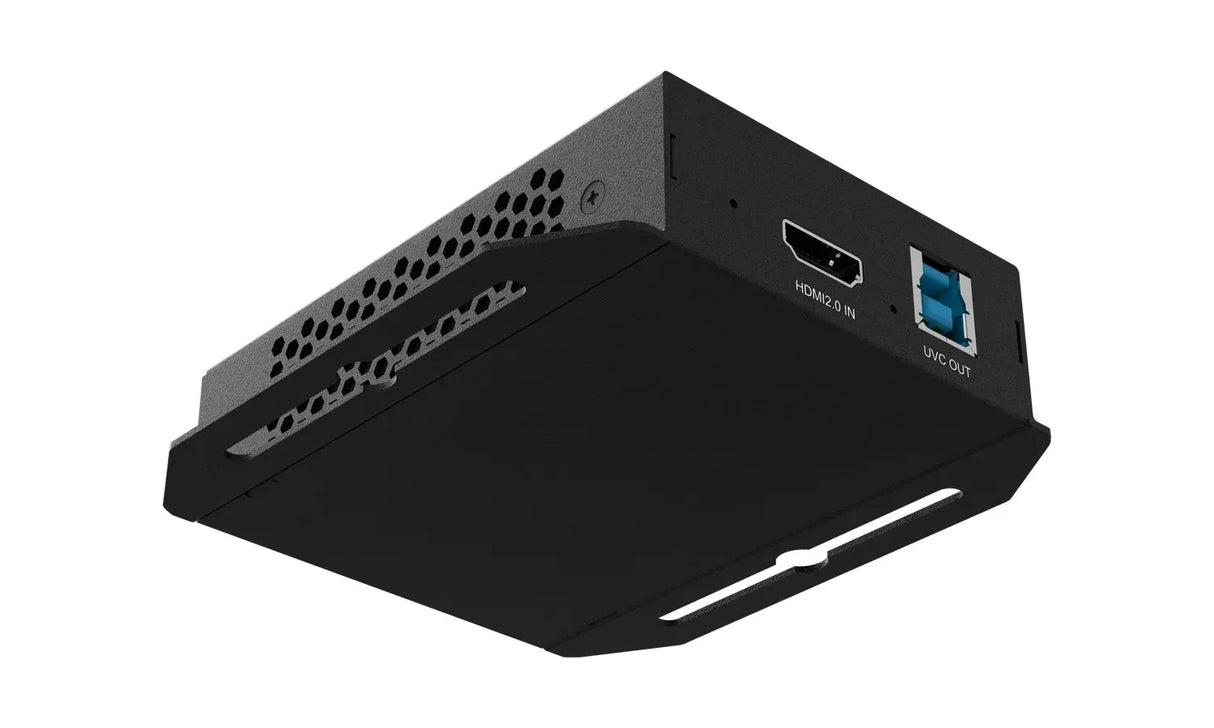

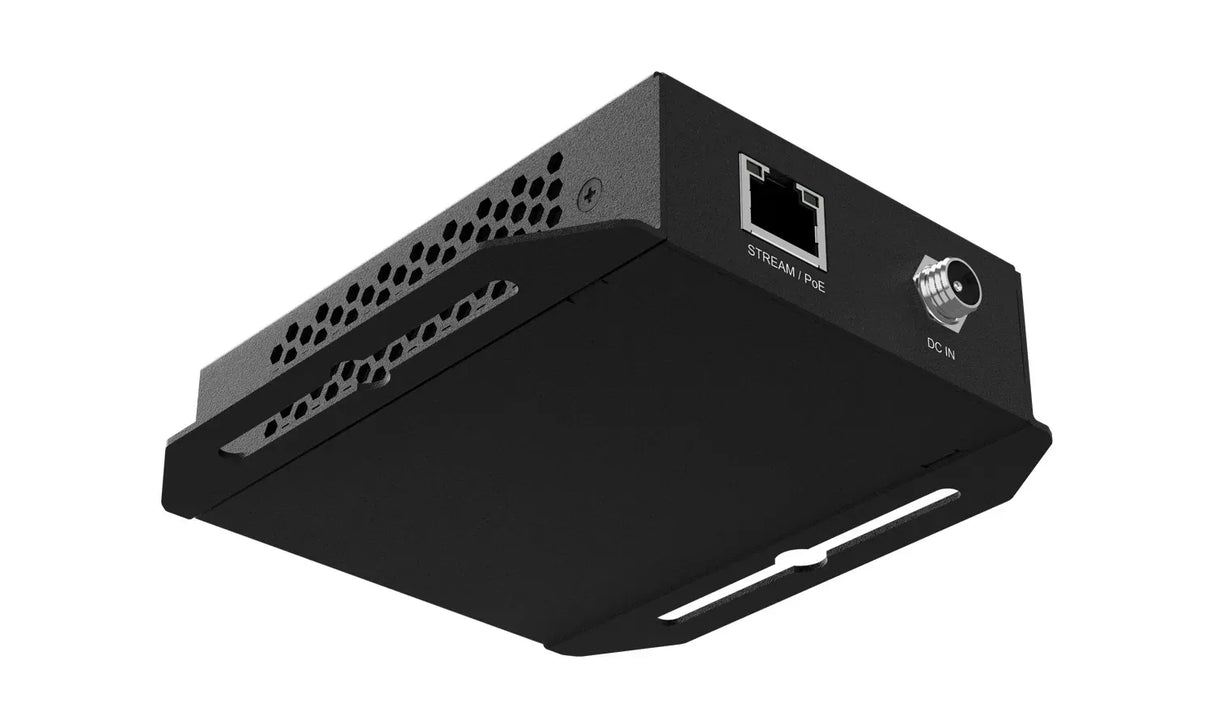

BZBGEAR BG-STREAM-E HDMI to IP UVC Streaming Encoder
The BZBGEAR BG-STREAM-E is a professional-grade HDMI to IP streaming encoder designed for modern AV-over-IP, live streaming, and USB capture workflows. Built for reliability in commercial, education, worship, and broadcast environments, this compact encoder converts HDMI video sources into high-quality IP streams while simultaneously supporting USB UVC output for direct connection to computers.
Supporting advanced compression formats including H.264 and H.265, the BG-STREAM-E ensures efficient bandwidth usage without sacrificing image quality. With support for multiple streaming protocols such as NDI HX, RTSP, RTMP, HLS, and Dante AV-H (license required), this encoder integrates seamlessly into existing IP-based production and distribution systems.
Key Features
- HDMI to IP Encoding: Converts HDMI video sources into IP streams for flexible network-based distribution.
- USB 3.0 UVC Output: Functions as a UVC device for plug-and-play use with conferencing and streaming software.
- Advanced Video Compression: Supports H.265 and H.264/AVC for high-quality, low-bandwidth streaming.
- Multi-Protocol Streaming Support: Compatible with NDI HX, RTSP, RTMP, HLS, TS over IP, and Dante AV-H (licenses required where applicable).
- Full HD Performance: Supports resolutions up to 1920x1080 at 60fps.
- PoE Capability: Power the unit via Ethernet for simplified installation.
- Web-Based Management: Built-in Web UI allows easy configuration and monitoring.
- Firmware Upgradable: Ensures long-term usability with future feature enhancements.
Technical Specifications

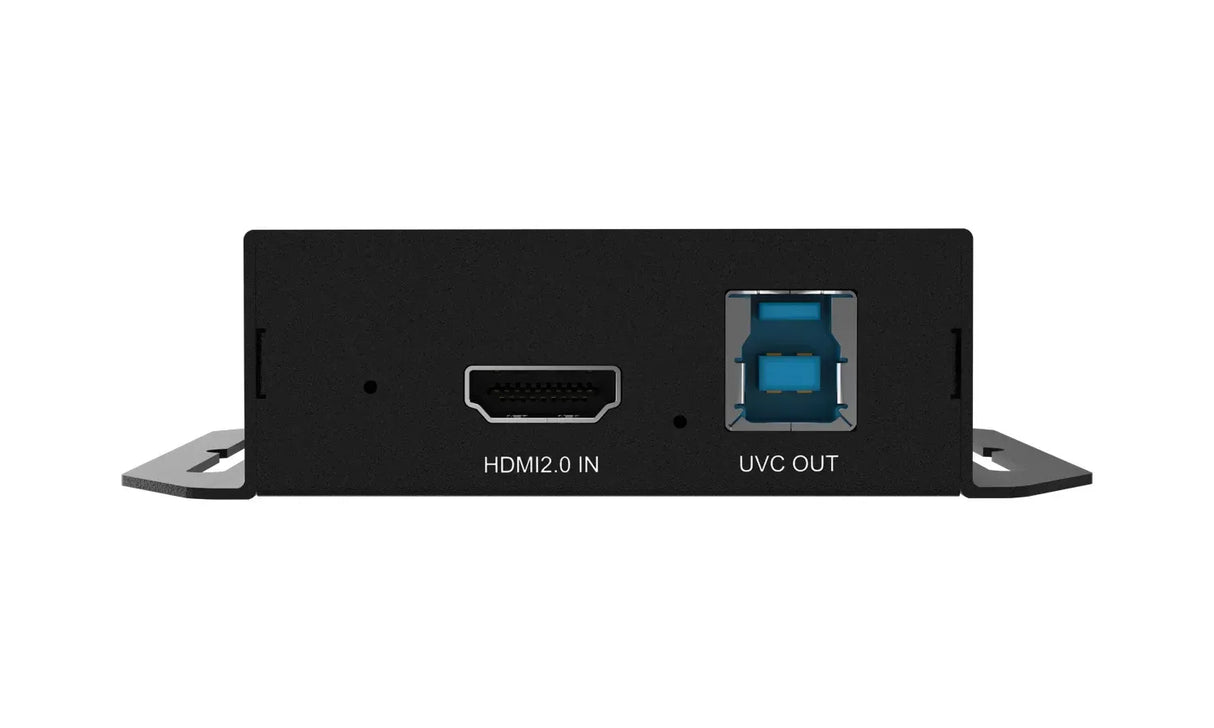

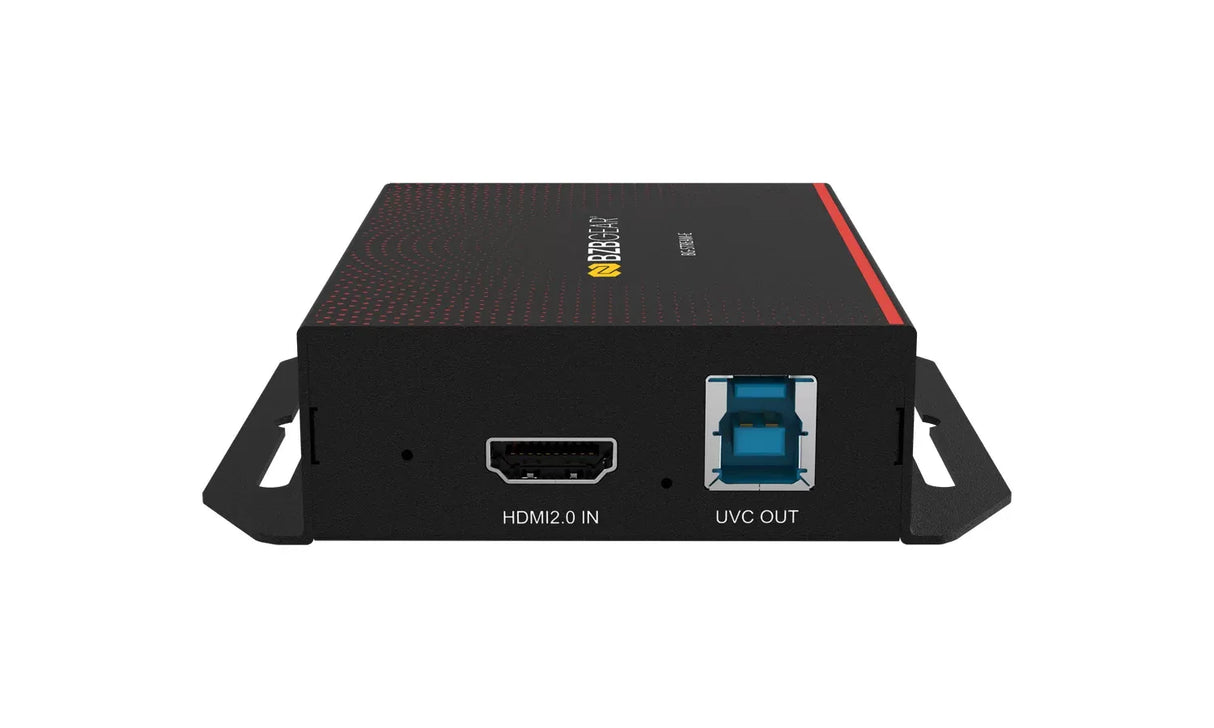

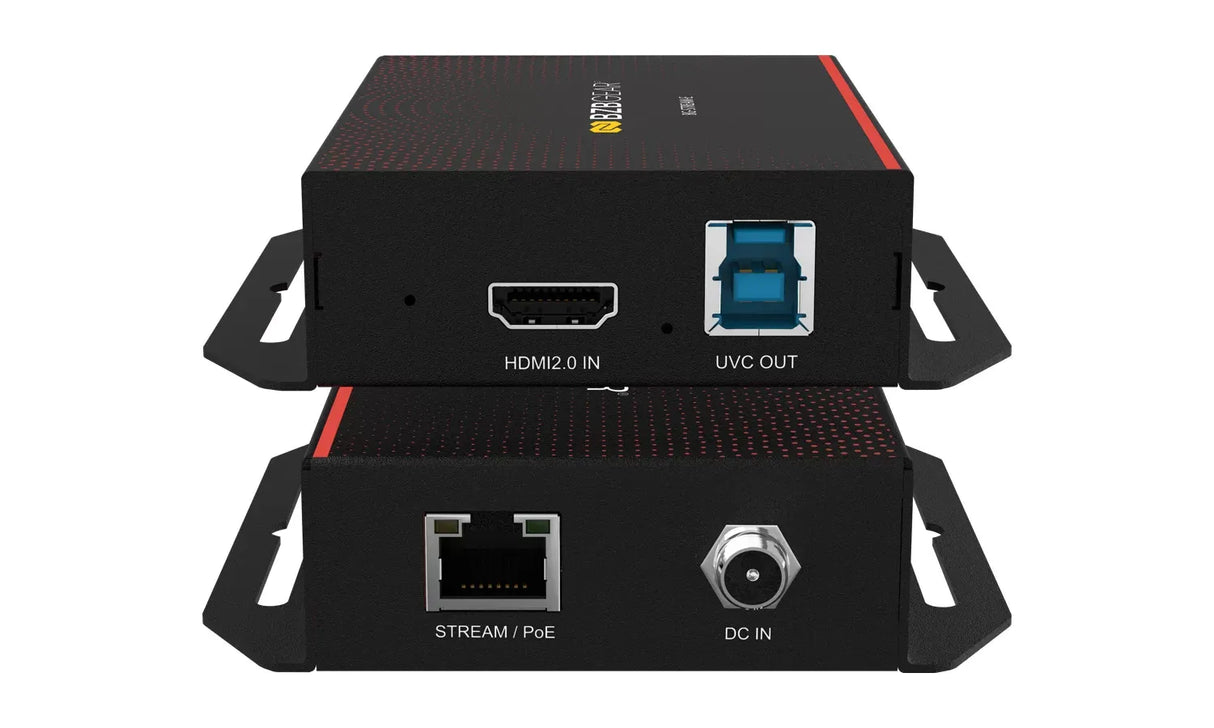

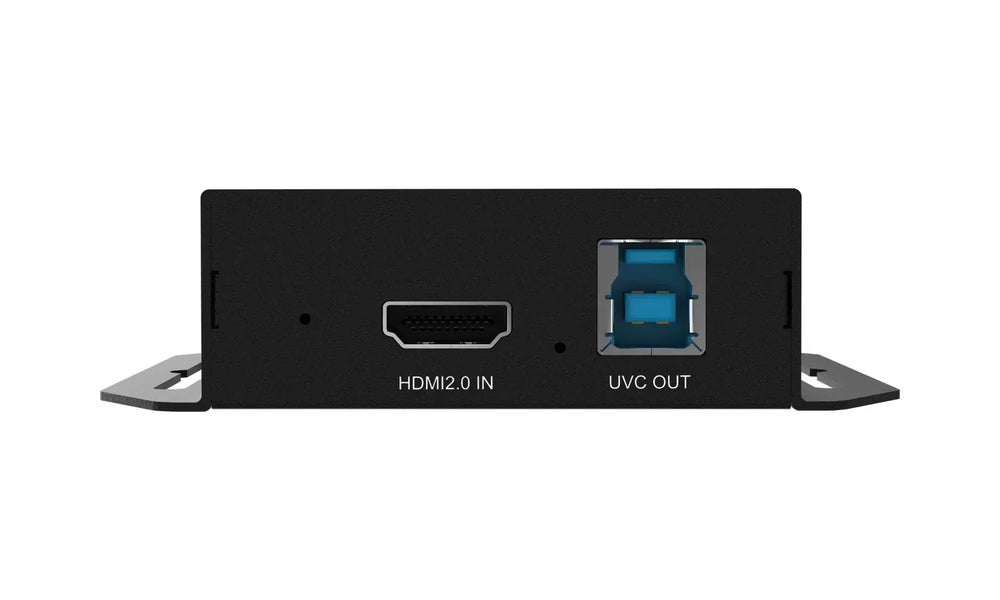

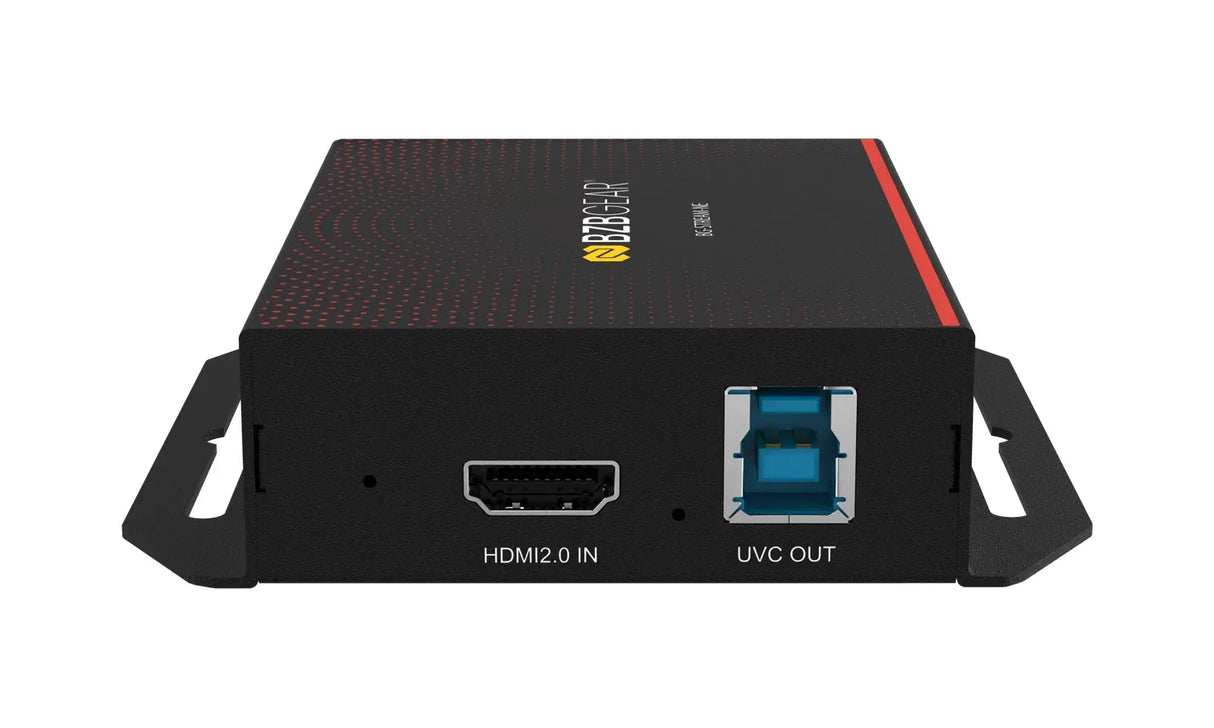

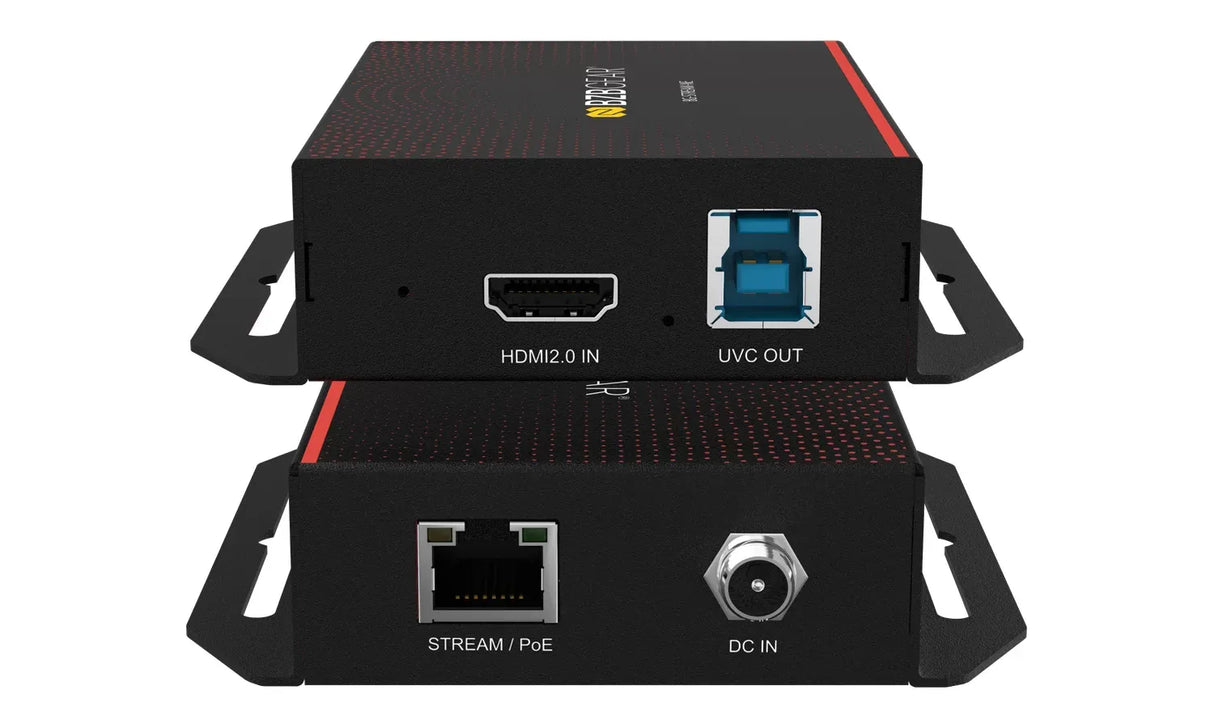

- Video Input: 1 × HDMI

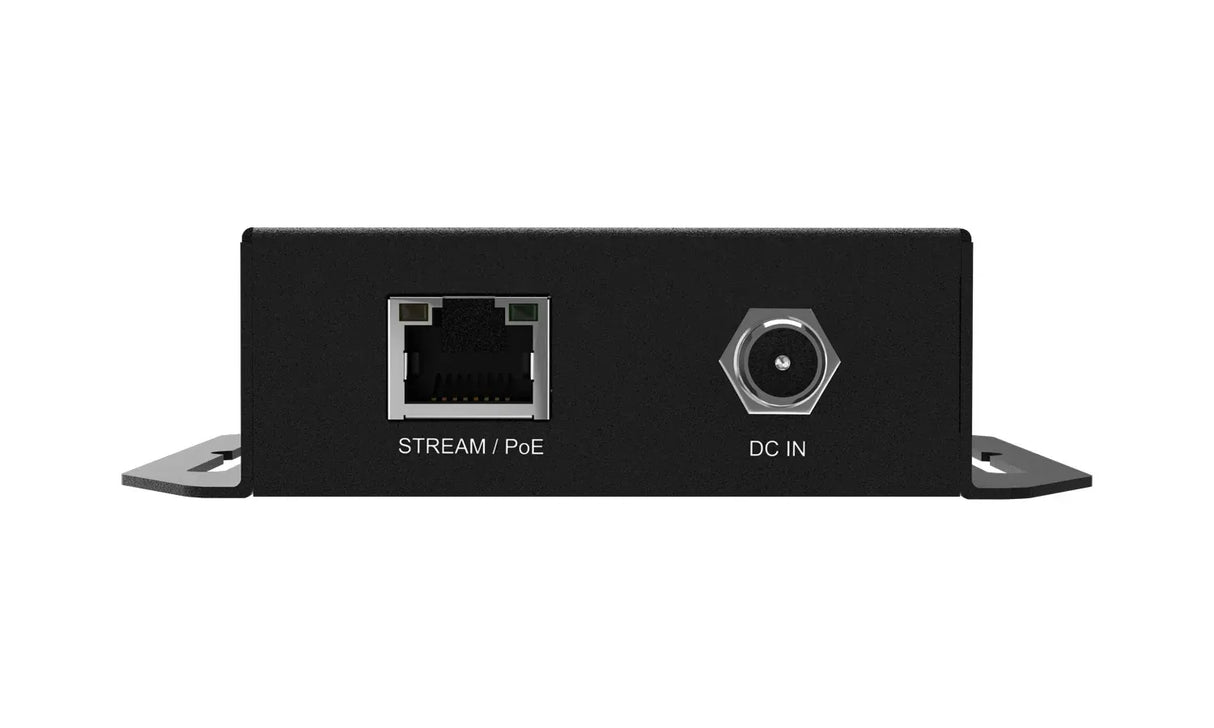

- Video Outputs: 1 × RJ45 Ethernet, 1 × USB 3.0 Type-B (UVC)
- Video Compression: H.265 / H.264 / AVC (Baseline, Main, High Profile)
- Maximum Resolution: 1920 × 1080p @ 60/50fps
- Supported Resolutions: 1080p, 1080i, 720p, XGA, SVGA, VGA, and additional legacy formats
- Audio Support: AAC-LC
- Audio Bit Rate: 32 Kbps to 384 Kbps
- Audio Sample Rate: 48 kHz, 16-bit

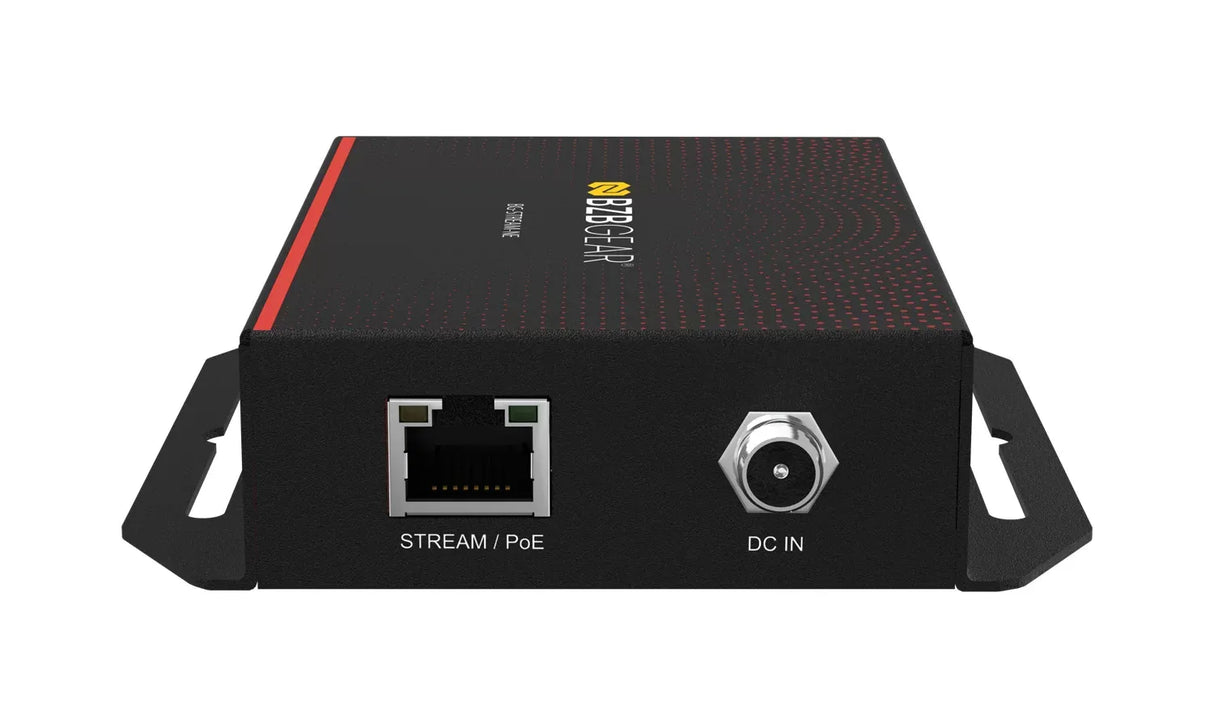

- Network Interface: 1 × RJ45 10/100/1000 Mbps Ethernet
- Network Features: DHCP Client
- Streaming Protocols: RTSP (UDP/TCP/Multicast/HTTP), RTMP (Publish), HLS, TS over IP
- NDI Support: NDI HX (separate license required)
- Dante AV-H Support: Separate license required
- Power: DC Input or PoE
- Unit Dimensions: 4.1 × 2.8 × 1.0 inches
What's Included
- 1 × BG-STREAM-E HDMI to IP Encoder
- 1 × DC Power Adapter
