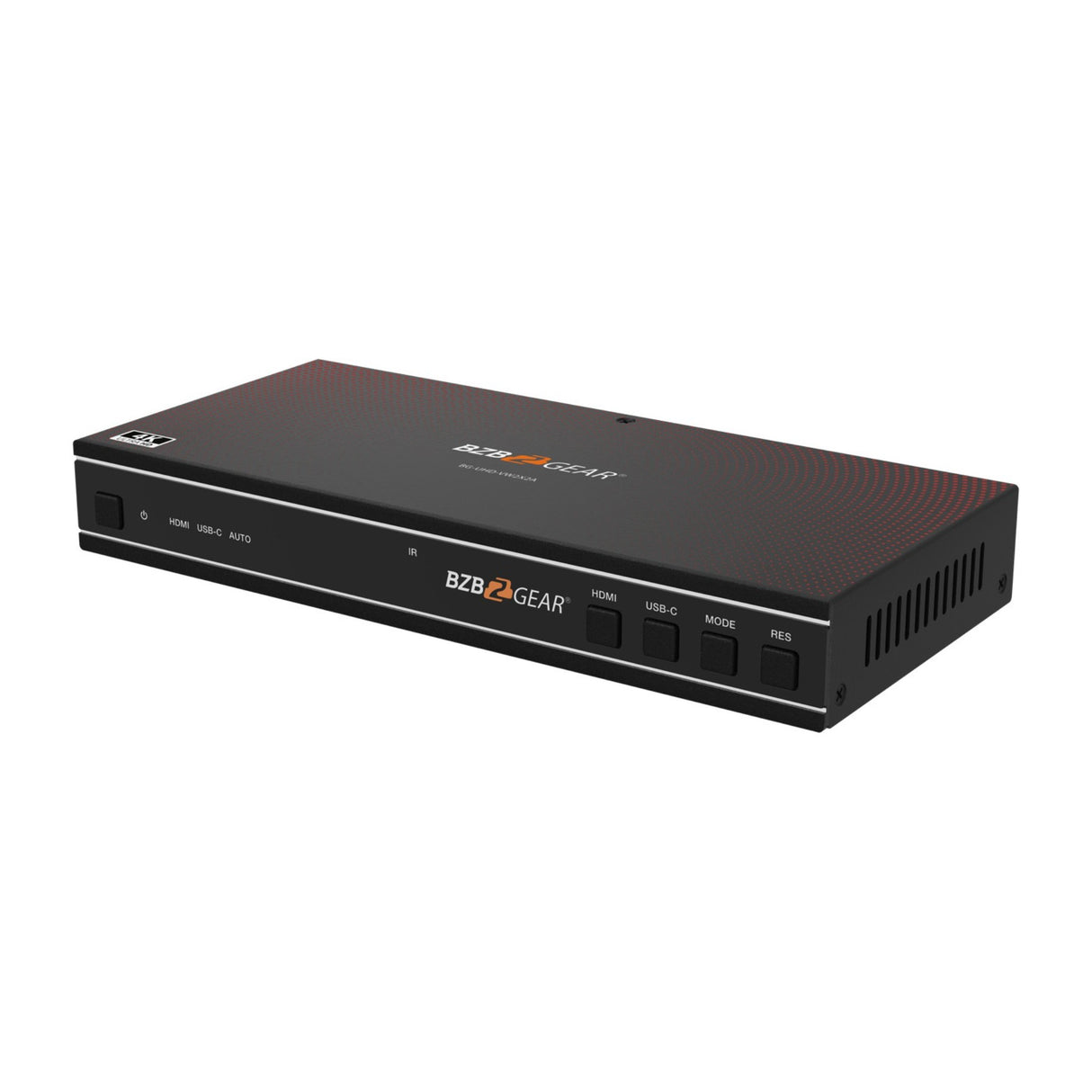

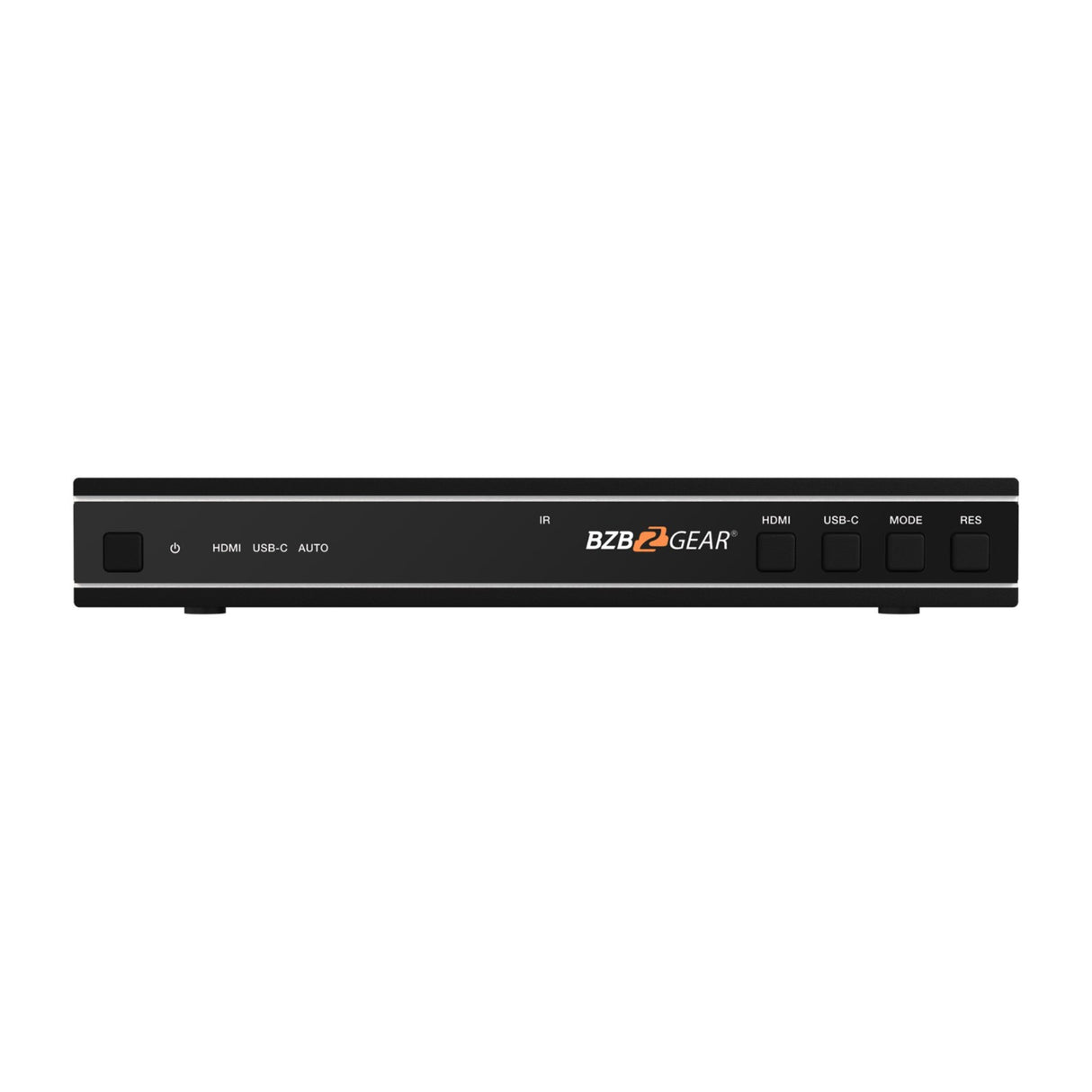

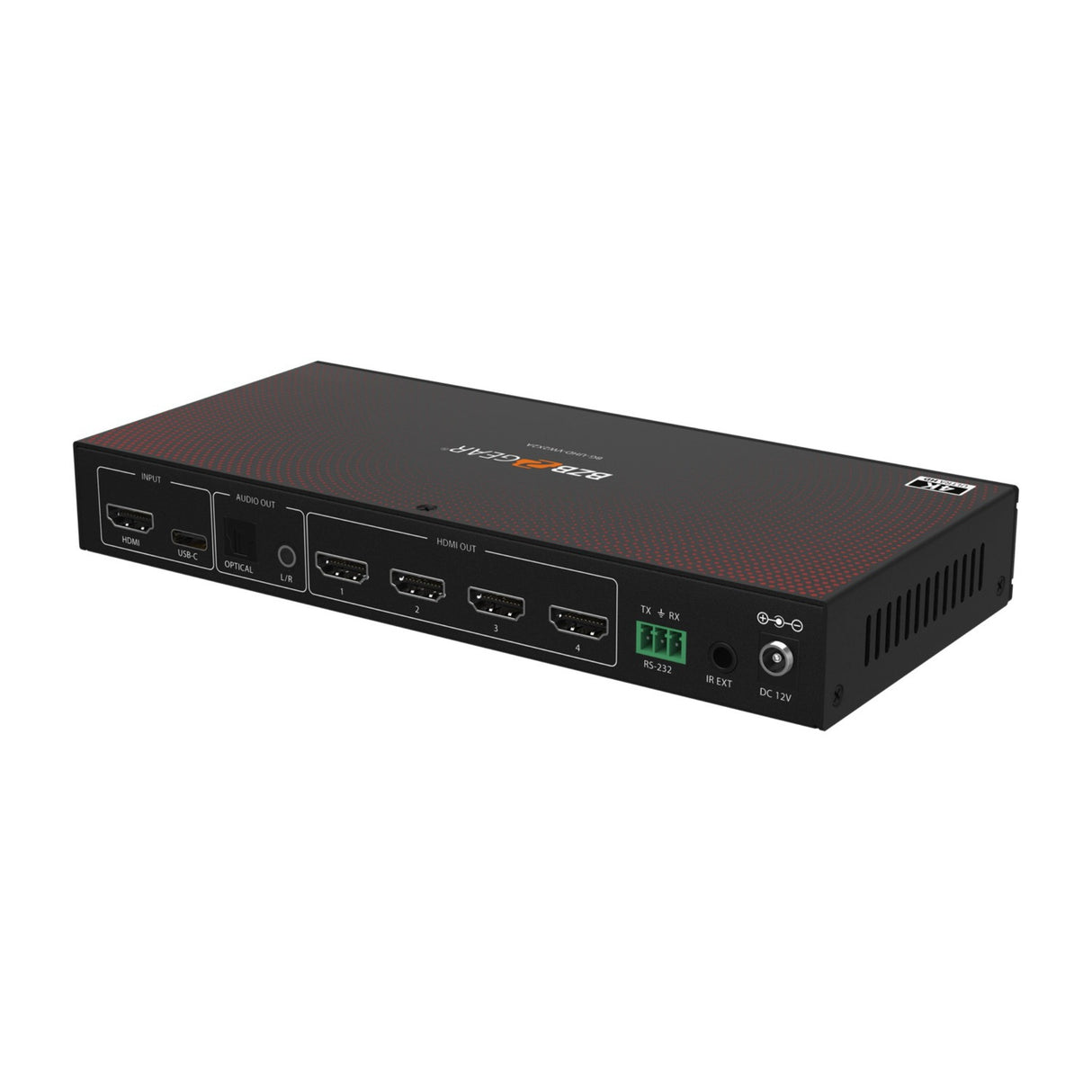

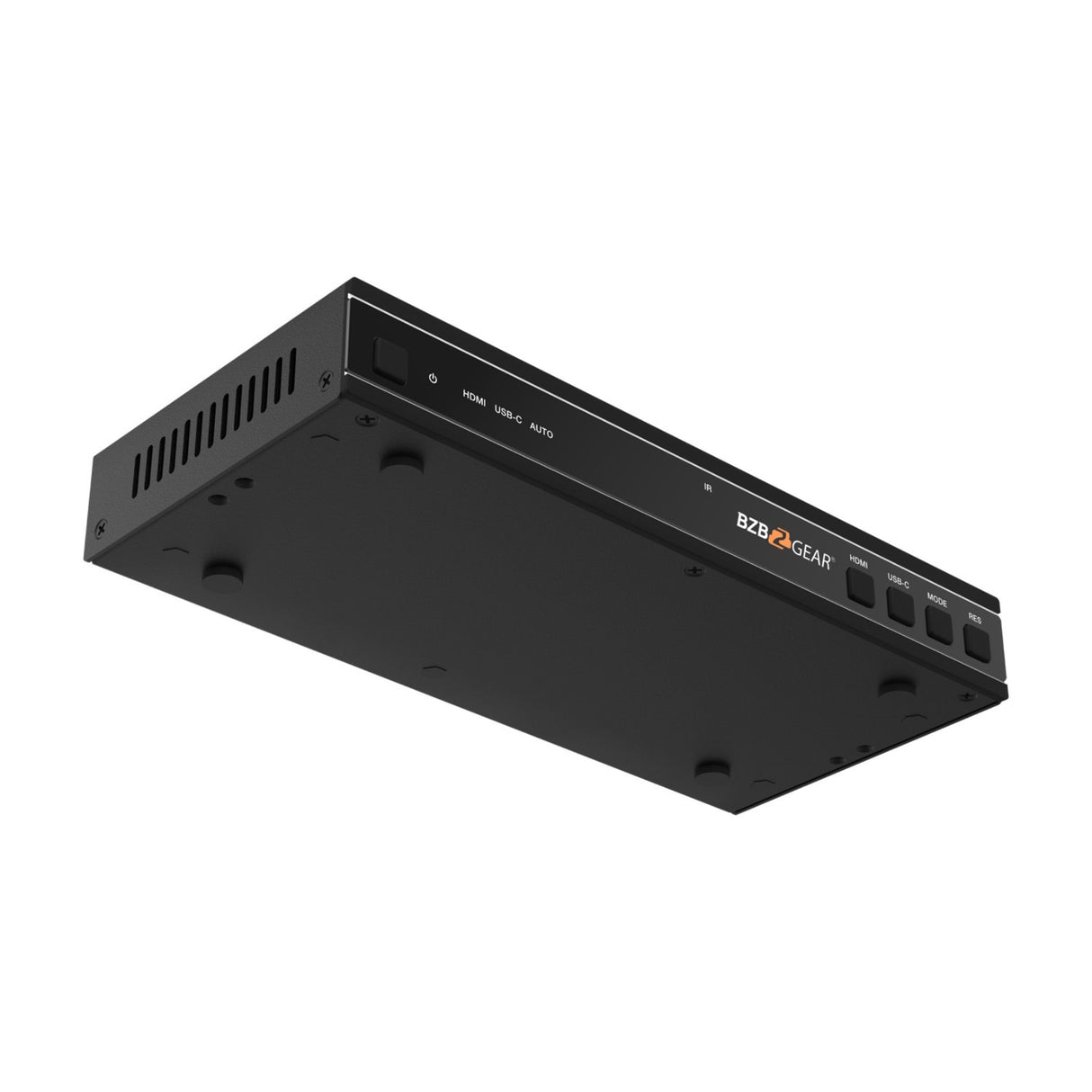

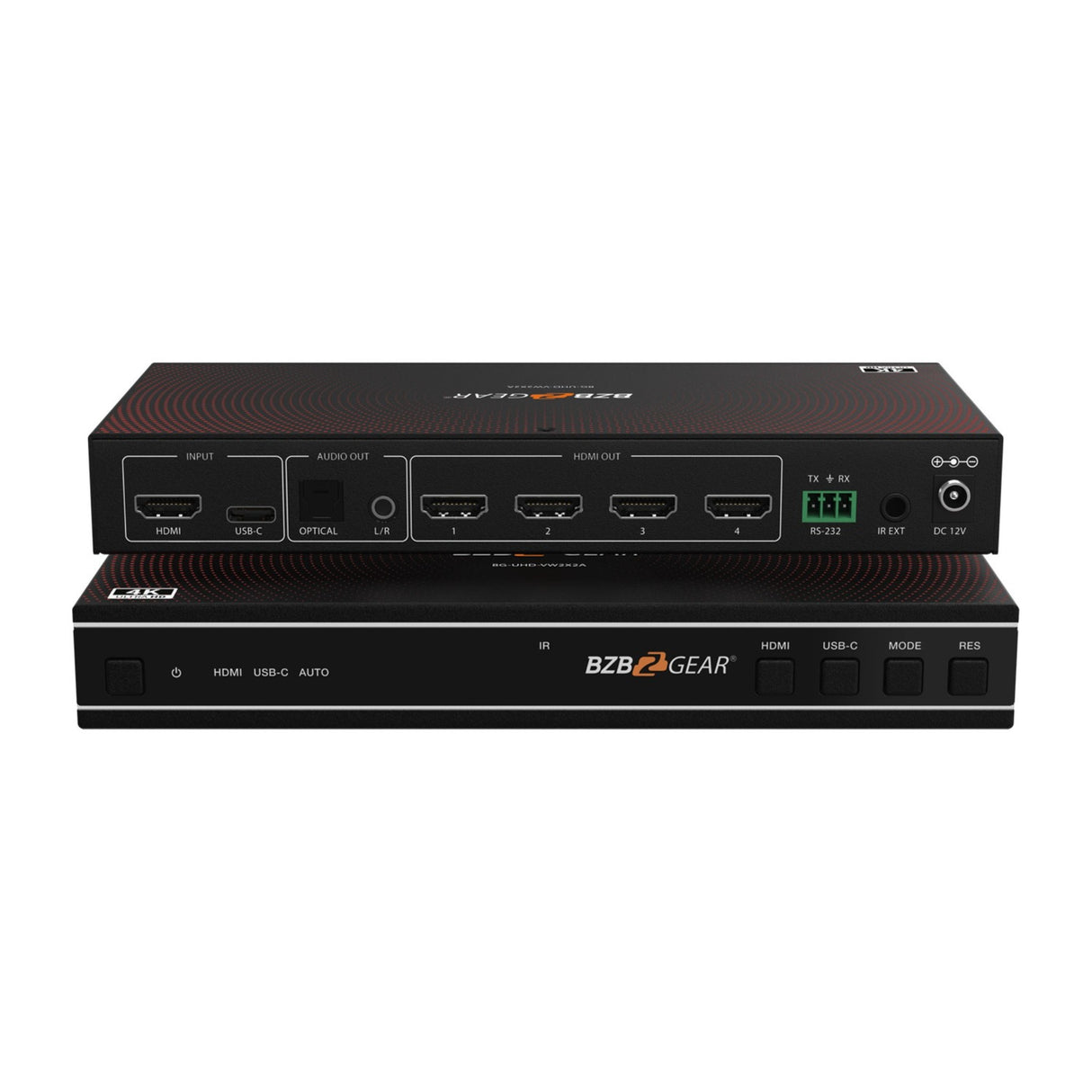

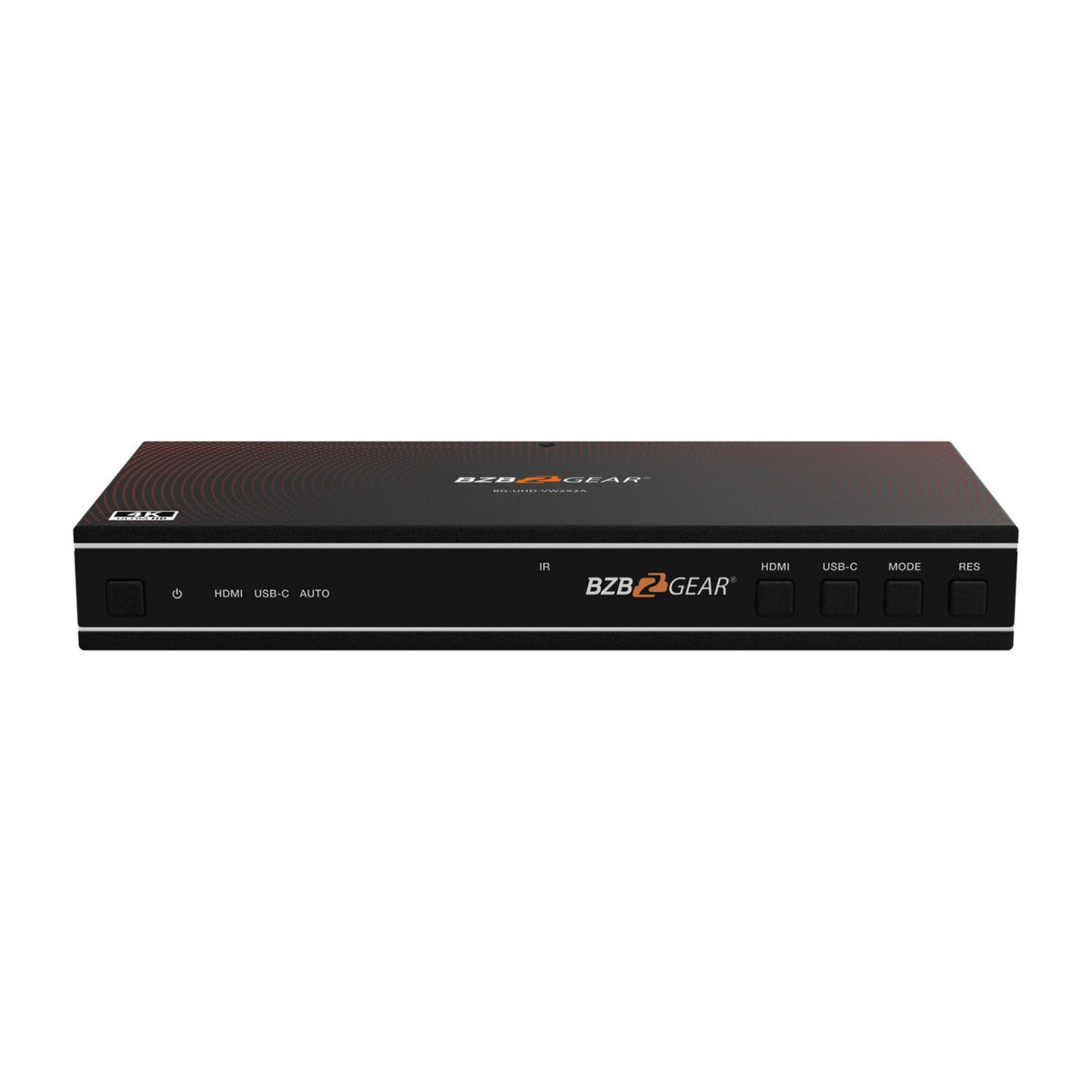

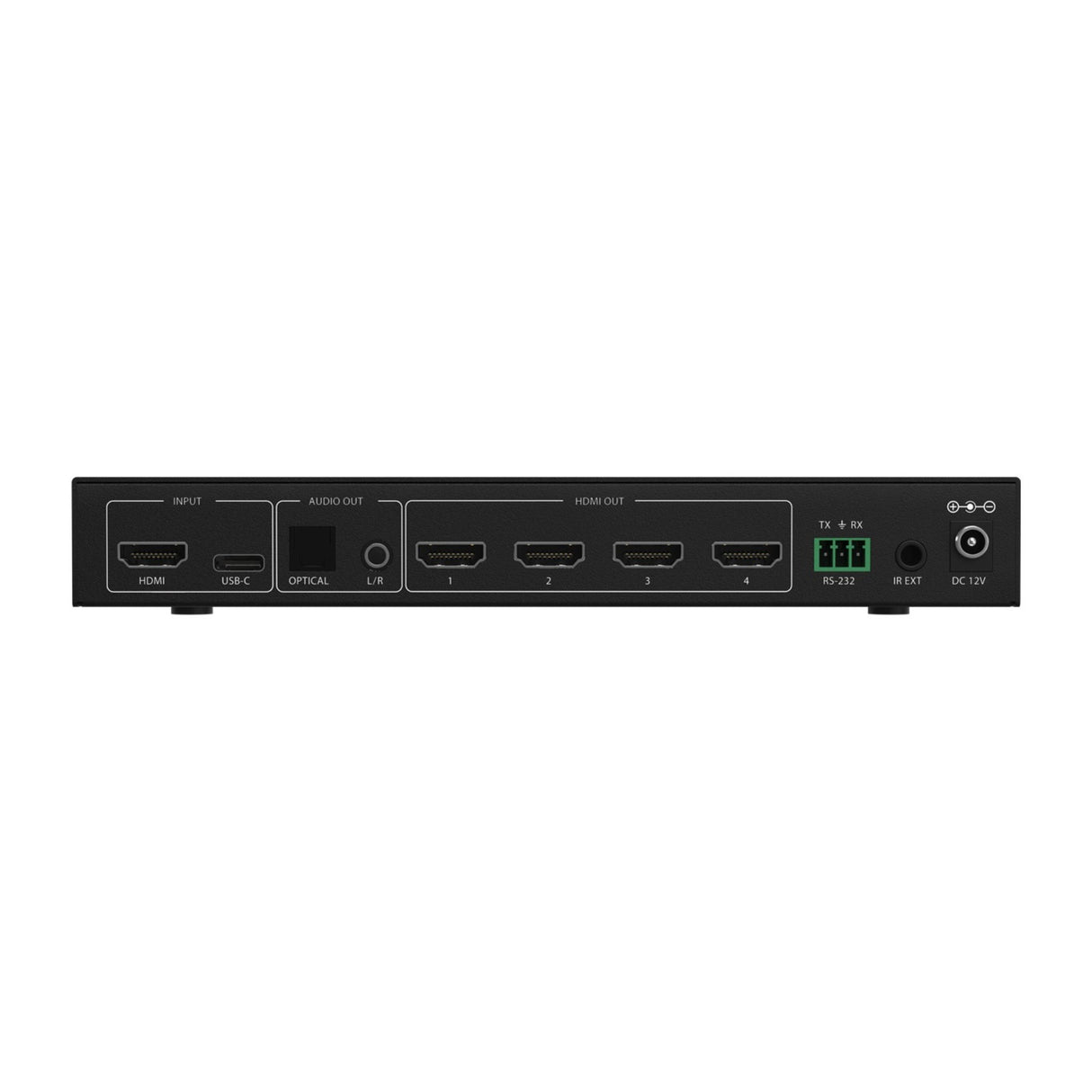

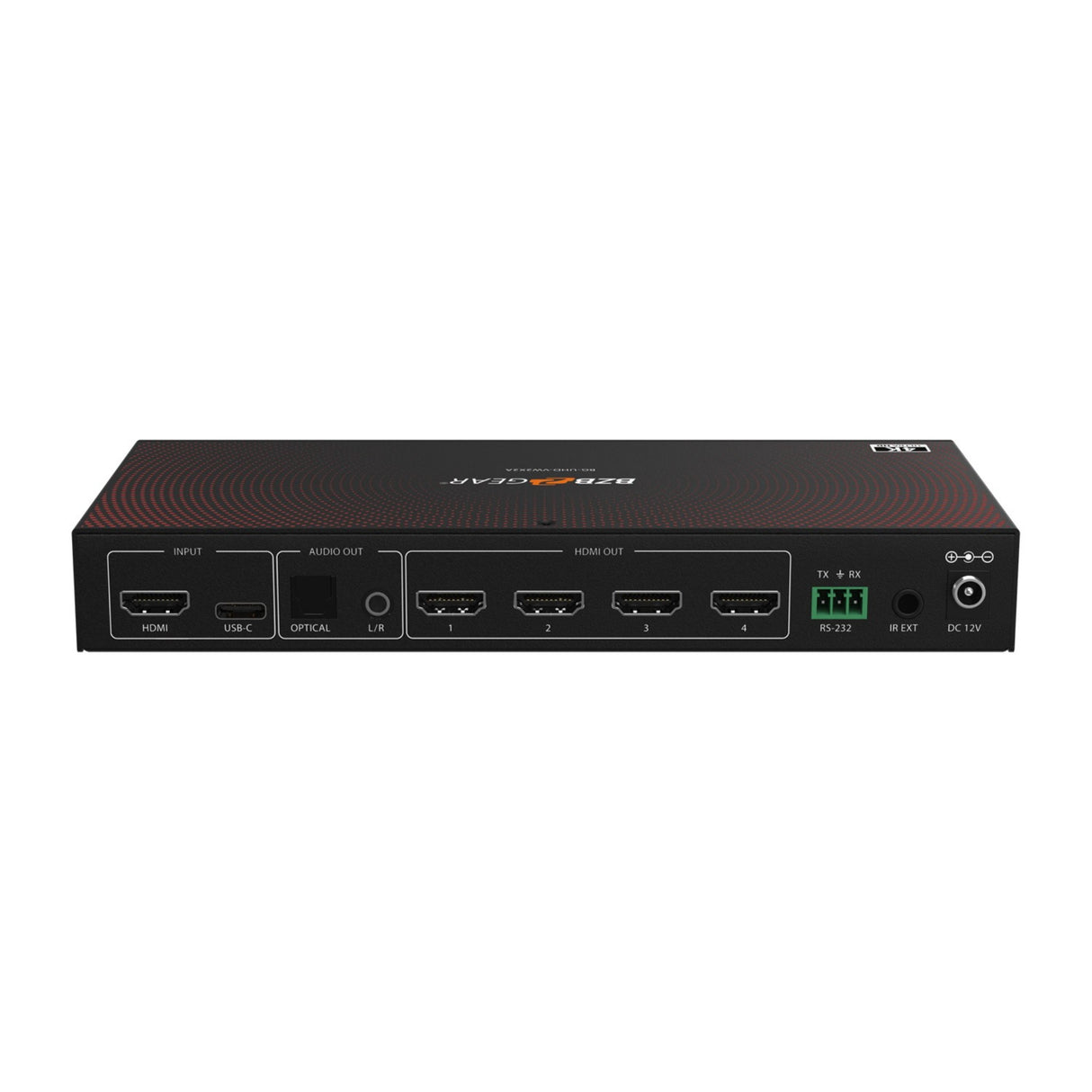

BZBGEAR BG-UHD-VW2X2A 2x2 4K HDMI USB-C Video Wall Controller

Professional 4K Video Wall Switching and Control

The BZBGEAR BG-UHD-VW2X2A is a compact, professional-grade 2x2 video wall controller designed for modern AV installations requiring reliable 4K signal distribution and flexible input control. Supporting both HDMI and USB-C video sources, this unit enables seamless switching and video wall configurations for digital signage, control rooms, classrooms, conference spaces, and commercial AV environments.

Built on HDMI 2.0b technology with full HDCP 2.2 compliance, the BG-UHD-VW2X2A ensures secure and stable transmission of high-resolution content. Advanced color space and bit-depth support preserve image integrity across multiple displays, while zero video and audio latency make it suitable for real-time applications where timing accuracy is critical.

Key Features

• 2x2 Video Wall Control: Create and manage professional multi-display video wall layouts from a single source.
• Dual Input Support: HDMI and USB-C inputs allow flexible connection of computers, media players, and presentation devices.
• 4K UHD Signal Handling: Accepts up to 4K@60Hz 4:4:4 input for sharp, detailed visuals.
• Audio De-Embedding: Extract audio via analog L/R or optical S/PDIF outputs for external sound systems.
• No Latency Processing: Zero video and audio latency ensures synchronized playback across displays.
• Professional Control Options: RS-232 and IR control support integration into automated AV systems.
• Durable Metal Enclosure: Rugged housing designed for continuous commercial operation.

Technical Specifications

• HDMI Compliance: HDMI 2.0b
• HDCP Compliance: HDCP 2.2
• Video Bandwidth: 18Gbps
• Input Resolution: Up to 4K@60Hz 4:4:4
• Output Resolutions: 720p60, 1080p60, 4K30, 1024x768p60
• Color Space: RGB, YCbCr 4:4:4, 4:2:2, 4:2:0
• Color Depth: 8-bit, 10-bit, 12-bit
• Audio Formats (HDMI): LPCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, DTS, DTS-EX, DTS-96/24
• Audio Output: L/R PCM 2.0, Optical S/PDIF (Dolby Digital/Plus, DTS 5.1, PCM 2.0)
• Control Interfaces: RS-232 (3-pin Phoenix), IR Extension
• ESD Protection: ±8kV Air, ±4kV Contact
• Power Supply: DC 12V / 1A
• Power Consumption: 5.5W (Max)
• Operating Temperature: 32°F to 104°F (0°C to 40°C)

What's Included

• 1 x 18Gbps Video Wall Controller
• 1 x 12V/1A Locking Power Supply
• 1 x Power Adapter
• 1 x IR Remote
• 1 x IR Receiver Cable (1.5m)
• 1 x 3-pin Phoenix Connector
• 4 x Machine Screws
• 2 x Mounting Ears
• 1 x User Manual
