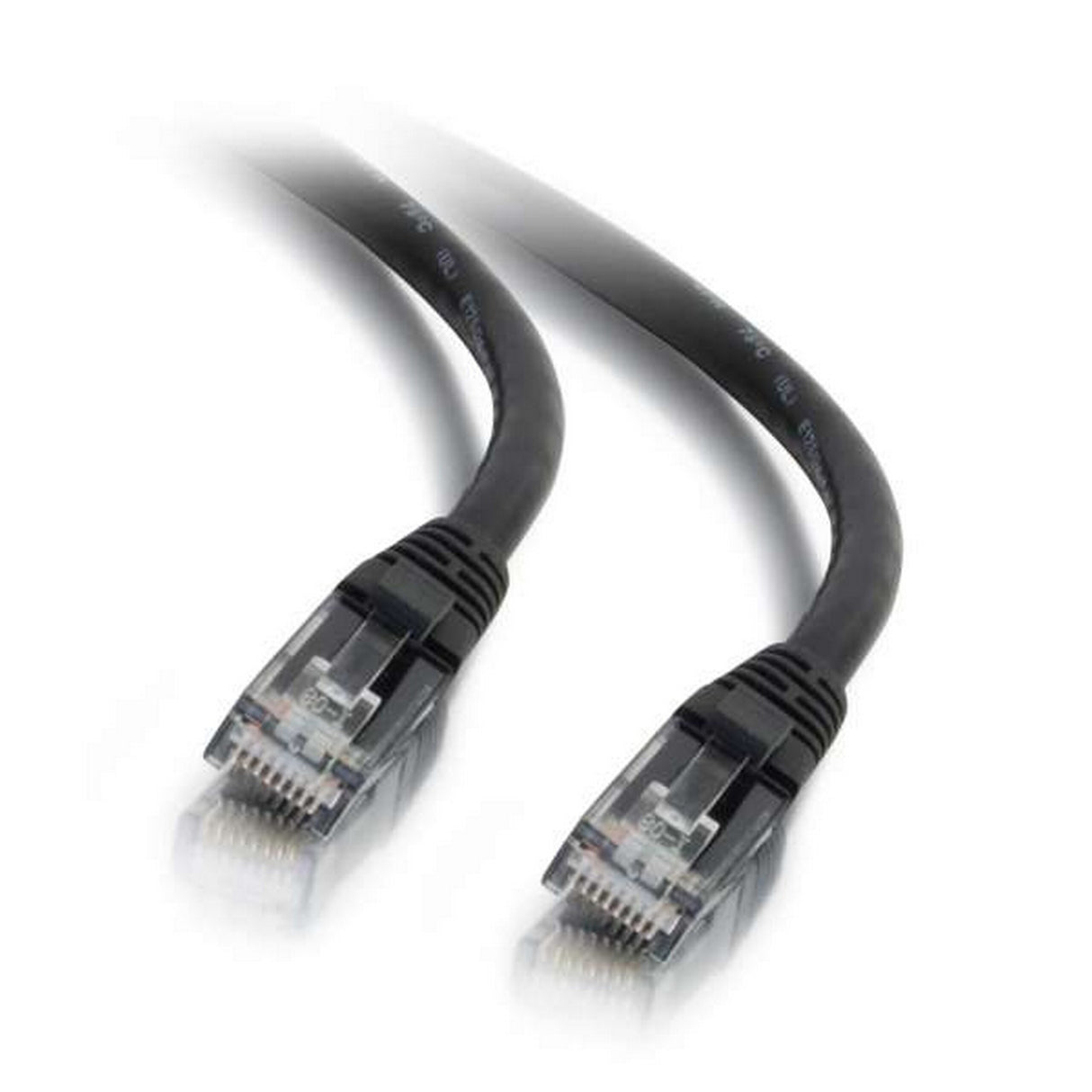

C2G 27153 Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable, Black, 10-Feet
C2G 27153 Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable...
C2G 27153 Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable, Black, 10-Feet
For fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.
Technical Specifications
Electrical Characteristics
Conductor DC Resistance - 9.38 OHM 100m (maximum)
Impedance - 100 OHM
Capacitance - 5600pf/100m
Propagation Delay - 545ns/100m (maximum)
Delay Skew - 45ns/100m (maximum)
Physical Characteristics
Wiring Scheme - T568B
Standard: Category 6 TIA/EIA-568-B-2.1, draft 9
Connector: 50 micron gold-plated RJ45
Temperature Rating - 60Ā°C
Voltage Rating - 30V
Approvals - RoHS Compliant
Warranty - Lifetime
Package Type - Polybag
Overall Cable
Jacket - PVC
Minimum Average Thickness - 0.60mm
Outer Diameter - 6.20 +/- 0.30mm
Product Uses
Gigabit 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3)
4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN
100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM
Voice; T1
