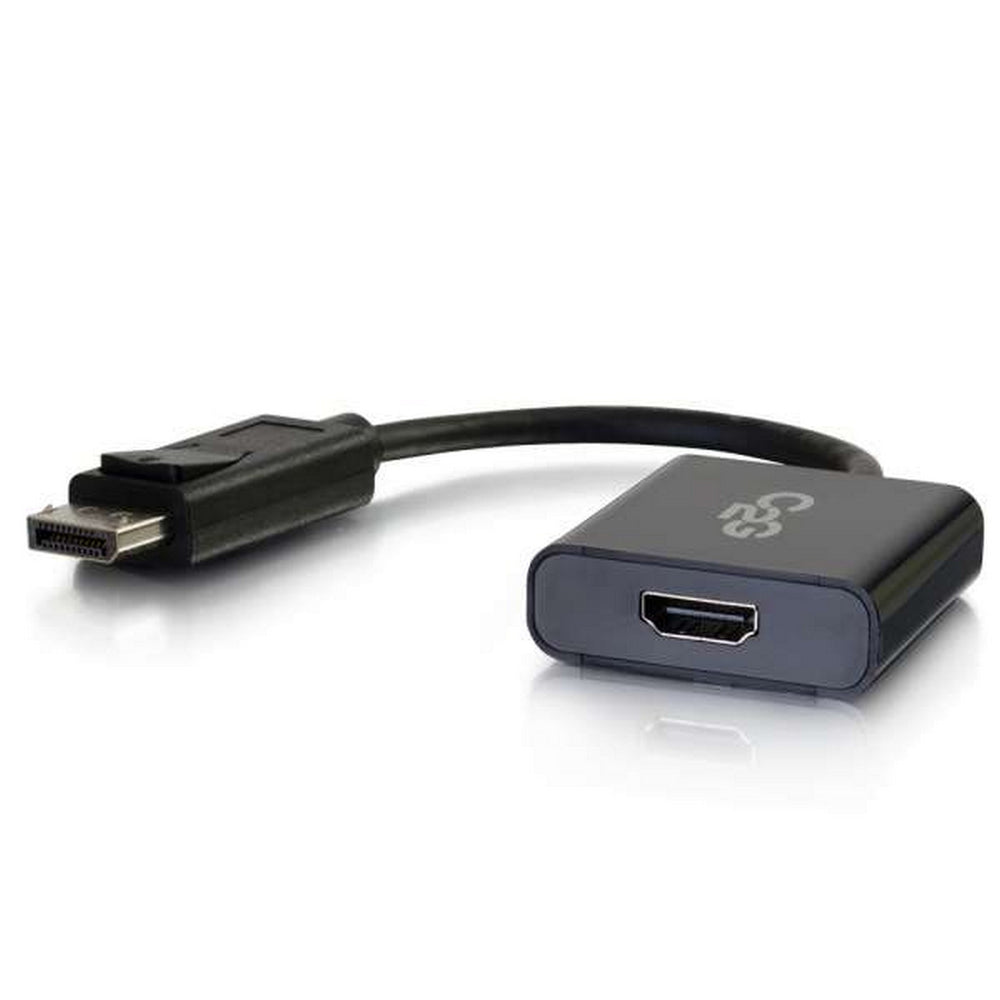

C2G 54306 DisplayPort to HDMI Active Adapter Converter 4K 30Hz, Black
C2G 54306 DisplayPort to HDMI Active Adapter Converter 4K 30Hz, Black
C2G 54306 DisplayPort to HDMI Active Adapter Converter 4K 30Hz, Black
This adapter allows the DisplayPort video output of a laptop to connect to the HDMI input of a display and is perfect for applications including displaying video on an HDTV, projector, or monitor in a classroom, on a desktop, or in a meeting room. This active DisplayPort to HDMI active adapter can be used in either DisplayPort single-mode or dual-mode outputs , providing the conversion for a DisplayPort source even when that source does not support DP++. Active DisplayPort conversion is excellent for applications where multiple DisplayPort adapters are required to connect to a single graphics card. This allows every active adapter to interface with a corresponding display.
Key Features
- Active Conversion of DisplayPort to HDMI
- Supports resolutions up to 4K (4096 x 2160 at 30Hz)
- Dongle style adapter reduces strain on ports
Technical Specifications
Electrical
Voltage Rating
30V
Conductor Resistance
at 20°C max 30AWG 376.96/km
Insulation Resistance
10M-KM Min at 20°C DC 500V(EIA-364-21)
Dielectric Strength
AC 500V/1 minute no breakdown(EIA-364-20)
Impedance
Pairs (differential mode) 100±50
Attenuation (Max)
5.02dB at 100~450MHz; 7.695dB at 1GHz; 12.595dB at 2GHz; 17.495dB at 3GHz; 22.395dB at 4GHZ; 27.295dB at 5GHz; 32.195dB at 6GHz; 37.095dB at 7GHz
Return Loss (Min)
15.00 at 100~675MHz; 12.90 at 7GHz; 9.20 at 2GHz; 7.04 at 3GHz; 5.5 at 4GHz; 4.31 at 5GHz; 3.33 at 6GHz; 2.51 at 7GHz
NEXT (MAX)
-36dB at 0.1~1.35GHZ; -23.44dB at 2GHz; -20.80dB at 3 GHz; -18.93dB at 4GHz; -17.48dB at 5GHz; -16.29dB at 6GHz; -15.28dB at7GHz
FEXT
-26dB / Cable at 100~7000MHz (Max)
Physical
Jacket
PVC
Outer Diameter
5.2mm ±0.2mm
Conductor 1
5 Pairs at 32AWG (7/0.08 TC)
Insulation 1
FM-PE+Skin ID 0.63mm ± 0.05mm (Pairs: 1. White/Brown 2. White/Red 3. White/Orange 4. White/Green 5. White/Blue)
Pair Drain
32AWG (7/0.8TC) Insulation FM-PE+Skin ID 0.63mm ± 0.05mm
Conductor 2
5 Individual 32AWG (7/0.08 TC)
Insulation 2
HD-PE+Skin ID 0.5mm ± 0.05mm (Conductors: 1. RED 2. Orange 3. Yellow 4. White 5. Green
Shield 1
AL Mylar Coverage 100%
Shield 2
Braid, 16/7/0.12 AL-Mg
Shield 3
Mylar Coverage 100%
Pair
2 Singles Lair flat and Parallel
Core
8 Pairs
Drain Wire
7/0.08TC
Operating Temperature
0°C to 50°C
Storage Temperature
-25°C to 70°C
