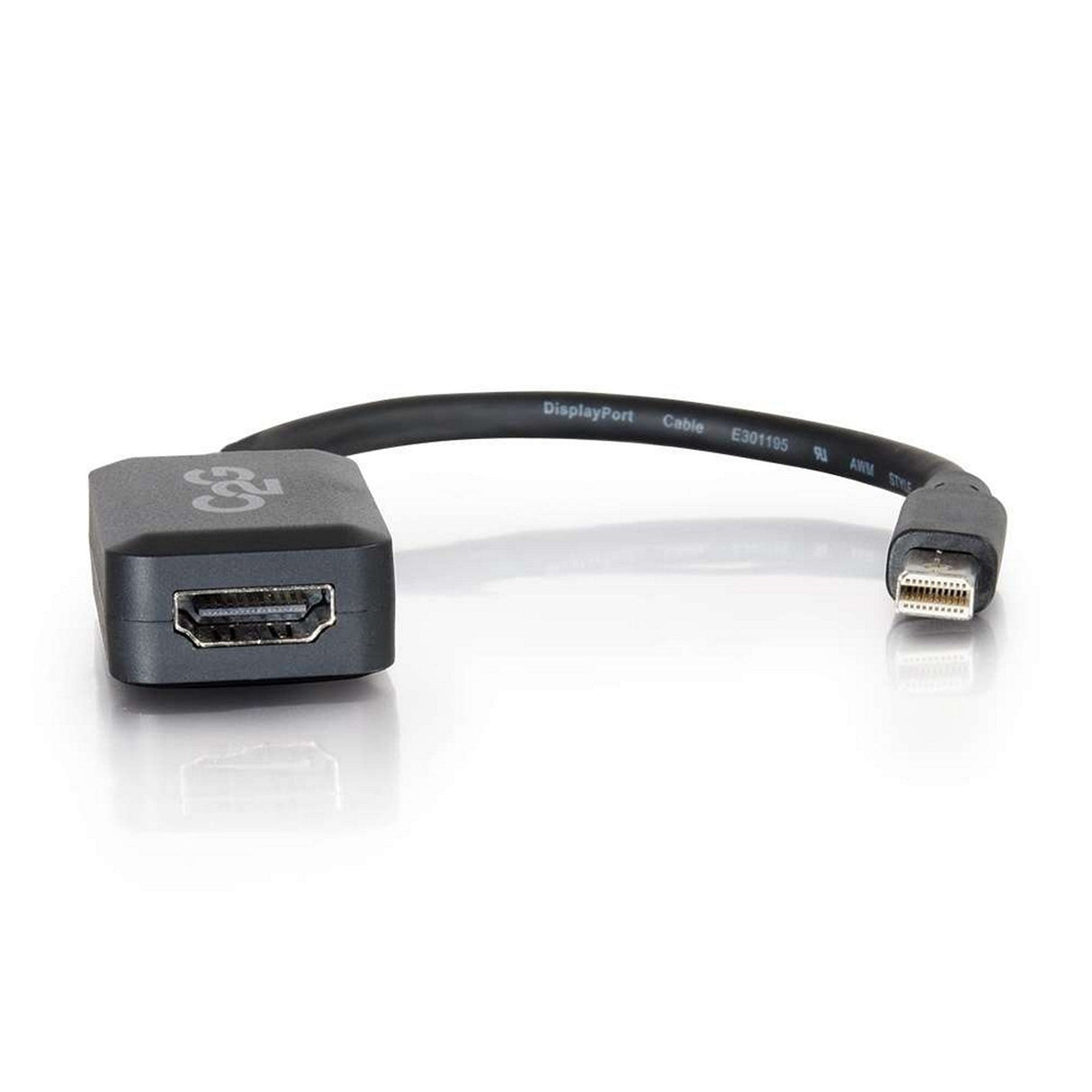

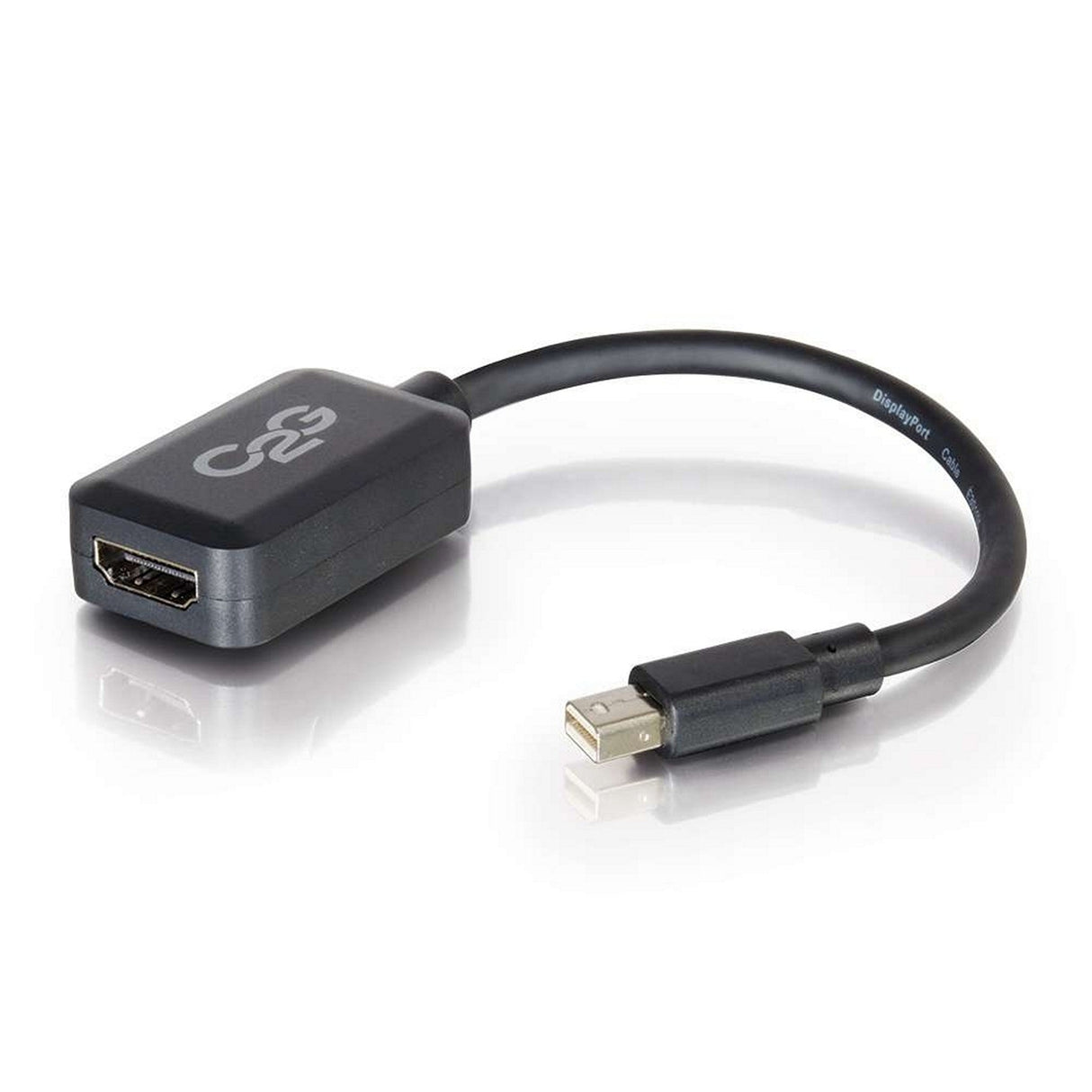

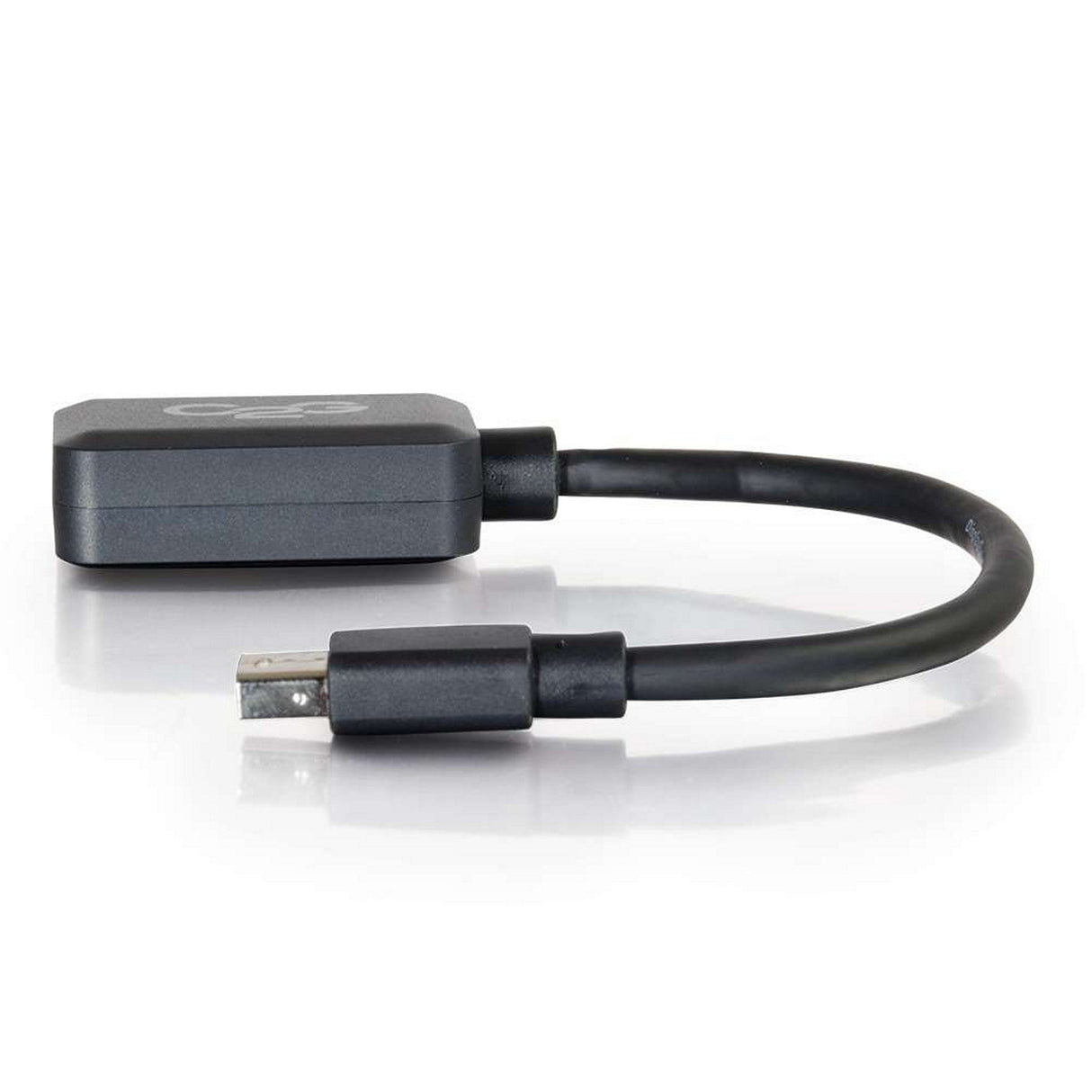

C2G 54313 Mini DisplayPort Male to HDMI Female Adapter Converter, 8 Inch

This adapter converter is an ideal solution for adapting the Mini DisplayPort or Thunderbolt 2 output of a small laptop or tablet so that it may be connected to a HDTV or projector which accepts a HDMI input. This adapter converter carries a digital audio/video signal, supports up to a 1080p resolution and meets the requirements of high performance applications. This adapter converter is a perfect accessory for Microsoft Surface products and other leading laptops.

Key Features

• Adapts a Mini DisplayPort/Thunderbolt 2 output to HDMI
• Carries a digital audio/video signal
• Supports up to a 1080p resolution
• Compatible with the Microsoft Surface Pro 6, Surface Laptop 2, and other leading laptops

Technical Specifications

UPC
757120543138
Warranty
3 Years
Vendor
C2G
Weight
0.058 LB
Electrical Specifications
Voltage Rating
30v
Conductor Resistance
@ 20 degrees C max
Insulation Resistance
10M/km
Time Delay
5.2ns/m (max)
Attenuation
5.02dB@100-450MHz 7.69dB@1GHz
12.595dB@2GHz 17.495dB@3GHz
22.395dB@4GHz 27.295dB@5GHz
32.195dB@6GHz 37.095dB@7GHz
Physical Specifications
Operating Temperature
0 degrees C to 50 degrees C
Storage Temperature
-25 degrees C to 70 degrees C
Approvals
CE
Conductor (2 Conductor, 5 Pair)
Conductor
32AWG (7/0.08TC)
Insulation
FM-PE, ID:0.63-0.05mm
Color
White/Brown, White/Red,
White/Orange, White/Green
White/Blue
Drain
32AWG (7/0.08TC)
HD-PE ID:0.63-0.05
Shield
AL-Mylar Wrap
Coverage-100%
Conductor (5 Conductors)
Conductor
32AWG (7/0.08TC)
Insulation
HD-PE, ID:0.5-0.05mm
Color
Red/Orange/Yellow/Green/ White
Overall Cable
Jacket
PVC
Shield
AL-Mylar-Coverage 100%
Braid-16/9/0.12
Drain
2:30AWG (7/0.08 BC)
OD
5.2-0.2
