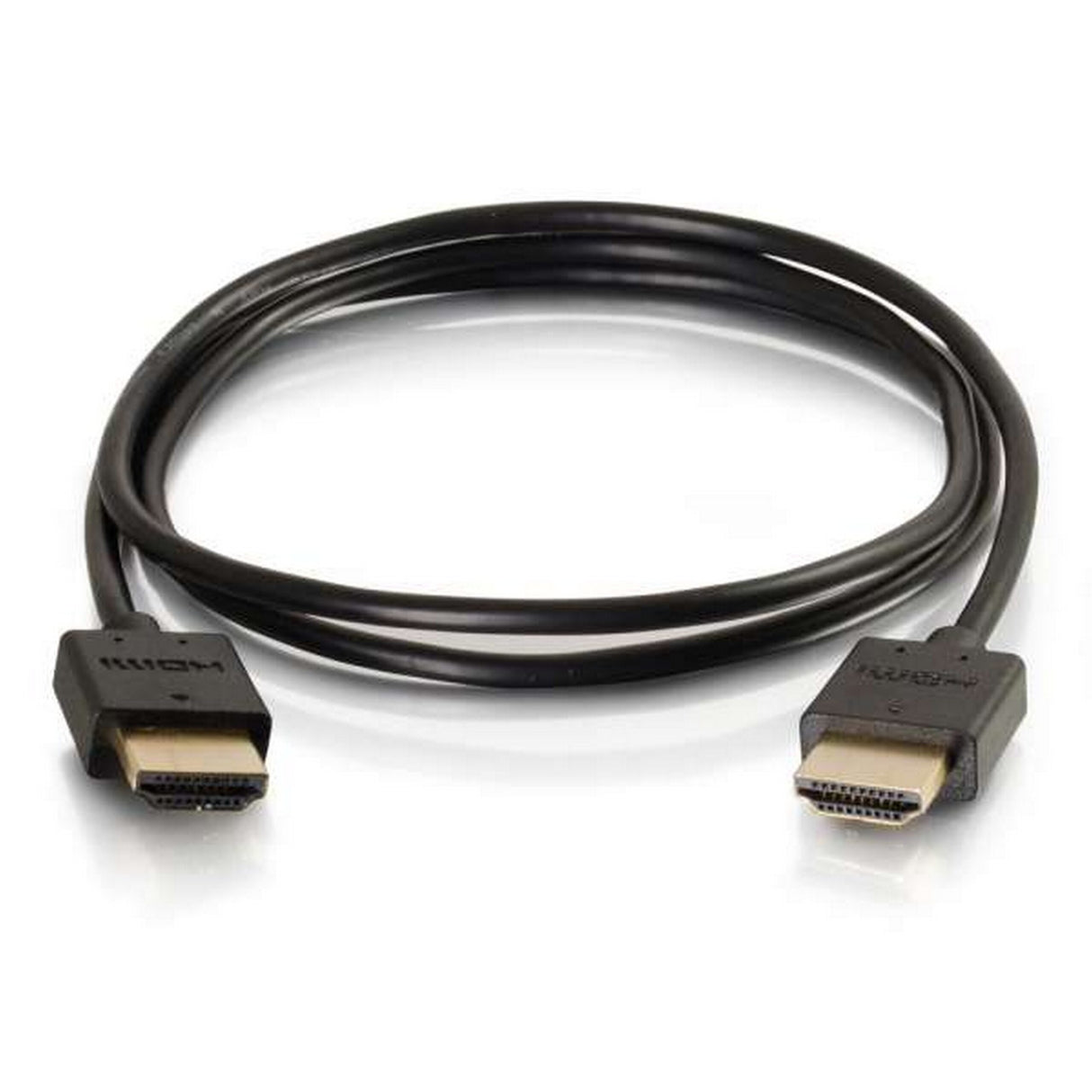

C2G 60Hz Ultra Flexible High Speed HDMI Cable with Low Profile Connectors, 6 Foot
C2G 60Hz Ultra Flexible High Speed HDMI Cable with Low Profile Conn...
C2G 60Hz Ultra Flexible High Speed HDMI Cable with Low Profile Connectors, 6 Foot
The Ultra Flexible High Speed HDMI Cable with Low Profile Connectors supports all HDMI 2.0 features and is perfect for home theater or desktop audio video applications requiring high speed HDMI features and video resolutions up to 4K (4096 x 2160 at 60hz, 4:4:4). The ultra-flexible cable construction and the low profile, compact connector design make this cable an ideal fit for installations in tight spaces. The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection for accessing interactive online content or updating device firmware.
Key Features
- Supports all HDMI 2.0 features including resolutions up to 4K (4096 x 2160 at 60hz, 4:4:4)
- Supports HDMI features including 3D video
- Ultra-flexible cable construction
- Low profile, compact connector design
Technical Specifications
Electrical
HDMI features supported
3D, 4k, High Speed
Voltage rating
30V
Signal bandwidth
3.4Gbps
Nominal impedance
100Ā±10
Nominal capacitance
> 700pF
Nominal velocity of propagation
10.2Gbps
DC resistance
1450/km max at 20Ā°C
Physical
Operating temperature
-25Ā° - 85Ā°C, 60-93% relative humidity
Storage temperature
-25Ā° - 85Ā°C, 60-93% relative humidity
Minimum bend radius
6.5mm
Conductor type
35AWG (7/0.05) tinned copper
Insulation
HD-PE
Drain wire
34AWG (1/0.16) tinned copper
Conductor type
36AWG (7/0.05) tinned copper
Insulation
HD-PE
Overall Cable
Foil shield
Aluminum foil, 100% coverage
Braided shield
16/5/0.06 tinned copper, 65% coverage
Jacket
PVC, black
Outer diameter
3.6 Ā± 0.2mm
Connectors
Connector type
19 pin HDMI
Plating
Gold
Housing
PVC
