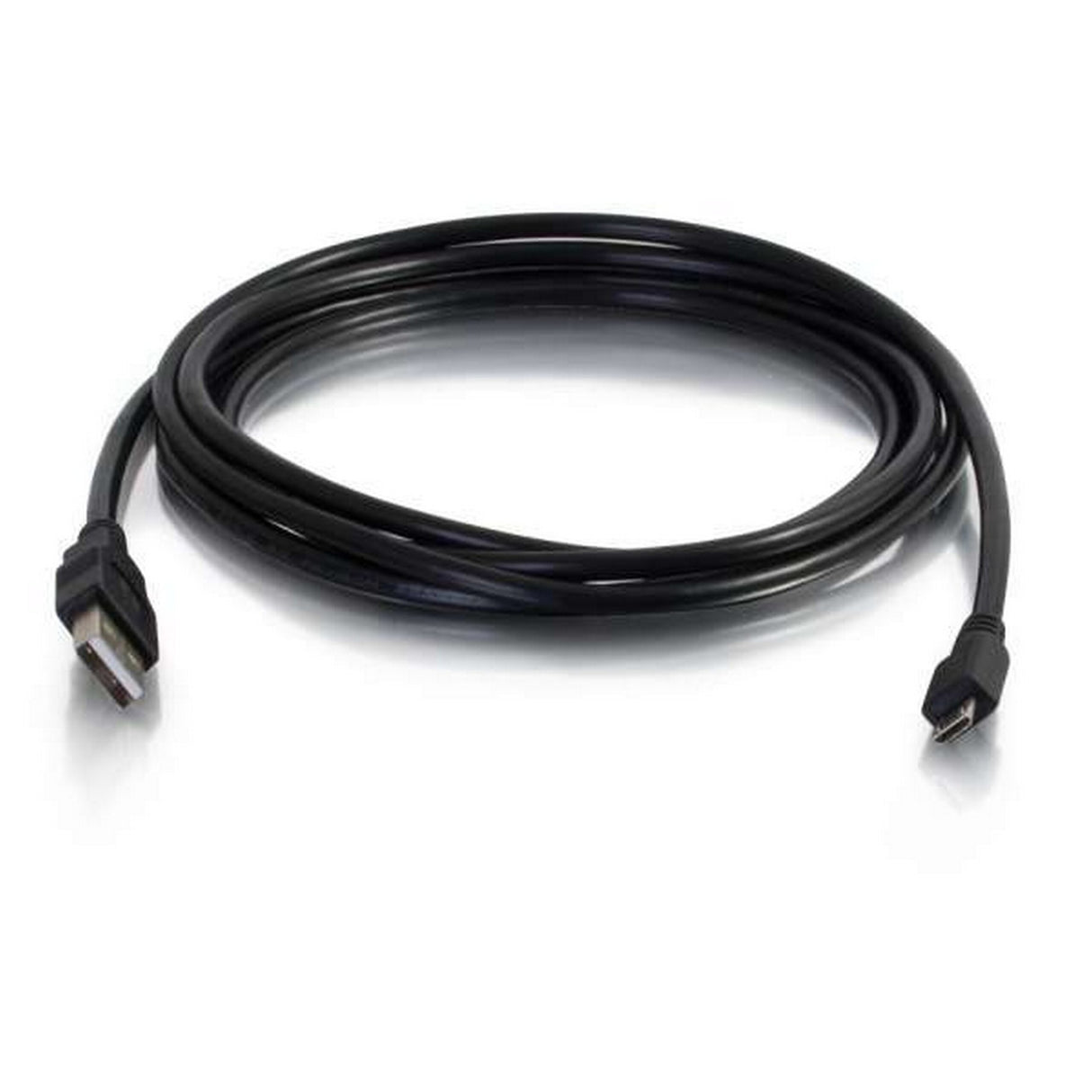

C2G USB 2.0 A to Micro-B Cable Male to Male, 1 Meter
C2G USB 2.0 A to Micro-B Cable Male to Male, 1 Meter
C2G USB 2.0 A to Micro-B Cable Male to Male, 1 Meter
The USB 2.0 A to Micro-B cable provides reliable connectivity for devices like smartphones, tablets and PC peripherals. This cable is ideal for charging Android phones and transmitting data at speeds up to 480 Mbps. The connections are plug and play, making it the perfect cable for travel or while on the go.
Key Features
- Data transfer speeds up to 480 Mbps
- Perfect replacement or spare cable
Technical Specifications
Electrical
Voltage Rating
30V
Conductor Resistance
at 20°C Max
28 AWG
232/km; 24 AWG: 93.25/km
Insulation Resistance
10M?/km min at 20°C dc 500V
Time Delay
5.2ns/m(Max)
Impedance
90±15%?
Propagation Delay Skew
100ps (Full-/High-Speed only)
Attenuation (Full-/High- Speed only)
0.064MHz: 0.08dB; 0.256MHz: 0.11dB; 0.512MHz: 0.13dB; 0.772MHz: 0.15dB; 1MHz: 0.20dB; 4MHz: 0.39dB; 8MHz: 0.57dB; 12MHz: 0.76dB; 24Mhz: 0.95dB; 48MHz: 1.35dB; 96MHz: 1.90dB; 200MHz:
Differential Impedance
Cable @ 200ps Tr(10-90%) 90±7
Intra-Pair Skew
15ps/m @ 200ps Tr(10-90%)
Attenuation/Insertion Loss
1.5dB/2M@0.1GHz; 5.0dB/2M@1.25 GHz; 7.5dB/2M@2.5Ghz; 25dB/2M@7.5GHz
Differential to Common mode(max)
20dB/cable@0.1~7.5GHz
NEXT
32dB@0.1GHz; 32dB@2.5GHz; 23dB@3.0GHz; 23dB@7.5GHz
Physical
Minimum Bend Radius
47mm
Tensile Strength
Unaged: 1500PSI min Aged: 70%min
Elongation
Unaged: 100% min, Aged: 65%
Deformation test
Max 50%
Flame Test
PASS VW-1
Shield Type/Braid Coverage
65%
Shield Type/Braid Construction
15/5/0.10mm TC
Jacket Material & Thickness
PVC 0.38mm Min AVG
Drain Wire AWG & Construction
28 AWG & 7/0.12mm TC
Product is CE Marked and Conforms to 2011/65/EU ROHS 2
Testing
100% test for short/open: 10M OHM Insulation Resistance (300 DC)
