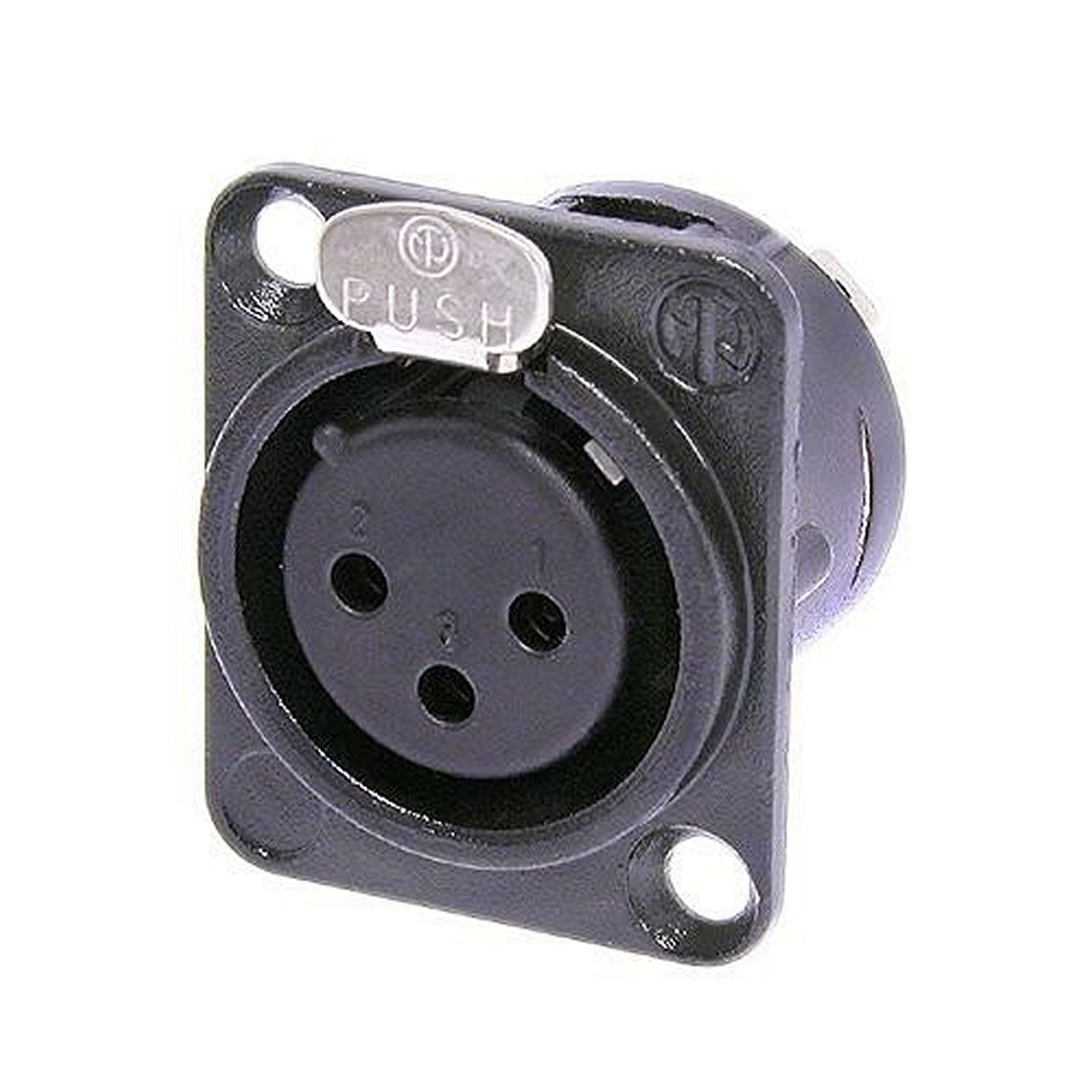

Neutrik NC3FD-L-B-1 3-Pin Female XLR Panel/Chassis Mount Connector, Latching, Black/Gold
Neutrik NC3FD-L-B-1 3-Pin Female XLR Panel/Chassis Mount Connector,...
The Neutrik NC3FD-L-B-1 3-Pin Female XLR Panel Chassis Mount Connector, Latching, Gold Contacts is a 3-pin female XLR connector designed for panel mounting. It features a black metal housing for durability and gold contacts for reliable signal transmission. This connector is ideal for professional audio applications where a secure and high-quality connection is essential.
Key Features
- Solder cup terminations: These provide a reliable way to connect cables to the connector.
- D-size metal shell: This type of shell is commonly used in professional audio applications and provides a robust connection.
- Standardized D-sized 24 mm panel cutout: This makes it easy to mount the connector in a standard panel.
- UL recognized component: This means that the connector has been tested and meets safety standards for use in the United States.
Technical Specifications
Connection Type
XLR
Gender
Female
Capacitance between contacts
≤ 4 pF
Contact resistance
≤ 5 mΩ
Dielectric strength
1,5 kVdc
Insulation resistance
> 2 GΩ (initial)
Rated current per contact
16 A
Rated voltage
< 50 V
Insertion force
≤ 20 N
Withdrawal force
≤ 20 N
Lifetime
> 1000 mating cycles
Wiresize
max. 2.5 mm²
Wiresize
max. 14 AWG
Wiring
Solder contacts
Locking device
Latch lock
Chassis shape
D
Contact plating
2 µm Ag over 2 µm Ni
Contacts
Bronze (CuSn8)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Steel Ck67
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Approvals
UL
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
