CAD Audio WX1000HH UHF Wireless Handheld Microphone System, 510-570 MHz

CAD Audio WX1000HH UHF Wireless Handheld Microphone System, 510-570 MHz

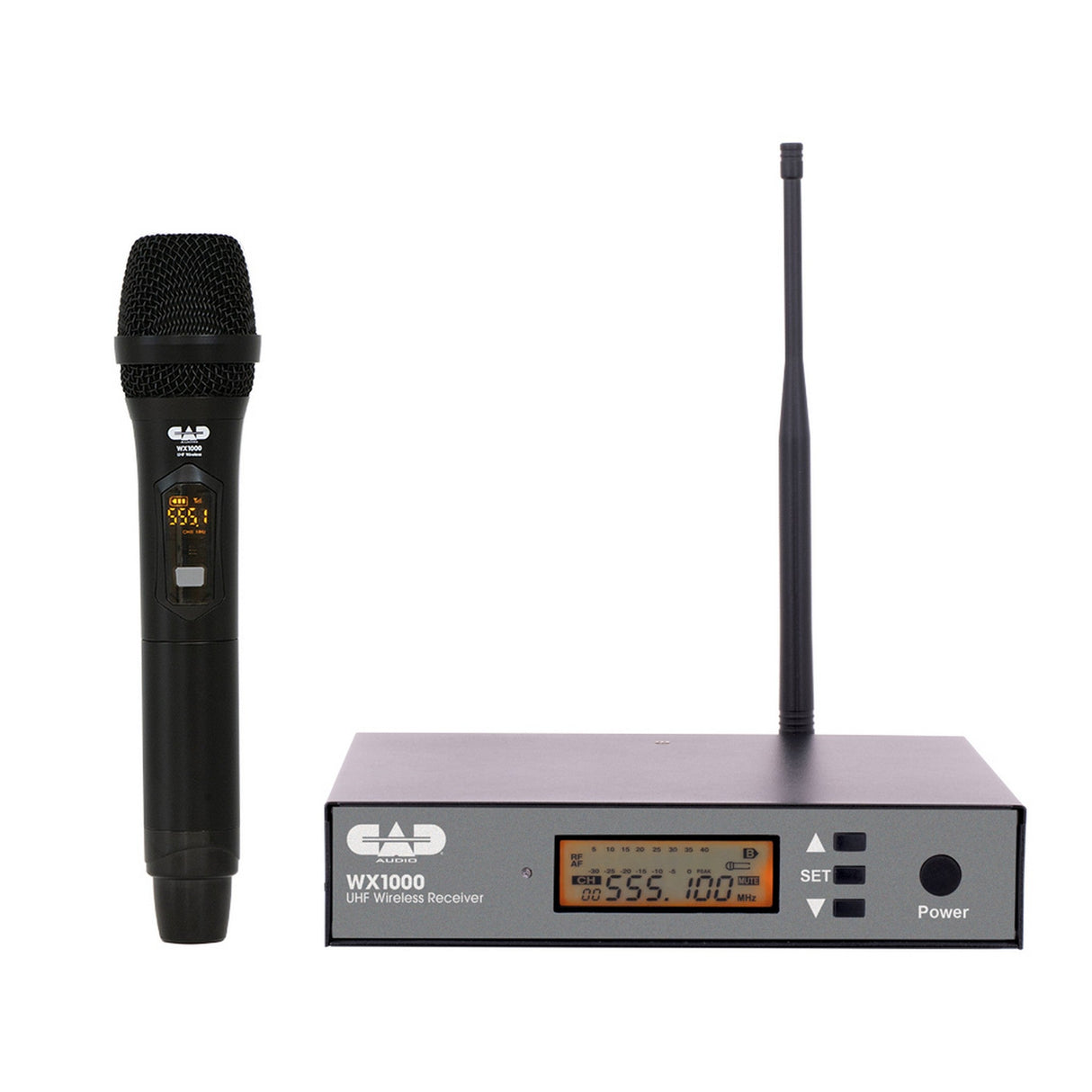

The WX1000HH is a Frequency Agile UHF Wireless Handheld System which operates in the 510-570mHz frequency band and features 100 channels for optimum clarity of signal. Auto-scan and IR sync functions make set up and channel-changing a breeze. Enjoy up to 12 hours of run time using two AA batteries, with a battery level indicator on both the transmitter and receiver, so you’ll know when you need to replace them. All metal construction and included rack mounting hardware help ensure your equipment will stand up to even the toughest conditions.

Key Features

• Frequency Agile Design (100 switchable frequencies)
• Use up to 20 systems at the same time
• Up to 295' (90m) range between transmitter and receiver
• Rugged, all metal construction
• Auto scan finds the optimal frequency setting
• IR sync wirelessly matches transmitter and receiver frequencies
• Transmitter and receiver feature low battery indicators
• Transmitter utilizes 2 AA Batteries with >12 Hrs of operation
• Rack mounting hardware and antennal relocation kit included
• 2 Year Warranty

Technical Specifications

Receiver Frequency Range
510 MHz to 570 MHz
Audio Frequency Response
30 Hz to 18 kHz
Dynamic Range
>100 dB
Outputs
1 x 1/4” (6.3 mm) 1 x XLRM
Handheld Transmitter Frequency Response
30 Hz to 18 kHz
Transmit Power
10 mW
Batteries & Power
2 x AA batteries with >12 hours battery life
Max SPL
129dB
Packaging Info
Package Weight
3.3 lb
Box Dimensions
(LxWxH) 16” x 12.1” x 2.8”
