8Sinn Arca Swiss Baseplate Kit Plus 8Sinn 10-Inch Arri Dovetail Plate

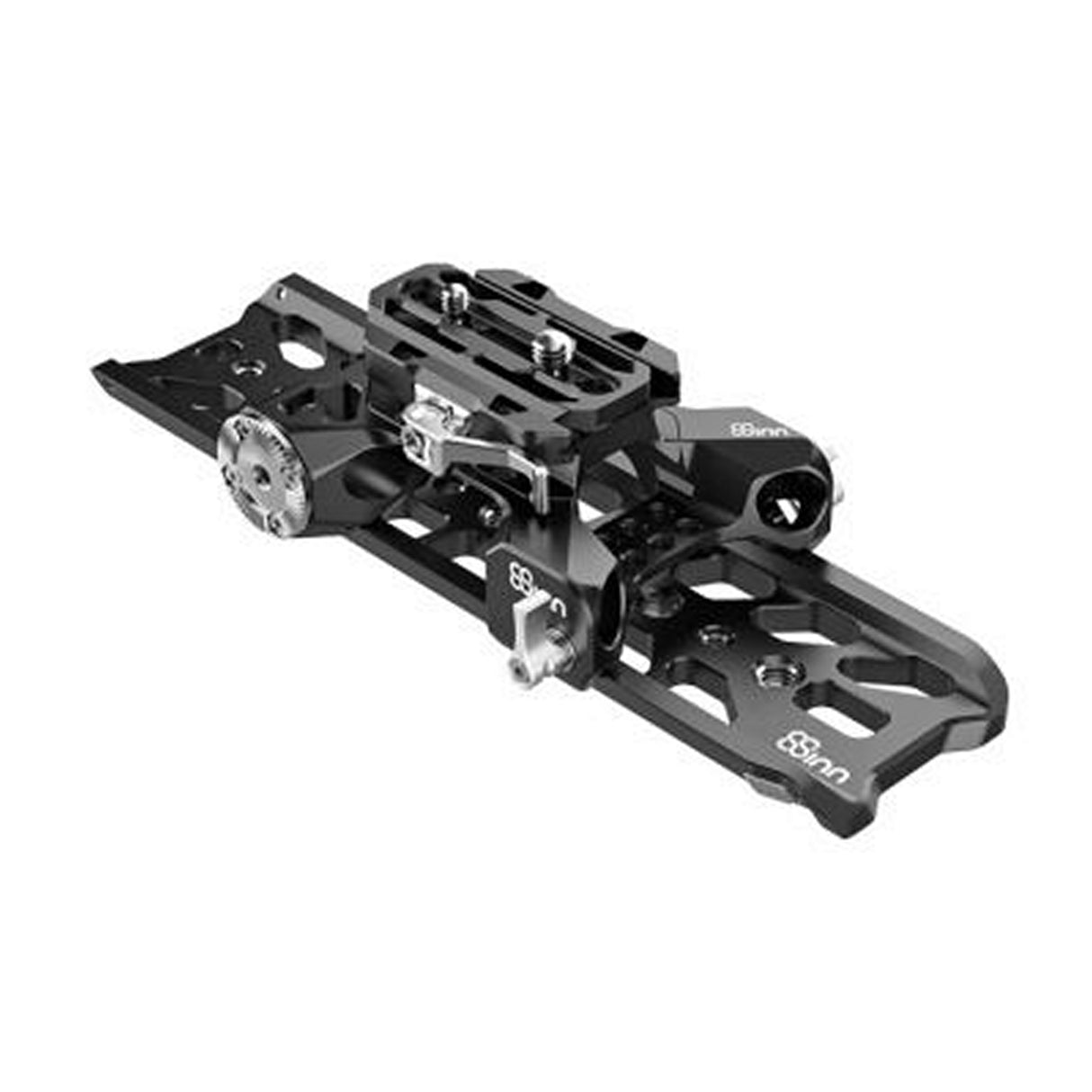

The 8Sinn Arca Swiss Baseplate Kit Plus 8Sinn 10-Inch Arri Dovetail Plate is a complete three-piece camera support system designed for professional cinematography. It combines a precision 15 mm rod baseplate, the Riser Plate II with integrated safety locks, and a 10-Inch Arri dovetail plate into a lightweight aluminum assembly. Rubber pads protect your camera finish, while safety-lever and release-pin mechanisms ensure secure engagement.
This kit delivers the industry-standard 85 mm optical center both with and without a cage. Dual 32 mm Arri rosettes, dovetail guide rails, and multiple 1/4ā³ and 3/8ā³ threaded mounting points provide rapid setup, precise balance tuning, and expandability for handheld or tripod rigs.
Key Features
- Quick Release System: Arca Swiss-compatible plate with dual safety locks (lever and release pin)
- Baseplate: 2 Ć 32 mm Arri rosettes; 15 mm rod openings; 6 Ć 1/4ā³ threaded holes; dovetail guide rails
- Riser Plate II: Rubber-padded top surface; 1 Ć 1/4ā³ & 1 Ć 3/8ā³ mounting screws; safety locks on both sides
- Dovetail Plate: 10-Inch (254 mm) length; release pin; stopper screw; Helicoil 1/4ā³ & 3/8ā³ threads
- Material: High-strength aluminum alloy with protective rubber pads
Technical Specifications
- Weight: 563 g (1.24 lbs)
- Rod Compatibility: 15 mm standard LWS rods
- Rosette Size: 32 mm Arri standard
- Mounting Threads: Baseplate ā 6 Ć 1/4ā³; Riser Plate II ā 1 Ć 1/4ā³ & 1 Ć 3/8ā³; Dovetail ā Helicoil 1/4ā³ & 3/8ā³
- Dovetail Length: 10ā³ (254 mm)
What's Included
- 1 Ć 8Sinn 15 mm Baseplate
- 1 Ć 8Sinn Riser Plate II
- 1 Ć 8Sinn 10-Inch Arri Dovetail Plate
