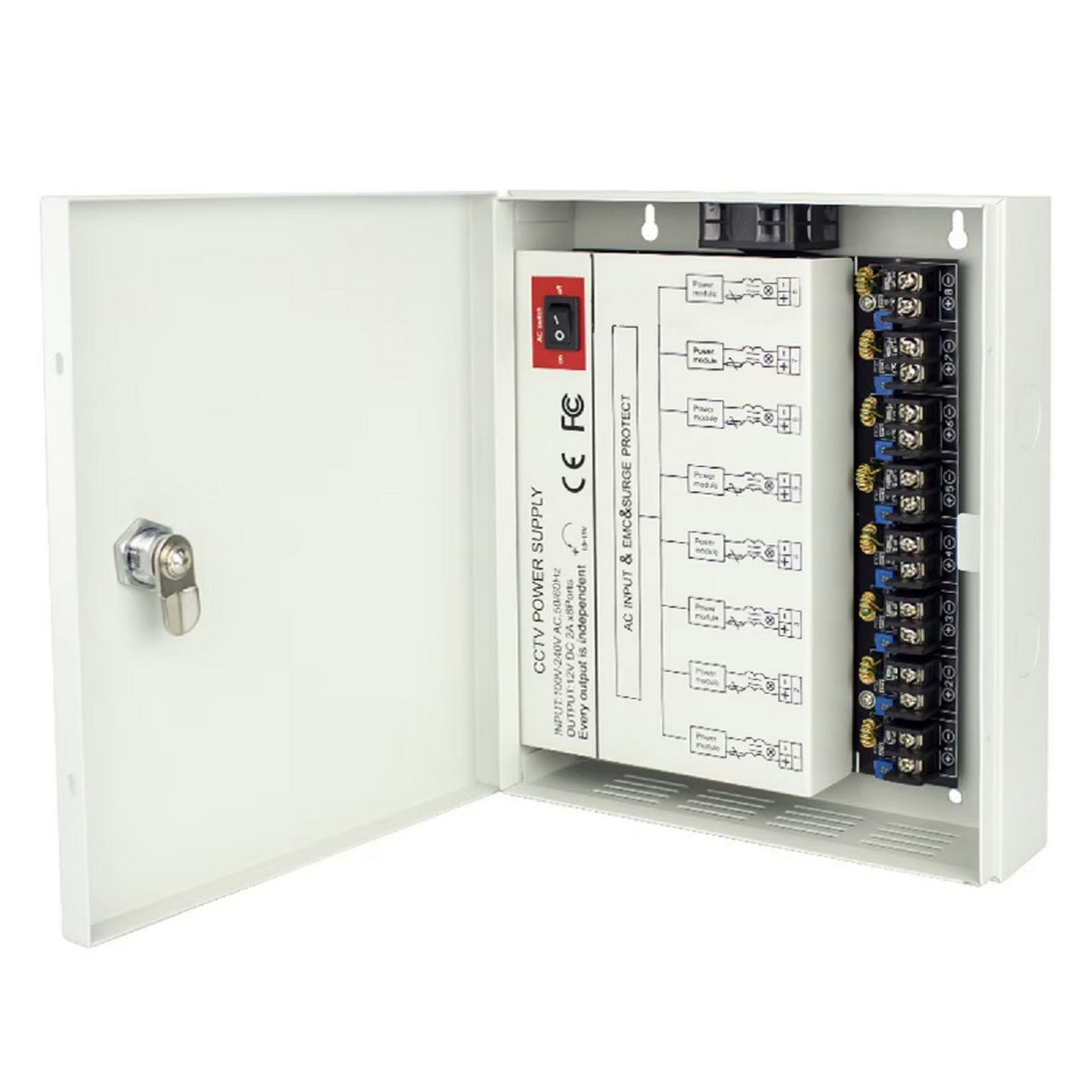

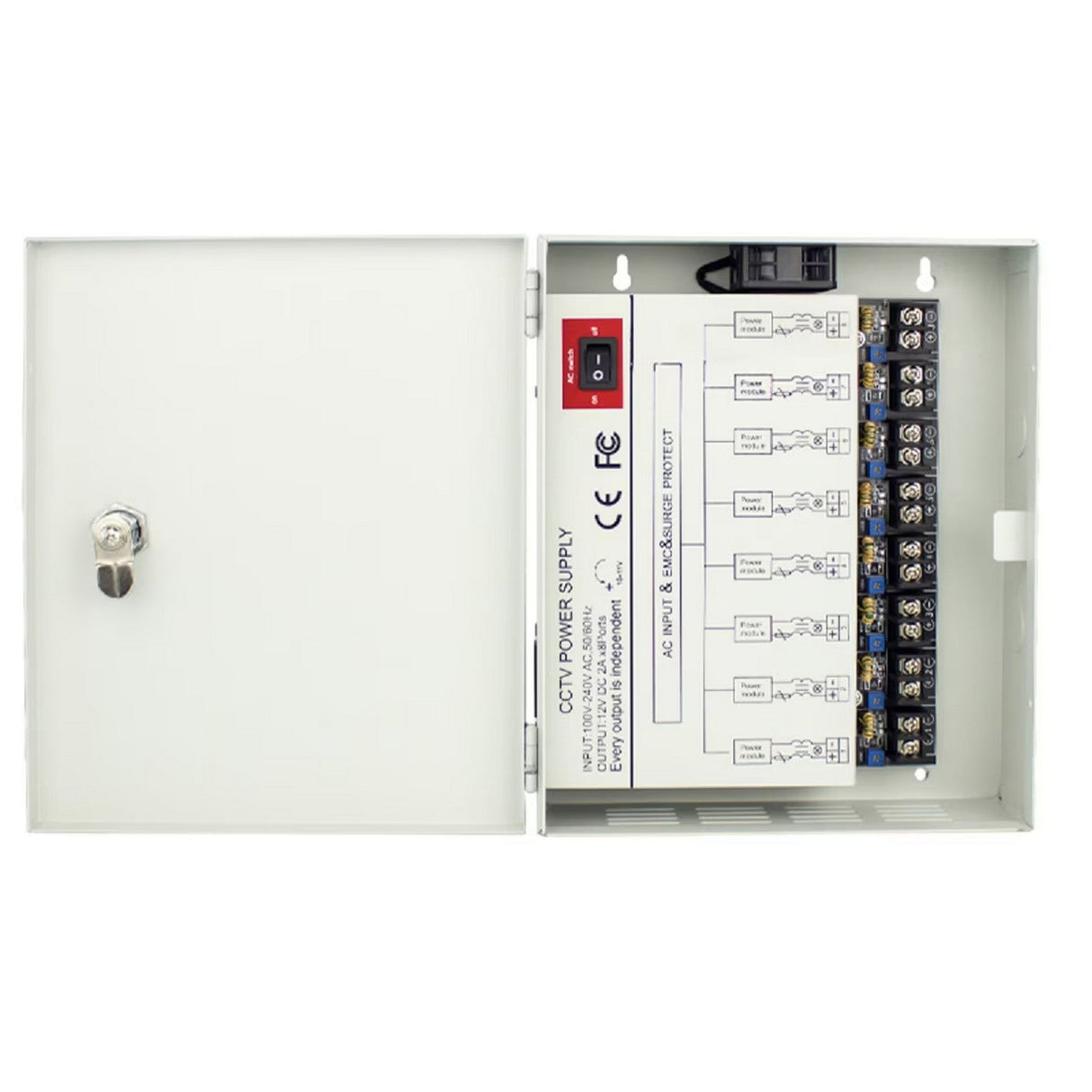

IC Realtime PS-DC16A08HD-4DK 8-Channel 16 Amp DC Power Supply
Introducing the IC Realtime PS-DC16A08HD-4DK, a robust 8-channel DC power supply engineered to provide stable and efficient power for your surveillance systems. With a wide input voltage range of AC 110-220V and a maximum output of DC 12V at 16A, this power supply unit guarantees steady power delivery to up to 8 devices, making it a perfect choice for both home and business security setups. The device's solid construction and high-performance design make it an indispensable asset for reliable power distribution.
The IC Realtime PS-DC16A08HD-4DK is designed with a compact form factor, measuring 8 inches in width, 9.8 inches in depth, and 2.3 inches in height, ensuring it can fit seamlessly into various installation environments. With an impressive efficiency rating of ā„82%, this power supply unit minimizes energy waste, which is both cost-effective and environmentally friendly. It also features PTZ fuses rated at 2000mA, providing additional protection for connected devices against power abnormalities such as surges and short circuits.
Built to endure varying environmental conditions, the IC Realtime PS-DC16A08HD-4DK operates within a temperature range of 14°F to 104°F (-10°C to 40°C). Its long lifespan of 10,000 hours underscores its durability and reliability, ensuring uninterrupted performance over extended periods. The power supply sports an attractive white and royal blue design and weighs just 3.93 pounds, which makes it easy to handle and install.
Key Features
- Supports up to 8 channels for simultaneous power distribution
- High efficiency rating of ā„82% for energy-saving operation
- Compact dimensions for versatile installation options
- Equipped with PTZ fuses rated at 2000mA for enhanced safety
- Operates within a wide temperature range, suitable for various environments
- Durable design with a lifespan of 10,000 hours
- Attractive white and royal blue color scheme
Specifications
- Model: IC Realtime PS-DC16A08HD-4DK
- Input Voltage: AC 110-220V 4A 47-63Hz
- Output: DC 12V 16A (MAX)
- Max Channels: 8
- Efficiency: ā„82%
- Fuse Type: PTZ Fuse
- Fuse Rating: 2000mA
- Operating Temperature: 14°F-104°F (-10°C to 40°C)
- Life: 10,000 hours
- Load Regulation A: ±5%
- Color: White and Royal Blue
- Weight: 3.93 lb (1.785 kg)
- Dimensions (WĆDĆH): 8ā x 9.8ā x 2.3ā (205 mm x 250 mm x 60 mm)
Package Contents
- IC Realtime PS-DC16A08HD-4DK 8-Channel DC Power Supply Unit
- Power Cord
- User Manual
