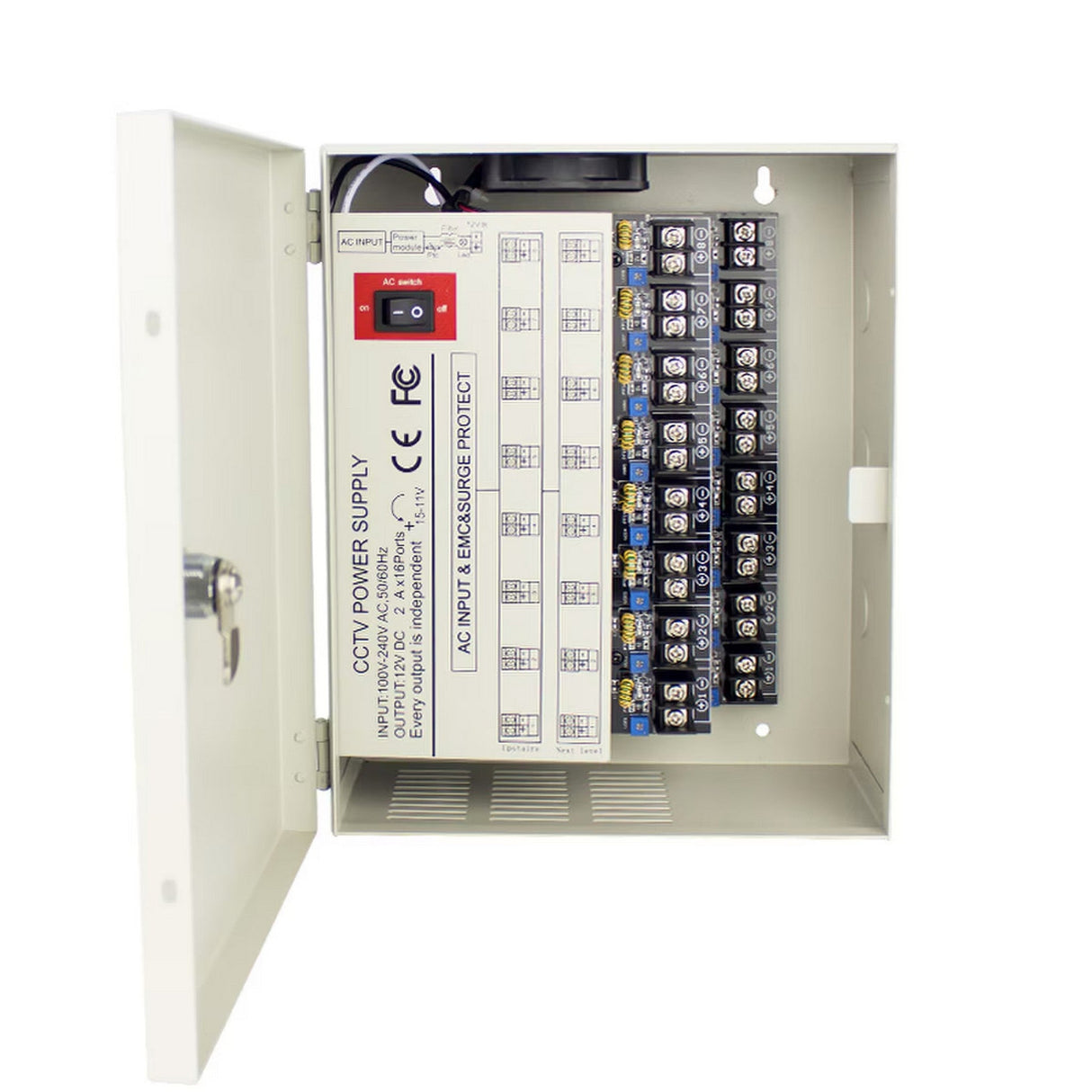

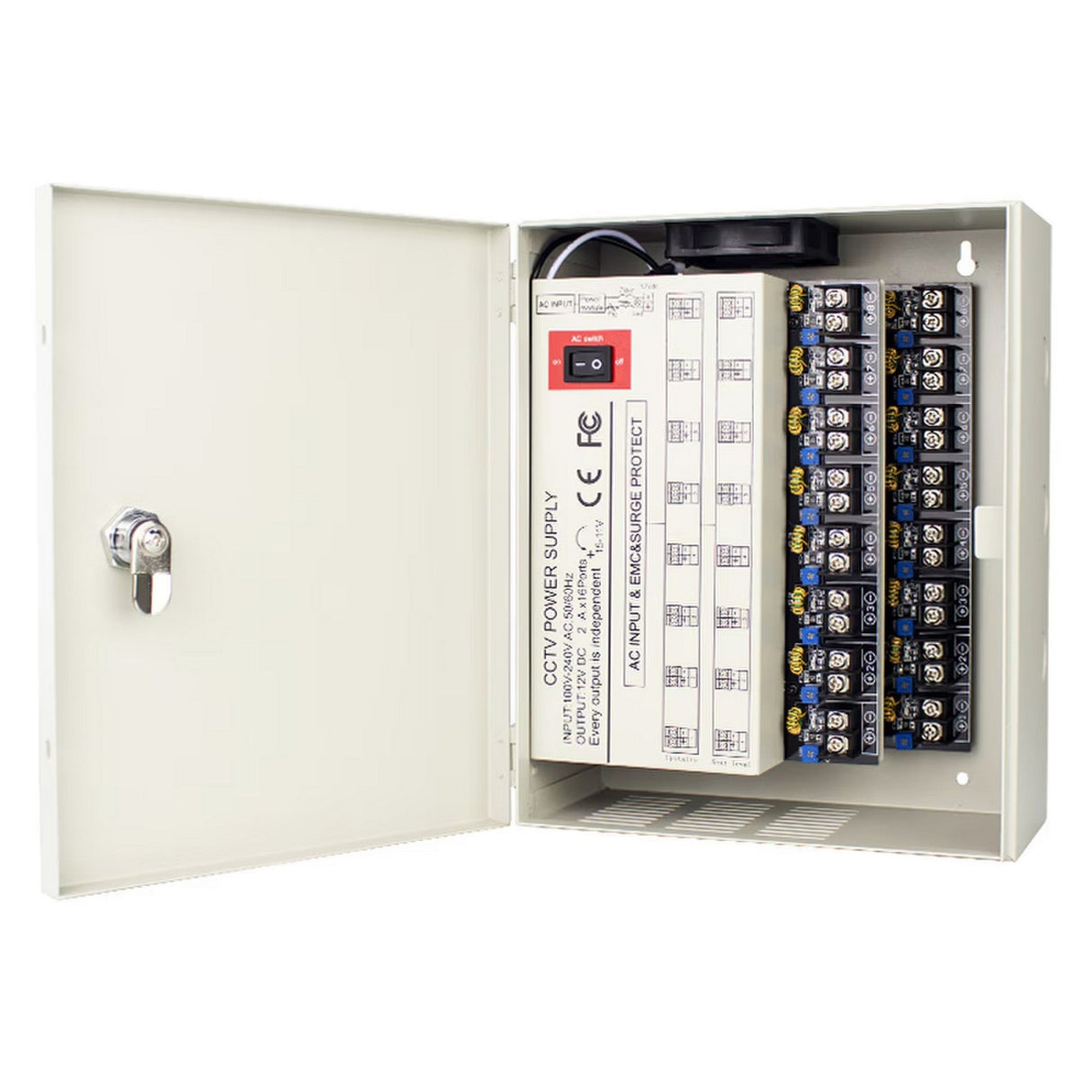

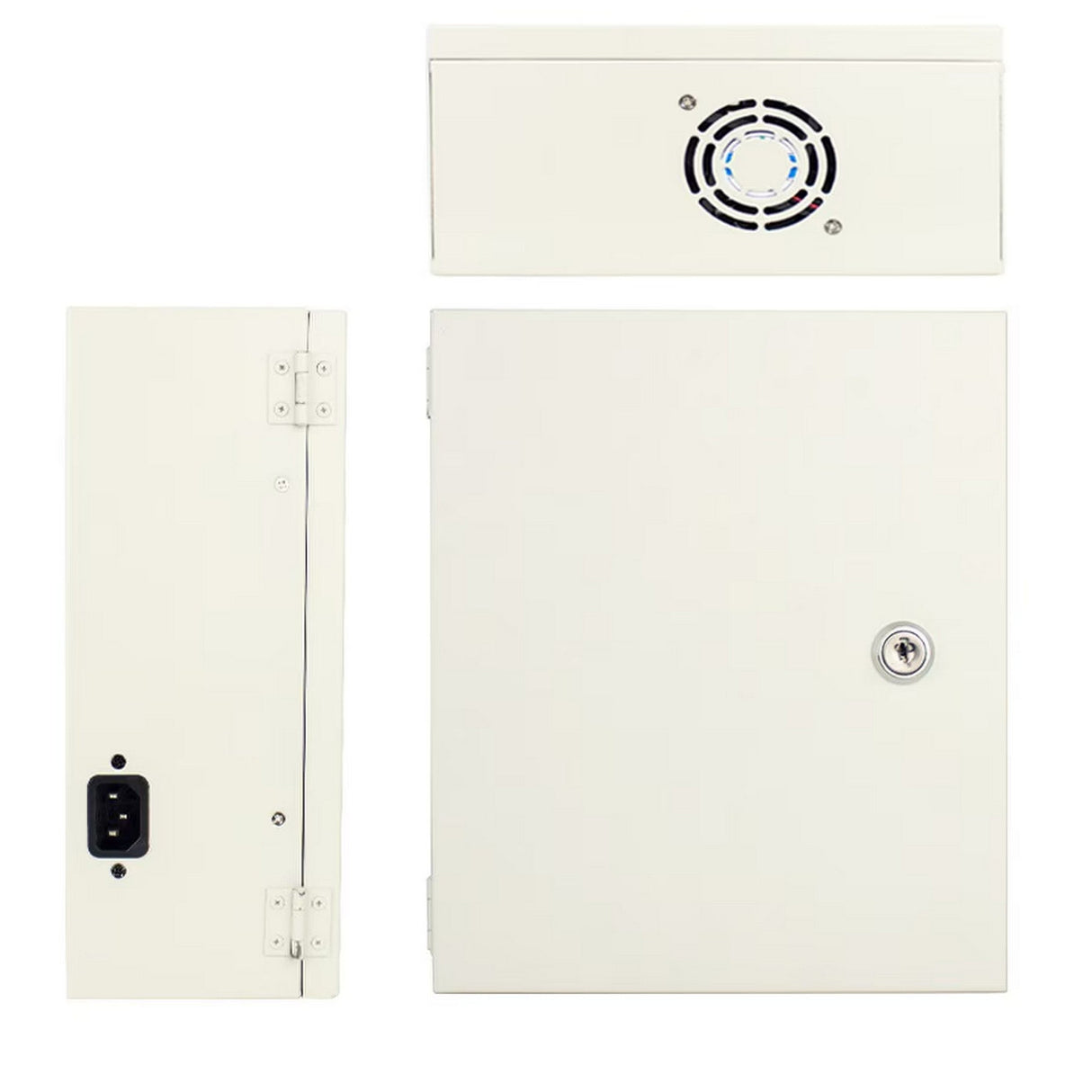

IC Realtime PS-DC32A16HD-4DK 16-Channel 32 Amp DC Power Supply
The IC Realtime PS-DC32A16HD-4DK is a sturdy 16-channel 12V DC power supply meticulously designed to provide consistent and dependable power to your surveillance systems. With its capacity to deliver 2 amps per channel, it ensures that each connected device receives sufficient power for optimal operation. This makes it an excellent choice for powering numerous cameras, access control systems, and other security devices.
This power supply features a universal AC input range of 110V-220V AC at 47-63Hz, offering flexibility and compatibility with various power sources. Its 16 channels are equipped with individually adjustable voltage outputs ranging from 11V to 15V, allowing for precise voltage regulation tailored to your devices' specific requirements. This feature is particularly useful for compensating voltage drops over extended cable runs, ensuring stable power delivery to all connected equipment.
The PS-DC32A16HD-4DK places a strong emphasis on safety and reliability. It includes multiple protection mechanisms, such as short circuit, over voltage, over current, and over temperature safeguards, protecting both the power supply and connected devices from potential harm. Each channel is fitted with a PTC fuse and an external LED indicator, providing immediate visual status updates and simplifying troubleshooting. With its high efficiency rating exceeding 82% and a lifespan of up to 10,000 hours, this unit is perfectly suited for demanding surveillance applications.
Key Features
- 16-channel 12V DC power supply with 2 amps per channel
- Universal AC input range: 110V-220V AC, 47-63Hz
- Individually adjustable voltage outputs per channel (11V-15V)
- Regulated and filtered DC outputs for stable power delivery
- Comprehensive protection: short circuit, over voltage, over current, and over temperature
- PTC fuse and external LED indicator for each channel
- High efficiency (≥82%) and long service life (10,000 hours)
- Suitable for CCTV cameras, IP cameras, PTZ cameras, access control systems, and more
Specifications
- Model: PS-DC32A16HD-4DK
- Input Voltage: AC 110-220V, 4A, 47-63Hz
- Output: DC 12V, 32A (MAX)
- Channels: 16
- Efficiency: ≥82%
- Fuse Type: PTC Fuse
- Fuse Rating: 2A
- Load Regulation: ±5%
- Operating Temperature: 50-104°F (-10~40°C)
- Color: White and Royal Blue
- Run Life: 10,000 hours
- Dimensions: 8” x 9.8” x 3.0”
- Weight: 4.4 lb
Package Contents
- IC Realtime PS-DC32A16HD-4DK 16-Channel 12V DC Power Supply
- User Manual
- Mounting Hardware
