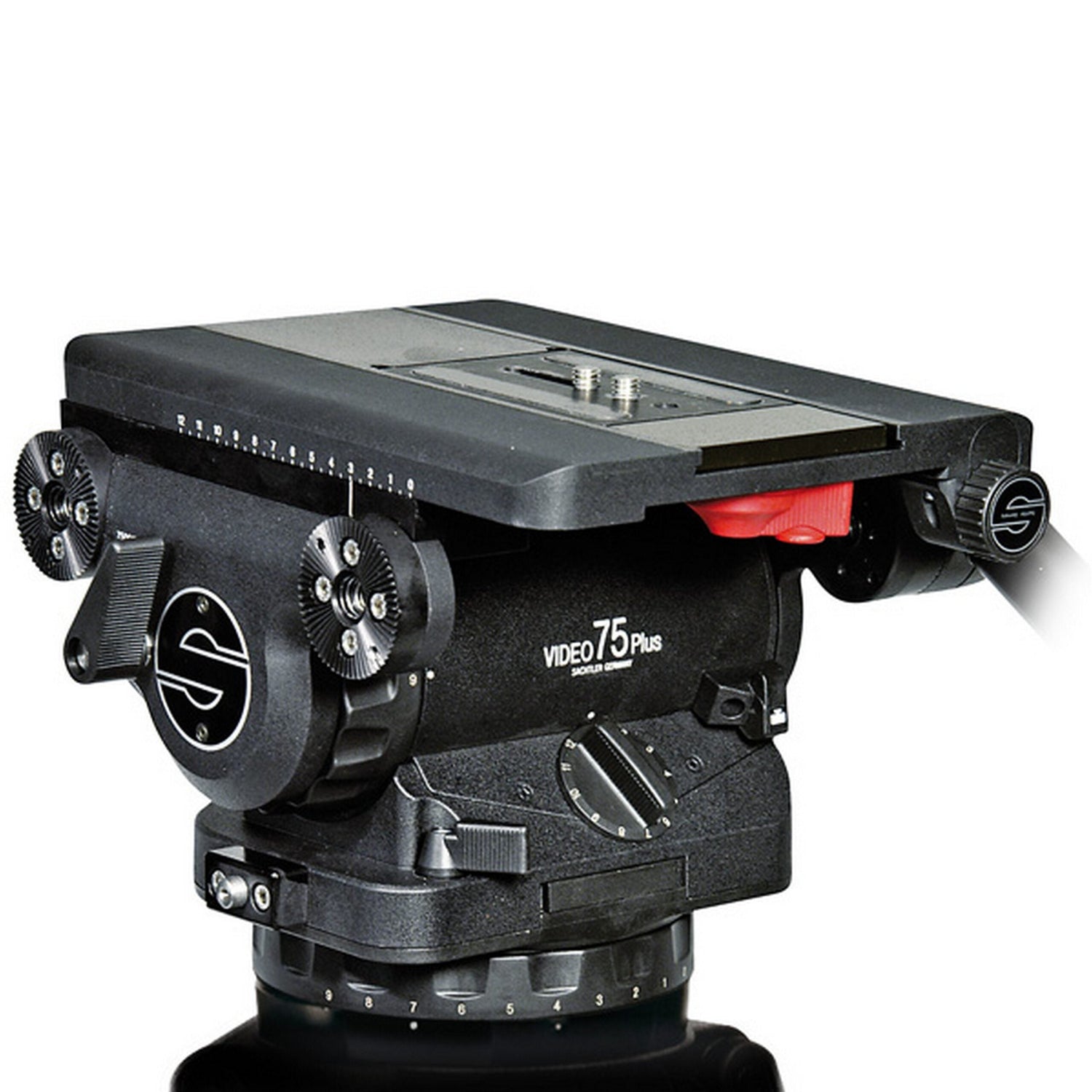

Sachtler 7500 Video 75 Plus EFP Fluid Head

Even when carrying a payload of 85 kg, the Sachtler Video 75 Plus EFP Fluid Head gives high-performance and safe operation, whatever the conditions. Its 24-step counterbalance system uses torsion springs to provide secure balance as the camera moves through any angle and protects you from any slips or tilts. The counterbalance can be fine-tuned to exactly the right level, while the sliding plate can be locked in place once you’ve achieved your desired level.

Getting your camera into the right position is as simple as a few clicks. The Touch & Go and automatic locking system replace endless rounds of clumsy fiddling and let you operate in confidence. Once you are shooting, the frictionless leak proof damping with nine levels of drag helps you get the right shot first time. If you need to work fast, you can disengage the drag without affecting the counterbalance.

Technical Specifications

Range
EFP
Pan bar length
21.06 to 28.08 in
Payload
26.40 to 187 lb
Weight
30.14 lb
Pan bar type
Pan bar front and back section
Pan bar attachment
28.5/35/40 mm
Pan bar count
2, front and back
Level bubble
No
Level bubble illuminated
Yes
Battery type
3 x 625U or LR9
Adaptor viewfinder extension
Included Adaptor
Bowl size
150 mm
Flat base
integrated
Camera plate
Touch & Go plate 35
Temperature range
-40 to 140 F
Tilt range
+90 to -60
Sliding range
4.68 in
Interface Compatibility
Touch & Go
Counterbalance
24 steps + Boost Button
Drag
9 + 0 drag settings
