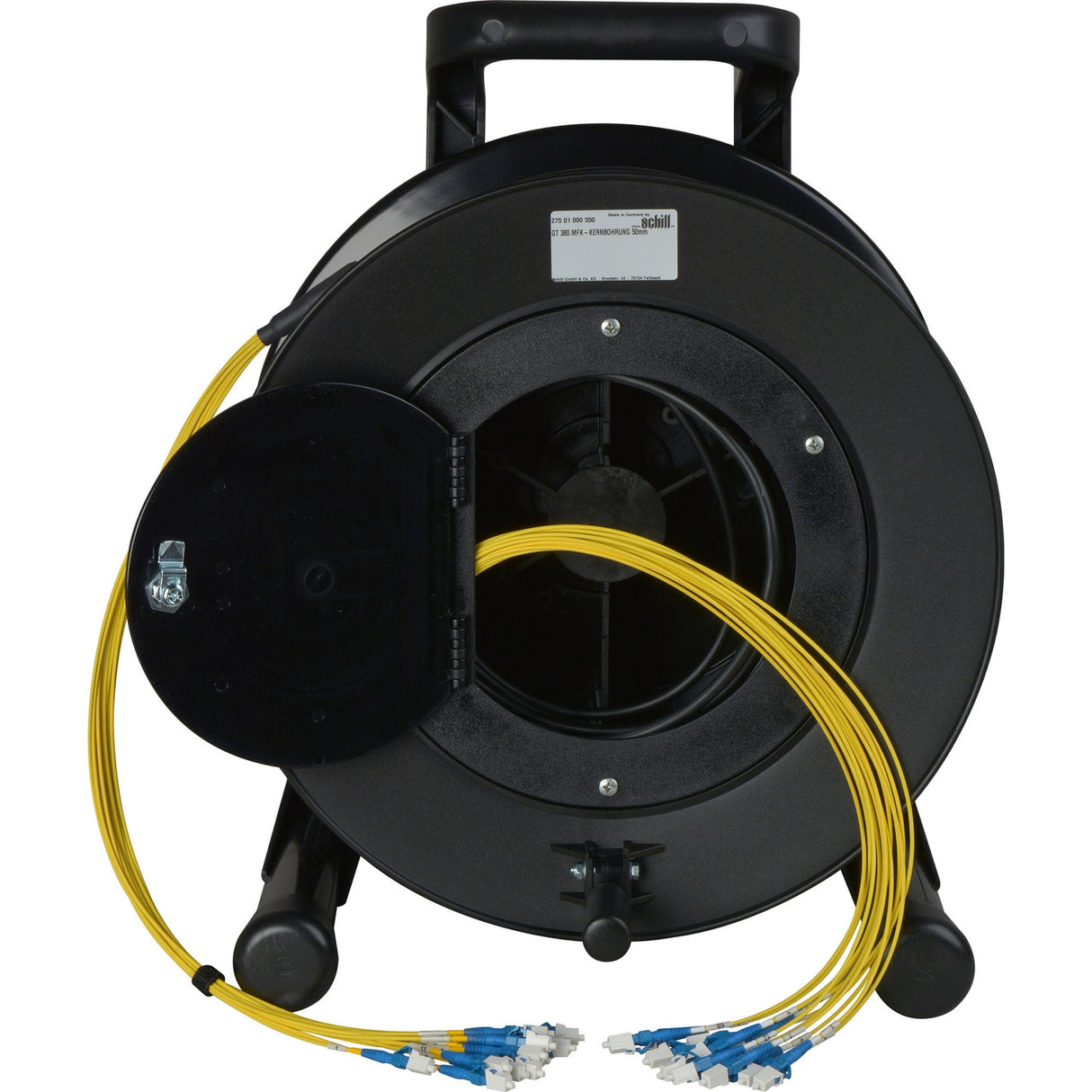

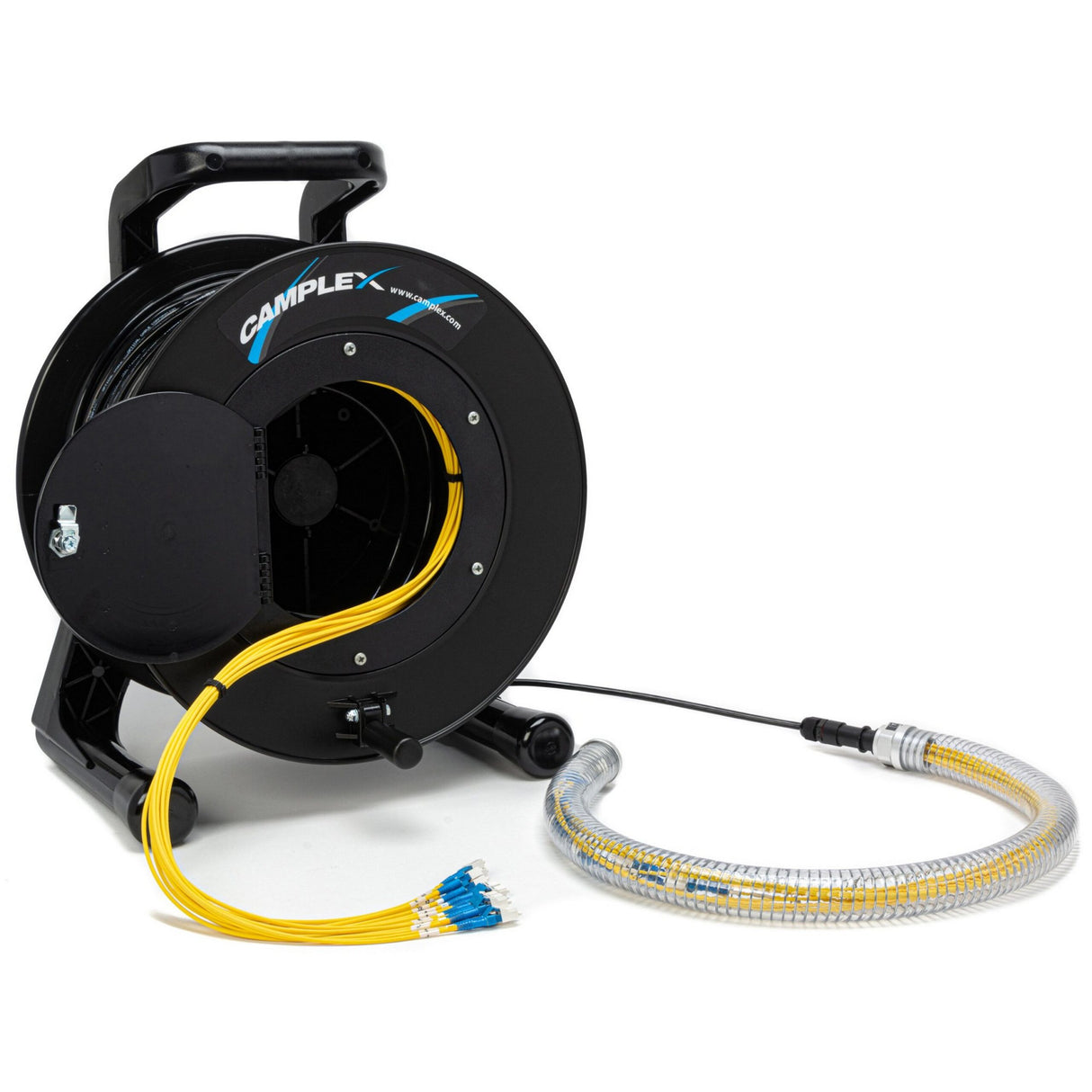

Camplex 12-Channel LC Single Mode Fiber Optic Tactical Snake Reel, 500 Foot

Ruggedized multi-channel fiber optic cables designed for multiple deployments for field production in outside broadcast, rental houses and more. Highly flexible tight-buffered tactical cables with internal aramid strength members for crush resistance in high traffic areas if handled properly and a polyurethane outer sheath designed to withstand crushing by both military tanks and Outside Broadcast vehicles. Cables are complete end-to-end tactical grade where fanout channels are covered with tactical grade polyurethane furcation tubing. All assemblies multi-stage machine polished and tested for less than .55db RL (complete per-channel test results available on request). Built in-house at our state-of-the-art fiber lab - the only fiber lab in the US to have achieved full certification from LEMO, Neutrik & Canare!

Key Features

• Built with OCC Multichannel Tactical Cable & Heavy Duty Connectors with Dust Caps
• Individual 36-Inch Fanout Channels Protected with Polyurethane Tactical Furcation Tubing
• Compact, round cable design for ease of transportation and deployment
• Designed for use in adverse environments where reduced size and weight are important
• Helically stranded cable core for flexibility, deployment survivability and exceptional mechanical protection for the optical fibers
• Cables have been tested and are in use in military data communications applications worldwide
• Can be used outdoors for temporary deployment directly on the ground in all terrains, including severe environments
• Suitable for outside broadcast, industrial, mining and petrochemical environments - chemical resistant
• Crush-resistant and resilient with a thick layer of aramid strength members
• Polyurethane jacketed for abrasion, cut and chemical resistance

Technical Specifications

Mounting
Hose Clip / Cable Tie
Number of Fibers
4 or 12 channels
Connector Types
LC, SC, ST
Dimensions
65mm x 24mm (Excluding cable gland)
Temperature Range
-40C to 85C
Fan-out kit retention
>15 lbs (>66N)
Feeder cable retention
100 lbs (450N)
Polished to UPC GR 326 Core standard, typical IL< 0.5dB and RL> -55dB
