Camplex CMX-12GSDI-TR 12G-SDI over Singlemode Fiber Transmission System

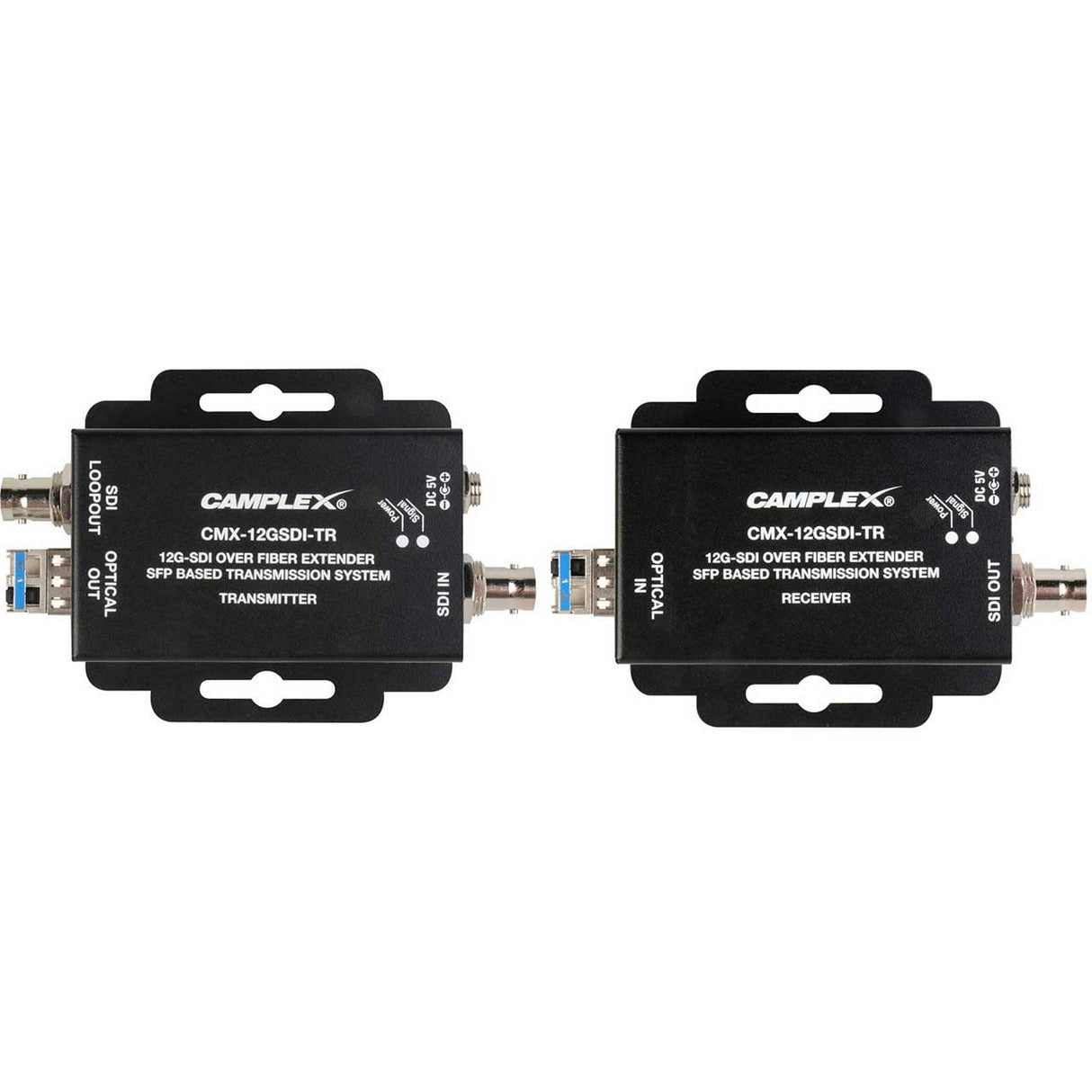

Harness the power of long-haul 12G-SDI transmission with the Camplex CMX-12GSDI-TR fiber extender. This single-link system is engineered to deliver exceptional image resolution and embedded audio over singlemode fiber up to 6 miles.

Input signals are automatically equalized & reclocked and the transmitter features an SDI looping output for monitoring. The Camplex CMX-12GSDI-TR is perfect for outside broadcast, live event production, rental, digital signage and medical applications. The system is backwards compatible for use with 3G-SDI and SD-SDI video signals.

This SFP based system has distinct advantages over conventional fiber extenders. SFP modules allow for interchangeability when SFPs need cleaning or you need to change speed and distance. In addition, when used with compatible Camplex brands, the receiver unit can be eliminated from the video chain for direct transmission to SFP module devices. Fiber connection is LC simplex singlemode.

Key Features

• Extends 12G/6G/3G/HD/SD-SDI up to 6.25 miles over Singlemode Fiber
• SFP Based (small form pluggable) fiber connector
• Embedded Audio
• 1 Reclocking SDI Loop Out on TX
• Immune to RP-198 Interference
• Input Signal Detection LED
• Rugged Metal Housing

Technical Specifications

Video Bandwidth
2.97Gpbs & 2.97/1.001Gbps
Supports
SMPTE-292M(270Mbps), SMTPE- 259M(360Mbps), SMPTE-292M / HDTV (1.485Gbps and 1.485/1.001Gbps), SMPTE 424M (2.97Gbps and 2.97/1.001Gbps), SMPTE 2082-1/ HDTV (5.94Gbps and 5.94/1.001Gbps), SMPTE 2082-2 / HDTV (11.88Gbps and 11.88/1.001Gbps), DVB ASI (270Mbps)
Data Rates
270 / 1483 / 1485 / 2967 / 2970 / 5940 / 11880 Mbps
Input Impedance
75 ohm
Input
TX - BNC (SDI)/ RX - SFP LC Simplex Singlemode (SDI)
Output
TX - SFP LC Simplex Singlemode (SDI), BNC (SDI)/ RX - BNC (SDI)
Power Consumption
3W
Dimensions
2.9 x 2.9 x 1.0 in / 74 x 74 x 26 mm each unit
Weight
7.4 oz / 211g each unit
