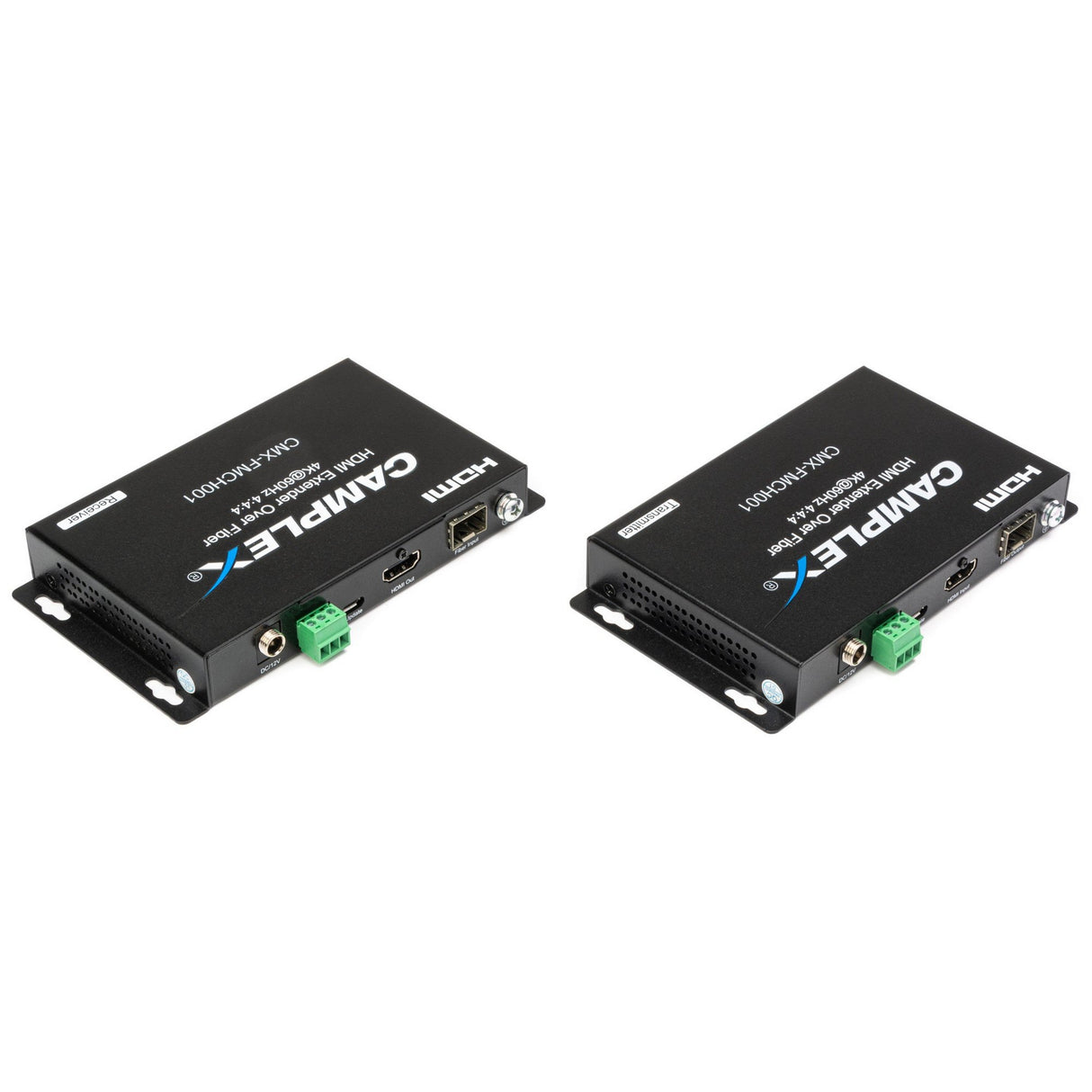

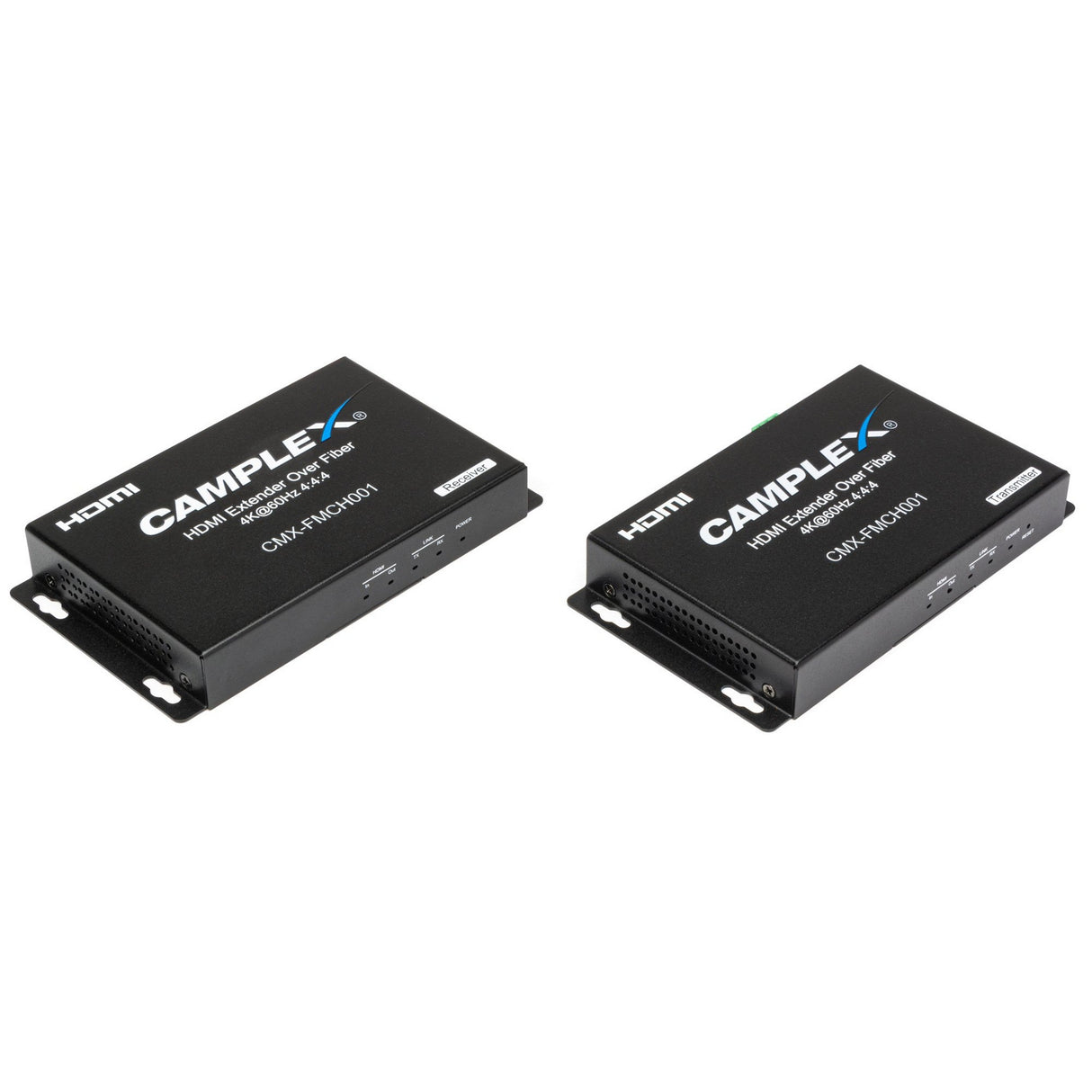

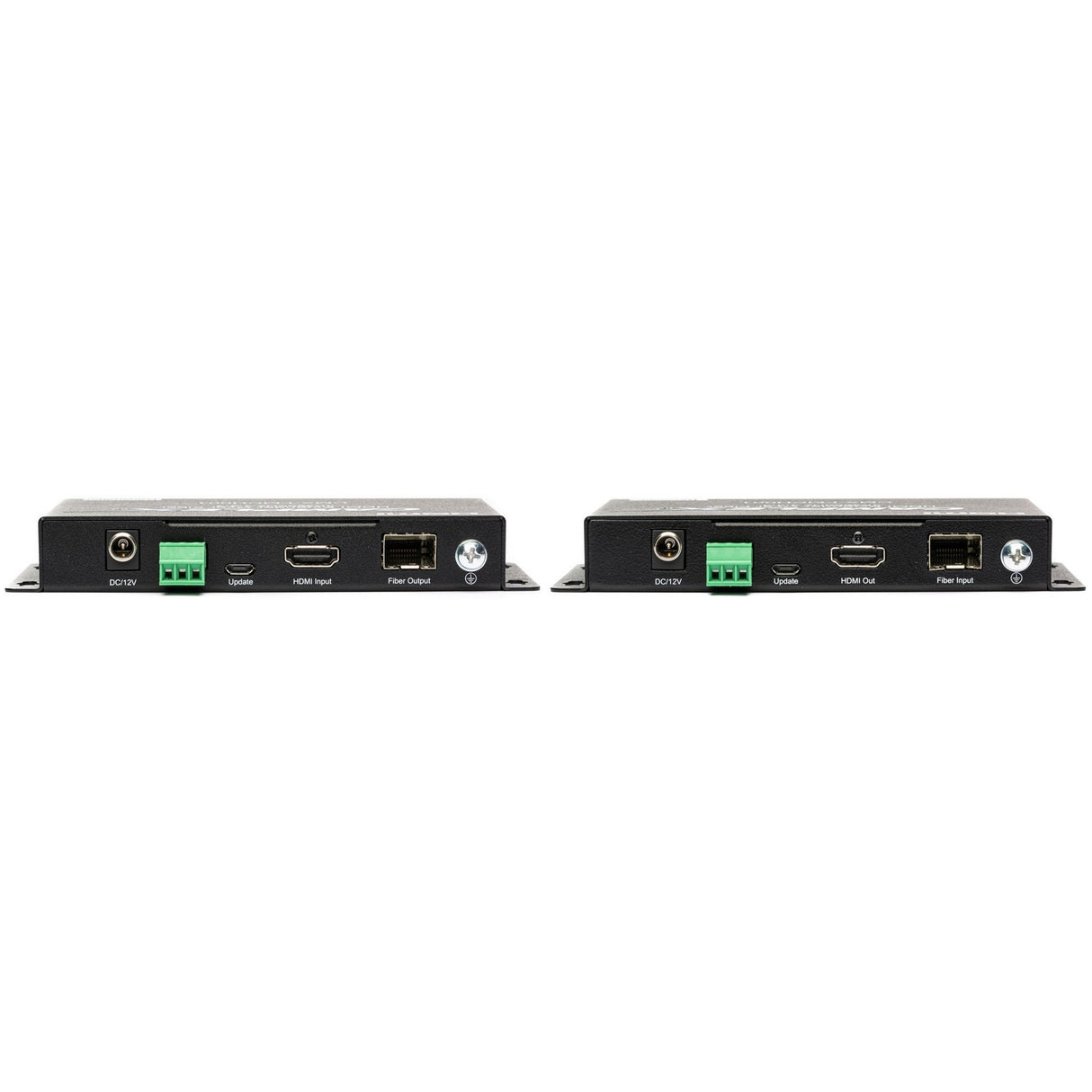

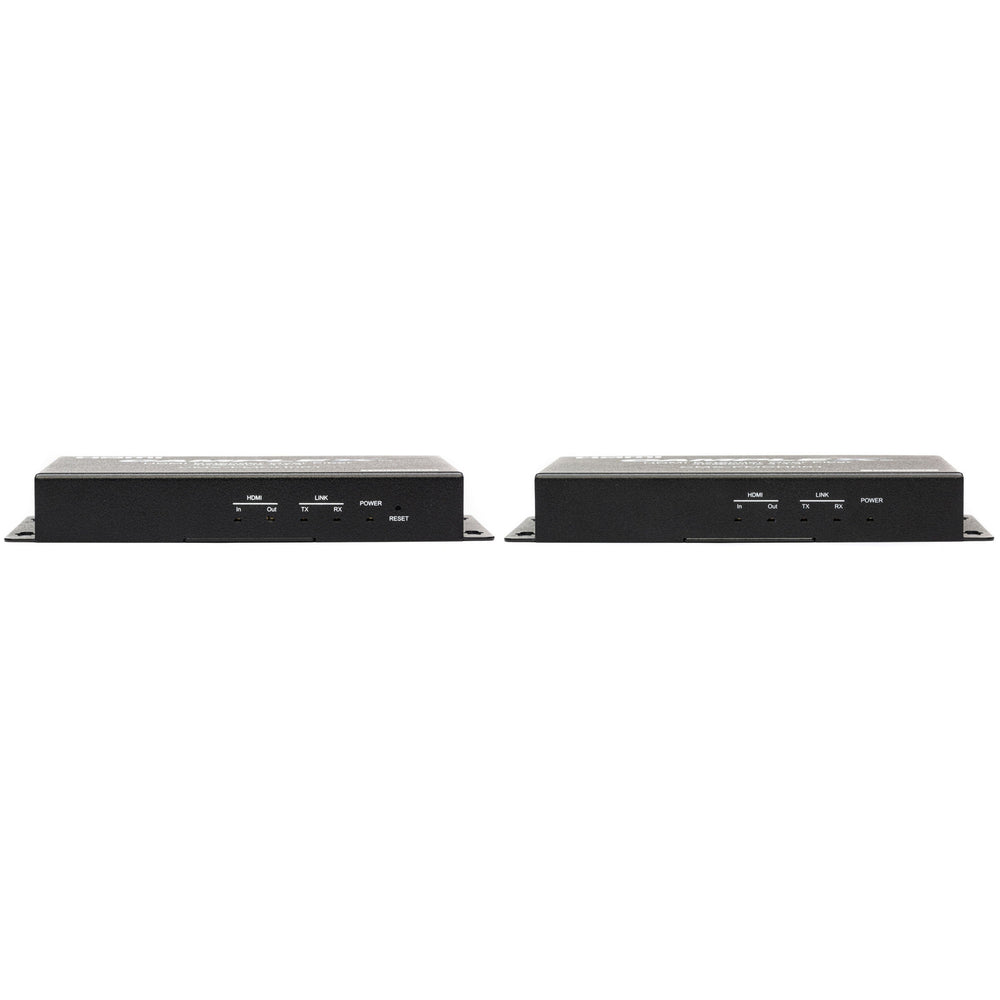

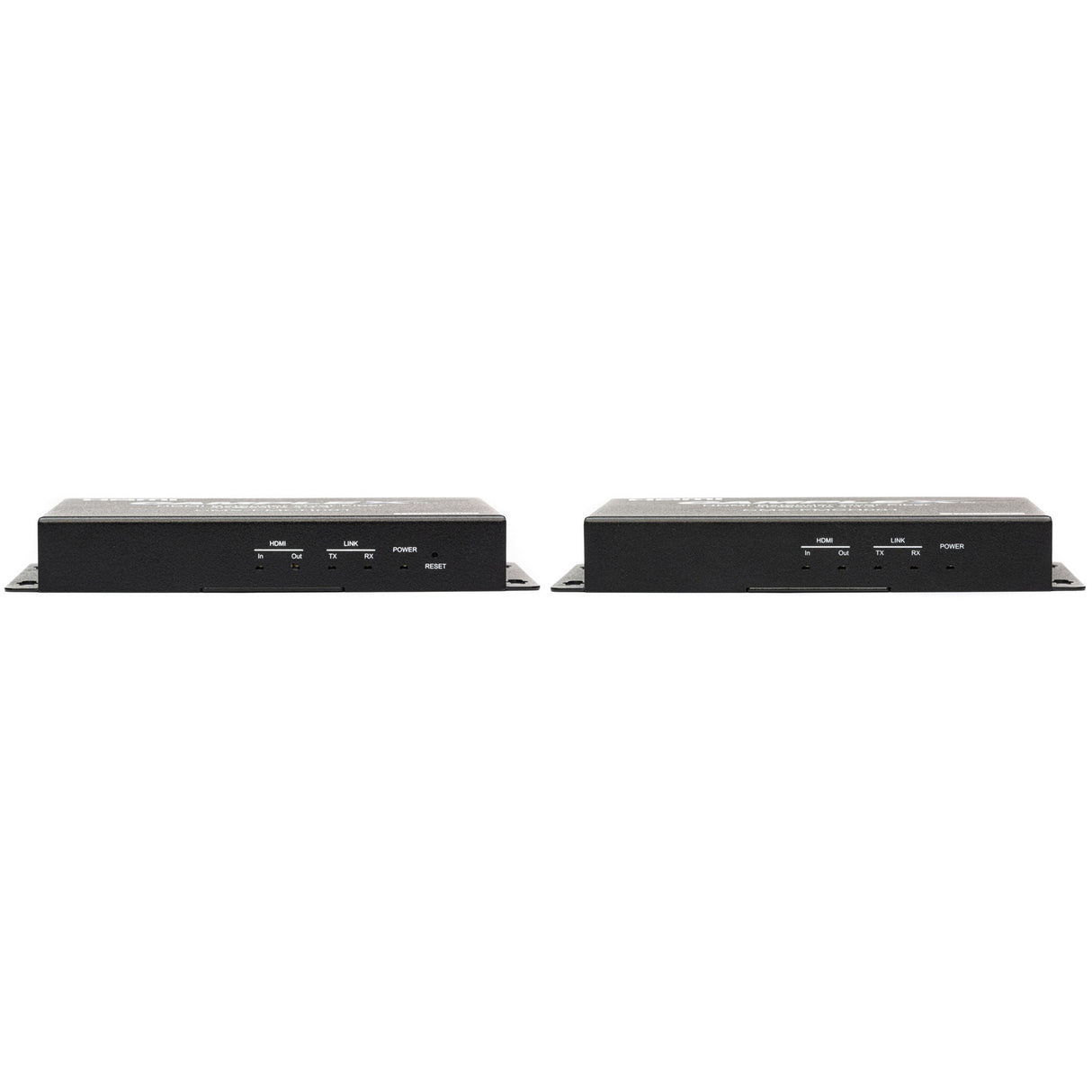

Camplex CMX-FMCH001 4K/2K HDMI 2.0 Over Fiber 18Gbps HDCP 2.2 with RS-232 Extender
Extend 4K/60Hz HDMI signals from cameras, projectors or production switchers up to 37 miles over single mode fiber with the Camplex FMCH001. It's the perfect compact tool for large venue live events like festivals, outdoor sports and arena video productions.
The Camplex FMCH001 supports the highest video resolutions up to 4kx2k@60hz, YUV4:4:4 HDR at bandwidths up to 18Gbps with no latency. The unit also supports RS-232 protocols for complete control of your systems. The Camplex FMCH001 is fully HDCP 2.2 compatible. Its automatic EDID detection makes it a perfect fit for 4K digital signage applications.
Please Note: SFPs sold separately. The FMCH001 does not support IR control.
Key Features
- Automatic EDID for Rapid Integration of Source and Display
- Low Latency
- Supports HDCP 2.2, HDCP 1.4
- RS232 Bi-Direction Pass Through
- Locking Power Supplies
- Black Powder-Coated Cabinet
- Includes Two Phoenix Plugs for RS-232 Cable Termination
- Certifications: FCC, CE
- Compatible with MSA SFP+ SFP's
- SFPs NOT INCLUDED
Technical Specifications
Transmission Distance
SFP module Dependent up to Single Mode 37 miles (60km), Multimode 984 feet (300m)
Resolutions
Up to 4kx2k@60hz, YUV4:4:4 HDR
Bandwidth
Up to 18Gbps
Video Format 4K@60Hz YUV 4:4:4, 4K@60Hz, 1080P, 720P, 576P, 480P/ VESA Resolution
Audio Format Support LPCM 7.1, DolbyrTrue HD, DTS-HD Master AudioT
Power Consumption each Unit
3W
Dimensions each Unit
5-7/8 x 3-1/4 x 7/8 inches
Weight both Units
1 lb
Item Includes

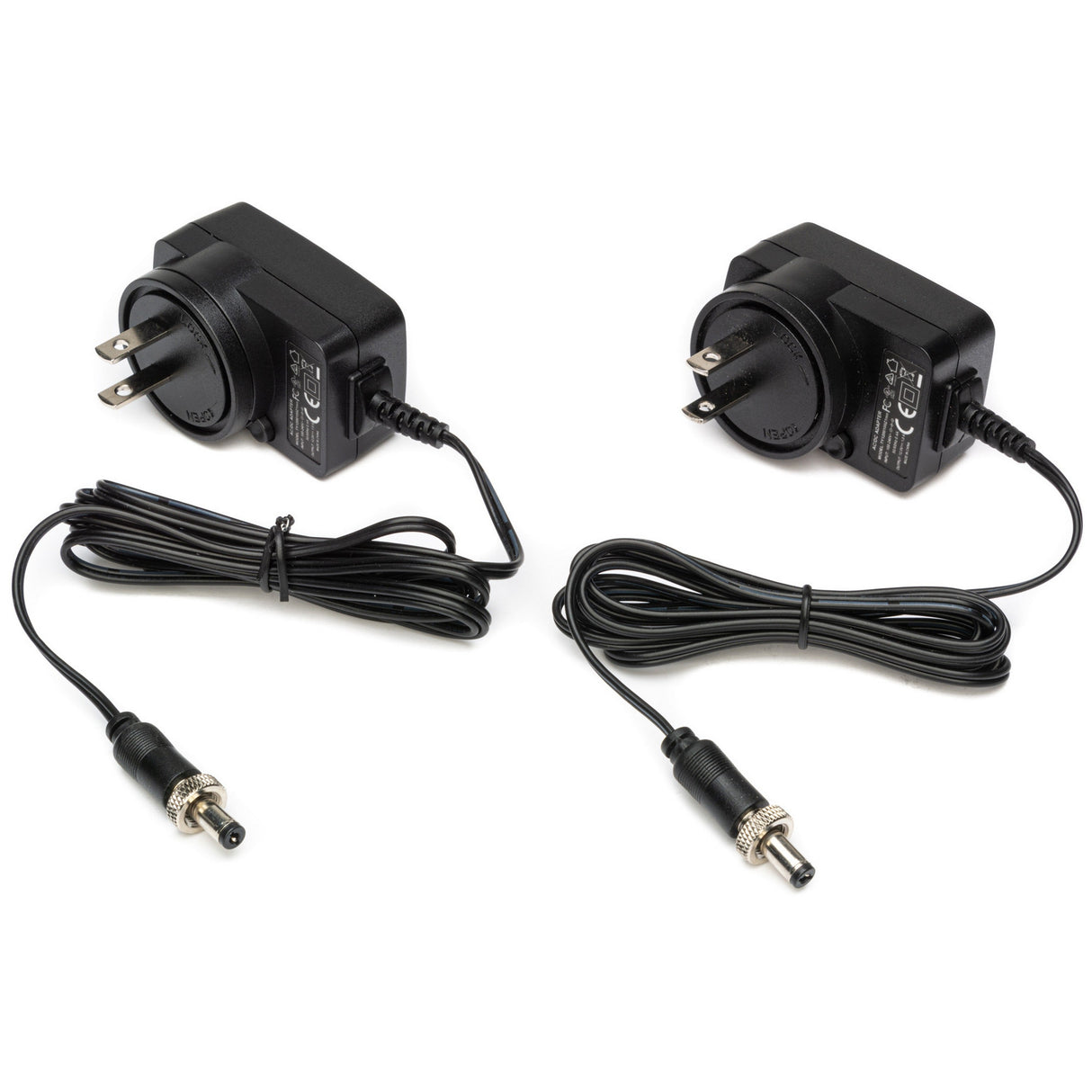

Two 12VDC/1A Power Supplies, Two Phoenix Plugs, SFPS are NOT included
Warranty
1 Year
