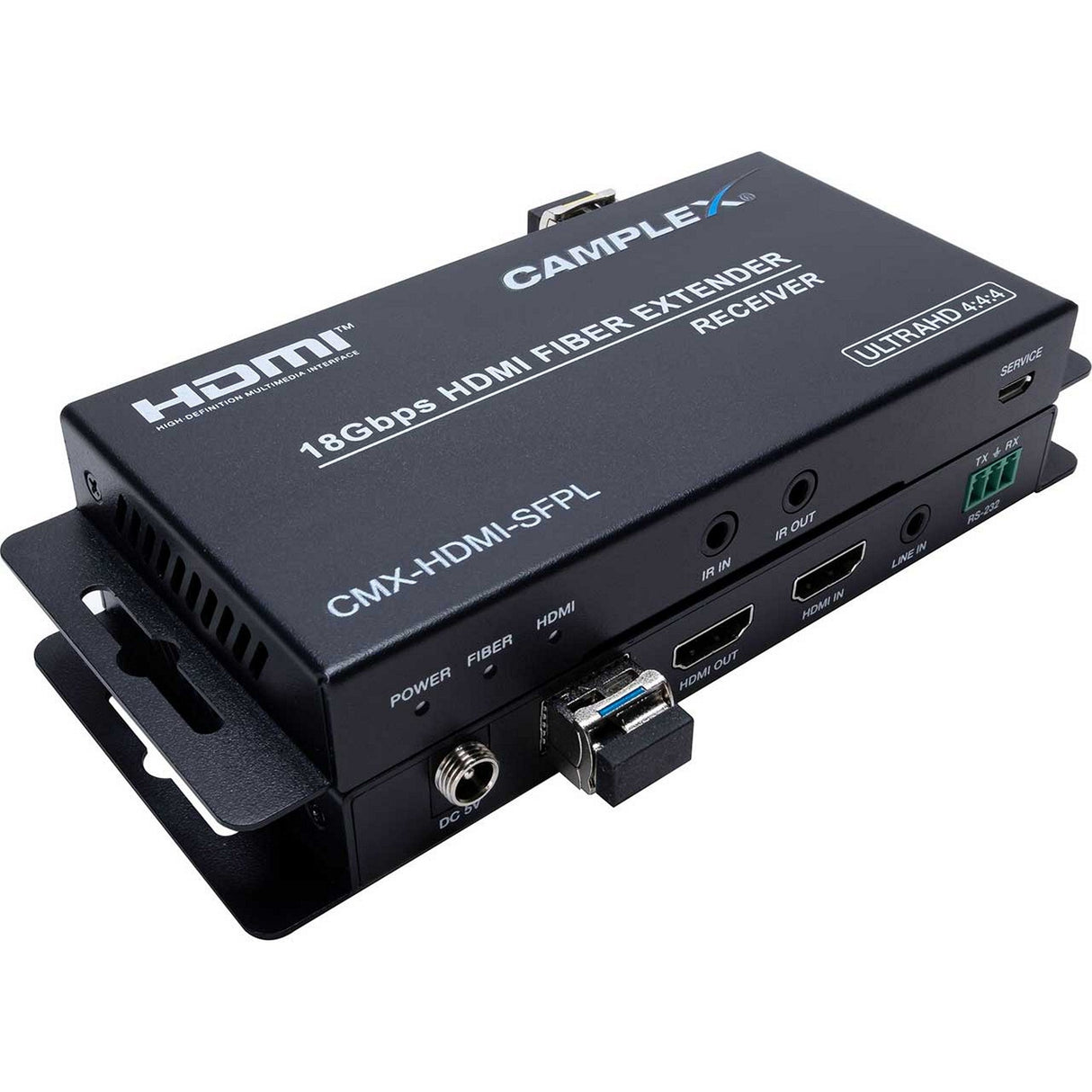

Camplex CMX-HDMI-SFPL 18Gbps HDMI Over Fiber Extender

Extend 4K HDMI beyond distances you ever imagined possible with the Camplex HDMI-SFPL fiber optic HDMI 2.0 extender with HDMI loop out. It is the perfect match for eSports arenas, concert venues, stadium digital signage applications and wherever distributing a crystal clear 4K HDMI 2.0 18G signal over long distances is required.

The Camplex HDMI-SFPL fiber extender supports video resolutions up to 4K2K@50/60Hz and takes full advantage of single mode cables to drive signals over 10km. It features bi-directional infrared control and RS-232 signals transmission to allow source distance operation of additional sources, commercial insertion sources and more.

A locking power supply ensures no accidental signal loss which is a must in any professional installation.

The system includes two (2) LC fiber SFP modules.

Key Features

• Transmission Up to 10km over Single Mode Fiber
• Video Resolutions up to 4K2K@50/60Hz (YUV 4:4:4)
• Bi-directional Infrared Control
• RS-232 Transmission
• SFPs (small form-factor pluggable) Included
• LED Indicators for Power, Optical, & HDMI
• Rugged, Black Powder-Coated Metal Housing
• Locking Power Adapters
• CE, RoHS Certified
• Single Fiber Simplex Operation
• Video Resolutions up to 4K2K@50/60Hz (YUV 4:4:4)
• EDID Management
• HDMI Loop out
• Audio Embedding on Tx, Audio Extraction on Rx
• Bi-Directional Infrared Control
• Bi-Directional RS-232 Transmission
• LED Indicators for Power, Optical, & HDMI
• Rugged, Black Powder-Coated Metal Housing
• Locking Power Adapters
• CE, RoHS Certified

Technical Specifications

Compliance
HDMI 2.0b (18Gbps), HDCP 2.2
Video Bandwidth
18Gbps
Video Resolutions
Up to 480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz
Color Space
RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
HDMI Audio Formats
LPCM 2/5.1/7.1CH, Dolby Digital / Plus / EZ, Dolby TrueHD, DTS, DTS-EX, DTS-HD Master Audio, DSD
Transmission Distance
Up to 10km over single mode
IR Frequency
20KHz-60KHz
RS-232 Baud Rate
4800-115200bps
TX Input

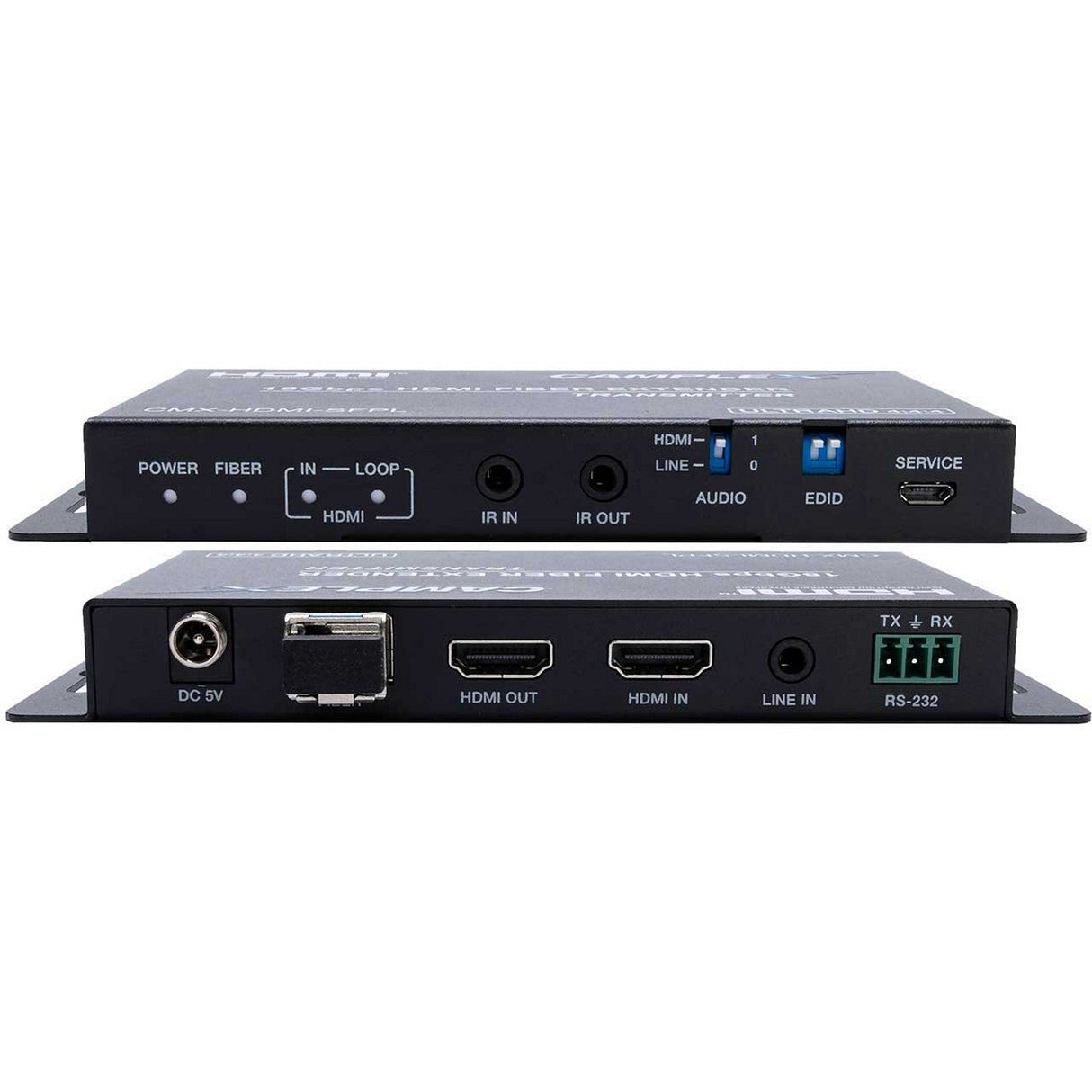

1-HDMI Type A, 1-Line In (3.5mm Stereo Mini Jack), 1-IR In (3.5mm Stereo Mini-Jack), 1-RS-232 (3.81mm Phoenix Connector)
TX Output
1-HDMI Out (Type A 19-Pin Female), 1-Optical Fiber Out (LC Female), 1-IR Out (3.5mm Stereo Mini-Jack)
RX Input
1-Optical Fiber In (LC Female), 1-IR In (3.5mm Stereo Mini-Jack)
RX Output
1-HDMI Out (Type A 19-Pin Female), 1-IR Out (3.5mm Stereo Mini-Jack, 1-RS-232 (3.81mm Phoenix Connector)
Power Consumption
3W
Power Input
AC100 - 240V 50/60Hz
Dimensions (each unit)
134 (W) x 68 (D) x 18mm (H)
Weight
TX: 9.87 oz/280g, RX: 9.81 oz/278g
SFP Module Specifications
Single LC Fiber
Class 1 Laser ROHS, FCC CE Compliant
