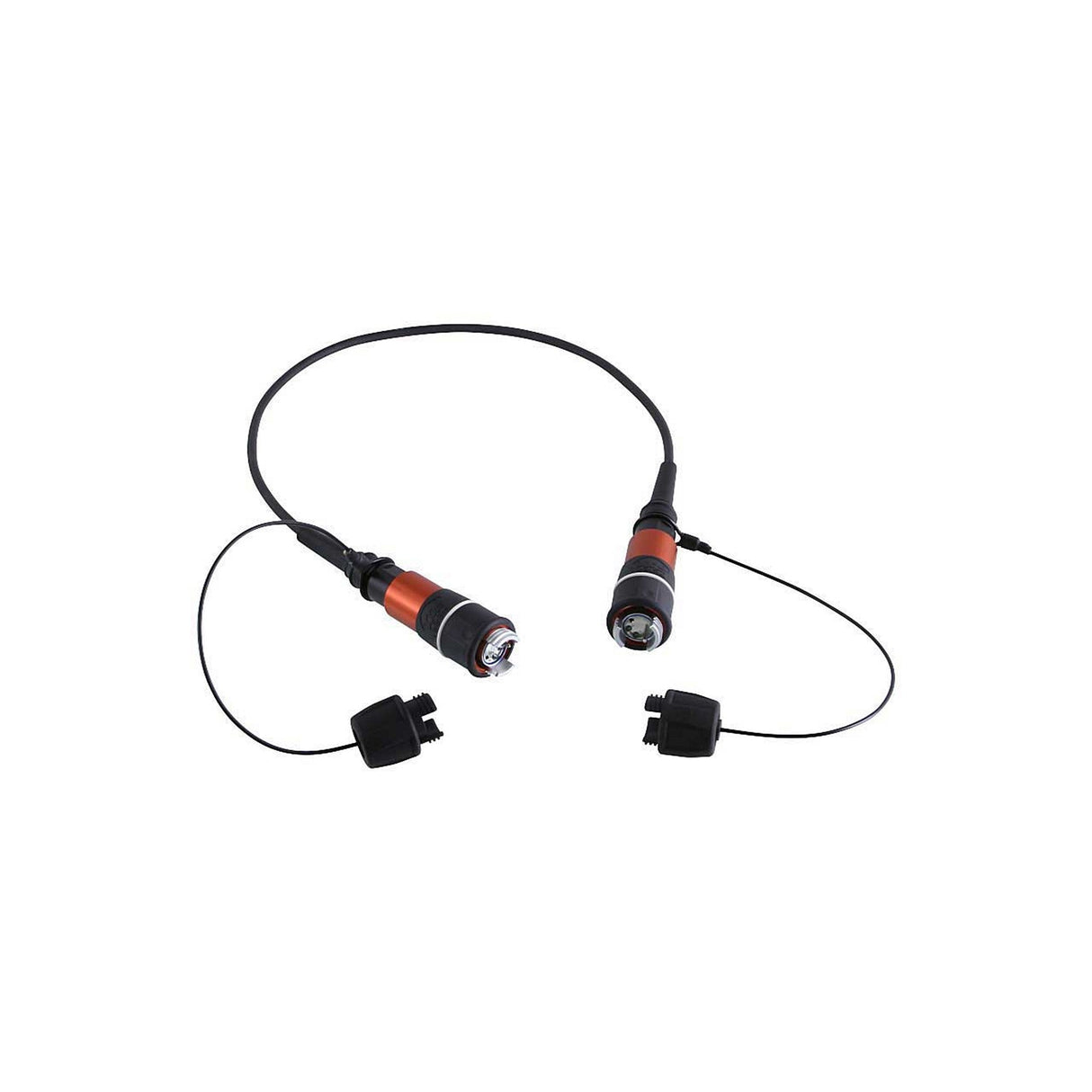

Camplex CMX-XBN02M-0010 FIBERFOX 2-Channel OM3 Multimode Fiber Optic Cable, 10-Foot

Stadium venues, live entertainment theaters and television broadcasters are now switching to expanded beam fiber optic systems as the reliable choice to carry critical video, audio and data signals. At the forefront of this next generation sits the Camplex line of FIBERFOX expanded beam fiber cables. It’s an extremely durable, yet flexible, cable designed to handle all of your signal transmission needs at extreme distances.

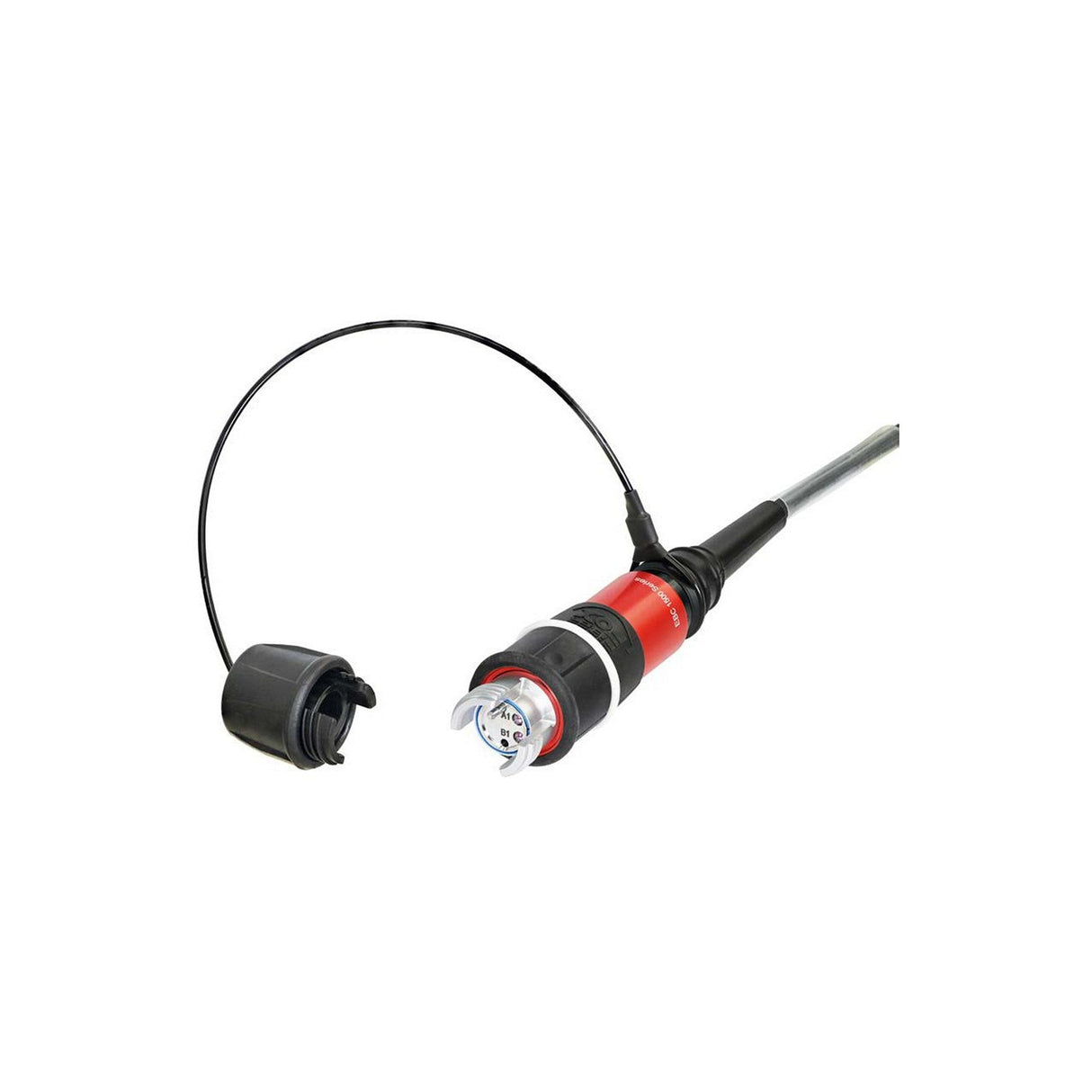

At the heart of the FIBERFOX cable by Camplex is its EBC lens system which always ensures reliable system functionality even in harsh environmental conditions like rain, cold, heat, dust, mud or below water. This is a welcome change to traditional fiber systems where environmental challenges can often inhibIt'signal transmission. FIBERFOX EBC connectors comply with IP68 (connected or disconnected) and can be cleaned easily and quickly by using clear water and a lint-free cloth only. Detailed measurements or the use of special cleaning tools are not necessary!

The FIBERFOX connector can also achieve greater mating cycles (> 10,000 without change of insertion loss) which makes it a great fit for rental and staging companies. It’s a virtually wear-free, maintenance-free system! The connectors are MIL-DTL-83526 compliant, so they are following the worldwide standard for expanded beam connectors.

This series offers 2-Channels delivered via OM3 Multimode Fiber Optic Cable. Camplex has a complete array of cables, panels and more to support a complete system.

Key Features

• Heavy-Duty IP68 Rated Connectors (even unprotected)
• No Special Cleaning or Measurement Tools Required
• PUR Flame-Retardant
• Halogen-Free
• Bend Tolerant
• Wear-Free Connectors, > 5.000 Mating Cycles Without Any Maintenance
• Cables are Prolongable Direct, No Couplers Required
• Ready-Made up with Connectors EBC1502

Technical Specifications

Tensile Strength
1,800N
Compressive Load
50,000N
Lifetime
> 10000 Mating Cycles
Free fall Resistance
500 Falls onto Concrete from 1.2M Height
Bump resistance
4000 Bumps @ 40g Acceleration
Protection Class
IP68 (6m Water Depth and 30 min) Mated and Unmated
Temperature Range
-40 Degrees C to + 70 Degrees C
Insertion loss
Typ. 0.7dB per Connector / Max. 1.0dB per Connector
Minimal Bending Radius
5 cm
Number of Fibers
2
Warranty
1 Year
