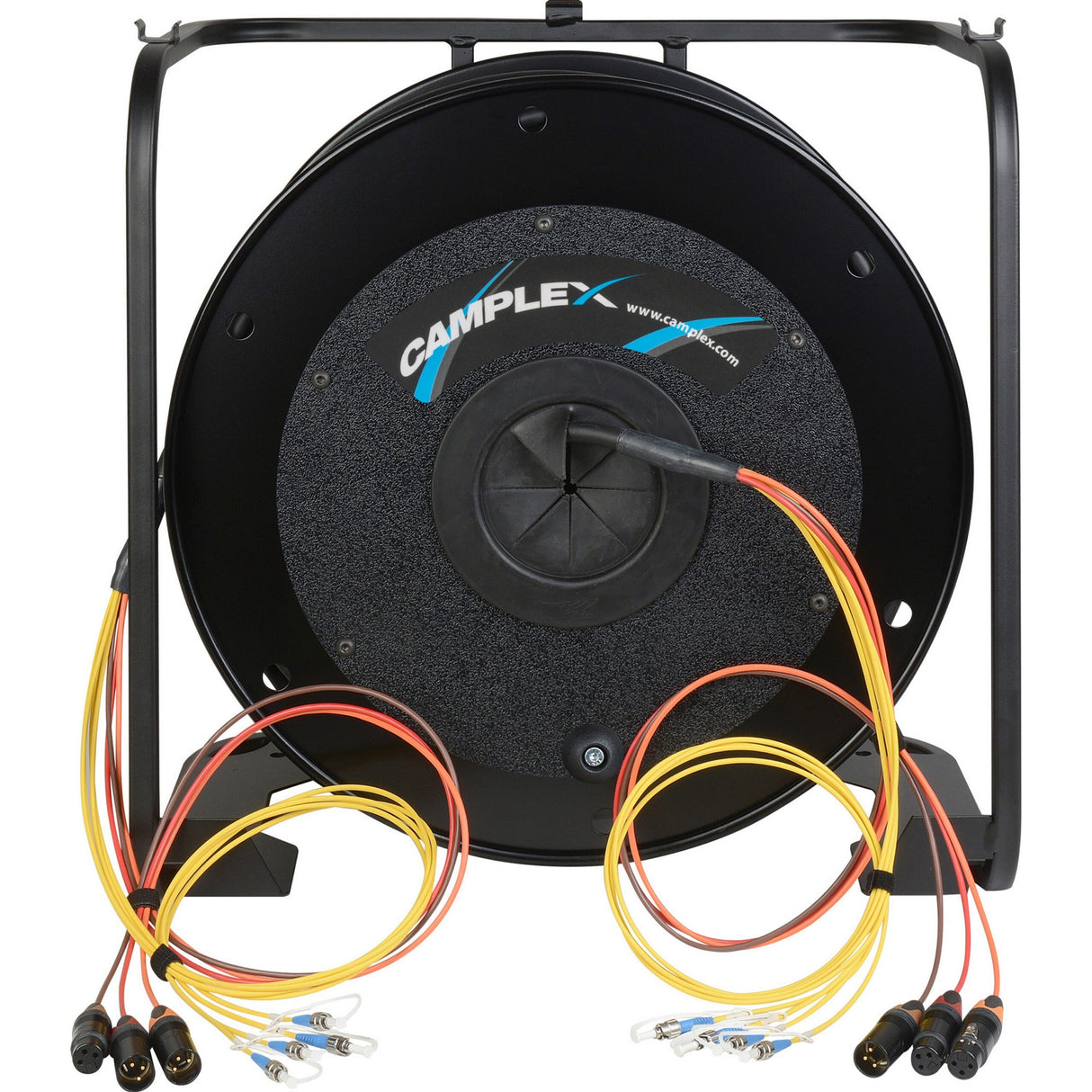

Camplex HF-ENG4ST-0500 4-Channel ST Singlemode Fiber and 3-Channel XLR Audio ENG Tactical Hybrid Reel, 500 Foot
Camplex HF-ENG4ST-0500 4-Channel ST Singlemode Fiber and 3-Channel ...
Free Shipping
Camplex HF-ENG4ST-0500 4-Channel ST Singlemode Fiber and 3-Channel XLR Audio ENG Tactical Hybrid Reel, 500 Foot
Camplex delivers the industry's only single ENG fiber/audio hybrid camera snake reel solution. Provides 4-Channels of fiber optic singlemode ST connections for camera send and receive in addition to three (3) balanced XLR lines for audio and intercom. Designed for the demanding use of ENG deployment and ideal for any camera utilizing a portable SDI over fiber field transmission system with ST fiber connectors. This second generation Camplex ENG hybrid cable features individually shielded audio pairs to prevent crosstalk from mic and line level signals. Coupled with the power of a long distance, low loss fiber this ENG cable is the superior choice for outside broadcast and live event production.
Key Features
- 4 Singlemode ST Fiber Channels
- 3 Balanced XLR Audio Channels
- Designed for ENG Outside Broadcast & Live Events
- Camplex ENG Prespooled Tactical Fiber Snake
- Lightweight and Rugged Metal Hannay Reel with 3-position Cam-Lock Brake
Technical Specifications
Senko Premium 125um ST Singlemode Fiber Connectors with Blue 3mm Boots
Neutrik 3-Pin XLR Connectors
Outdoor Rated Cable - 3.22 AWG with Shielded Audio Pairs
Insertion Loss
<= 0.5dB
Return Loss
>= 45dB
