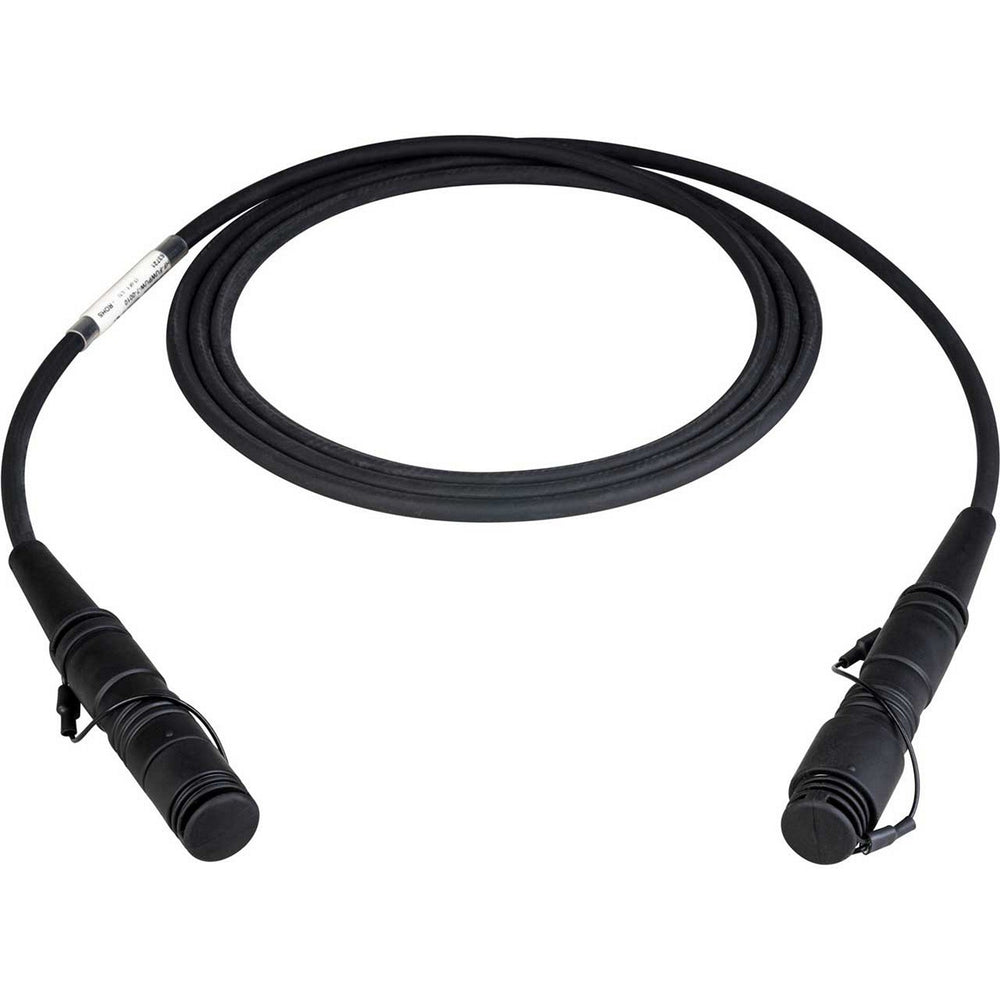

Camplex HF-FUWPUW-7-0003 Lightweight 7.8mm Bend Tolerant SMPTE311 Camera Cable, 3-Foot
Camplex HF-FUWPUW-7-0003 Lightweight 7.8mm Bend Tolerant SMPTE311 C...
Free Shipping
Camplex HF-FUWPUW-7-0003 Lightweight 7.8mm Bend Tolerant SMPTE311 Camera Cable, 3-Foot
Lightweight, bend tolerant and rugged, the Camplex SMPTE311 7.8mm Special Operations Tactical Camera Cables feature extra flexible superior shielding making it the ideal hybrid fiber cable for jib-mounted cameras, mobile production truck bays and anywhere weight and a bend insensitive fiber are paramount.
The Camplex HF-FUWPUW-7 SMPTE cable is assembled with Lake Cable 7.8mm SMPTE311 Special Operations Tactical Camera Cable and LEMO FUW-PUW connectors. Offering the durability you expect from Lake Cable, it features the extra-durable, flexible and lightweight 7.8 mm Hybrid-Fiber cable with improved mobility for portable High-Def camera applications.
The cable is made with 2 bend insensitive single mode tactical grade buffered optical fibers, 4 flexible tinned copper auxiliary and signal conductors; flexible whilst strong aramid central strength member. LEMO certified machine polished fiber contacts are fully protected with Camplex over boots and caps for the most demanding applications for high-speed uncompressed HD video transmissions over long distances.
Meets or exceeds SMPTE 304M/311M standards.
Key Features
- Compatible with SMPTE 311
- Lightweight Design for Highly Mobile Deployments
- Extruded Matte Finish Polyurethane Jacket to Reduce Surface Friction
- Cut and Abrasion Resistant Tactical Design
- Highly Flexible Aramid Central Strength Member
- Terminations by LEMO Certified Technicians
- Electrical assemblies 100% tested for continuity and shorts
- Fiber optic assemblies 100% tested for attenuation and back reflection
- Conform to LEMO assembly specification for cables terminated to the LEMO 3K.93C assembly and test standard
- On-stage Stabilized Cameras
- Jib Mounted Cameras
- Any Place Where Cameras Need to Move Quickly
- Mobile Production Trucks
Technical Specifications
SMPTE311 AVBSMPTE7MMK 7.8 mm Hybrid Cable
(2) 16 AWG 65 Strand TC PE Insulated Auxiliary Conductors
(2) 24 AWG 19 Strand TC PE Insulated Signal Conductors
Kevlar K1500 Cord - Polyolefin Insulated
(2) 9.5 Micron fibers TPE Insulated PVC jacket
95% Coverage Tinned Copper Spiral Wrap Shield DCr < 20 /Km
LEMO FUW and PUW. 3K.93C.TLEC96 SMPTE Fiber HDTV Connectors
SMPTE Hybrid Straight Cable Connectors
Protective Overboots & Dust Caps
Designed for Fast Cleaning
Push-Pull Self-Latching System
Stainless Steel Shell
