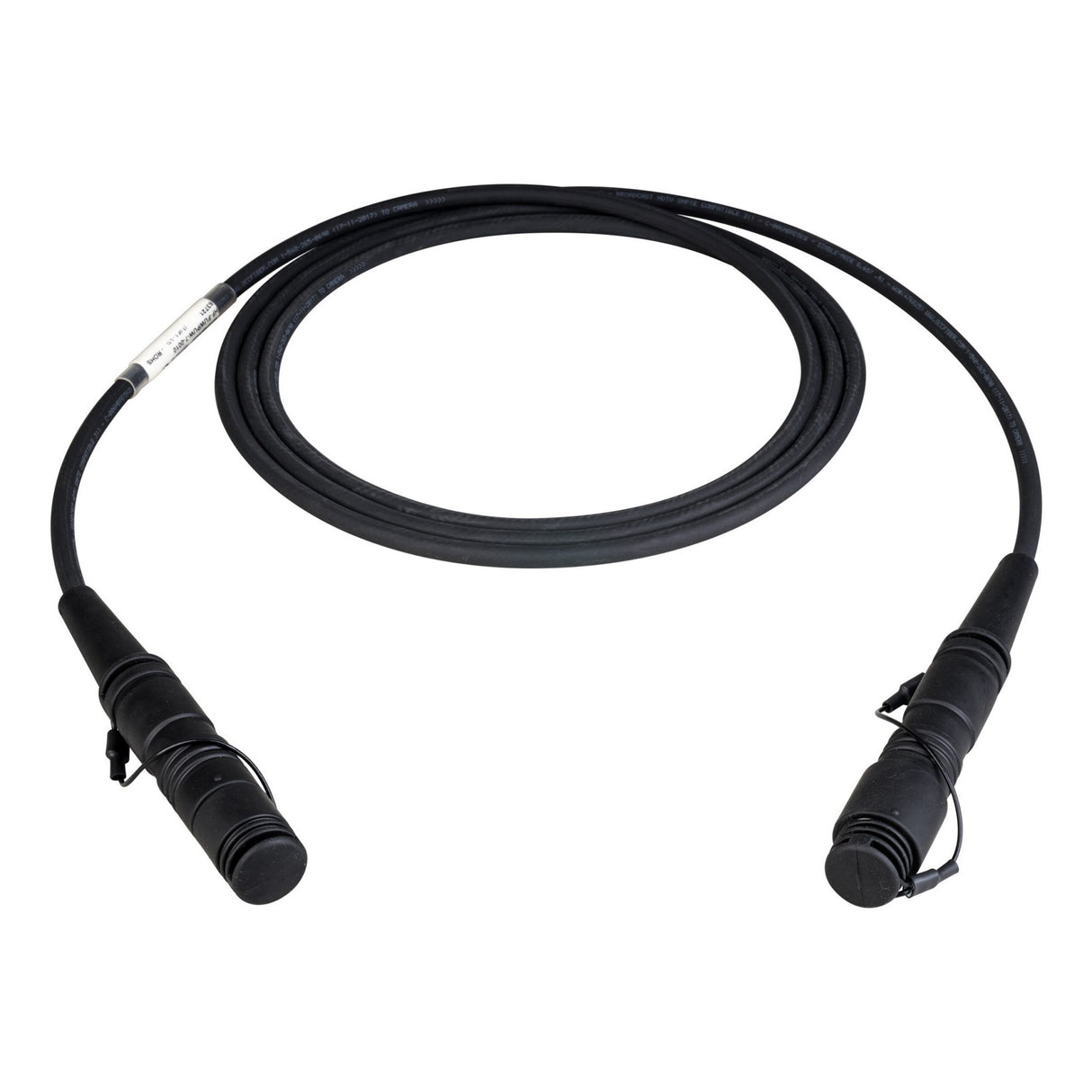

Camplex HF-FUWPUW-7-0250 Lightweight 7.8mm Bend Tolerant SMPTE311 Camera Cable, 250 Foot

Lightweight, bend tolerant and rugged, the Camplex SMPTE-FLEX Mini 7.8mm singlemode camera cables feature superior shielding and Ultra-Fox Plus making it the ideal hybrid fiber cable for jib-mounted cameras, mobile production truck bays and anywhere weight and a bend insensitive fiber are paramount. The Camplex HF-FUWPUW-7 Mini SMPTE cable is assembled OCC SMPTE-FLEX cable and LEMO FUW-PUW connectors. Offering the durability you expect from OCC, SMPTE-FLEX cable features the Ultra-Fox Plus deployable buffer system with the combination of a triple thickness 500 micron diameter acrylate coating together with a hard elastomer 900 micron tight buffer for maximum fiber protection.

Key Features

• Compatible with SMPTE 311
• Lightweight Design for Highly Mobile Deployments
• Cut and Abrasion Resistant Polyurethane Jacket
• Highly Flexible Aramid Central Strength Member
• Terminations by LEMO Certified Technicians
• Electrical assemblies 100% tested for continuity and shorts
• Fiber optic assemblies 100% tested for attenuation and back reflection
• Conform to LEMO assembly specification for cables terminated to the LEMO 3K.93C assembly and test standard

Technical Specifications

OCC SMPTE FLEX C-006HBAD5KB 7.8 mm Hybrid Cable
Triple Thickness 500m Diameter Acrylate Coating
Hard elastomer 900m Tight Buffer
Two Channel Bend-tolerant Singlemode Fiber Cable
95% Braided Shield Coverage
Minimum Bend Radius: 1.5in/3.9cm
Two 16AWG 65 Copper Conductors
Two 24AWG 65 Copper Conductors
LEMO FUW and PUW .3K.93C.TLEC96 SMPTE Fiber HDTV Connectors
SMPTE Hybrid Straight Cable Connectors
Protective Overboots & Dust Caps
Designed for Fast Cleaning
Push-Pull Self-Latching System
Stainless Steel Shell
