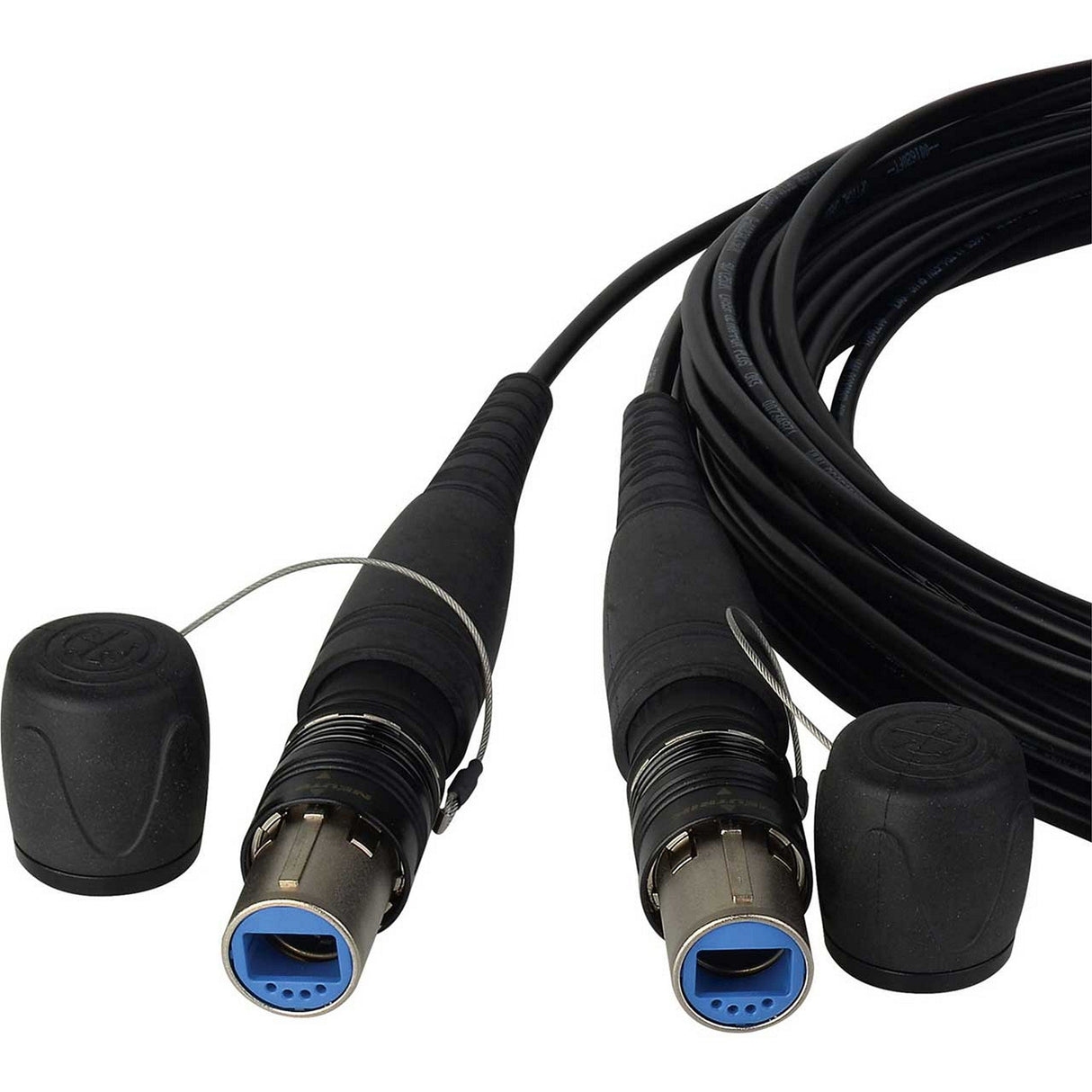

Camplex HF-OC2S-1000 opticalCON DUO to opticalCON DUO Single Mode Fiber Optic Tactical Cable, 1000-Foot

Two Fibers only, no electrical conductors. Singlemode.

Ruggedized opticalCON DUO fiber optic tactical cables designed for field production in outside broadcast, rental houses and more. Our state-of-the-art fiber optic lab has been designated by Neutrik as a Certified opticalCON Cable Assembler (COCA). This ensures that our technicians are building your cable to the latest training and polishing standards as outlined by Neutrik factory professionals.

Our exclusive cables are made utilizing the Neutrik opticalCON ADVANCED system. opticalCON ADVANCED further enhances the original opticalCON making it more robust by adding lockable and water proofed metal caps as well as rubber guards. This is especially critical for outdoor applications. The ergonomically cable strain relief improves the cable protection and water resistance in long-term use, and the color-coding options allow custom-built coding.

The opticalCON system is based on LC-Duplex connectors but eliminates its weakness and guarantees a safe, dust protected and rugged connection. Being compatible to conventional LC connectors the opticalCON DUO offers the choice of using cost effective LC cables or the rugged opticalCON cable assembly for mobile applications. The opticalCON DUO is the ideal solution for equipment connections and system integration offering LC compatibility on chassis connector front and rear.

The opticalCON DUO cable connector accommodates a standard optical LC-Duplex connector in a ruggedized and durable all-metal housing. It features a spring-loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover.

Key Features

• OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards.
• Machine polishing processes provide exceptionally low return loss and insertion loss.
• OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination.
• APC Polishing types available upon request.
• Machine polished and tested end faces
• Tactical tight buffered PUR Cable
• Optical Shutter Mechanism for added protection
• Typical back reflection <-55dB

Technical Specifications

Applications
Digital Audio & Video
Digital Signage
Data & Networking
Lighting Control
Deployable, Staging, and Harsh Environment
JVC FS-790 Cameras
Telecast CopperHead, SHED-HDX
MultiDyne Silverback
(2) Neutrik OpticalCon, NO2SX
Tactical, Polyurethane Jacket, 5mm diameter, Black
Nickel Finish Connector Body
50', 100', 164', 250', 328', 500', 656' or Custom
Mechanical
Cable Retention Force = 500N
Lifetime >1000 Cycles
Insertion/Withdrawal Force < 45N
Operating Temperature -25°C to +75°C
Minimum Bend Radius = 4cm
Optical
Type LC-UPC (Straight Polish)
Cable Loss < 0.5dB/km @ 1310/1550nm
Connector Loss <0.5dB/Connector
Connector Back Reflection -55dB/-45dB RL (typical/max)
Applications
Camera to CCU Cables
Digital Audio & Video
Digital Signage
Data & Networking
Lighting Control
Deployable, Staging, and Harsh Environment
Non-Powered JVC FS-790 FS-CABHYB100, FS-CABHYB200, FS-CABHYB500 Cameras
Non-Powered
Sony HXC-D70,
SONY CCFN-25, CCFN-50, CCFN-100
Sony HXCE-FB70 Power Supply with opticalCON duo
Sony HXCU-FB70 Camera Control Unit (CCU) with opticalCON duo
Sony HXCU-FB80 Camera Control Unit (CCU) with opticalCON duo
CA-FB70 Sony Camera back Fiber adapter for HXC-D70 with opticalCON duo
Sony HXC-FB80 with opticalCON duo
Telecast CopperHead and SHED-HDX
MultiDyne Silverback
CAMLINX systems
