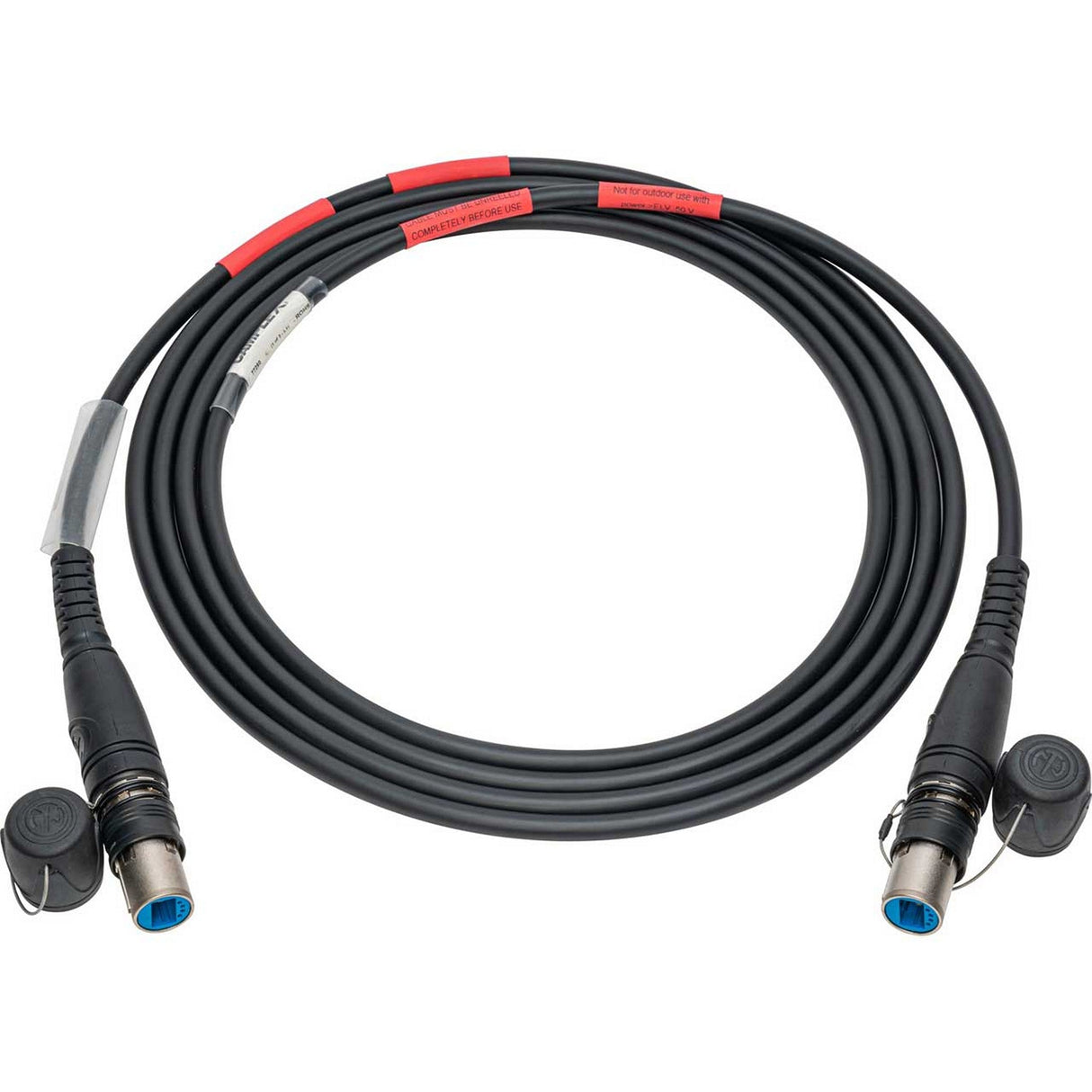

Camplex HF-OCSMPT-T-0010 opticalCON DUO SMPTE 311 Single Mode Fiber Optic Cable, 10-Foot
OpticalCON DUO NO2SX to NO2SX Single Mode Hybrid SMPTE 311M Tactical Broadcast Cable. OpticalCON assemblies are COCA factory terminated and machine polished in our state-of-the-art Fiber Optic Lab. Neutrik OpticalCON assemblies are made with tactical broadcast SMPTE 311M cable rated for ruggedized applications and field deployment in commercial and professional broadcast AV applications.
Machine polishing processes provide exceptionally low return loss and insertion loss. OpticalCON features a ruggedized connector body, common LC contacts, and a mechanical shutter system to shield against end-face contamination. SMPTE cable with 2 Single Mode fiber UPC, 2 x AWG24 and 2 x AWG16 or (2x17AWG) stranded copper power conductors, overall copper braided shield and stainless-steel strength member.
Our cables are exclusively assembled using the Neutrik opticalCON ADVANCED system. opticalCON ADVANCED further enhances the original opticalCON making it more robust by adding lockable and waterproofed metal caps as well as rubber guards. This is especially critical for outdoor applications. The ergonomic cable strain relief improves the cable protection and water resistance in long-term use, and the color-coding options allow custom-built coding.
Key Features
- OpticalCON Assemblies are Interferometrically Tested to GR-326-CORE Endface Standards
- Tactical SMPTE Cable for Rugged Field Use
- Machine Polished and Tested End Faces
- Optical Shutter Mechanism for Added Protection
- Typical Back Reflection <-55db
- Heavy Duty Tactical Reel with Side Reel Flange (TR Version Only)
- Ruggedized and Dirt Protected 2 Channel Fiber Optic Connection System
- Waterproof Acc. to IP65 in Mated Condition
- Accommodates Standard Optical LC-Duplex Connectors
- Cable Connector Features Rugged all Metal Housing and Heavy-Duty Cable Retention
- Excellent Dust and Dirt Protection Due to Automatic Sealing Shutter with Silicone Gasket
- Reliable Push-Pull Locking Mechanism
- Easy to Clean, No Tools Required
Technical Specifications
Neutrik OpticalCON DUO, NO2SX
OB SMPTE 311M, Polyurethane Jacket, 9.2mm diameter, Black
Nickel Finish Connector Body
Cable Retention Force = 500N
Lifetime
>1000 Cycles
Insertion/Withdrawal Force
< 45N
Operating Temperature
-25 Degrees C to +75 Degrees C
OCC SMPTE Tactical Cable
Core/Cladding Diameter (Āµm)
9/125
Wavelength (nm)
1310/1550
Maximum Cable Attenuation (dB/km)
0.5/0.5
Primary Coating Diameter (Āµm)
500
Secondary Buffer Diameter (Āµm)
900
Zero Dispersion Slope (ps/nm2-km)
0.092
Proof Test Level (kpsi)
100
Jacket Material
Polyurethane
Cable Weight
144 kg/km (97 lbs/1000')
Cable Diameter
9.2 mm (0.36in)
Strength Member
16 AWG Galvanized Steel, Polyurethane Insulated -Purple
