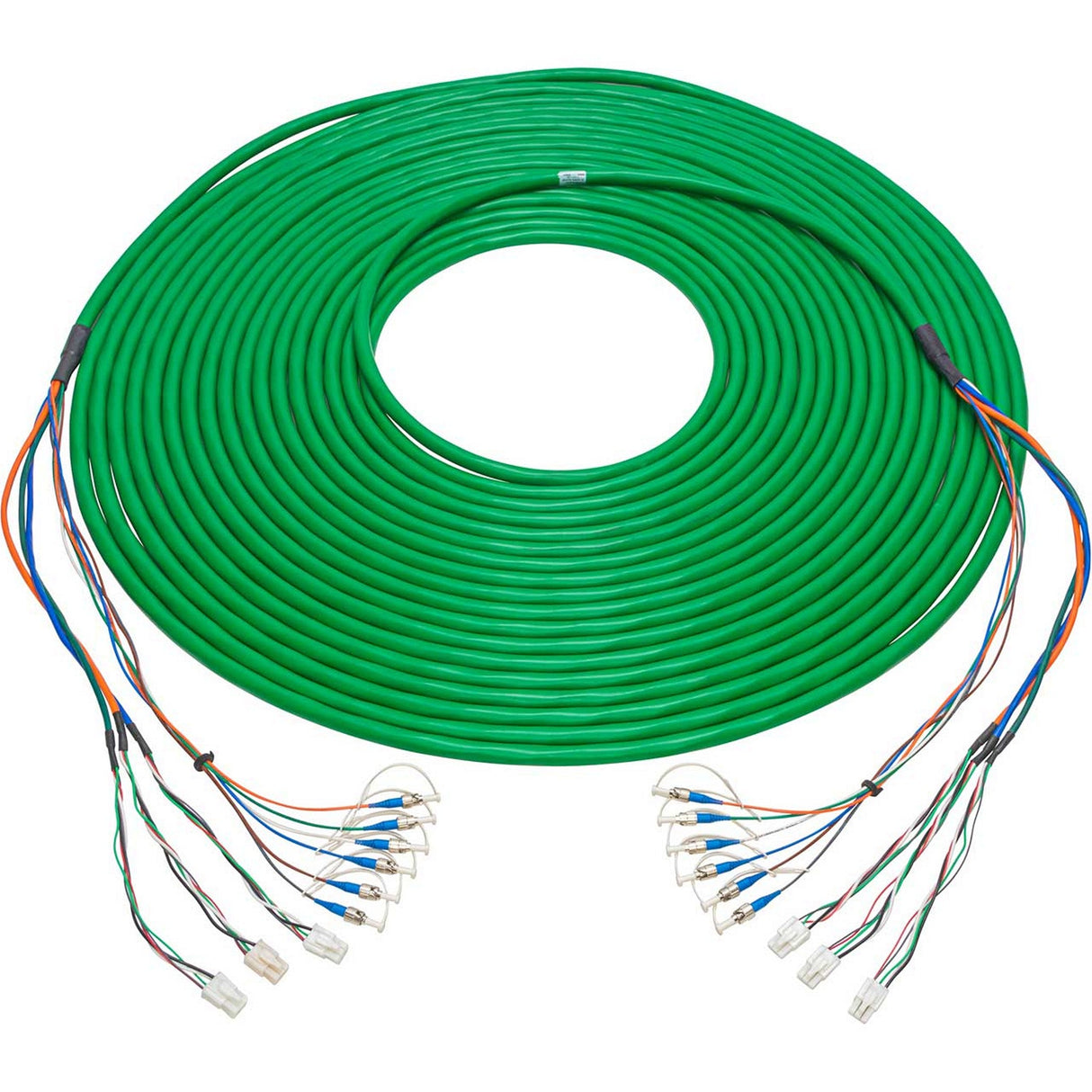

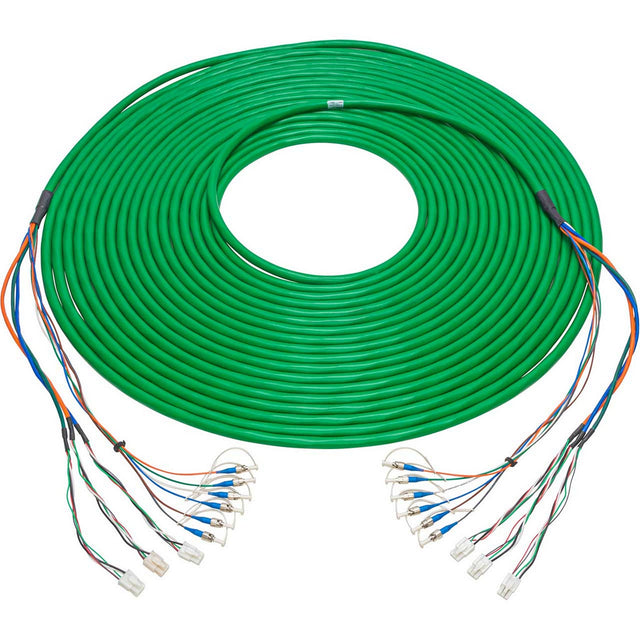

Camplex HF-STBP8-X3-0100 Indoor Riser Triple SMPTE Cable, 100-Foot
Camplex HF-STBP8-X3-0100 Indoor Riser Triple SMPTE Cable, 100-Foot
Free Shipping
Camplex HF-STBP8-X3-0100 Indoor Riser Triple SMPTE Cable, 100-Foot
This inline SMPTE hybrid breakout cable from Camplex provides a more cost-effective way to achieve a SMPTE run when connecting three Camplex HYMOD series breakout boxes or three chassis mounted SMPTE breakouts by utilizing standard fiber connectors and power breakouts.
The HF-STBP8-X3 is a triple run for multiple camera wells and stadium installations. It features three duplex ST fiber optic runs and a 6-Pin Amp Power Plugs. Cables are designed with three sets of two single mode fibers and four 20 AWG and two 24 AWG tinned copper conductors with a tinned copper braid shield in an overall flexible PVC jacket. Designed for use with HDTV signals, the camera cable is compliant with ARIB and SMPTE standards.
Key Features
- Assembled with Premium SMPTE Cable & Senko Connector
- Electrical Assemblies 100% Tested for Continuity and Shorts
- Fiber Optic Assemblies 100% Tested for Attenuation and Back Reflection
- 19.4 Mbps to 3 Gbps Transport
- Machine Polished Fiber Contacts Low Insertion and Return Loss (Documented)
