Camplex HF-TR1M3-LC-1000 TAC1 Simplex 1-Channel OM3 Multimode LC Fiber Optic Cable Reel, 1000-Foot
Ruggedized multi-channel fiber optic cables designed for multiple deployments for field production in outside broadcast, rental houses and more. Highly flexible tight-buffered tactical cables with internal aramid strength members for crush resistance in high traffic areas if handled properly and a polyurethane outer sheath designed to wIt'stand crushing by both military tanks and Outside Broadcast vehicles. Cables are complete end-to-end tactical grade where fanout channels are covered with tactical grade polyurethane furcation tubing. All assemblies multi-stage machine polished and tested for less than .55db RL (complete per-channel test results available on request). Built in-house at our state-of-the-art fiber lab - the only fiber lab in the US to have achieved full certification from LEMO, Neutrik & Canare!

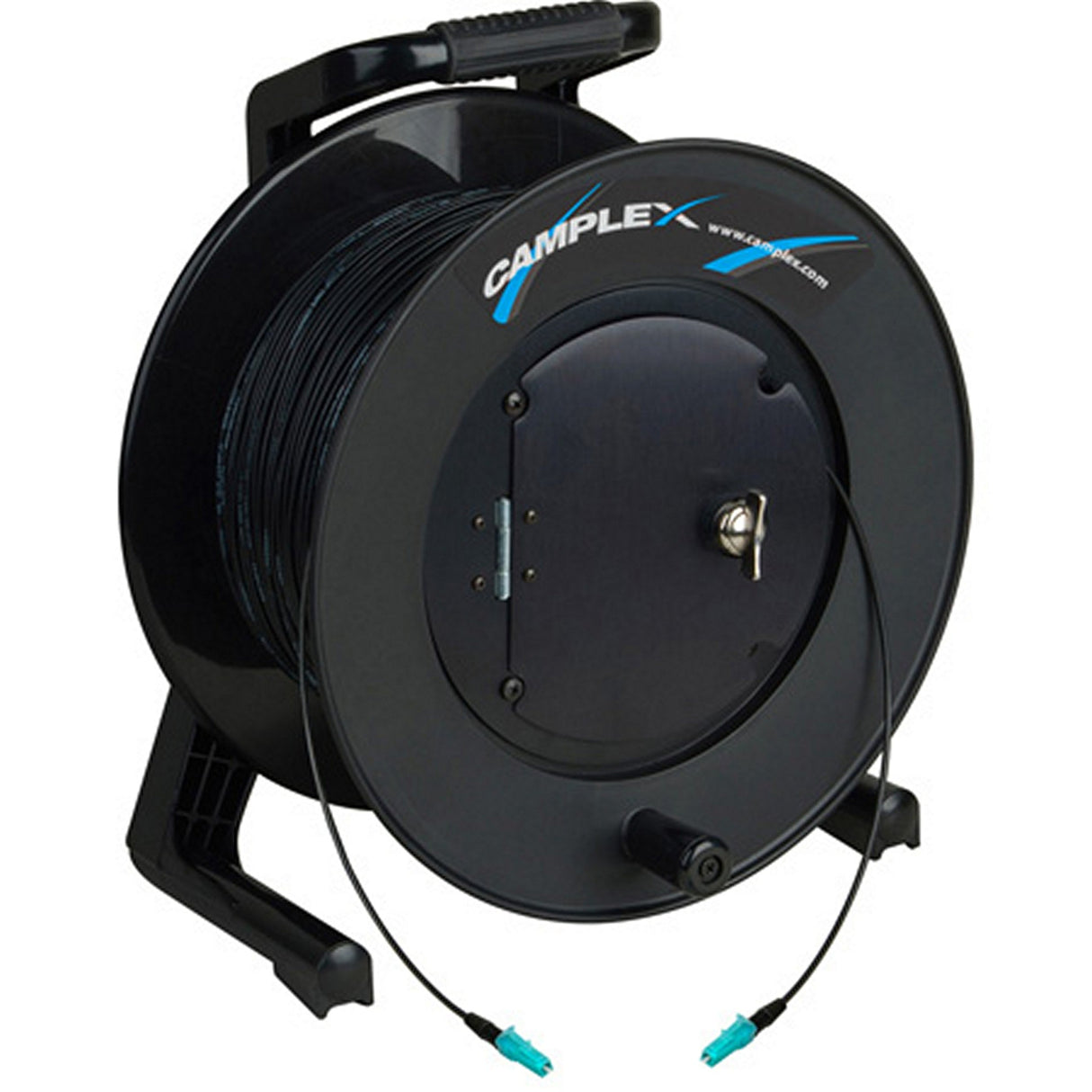

Our Tactical Fiber Snake Reels include JackReel, Schill or Hannay fiber optic cable reels with in-hub fanout & connector protection cavity. Each reel has been carefully selected to ensure proper support and critical bend radius required by fiber optic cables. We recommend tactical fiber optic cables over 25 feet be stored on a cable reel.
Key Features
- Broadcast Deployable
- Indoor/Outdoor rated jacket
- Typical RL <-55dB and IL<0.25dB
- Wide temperature range (typically -55 Degrees C to 85 Degrees C)
- 500µm primary acrylate buffer with 900µm secondary hard elastomeric buffer (Ultra-Fox Plus)
- Excellent crush and impact resistance due to their polyurethane Core-Locked outer jacket
- Designed to wIt'stand crush and impact after deployment
- Strong, lightweight and extremely durable cable
Technical Specifications
Industry Standard Designation
Laser Optimized OM3 ISO/IEC 11801
Core/Cladding Diameter (μm)
50/125
Numeric Aperture
0.20
Wavelength (nm)
850/1310
Gigabit Ethernet Distance (m)
1000/600
10-Gigabit Ethernet Distance (m)
300/300
Maximum Cabled Attenuation (dB/km)
3.5/1.5
Minimum Laser EMB Bandwidth (MHz-km)
2000/500
Minimum OFL LED Bandwidth (MHz-km)
1500/500
Primary Coating Diameter (μm)
500
Secondary Buffer Diameter (μm)
900
Proof Test Level (kpsi)
100
