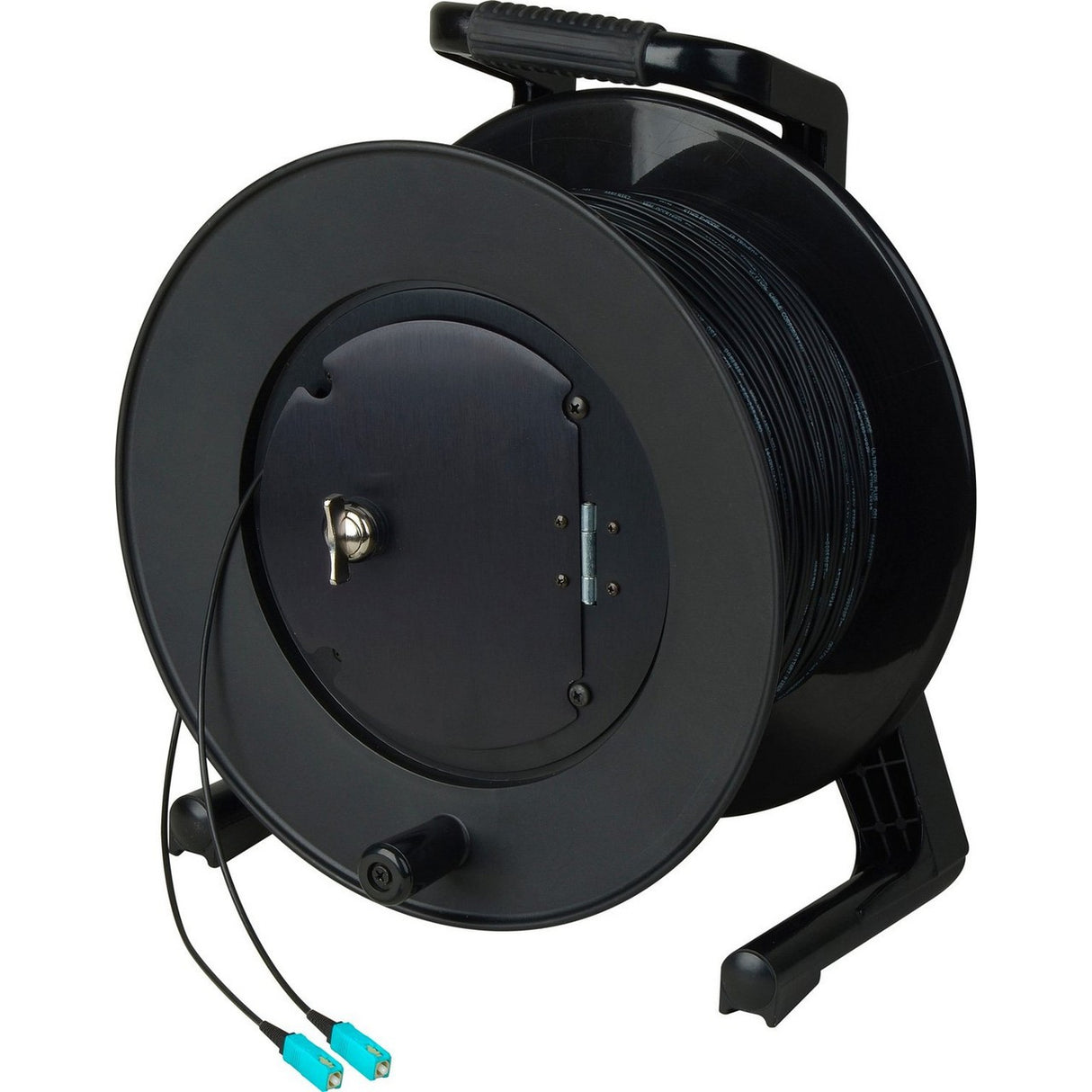

Camplex HF-TR1M3-SC-0500 500 Foot OM3 Multimode SC Fiber Optic Cable Reel

Extremely Rugged & Lightweight SC Simplex OM3 Multimode Tactical Cables for Broadcast & Pro-Audio Applications! This cable is designed for Military Tactical deployment applications and meets all outdoor tactical needs for broadcast applications requiring an outdoor rated crush and impact resistant design. The tough Polyurethane Core-Locked design is perfect for any situation where ordinary PVC jacket cables do not provide adequate protection in the field. Featuring Senko ST and LC premium fiber connectors. All assemblies are machine polished and interferometer tested to industry standards. All products are 100% tested and ship with a complete set of test documentation. SC, ST and FC UPC and APC connectors are also available. Custom Lengths & Configurations Always Available!

Key Features

• 500 Foot Reel
• Broadcast Deployable
• Indoor/Outdoor rated jacket
• Typical RL <-55dB and IL<0.25dB
• Wide temperature range (typically -55C to 85C)
• 500m primary acrylate buffer with 900m secondary hard elastomeric buffer (Ultra-Fox Plus)
• Excellent crush and impact resistance due to their polyurethane Core-Locked outer jacket
• Designed to withstand crush and impact after deployment
• Strong, lightweight and extremely durable cable

Technical Specifications

Industry Standard Designation
Laser Optimized OM3 ISO/IEC 11801
Core/Cladding Diameter (?m)
50/125
Numeric Aperture
0.20
Wavelength (nm)
850/1310
Gigabit Ethernet Distance (m)
1000/600
10-Gigabit Ethernet Distance (m)
300/300
Maximum Cabled Attenuation (dB/km)
3.5/1.5
Minimum Laser EMB Bandwidth (MHz-km)
2000/500
Minimum OFL LED Bandwidth (MHz-km)
1500/500
Primary Coating Diameter (?m)
500
Secondary Buffer Diameter (?m)
900
Proof Test Level (kpsi)
100
