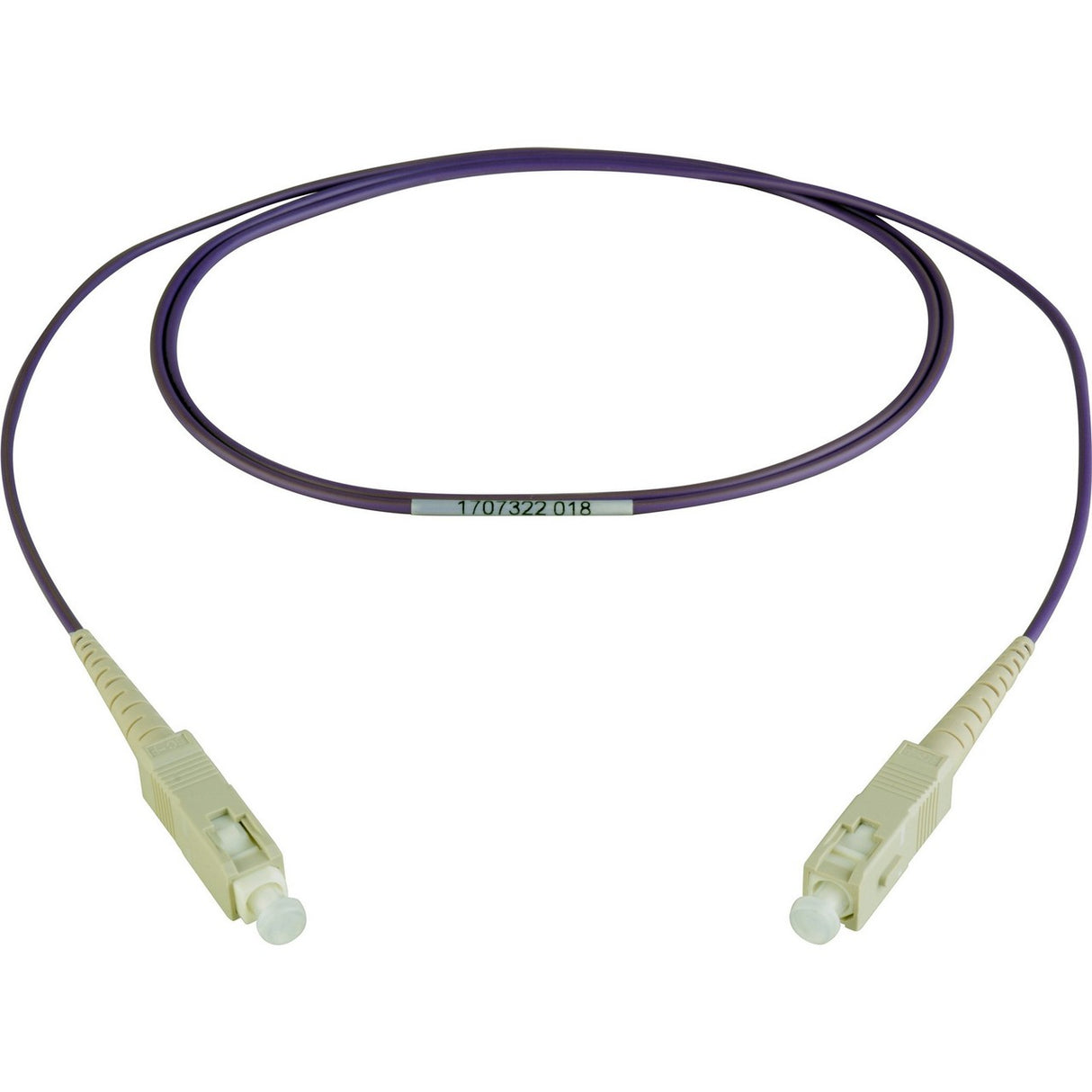

Camplex MMSM4-SC-SC-001 1 Meter Simplex SC to SC Fiber Patch Cable Purple
Simplex SC to SC OM4 multimode fiber optic patch cables connect patch panels or network devices requiring 50/125 multimode cables for higher bandwidths and longer distances. Designed for 10, 40, and 100 Gigabit applications, cost-effective OM4 cables are backwards compatible with existing OM3 systems. Purple cable is terminated with durable ceramic ferrule connectors.
Key Features
- Patch Panels and Network Device Applications
- Laser-optimized Multimode Fiber
- 10, 40, and 100 Gigabit Application Support
- Better Performance at Longer Distances
- Transmission distance up to 1840 feet/550 meters for 10G and 492 feet/150 meters for 40 & 100G
- Lower Attenuation and Lower Insertion Loss
- Use VCSEL Laser Light Sources
- Ceramic Ferrules Precision Alignment
Technical Specifications
50 m Core and 125 m Cladding
Overfill Launch Bandwidth (OFL) @850/1300 nm
3500/500 MHz-km
Effective Modal Bandwidth (EMB) @850/1300 nm
4700/500 MHz-km
Minimum Distance @1Gb/s
3281 ft/1000m (850nm)
Minimum Distance @10Gb/s
1840 ft/550m (850nm)
Minimum Distance @40 & 100 Gb/s
492 ft/150m (850nm)
Maximum Attenuation @850/1300 nm
3.0/1.5 db
