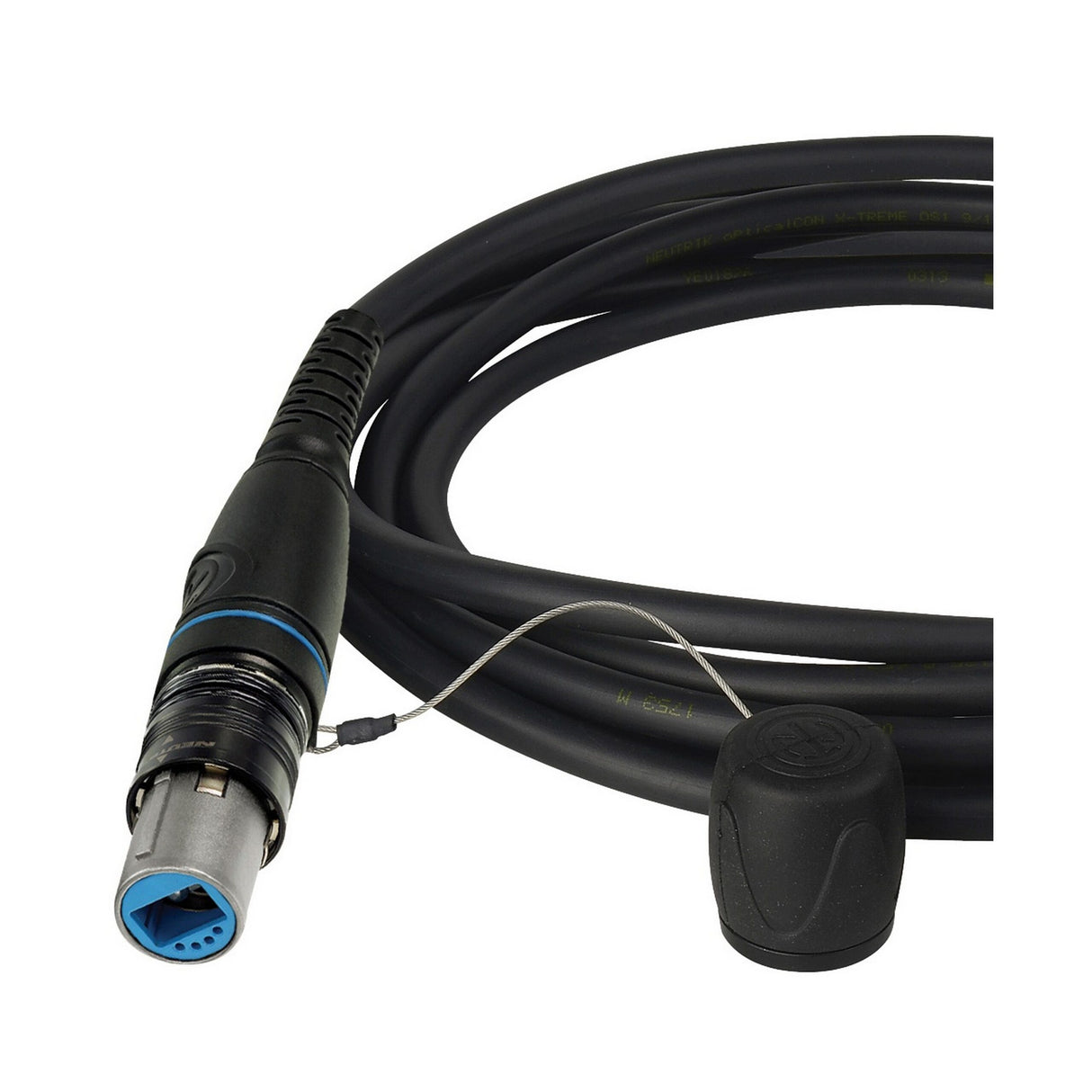

Camplex opticalCON DUO SMPTE 311 Singlemode Fiber Optic Cable, 100 Foot
OpticalCON DUO NO2SX to NO2SX Singlemode Hybrid SMPTE 311M Outside Broadcast Cable wired with power conductors. OpticalCON assemblies are COCA factory terminated and machine polished in our state of the art Fiber Optic Lab. Neutrik OpticalCON assemblies are made with outside broadcast SMPTE 311M cable rated for ruggedized applications and field deployment in commercial and professional broadcast AV applications. Machine polishing processes provide exceptionally low return loss and insertion loss. OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against end-face contamination. SMPTE cable with 2 singlemode fiber UPC, 2 x AWG24 and 2 x AWG16 or (2x17AWG) stranded copper power conductors, overall copper braided shield and stainless steel strength member.
Key Features
- OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards
- Machine polishing processes provide exceptionally low return loss and insertion loss
- OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination
- APC Polishing types available upon request.
- Machine polished and tested end faces
- Tactical tight buffered PUR Cable
- Optical Shutter Mechanism for added protection
- Typical back reflection <-55dB
- Can be Used for Lighting Control
- Deployable, Staging, and Harsh Environment
- Telecast CopperHead and SHED-HDX
- MultiDyne Silverback
- CAMLINX systems
Technical Specifications
(2) Neutrik OpticalCon DUO, NO2SX
OB SMPTE 311M, Polyurethane Jacket, 9.2mm diameter, Black
Nickel Finish Connector Body
50', 100', 164', 250', 328', 500', 656' or Custom
Mechanical
Cable Retention Force = 500N
Lifetime >1000 Cycles
Insertion/Withdrawal Force < 45N
Operating Temperature -25C to +75C
Optical
Type LC-UPC (Straight Polish)
Fiber Type 9m Single-mode Fiber
Cable Loss < 0.45dB/km @ 1310/1550nm
Optical Back Reflection -55dB/-45dB RL (typical/max)
24 AWG Data Conductors, 16 AWG or 17 AWG (2x20AWG) Auxiliary Conductors
CMR rated, UL1666 Flame Tested, Indoor / Outdoor Cable (9.125mm OD)
Aramid Yarn and 302 Stainless Steel Strength Members
