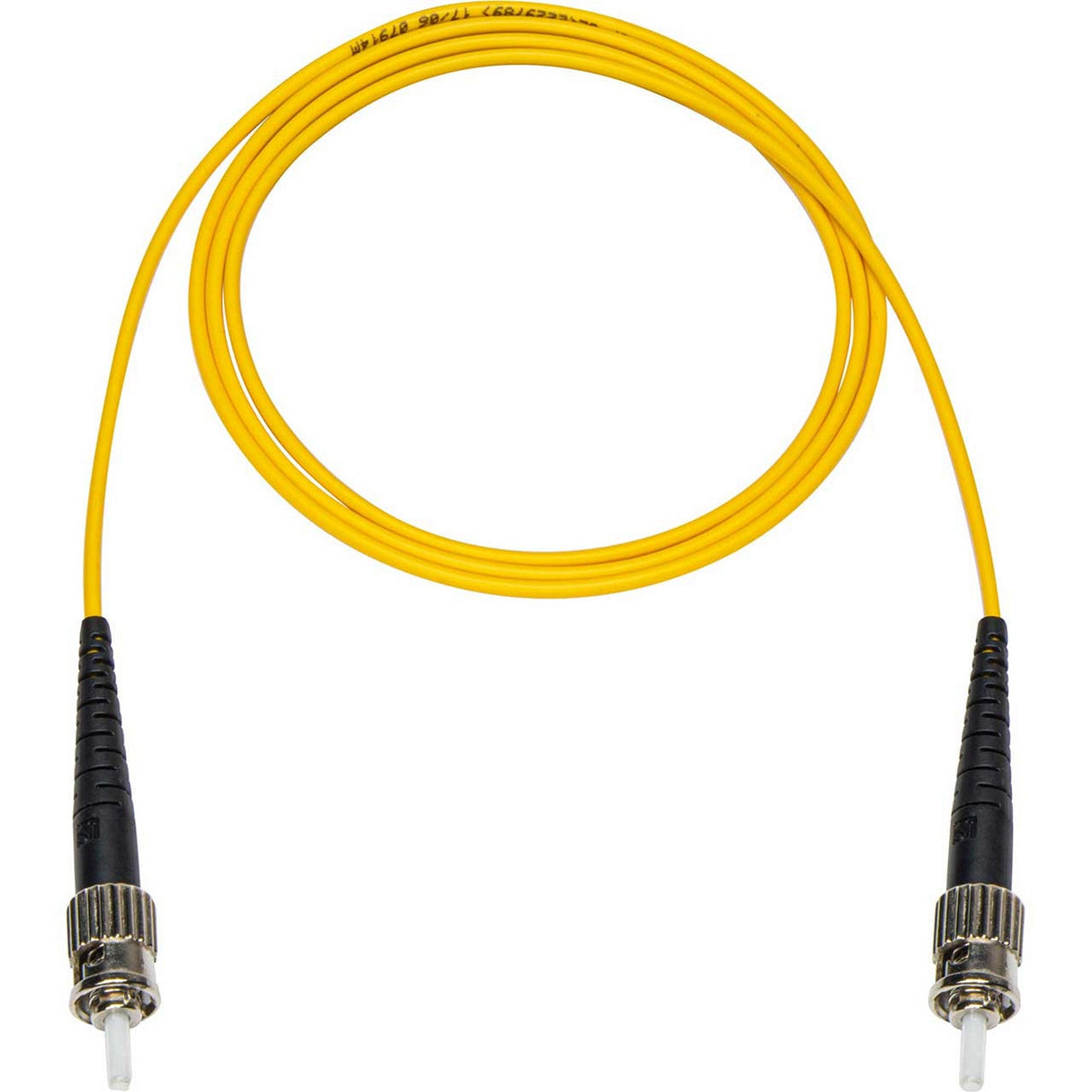

Camplex SMS9-ST-ST-001 9/125 Fiber Optic Patch Cable Single Mode Simplex ST to ST, 1-Meter
Camplex SMS9-ST-ST-001 9/125 Fiber Optic Patch Cable Single Mode Si...
Camplex SMS9-ST-ST-001 9/125 Fiber Optic Patch Cable Single Mode Simplex ST to ST, 1-Meter
Performance series ST to ST 9/125 Simplex single mode fiber optic cables from Camplex. Manufactured with high quality components, these fiber optic patch cables feature Yellow OFNR jackets. Camplex fiber optic patch cables are fully tested to ensure reliable performance in critical applications. Custom lengths & connector combinations always available from our in-house Fiber Lab.
Key Features
- Bend Insensitive OS2 Fiber
- Ceramic Ferrules for Long-Lasting Reliability and Precision Alignment
- Connect Patch Panels or Network Devices Requiring 9/125 Single Mode Cabling
- OFNR Jacket
Technical Specifications
Insertion Loss
<0.30dB max (PC, UPC) / <0.20dB max (APC)
Return Loss
<45dB (PC) / ā¤55dB (UPC) / <65dB (APC)
Tensile Strength
Long Term: 160N / Short Term: 300N
Pressive Strength
Long Term: 300N / Short Term: 1000N
Bend Radius (mm)
Dynamic: 80mm / Static: 40mm
Attenuation
@1310nm: <0.3dB/km / @1550nm: <0.3dB/km
Temperature
-20 Degrees C ~ 80 Degrees C
