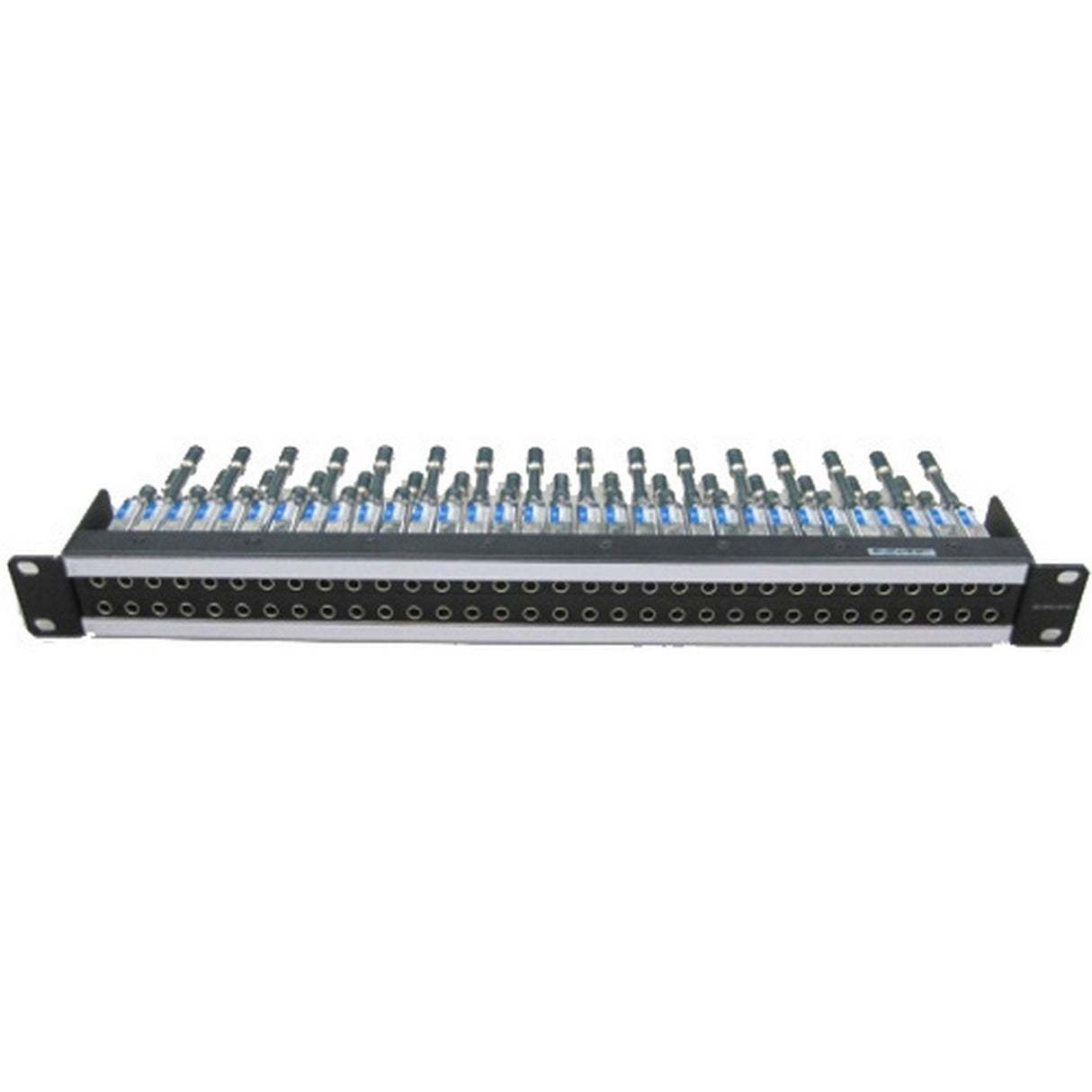

Canare 332MCK-STS Straight Through 12G-SDI Video Patchbay

Canare 32MCK-STS is a 1RU 75Ω 12G-SDI video patchbay with 32 straight through Micro Jacks. The panel features a 1RU size with 32 channels across and standard BNC rear connectors. The unit also features a return loss of 4dB or greater @ 12.0GHz and Isolation of 45dB or greater @ 6.0GHz.

Please Note The required “Micro Patch Cables” are proprietary to this patchbay only and will not fit or work with any other “micro” patchbay, or any patchbay other than this one, for that matter

Key Features

• Fully normal capabilities. No patch cord or looping plug necessary.
• 1RU, 32ch Across
• Serial Digital Video (12G-SDI)
• Return Loss of 4dB or greater @ 12.0GHz
• Isolation: 45dB or greater @ 6.0GHz
• Newly developed touch spring type switch
• Front connector: Canare original micro video port
• Dust proof shutter design within the front patch
• Standard BNC rear connections
• Panel can be recessed 25mm
• Normal Through 32MCK-ST Panel Loaded with MCVJK-STW
• Straight Through 32MCK-STS Panel Loaded with MCVJK-STS
