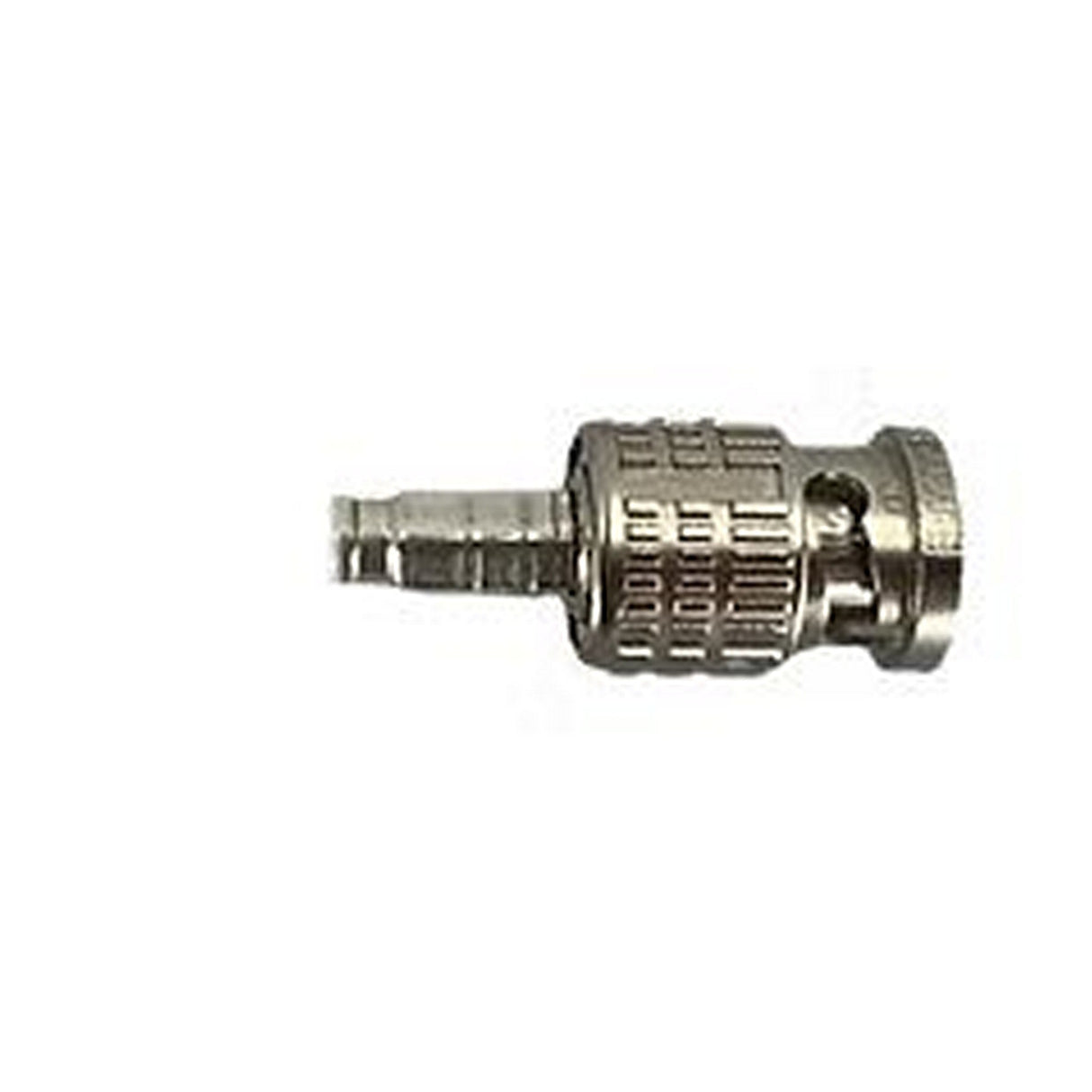

Canare's BCP-D55UHD is their most advanced BNC plug that was developed for use with their 12G-SDI UHD video coax cable the L-5.5CUHD. The return loss at 12 GHz is 15 dB, 26 dB @ 3 GHz and 20 dB @ 6 GHz. The installation work on the cable is a crimp method which enables quick and reliable machining to go along with its long sleeve shape, insulator locking mechanism, etc.
Part of the Canare BCP-D Series of high quality 75 Ohm BNC crimp plug connectors, the Canare BCP-D55UHD is rated for all SMPTE ST-2082-1, 424M & 292M applications to confidently transmit 12G-SDI bit-rates in 4K video production. Canare BCP-D BNC connectors feature an elongated body for better finger grip and a unique position mark on the body allows the connector bayonet fit to be checked easily.
The BCP-D55UHD BNC connector is designed for Canare L-5.5CUHD coaxial to deliver a combination of superior cable pull strength you won't find with other connectors. Its gold-plated center pins 'snaps' into place to ensure perfect alignment with connected video gear and patch panels. Easy assembly can be achieved using Canare Strip & Crimp Tools to make a perfect fit every time.
Technical Specifications
Electrical Characteristics
Insulation resistance
5000MĪ© or more
Voltage proof
Without any damage such as electric breakdown etc.
Contact resistance
Between external contacts
3mĪ© or less contacts / Between center contacts
6mĪ© or less
Return loss
26.4dB or more (0 ~ 3GHz)
20dB or more (0 ~ 6GHz)
15dB or more (0 ~ 12GHz)
Mechanical Characteristics
Interminability
To be engaged without any abnormality
Fixing force of contact with lock mechanism
No displacement more than 0.5 mm
Strength of coupling mechanism
Coupling sleeve shall not be disconnected or no deformation shall be made
Cable connecting force
200N or more for L-5.5CUHD
Mechanical operation (repeated) - Contact resistance
10mĪ© or less
Environmental characteristics
Operating temperature
-40 Degrees C ~ +85 Degrees C
Operating humidity
~90%
Corrosion resistance (Salt mist)
Appearance
By visual inspection, without noticeable rust.
Contact resistance
50mĪ© or less
General
Weight (Approx)
14.5g
Crimp tool- Frame
TC-1 / Die
TCD-55UHD
Nominal impedance
75Ī© unbalanced
Applicable cable
Canare L-5.5CUHD
Item Includes
1x Canare BCP-D55UHD 12G-SDI 4K UHD 75-Ohm Crimp Plug
