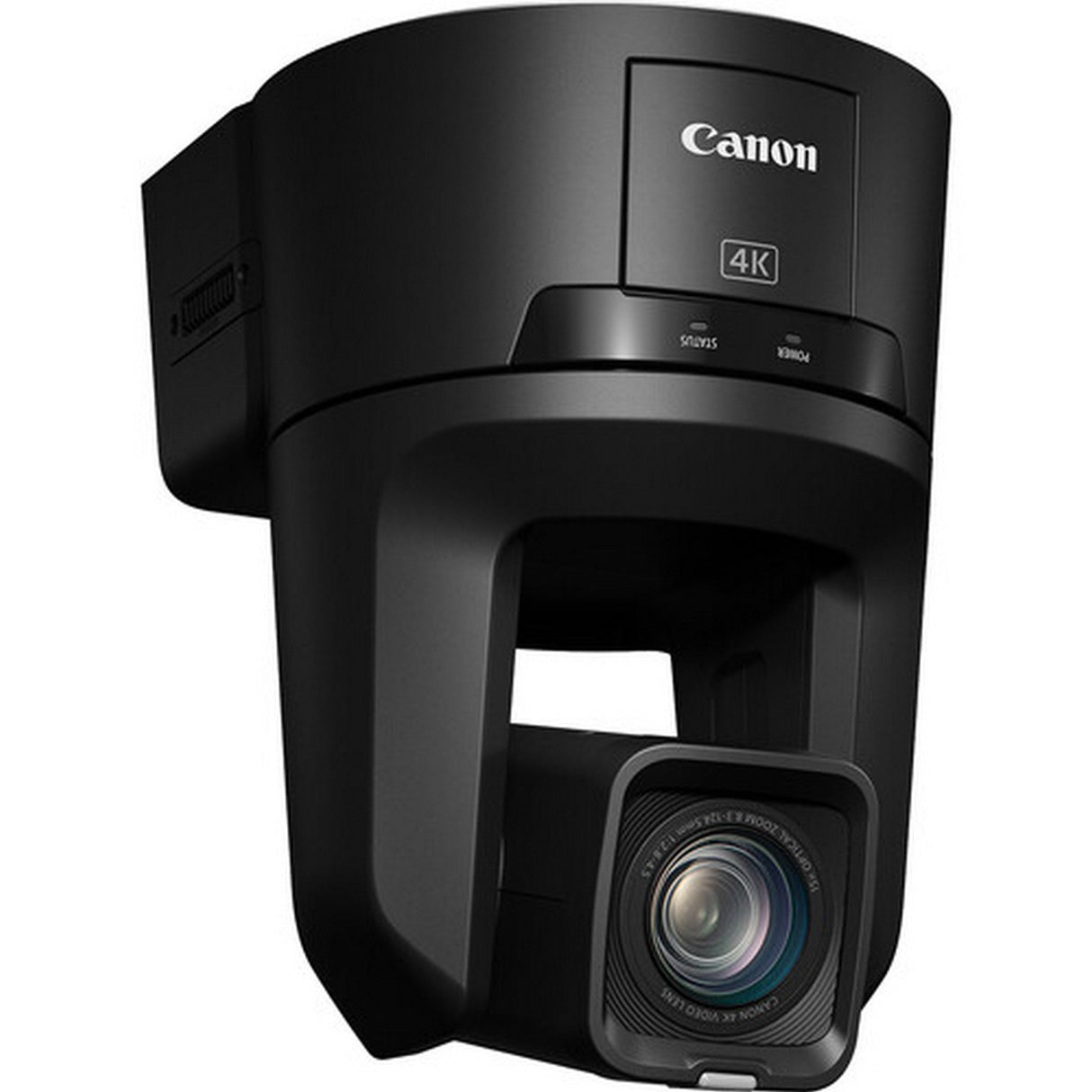

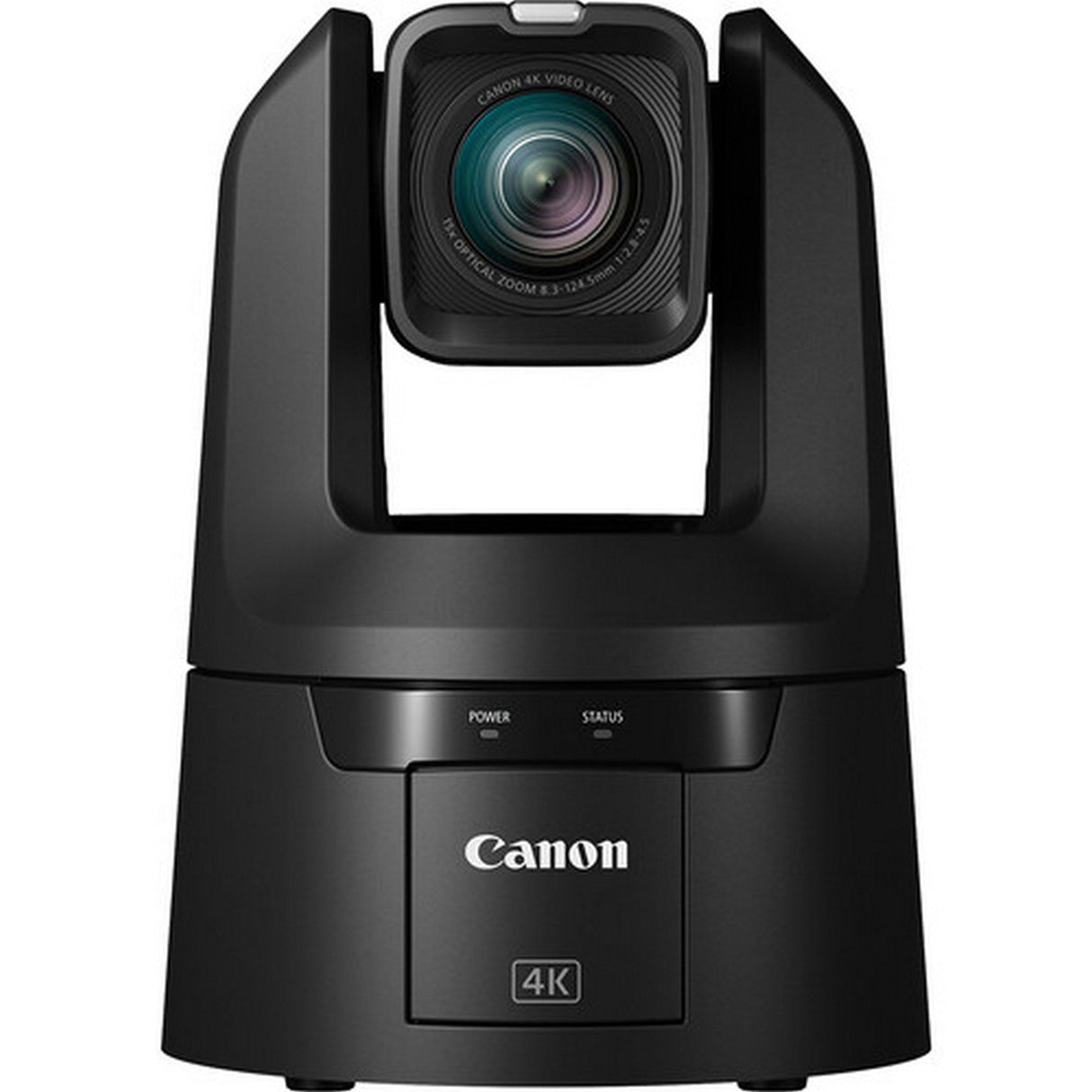

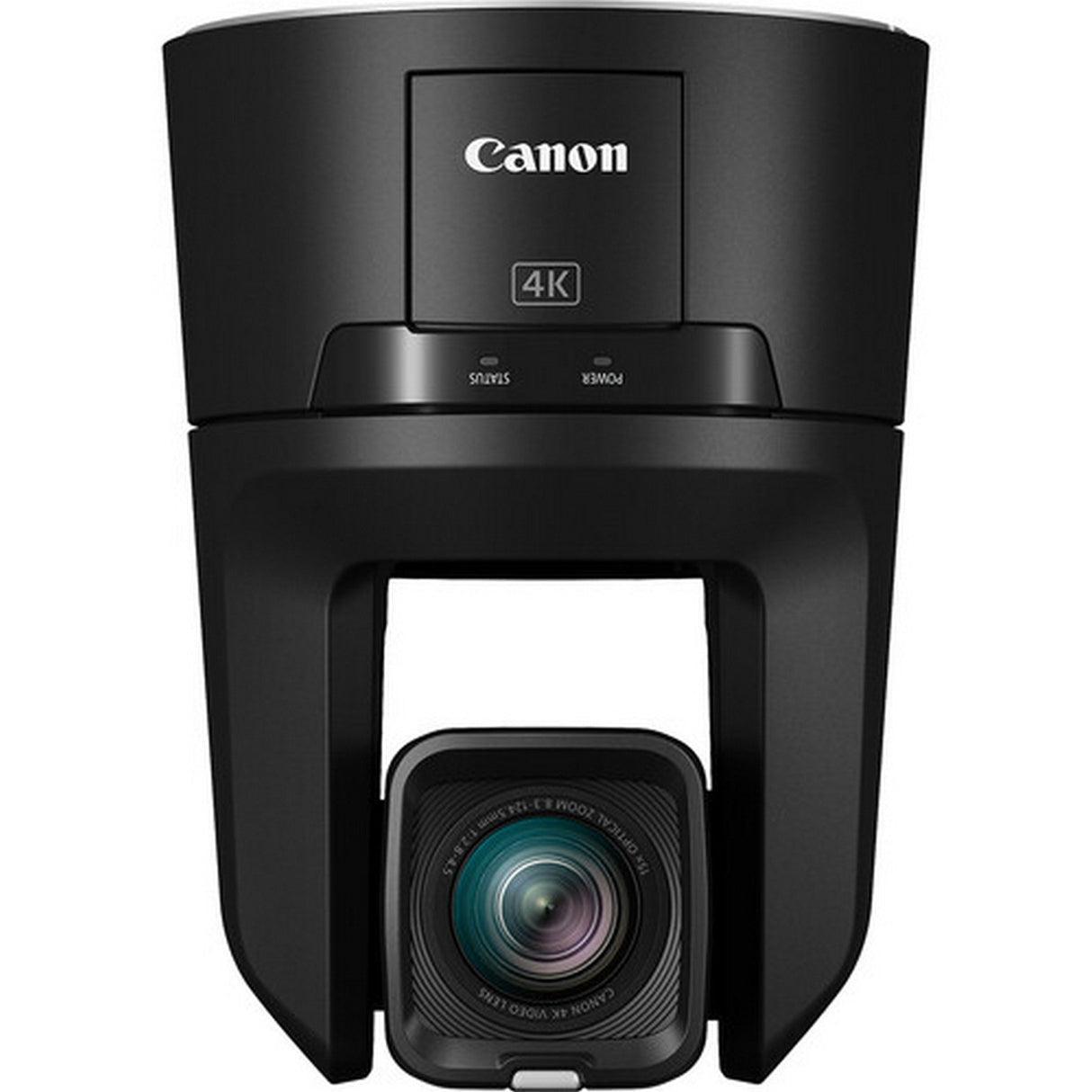

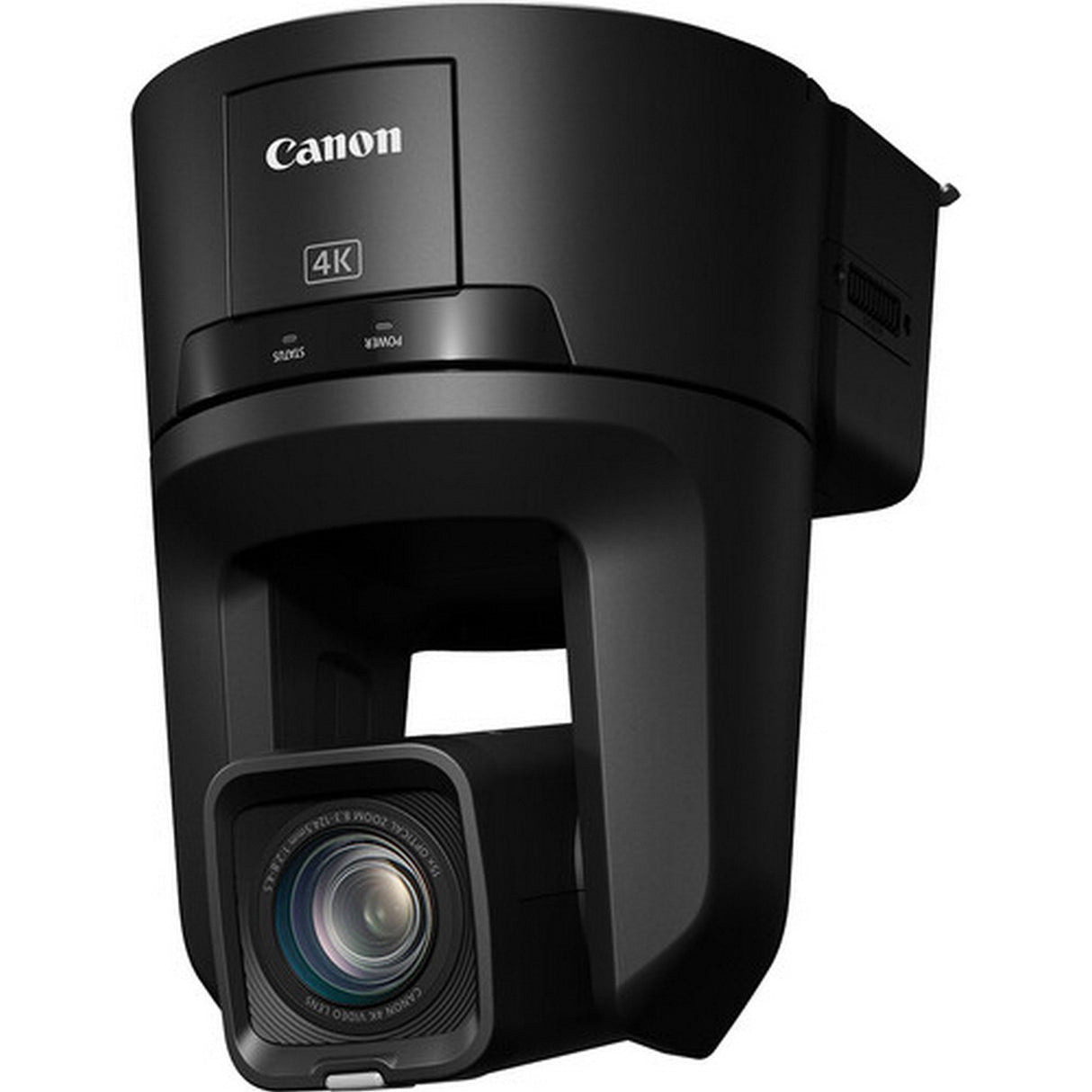

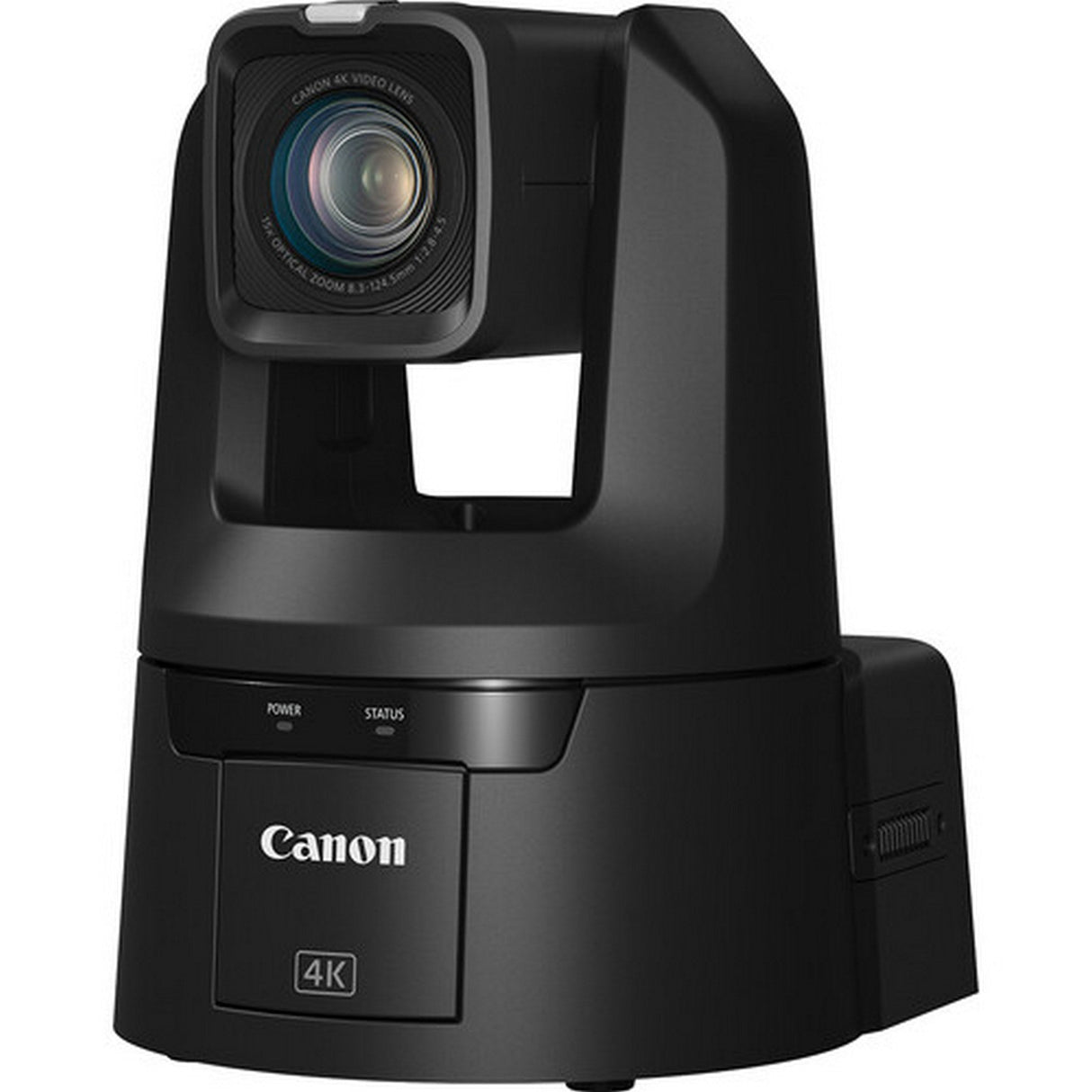

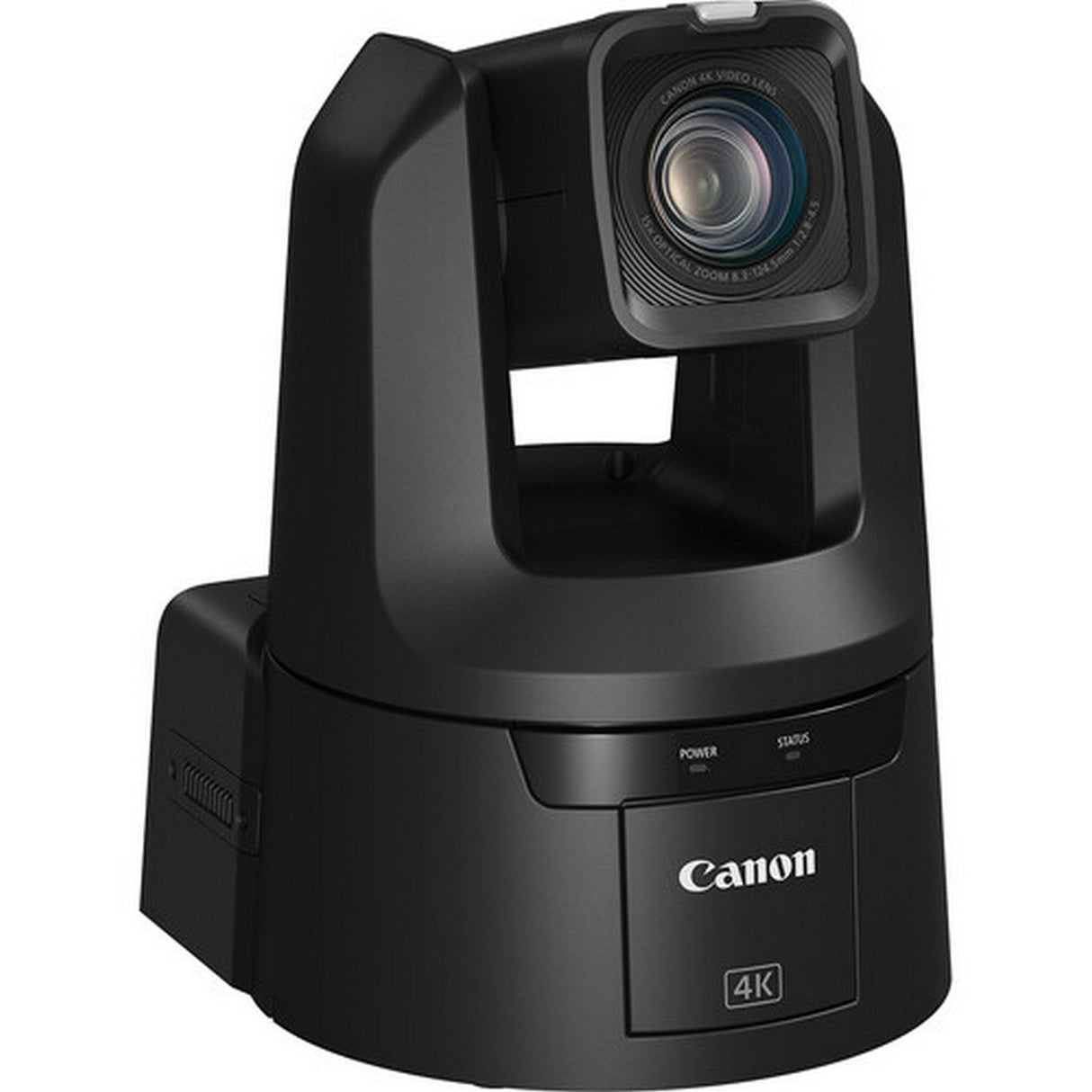

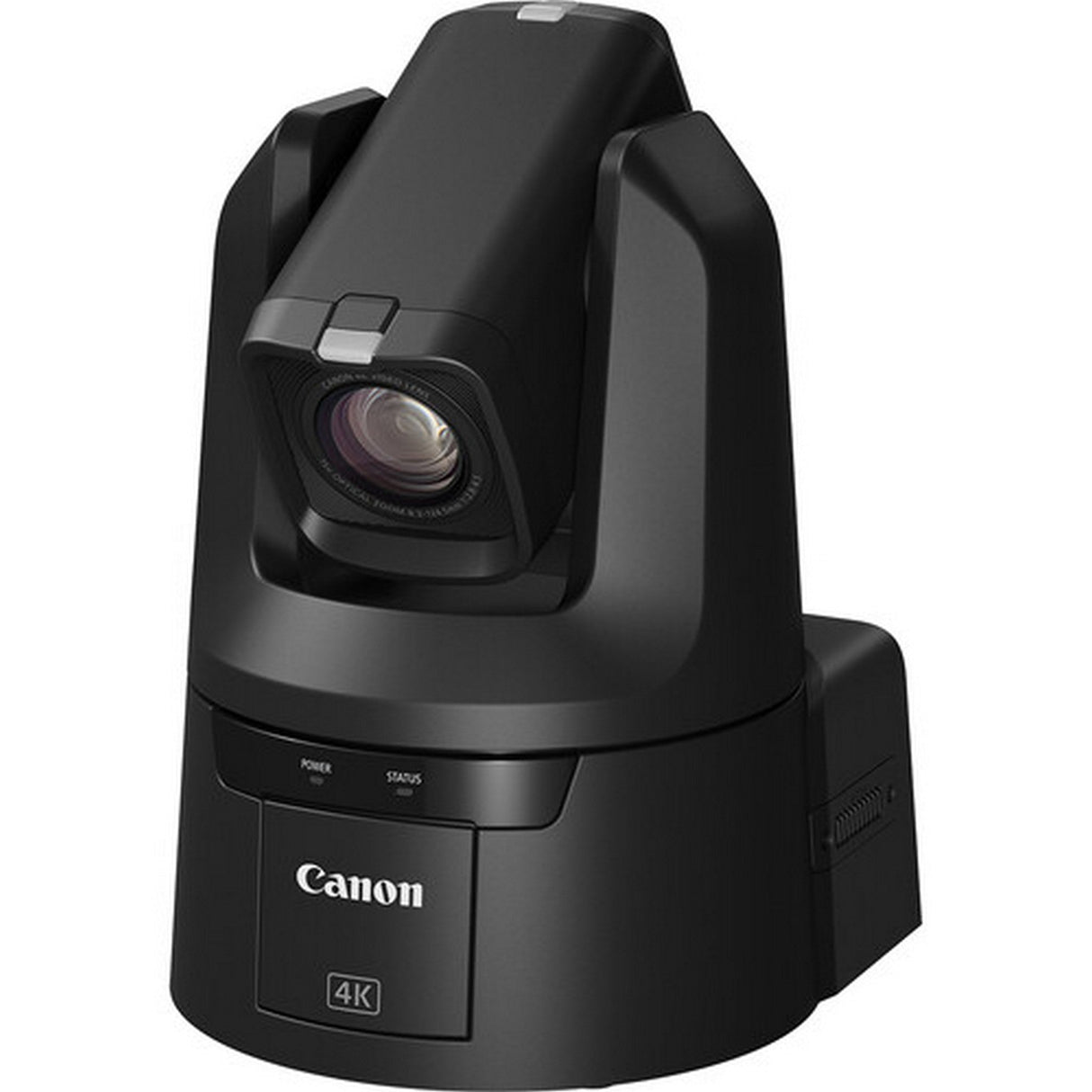

Canon CR-N700 4K UHD Indoor 15x PTZ Camera, Black

An exceptional 4K60P professional PTZ camera with 12G-SDI connectivity and class-leading auto focus with intelligent head detection and eye tracking.

Close the distance with unrivalled clarity
Harness the power of a 1.0-type 4K sensor and DIGIC DV7 processor with Dual Pixel AF. A 15x optical zoom (30x in Full HD) captures productions in exceptional detail, even in Night Mode. Stream 4K60P and HDR quality broadcast footage via a wide range of IP protocols.

4K detail for imaging excellence
A 1.0-Type CMOS sensor and DIGIC DV7 processor deliver 4K UHD 60P imagery in up to 4:2:2 10-bit, 12G-SDI and HDMI for broadcast-standard image quality, plus 4K60P over IP.

Class-leading optical precision
The CR-N700’s high-performance lens has a 15x optical zoom (25.5mm - 382.5mm, 35mm equivalent) plus a 30x Advanced Zoom when shooting in Full HD. And when conditions are unstable, Canon’s renowned Image Stabilizer captures optimal footage.

Award-winning Auto Focus technology
Fast, intelligent, and extremely accurate focusing via multiple modes thanks to Canon’s proprietary Dual Pixel CMOS AF technology with advanced EOS iTR AF X.

EOS iTR AF X
Deep learning autofocus technology locks on to a subject’s head, even if they turn away.

Eye Detection AF
Detects and tracks the subject’s pupil for precise focusing.

Face Priority/Face Only AF
Face Priority AF prioritizes the subject’s face, while Face Only AF responds when a face is detected.

Touch AF
Select your own focus point on screen with the Remote Camera Control Application.

Dual Pixel Focus Guide
A visual representation showing when a subject is in focus.

Multiple protocols for seamless integration
The CR-N700 features SRT and NDI|HX1 that produce high quality video streams for broadcasters. RTMP/RTMPS, RTP/RTSP are included, along with Canon XC and Standard communication protocols, plus FreeD for integration into virtual productions.

Powerful HDR imagery and low light capture
Achieve stunning HDR imagery with direct recording into either PQ or HLG formats. A range of custom picture settings includes Canon Log 3 and Wide Dynamic Range to match your image with other Canon cameras.

Crop function - single camera, two video feeds
Select and extract a point of interest via a separate feed. The chosen area can then be output as a main or secondary signal and up to two cropped areas can be set in FHD.

Light Mode
Capture footage in near-darkness thanks to IR Mode, which extends the spectrum visible to the camera.

Comprehensive connectivity
Connect flexibly with 12G-SDI, HDMI or IP (PoE++) all supporting 4K60P, as well as professional dual XLR audio inputs. CR-N700 also includes 3G-SDI and GEN-LOCK.

Smooth and precise control
The CR-N700 has a high-precision drive mechanism for fine Pan and Tilt movement as slow as 0.1 Degrees /s. Compatible with the RC-IP100 controller and Remote Camera Control Application controllers, it can also be configured with selected third-party units.

Key Features

• 4K 60P Image Quality: Captures exceptional broadcast level imagery in up to 4K UHD 60P, 4:2:2 10-bit
• 1.0-inch Type CMOS sensor: Produces incredible depth of field with high sensitivity and low noise, even in low light
• DIGIC DV7 Processor: Powerful image processing for exceptional results
• 15x Optical and 30x Advanced zoom: Image stabilized 15x Optical zoom in 4K or up to 30x Advanced zoom in Full HD
• Region of Interest cropping: Intelligent cropping of a feed enables a single camera to produce two video feeds up to FHD
• HDR Imagery: Exceptional 4K HDR imagery for PQ or HLG formats, plus Canon Log 3 and Wide DR
• Dual Pixel CMOS AF with EOS iTR AF X: Smooth, fast, and accurate autofocus with ‘deep learning’, head detection, eye detection and tracking
• Inbuilt Protocols: Including NDI|HX*, SRT, FreeD, RTMP/RTMPS, RTP/RTSP, Canon XC and Standard Communication protocol
  * NDI is a trademark or registered trademark of NewTek, Inc. in the United States and other countries
• Flexible connectivity: A host of connectors such as 12-G-SDI, 3G-SDI, HDMI, Gen lock and Dual XLR audio inputs

Technical Specifications

Camera
Lens
15x optical zoom, 9-bladed iris diaphragm
Optical Zoom
15x optical zoom (30 x with advanced zoom)
Digital Zoom
20x digital zoom
Image Sensor
Type 1.0 (1.0 in.) single-plate CMOS sensor
Effective Pixels
approx. 8.29 megapixels (3840 x 2160)
Focal Length
8.3 - 124.5 mm, f/2.8 - 4.5,
35mm equivalent focal length
approx. 25.5 (W) - 382.5 mm (T)
Angle of View
Horizontal: 73.0 (W) - 5.7 Degrees (T)
Vertical: 45.2 Degrees (W) - 3.2 Degrees (T)
Minimum Subject Illumination
Approx. 3.0 lux (with 59.94 Hz frame frequency, 1/60 sec. shutter speed, 59.94P frame rate, and 21 dB gain)
Approx. 2.5 lux (with 50.00 Hz frame frequency, 1/50 sec. shutter speed, 50.00P frame rate, and 21 dB gain)
Shutter Speed
1/3 - 1/2000 sec. (specific values depend on the frame frequency and frame rate)
Iris
Manual/Automatic aperture
Gain
-6.0 dB - 36.0 dB
ND Filter
Built-in (Off, 1/4, 1/16, 1/64), motor operated
Night Mode (IR Cut Filter Off)
Yes
White Balance
AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K1, tungsten lamp: 3,200 K2),
Focus
Focus mode: Manual, AF-boosted MF, Continuous AF, Face AF, Tracking AF type: Dual Pixel CMOS AF, Contrast AF
Detection: Face Detection, Eye Detection
Minimum Focusing Distance
1 cm at wide end, 60 cm across entire zooming range
Gamma
BT.709 Normal, BT.709 Wide DR, BT.709 Standard, Canon Log 3, PQ, HLG
Pan and Tilt
Pan operation range: Horizontal ±170 Degrees
Pan operation speed: 0.1 Degrees - 100 Degrees /sec.
Tilt operation range: Vertical -30 Degrees - +90 Degrees
Tilt operation speed: 0.1 Degrees - 100 Degrees /sec
Server
Video Output Format: SDI
<12G-SDI>
3840 x 2160
59.94P/29.97P/23.98P/50.00P/25.00P (4:2:2 10 bit)
1920 x 1080: 59.94P/59.94i/29.97P/29.97PsF/23.98P/50.00P/50.00i/25.00P/25.00PsF (4:2:2 10 bit)
1280 x 720: 59.94P/50.00P (4:2:2 10 bit)
720 x 576: 59.94i/50.00i (4:2:2 10 bit)
<3G-SDI>
1920 x 1080: 59.94P/59.94i/29.97P/23.98P/50.00P/50.00i/25.00P (4:2:2 10 bit)
1280 x 720: 59.94P/50.00P (4:2:2 10 bit)
720 x 576: 59.94i/50.00i (4:2:2 10 bit)
Video Output Format: HDMI
3840 x 2160
59.94P/29.97P/23.98P/50.00P/25.00P (4:2:2 10 bit)
1920 x 1080: 59.94P/59.94i/29.97P/23.98P/50.00P/50.00i/25.00P (4:2:2 10 bit)
1280 x 720: 59.94P/50.00P (4:2:2 10 bit)
720 x 576: 59.94i/50.00i (4:2:2 10 bit)
Video Output Format: IP

3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360
59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)

3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360
29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)

3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360
50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)

3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360
25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)

3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360
23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
*59.94 fps/50.00 fps is only when H.265.
- JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected)
Resolution: 1280 x 720
59.94/29.97 Hz: 14.99 fps, 50.00/25.00 Hz: 12.50 fps, 23.98 Hz: 11.99 fps
Video Output Format: USB
No
Video Transmission Protocol
Canon XC, RTSP/RTP, NDI3|HX, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), SRT, FreeD
Preset
Number of presets: Max. 100 (including home position)

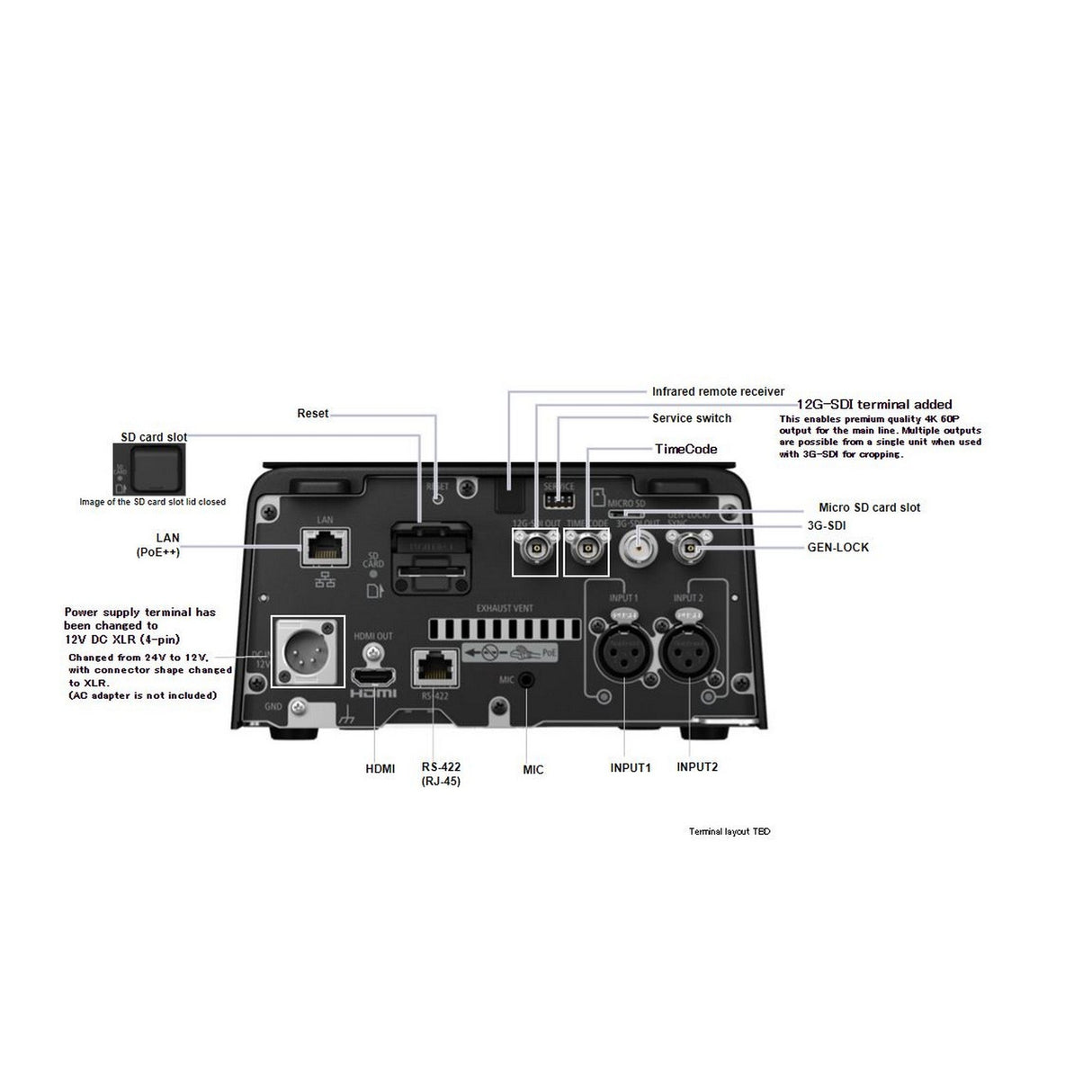

Interface
Communication Control
LAN, Wi-Fi, Serial, IR
Network Terminal
LAN x 1, RJ45, 1000Base-T
SDI OUT Terminal
12G-SDI OUT Terminal
BNC jack (output only) x 1, 0.8 Vp-p/75 Ω,
SMPTE ST 2082, 2081, 424, 425, 292, 259, 299, 272 compliant
Embedded audio, Time code (VITC/LTC)
6G-SDI OUT Terminal
No
3G-SDI OUT Terminal
BNC jack (output only) x 1, 0.8 Vp-p/75 Ω,
SMPTE ST 424, 425, 292, 259, 299, 272 compliant
Embedded audio, Time code (VITC/LTC)
GEN-LOCK Terminal
BNC jack (also serves as the SYNC OUT terminal)
TIME CODE Terminal
BNC jack (for both input/output)
HDMI OUT Terminal
HDM connector (Type A), both video and audio are output only
RS-422 Terminal
RJ45 connector x 1
INPUT 1/INPUT 2 Terminals
XLR 3-pin jack (balanced) ((1) shield, (2) hot, (3) cold), two lines
Sensitivity (MIC): -60 dBu (manual volume center, -18 dB full scale)
Sensitivity (LINE): +4 dBu (manual volume center, -18 dB full scale)
Supply Voltage: 48 V DC (Bias resistance: 6.8 kΩ)
MIC Terminal
ϕ 3.5 mm stereo mini-jack (unbalanced; supports plug-in power)
Sensitivity (MIC): -72 dBu (manual volume center, -18 dB full scale)
Sensitivity (LINE): -10 dBV (manual volume center, -18 dB full scale)
Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ)
USB Terminal
No
Physical Features
Operating Environment
Temperature
0 Degrees C - +40 Degrees C (+32 Degrees F - +104 Degrees F)
Humidity
10% - 90% (without condensation)
Power Supply
PoE: PoE++ power supply via LAN connector (IEEE802.3bt compliant)
- PoE and PoE+ cannot be used
External power source: 12 V DC
Power Consumption
PoE++ Input: Approx. 37.4 W4/1.2 A max. (body only)
DC Input: Approx. 36.7 W/3.5 A max. (body only)
Dimensions (W x H x D)
Approx. 200 x 269 x 208 mm (excluding protrusions)
Weight
Approx. 4.4 kg (9.7 lbs)
