Canon CR-X300 Outdoor 4K 20x Zoom PTZ Camera, Titanium White

The Canon CR-X300 Professional PTZ 4K UHD Camcorder is a high-performance camera ideal for various professional applications, including broadcast, live events, and house-of-worship productions. It features a 1/2.3" CMOS sensor with Canon's DIGIC DV 6 Image Processor for superb image quality in both 4K UHD and Full HD resolutions. The CR-X300 boasts exceptional zoom capabilities with a 20x 4K UHD Optical Zoom Lens and a 20x Digital Zoom, providing a total zoom of 400x. Additionally, the camera is equipped with Canon's renowned Hybrid Auto Focus System for fast and accurate focusing, ensuring sharp and clear images even during fast-paced action.

The CR-X300 offers professional video output options, including 6G-SDI and HDMI terminals, supporting 4K UHD at 29.97p or Full HD at up to 59.94p. The camera also features an IR Mode for capturing video in low-light conditions and built-in ND filters for additional exposure control. Furthermore, the CR-X300 is a true PTZ camera, delivering smooth, fast, and highly precise Pan/Tilt/Zoom (PTZ) movement with a variable speed range of 0.3° - 60°/second. It boasts a wide operational range of +/- 180° Pan and -40° to +215° Tilt, making it suitable for various mounting configurations, including upright or inverted ceiling mounts.

For enhanced integration into professional workflows, the CR-X300 supports PoE++ (802.3bt compliant) for a single-cable solution, simplifying installation and reducing costs. It also offers LAN and serial control options for compatibility with various hardware and software-based controllers. Additionally, the CR-X300 boasts built-in NDI|HX and SRT support for high-quality streaming over IP networks.

Key Features

1/2.3" CMOS Sensor with Hybrid Auto Focus

High Quality 4K 30p and Full HD 60p Video Output

20x Optical Zoom Lens with Optical Image Stabilization

Renowned Canon Color Science

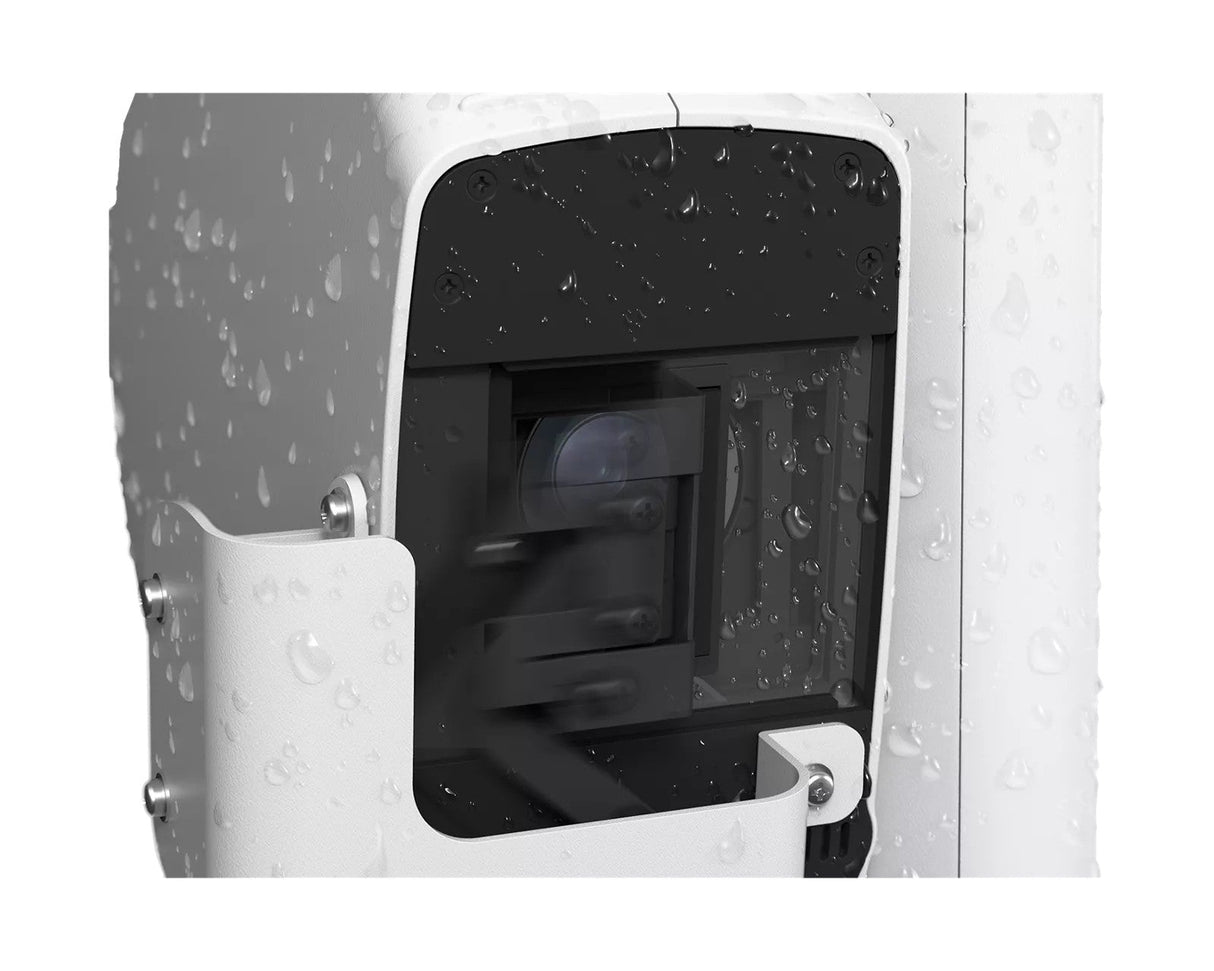

Outdoor Camera with Wiper (IP65 Rated)

6G-SDI, HDMI, and IP Video Out

Built-in NDI|HX and SRT (supports adaptive bitrate) support.

Supports PoE++, variety of serial/IP control protocol support include Canon XC Protocol, Standard Control for Easy Integration into any Production Environment

Technical Specifications

Image Sensor

Type: 1/2.3 (1/2.3 in.) single-plate CMOS sensor

Total pixels: approx. 21.14 megapixels

Effective pixels: approx. 8.29 megapixels (3840 x 2160)

Lens

f=3.67 - 73.4 mm, F/1.8 - 2.8, 20x optical zoom

35mm equivalent focal length:

[4K UHD] approx. 29.3 (W) - 601 mm (T)

[Full HD] approx. 30.5 (W) - 627 mm (T)

8-bladed circular aperture

12 elements in 10 groups (including 2 aspheric elements)

Zoom

Optical: 20x

Digital: 20x

Minimum Focusing Distance

1 cm (0.39 in.) at maximum wide angle, 60 cm (2.0 ft.) throughout the zoom range (from the front window)

Angle of View

[4K UHD]

Horizontal: 65.6° (W) - 3.6° (T)

Vertical: 39.8° (W) - 2.0° (T)

[Full HD]

Horizontal: 63.5° (W) - 3.4° (T)

Vertical: 38.4° (W) - 1.9° (T)

Shutter Speed

1/6 - 1/2000 sec. (specific values depend on the frame frequency)

Focus

Focus mode: Manual, Continuous AF, Face Detection AF, Tracking AF type: Hybrid AF, Contrast AF

Shooting Mode

F.Auto, P, Tv, Av, M

Scene Mode

Portrait, Sports, Low light, Spotlight

Dimensions (W x H x D)

Approx. 8.54 x 12.24 x 8.54 in. (217 x 311 x 217 mm) (excluding protrusions and connector cover)

Weight

Approx. 15.5 lb. (7 kg ) (body only)
