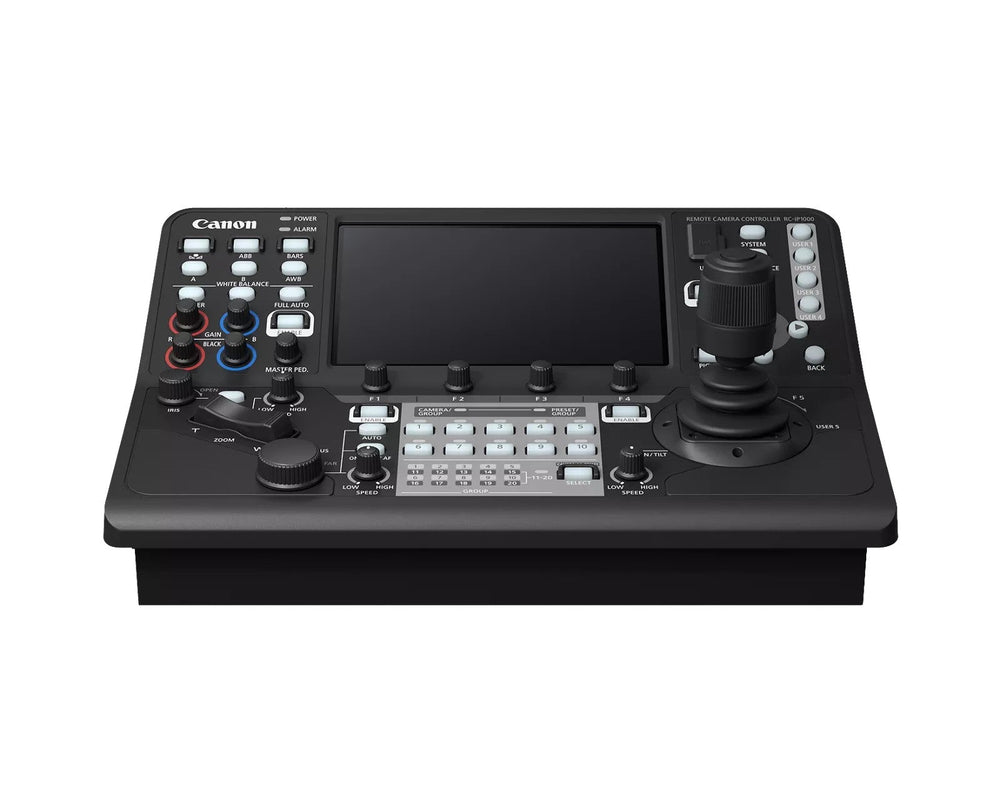

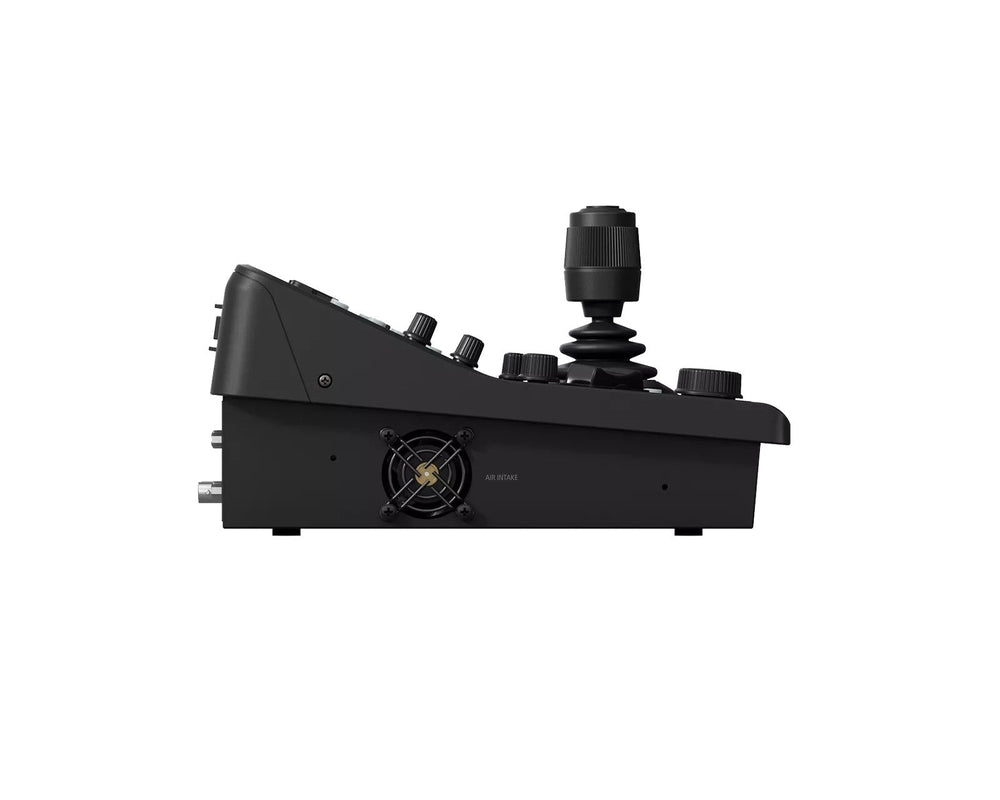

Canon RC-IP1000 Advanced PTZ Joystick Controller

The Canon RC-IP1000 Advanced PTZ Controller is a professional-grade controller designed for smooth operation of multiple PTZ cameras. With a newly developed control interface featuring 42 buttons and 14 dials, the RC-IP1000 offers intuitive control with assignable buttons, programmable trace operation, and adjustable speed and response controls. The 7-inch touch panel provides a clear view of operation menus, live camera feeds, and allows for touch autofocus. It is ideal for large multi-camera productions where precise control of up to 200 cameras is required.

The RC-IP1000 features a 7-inch touch screen that provides clear visibility and touchscreen control. It allows for intuitive camera operation through a variety of features including: touch autofocus, Canon auto tracking capabilities, multi-camera display (up to 9 cameras), live video monitoring, camera setting and status control, and preset/trace route thumbnail images.

For additional functionality, the RC-IP1000 offers Waveform and Vectorscope displays, Dual Pixel Focus Guide, assignable buttons, dials with adjustable speeds, pan-tilt adjustment, and a multi-preset function. It also provides 4K 60P video input/output via 12G-SDI, IP image input, and HDMI output.

The Canon RC-IP1000 simplifies camera control by allowing access to the camera OSD menu from compatible cameras. It also enables control of multiple cameras with the same movements and settings. The RC-IP1000 supports Canon's XC Protocol over IP for one-to-many control of up to 200 cameras. It also integrates with Canon's in-camera Add-On Applications, such as Auto Tracking and Auto Loop.

The RC-IP1000 allows for synchronization with a switcher using SDI/GPIO. This enables camera selection on the switcher to match the camera selection on the controller. The controller can also display the program video shooting camera button in red and the preview video shooting camera button in green.

Key Features

Full-featured remote camera controller provides smooth PTZ movement and precise control

7” touch panel for a clear display of operation screens, live camera views, and Touch AF

User assignable buttons and dials allow users to customize the controller to provide easy access to their most frequently used functions

Adjust pan, tilt, zoom and change camera function settings remotely

Support for multiple connected cameras to be operated and configured simultaneously

Control lever and zoom rocker with adjustable reaction rate

4K 60P video input/output via 12G SDI

Control up to 200 supported Canon cameras, including up to 5 over serial

Camera OSD menu from compatible cameras can be shown on the touch panel and operated using push-button controls

Technical Specifications

General

Power: 12VDC, PoE+ (with some restrictions*)

*When using power supply via PoE+, either the touch panel/LED lamp brightness is limited, or the use of USB ports is limited (selectable in settings).

Dimensions: 13.47 x 5.71 x 9.65 in. (342 x 145 x 245 mm) (excluding controller level, protruding parts)

Weight: Approx. 3.5 kg (7.72 lb.)

Operating Temperature: 0°C - +40°C (+32°F - +104°F)

Camera Control

Controller Supported Cameras: CR-N700, CR-N500, CR-N300, CR-N100, CR-X500, CR-X300, C500 Mark II (requires firmware v1.0.3.1 or later), C300 Mark III (requires firmware v1.0.1.1 or later), XF605 (requires firmware v1.0.1.1 or later)

Number of Connectable Cameras: 200 (5 with serial connection)

Number of Camera Select Buttons: 10

Number of Camera Groups: 20 (10 cameras in 1 group)

Video Interfaces: 12G-SDI IN/OUT, HDMI OUT, IP IN

Supported Protocols: XC protocol (IP), NU protocol (serial)

Preset (Store/Play/Delete): Up to 100 for each camera

Trace (Store/Play/Delete): Up to 10 for each camera

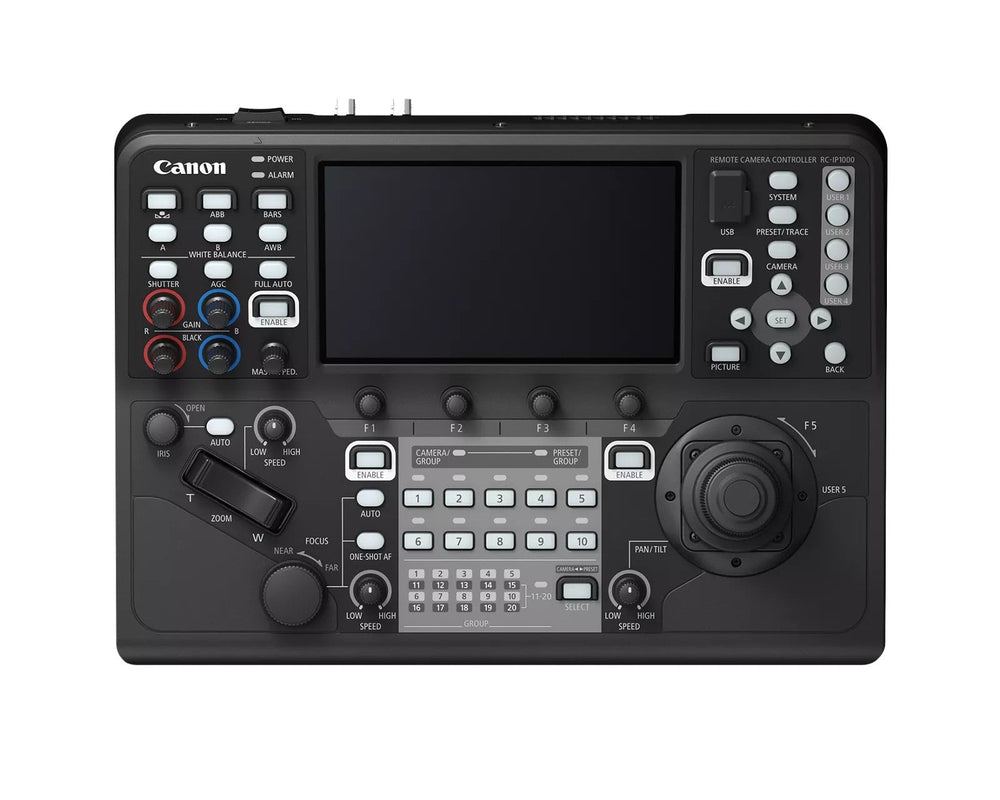

Other Controls: Control lever, zoom rocker, focus dial, user buttons x 4, dials x 13, up down left right select buttons

Supported Add-On Applications: RA-AT001 Auto Tracking Application, RA-AL001 Auto-loop Application

Screen

LCD Display: 7-inch capacitive touch panel, 800 x 480 resolution

Camera Video Preview: YES (SDI IN / IP), up to 9 cameras per page

Touch Focus: YES (SDI IN / IP)

Crop Frame Control: YES (SDI IN / IP, CR-N700 only)

OSD Menu Display: YES (SDI IN / IP, select cameras only*)

*XF605, EOS C70, EOS C500 Mark II, EOS C300 Mark III

Terminal

GPIO D-Sub 25pin x 2 ports: For GPIO external control/link

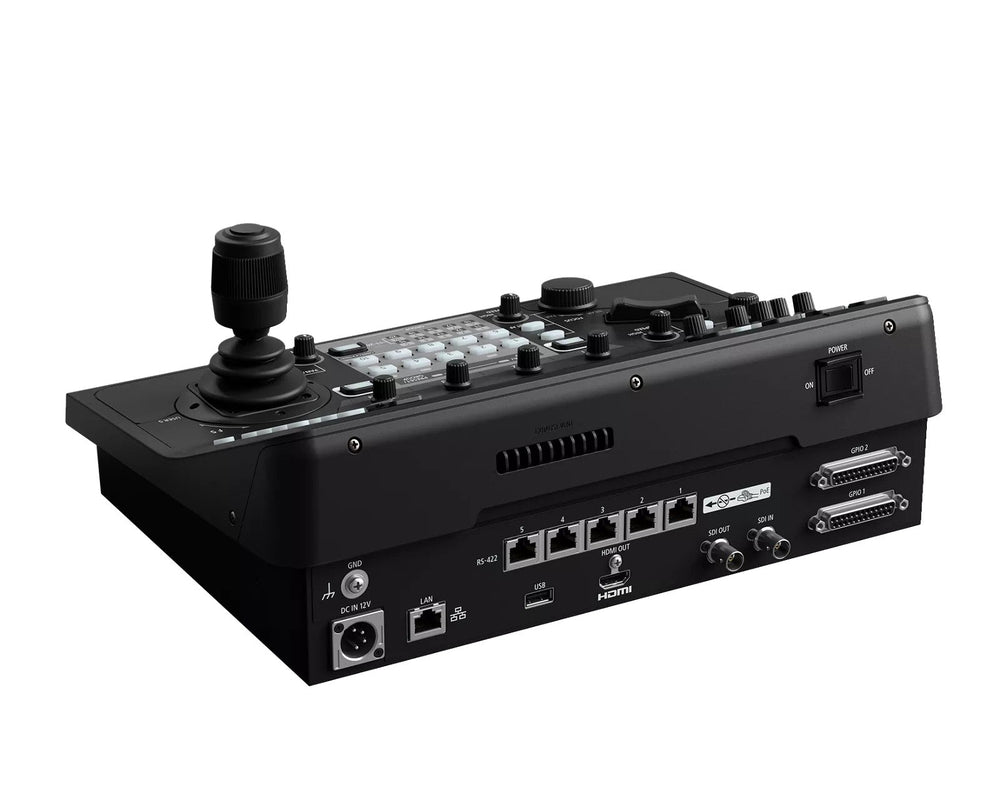

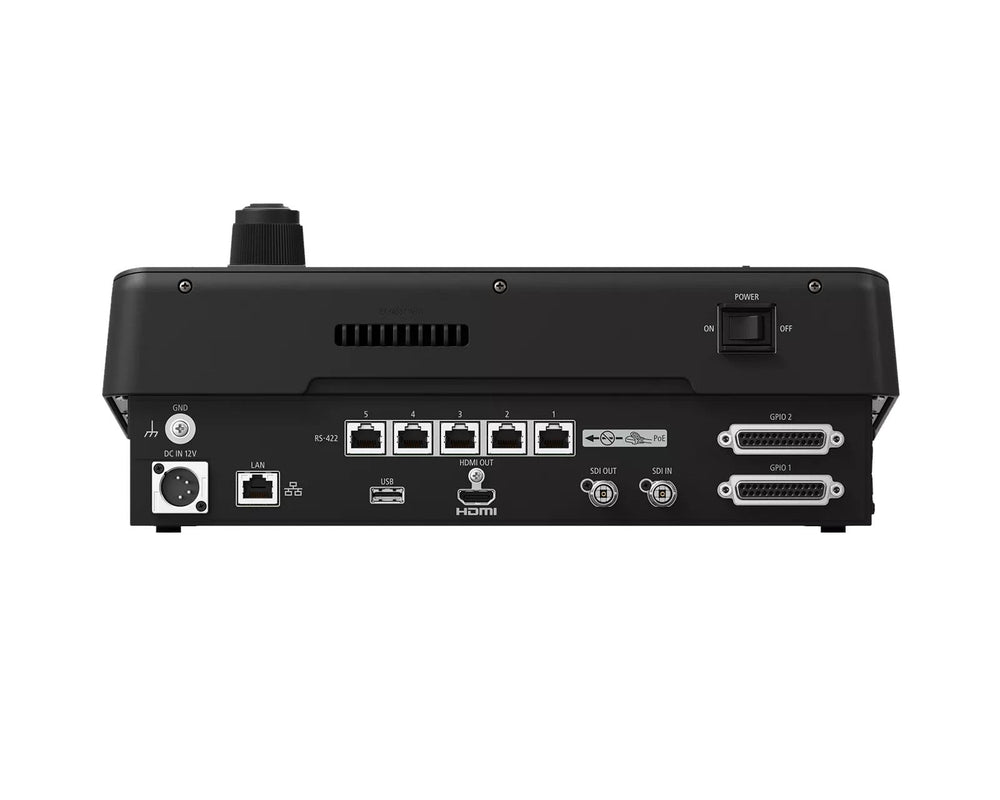

LAN / PoE+ RJ45 port: IP camera control, IP video input, PoE+ power supply

Serial RJ45 port x 5: Serial camera control

12G-SDI IN: SDI video input

12G-SDI OUT: Video Output

HDMI OUT (Type A) x1: Video Output

12V DC 4-Pin XLR port: DC Power

USB Type A x2: Front - Save Settings, Firmware Updates Rear - for Future Expansion
