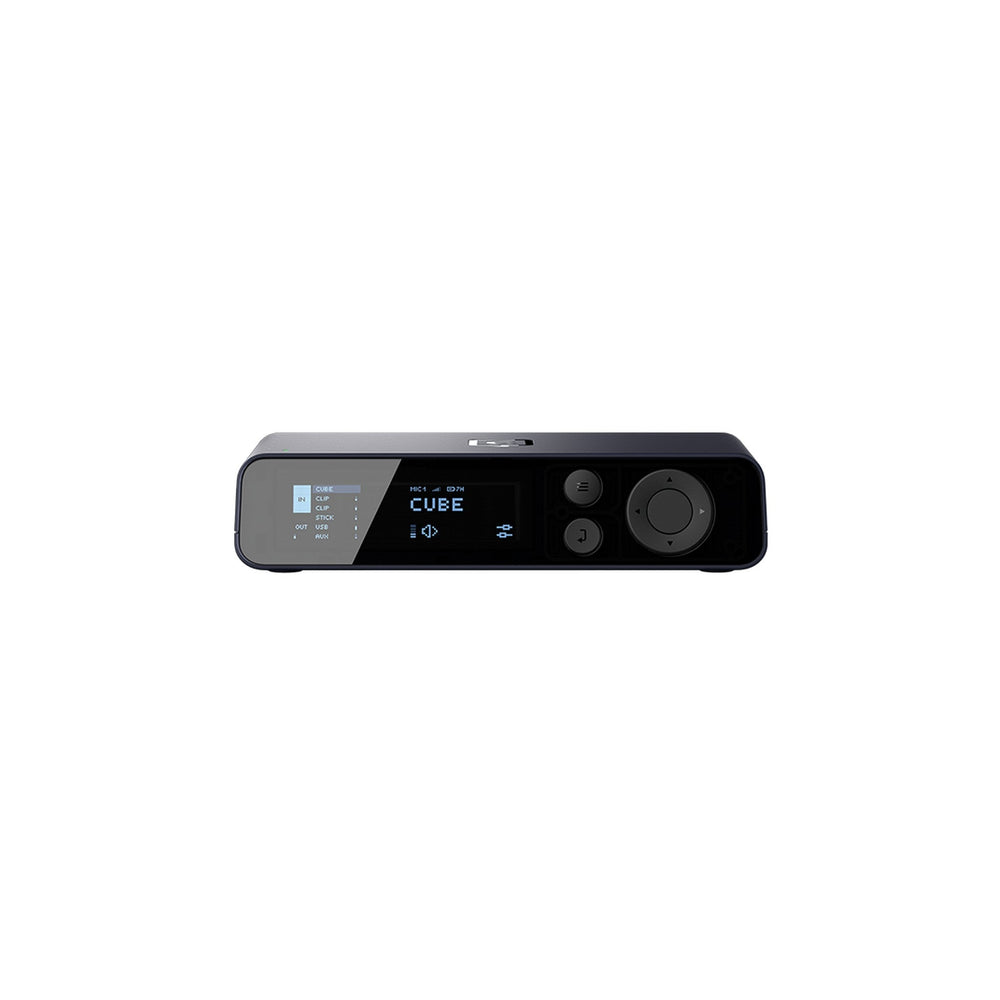

Catchbox Plus Hub DSP Receiver with 4 Channels and Dante Option

The Catchbox Plus Hub DSP Receiver is a cutting-edge audio management solution engineered to deliver remarkable sound quality and adaptable integration across diverse professional audio settings. It comes in two exceptional models, catering to both straightforward and advanced audio setups with unparalleled performance and clarity. Whether you opt for the standard 4-channel model or the enhanced variant with Networking and Dante support, the Catchbox Plus Hub DSP Receiver offers impeccable audio capture and processing tailored specifically for your requirements.

The 4-channel configuration of the Catchbox Plus Hub DSP Receiver is designed for environments where simplicity and high-quality audio processing are essential. With effective signal management and distribution capabilities, this model serves as an ideal solution for smaller venues or meetings. It ensures that every voice is crystal clear, devoid of any complexity often associated with networking requirements. This makes it perfect for those seeking straightforward yet reliable audio solutions.

In contrast, the model with Networking and Dante offers advanced features for more complex audio environments. Boasting Networking and Dante integration, this version accommodates larger setups and enables flexible audio routing. It ensures seamless integration with other professional audio equipment, making it highly suitable for sophisticated high-end installations and professional applications.

Key Features

• High-quality audio processing for clear and reliable sound.
• Four-channel configuration for versatile audio management.
• Optional Networking and Dante support for enhanced connectivity.
• Seamless integration with Catchbox Plus microphones for improved audio capture.
• Designed for both simple and complex audio environments.

Specifications

• Dimensions: 7.2" x 3.6" x 1.6"
• Weight: 10.58 oz
• Audio Latency: 19 ms
• Audio Encryption: AES256 (available late 2024)
• Radio Frequency Band: DECT / DECT 6.0 (1.8 / 1.9 GHz band)
• Radio Output Power: Up to 63mW, controllable from Hub
• Max Number of Transmitters in One Space: Unsynchronised EU: up to 10, US: up to 6; Synchronised EU: up to 20, US: up to 12
• Wireless Range: 330 ft (Line of Sight)
• Operating Temperature: 32°F to 86°F
• Audio Outputs: Mic (1 - 4) - 3-pin, balanced, Mic level; Mixout - RCA, unbalanced, Line level; Mixout - L&R, 3-pin, balanced, Mic level; Mixout - USB-C, digital output
• Audio Inputs: USB-C - digital input; Aux-in - 3.5mm - unbalanced, Line level
• Dante Audio Networking: Audio in & out (4x4) (Dante enabled model)
• Remote Control & Monitoring: API | Q-sys, Utelogy | Catchbox Control Software
• Radio Sync: Local 2.5mm
• Antenna Type: Built-in antennas
• Stealth Mode: Yes
• Kensington Lock: Yes
• Power: 5V, 1A USB-C or PoE

Package Contents

• Catchbox Plus Hub DSP Receiver
• Power Supply
• User Manual
• Antenna
• Catchbox Control Software
