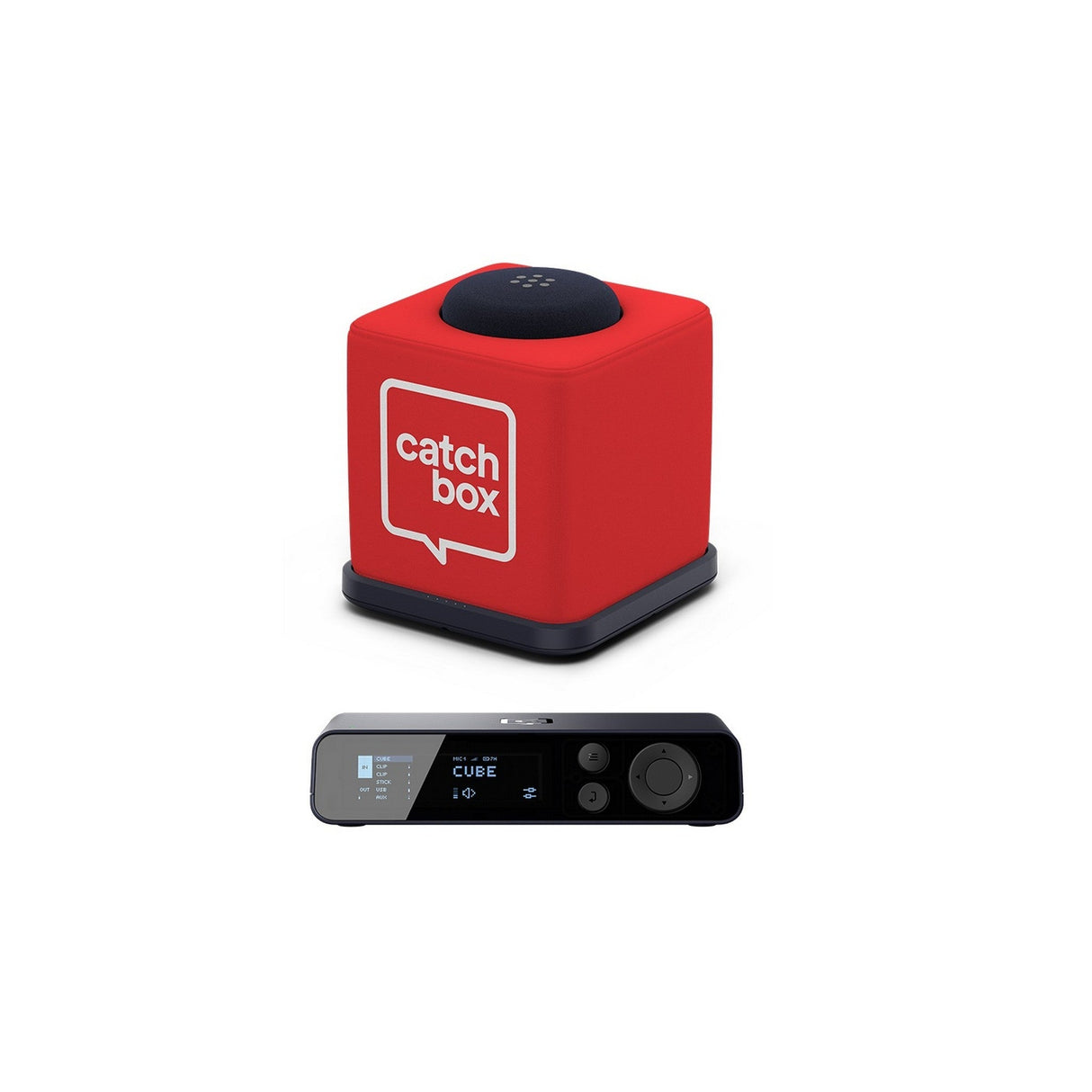

Catchbox Plus Wireless Microphone System with 2-Channel Plus Hub DSP Receiver - 1x Cube + Charger / Red / Standard

Catchbox Plus Wireless Microphone System with 2-Channel Plus Hub DSP Receiver

The Catchbox Plus Wireless Microphone System is an integral tool designed for enhancing the experience of interactive presentations and dynamic events. This system complements a variety of setups, from educational environments to corporate gatherings, making it an ideal choice for small to medium-sized venues. The 2-Channel configuration promotes efficient audio management, enabling clear and effective communication.

One of the standout features of the Catchbox Plus system is its wide range of versatile microphones, including the Cube Throwable Mic, Clip Wearable Mic, and Stick Handheld Mic. Each microphone serves a unique purpose, allowing users to select the most suitable option for their specific event needs. Additionally, the Cube, Clip, and Stick Mics can be customized for an extra charge, offering event organizers the flexibility to match their equipment with their brand's color scheme or theme. By leveraging these customizable features, the system becomes a seamless part of any event's aesthetic.

Equipped with the Catchbox Plus Hub DSP Receiver, this 2-Channel system ensures superior wireless connectivity and high audio quality. This receiver supports up to 10 transmitters in the EU and 6 transmitters in the US, with an extensive wireless range of up to 330 feet. The design and technology incorporated in this system aim to deliver unparalleled performance, making it an invaluable asset to any event professional seeking to elevate audience engagement and interaction.

Key Features

• Available in a 2-Channel configuration for versatile audio management
• Customizable Cube, Clip, and Stick Mics with various color options for an additional charge per item; default color is red
• Includes multiple microphone options: Cube Throwing Mic, Clip Wearable Mic, and Stick Handheld Mic
• Designed for interactive and dynamic presentations
• High audio quality for clear and effective communication
• Easy setup with the Catchbox Plus Hub DSP Receiver for reliable wireless connectivity

Specifications

• Catchbox Plus Hub DSP Receiver (2-Channel)
• Dimensions: 8.7 inches x 3.5 inches x 1.8 inches
• Weight: 1.1 lbs
• Channels: 2
• Audio Latency: 19 ms
• Audio Encryption: AES256 (available late 2024)
• Radio Output Power: Up to 63mW, controllable from Hub
• Max Number of Transmitters in One Space: EU: up to 10, US: up to 6
• Wireless Range: 330 ft (Line of Sight)
• Operating Temperature Range: 32°F to 86°F
• Radio Frequency Band: DECT / DECT 6.0 (1.8 / 1.9 GHz band)

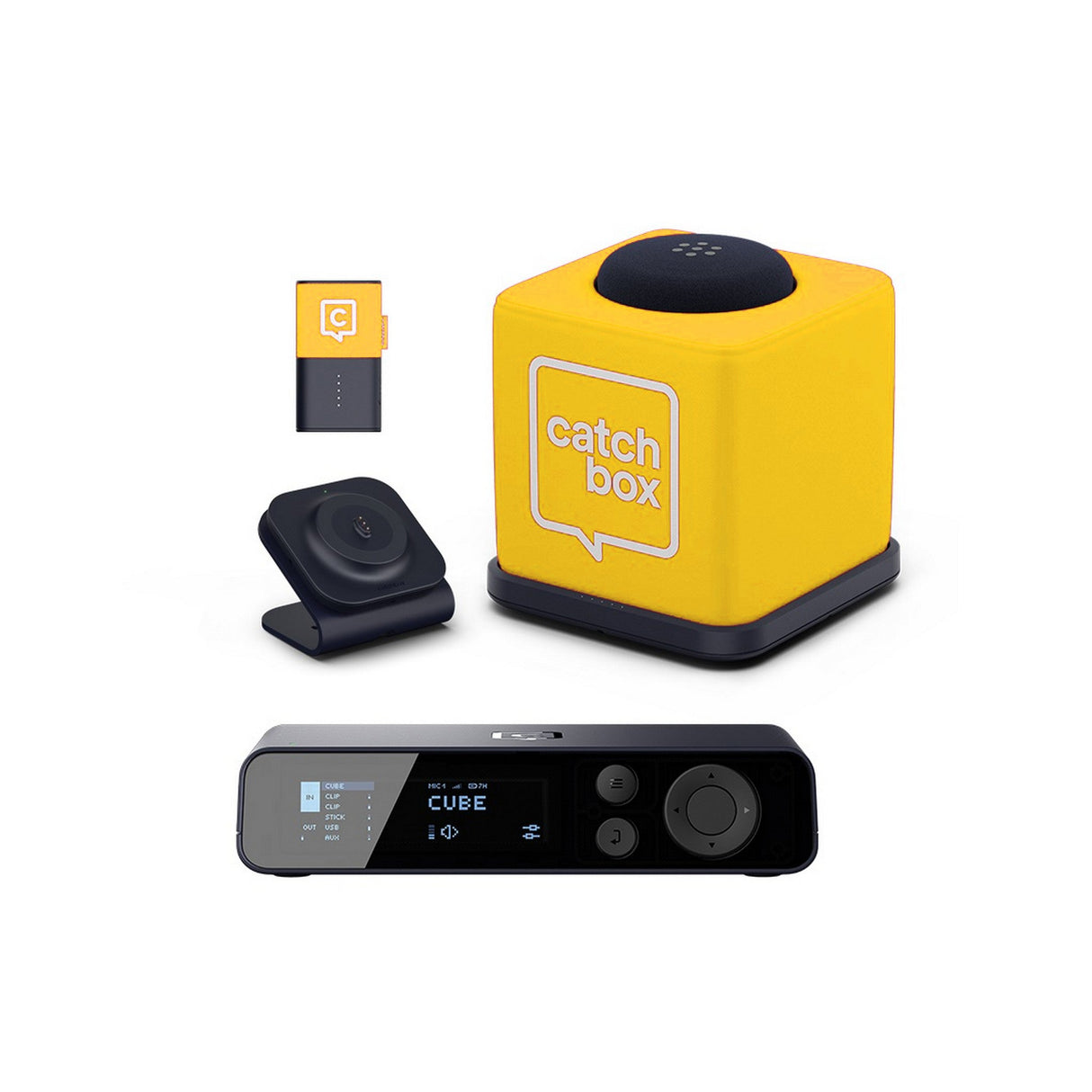

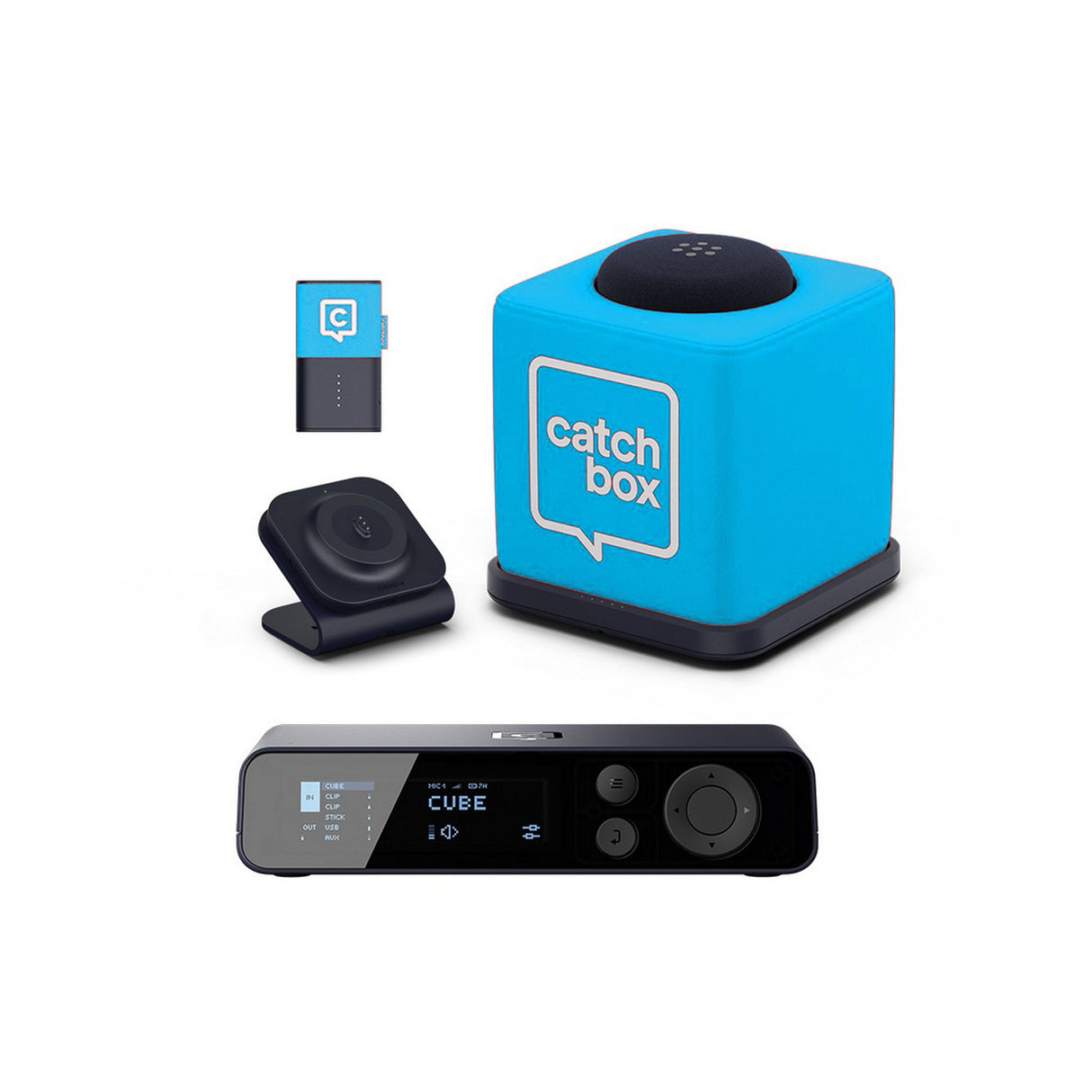

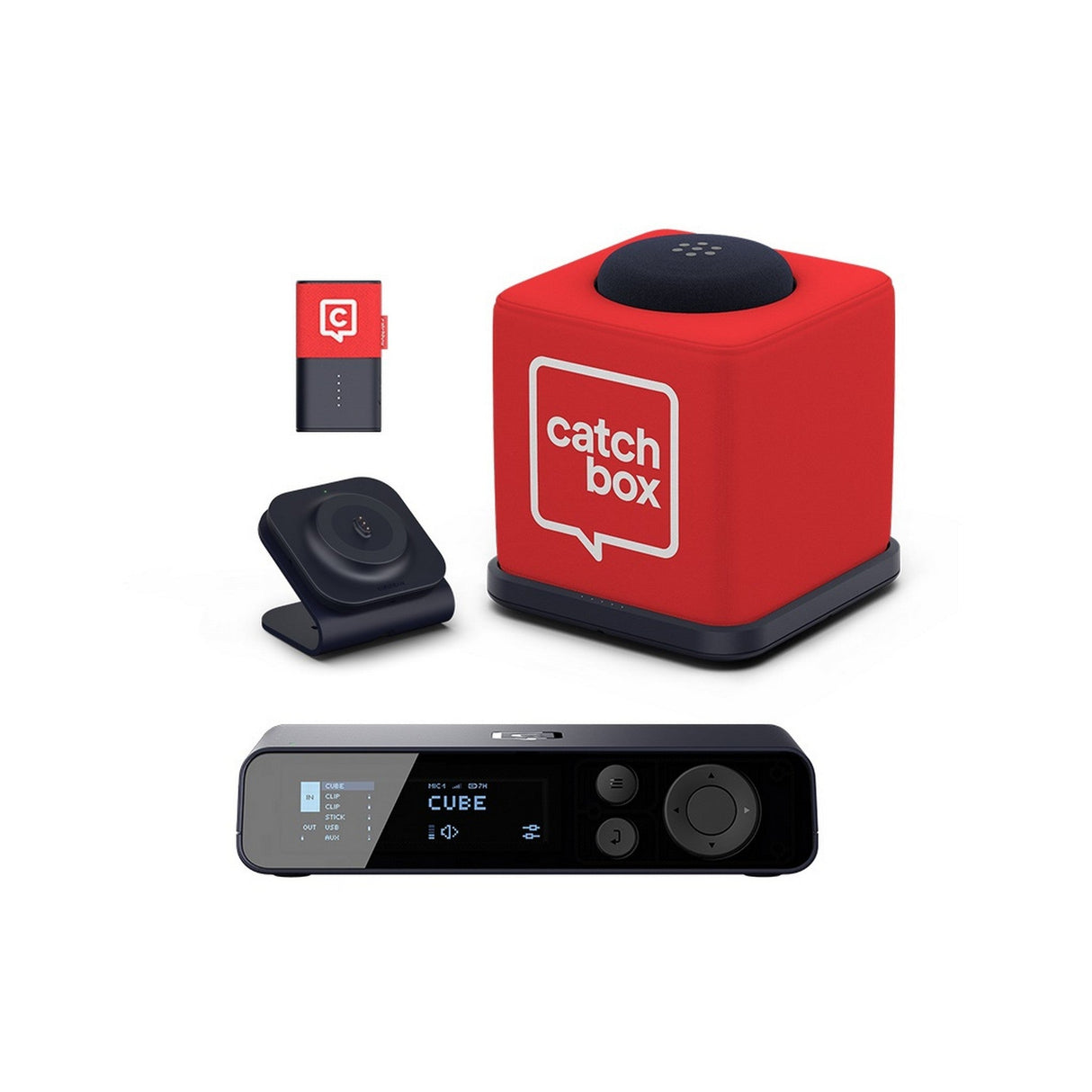

• Catchbox Plus Cube Throwable Mic
• Dimensions: 7.9 inches x 7.9 inches x 7.9 inches
• Weight: 1.4 lbs
• Microphone Element, Pick-up Pattern: Electret condenser, Focused omni-directional
• Audio Frequency Response: 50 to 20000 Hz
• Sensitivity: 138.9 mV/Pa
• Self-noise: 22.3 dBA
• Max SPL: ≥ 122 dBSPL
• Built-in Automute Technology: Yes
• Battery Type: Serviceable, Li-ion, rechargeable
• Battery Life: Typical 22h
• Home Station - Charging Base Battery Charge Time: Charging Base: 8h, USB-C: 4h
• Weight: 13.05 oz
• Dimensions: 7 inches x 7 inches x 7 inches

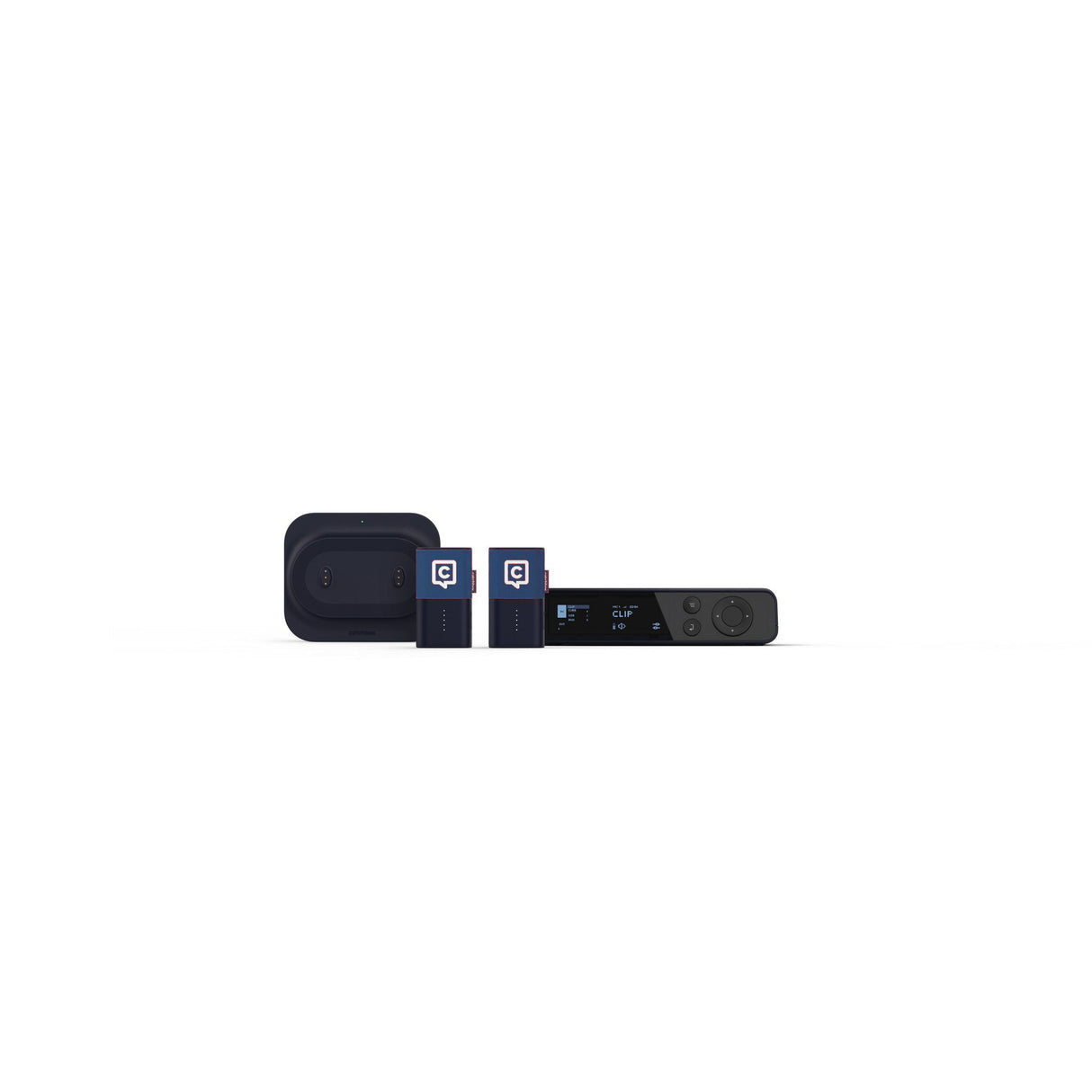

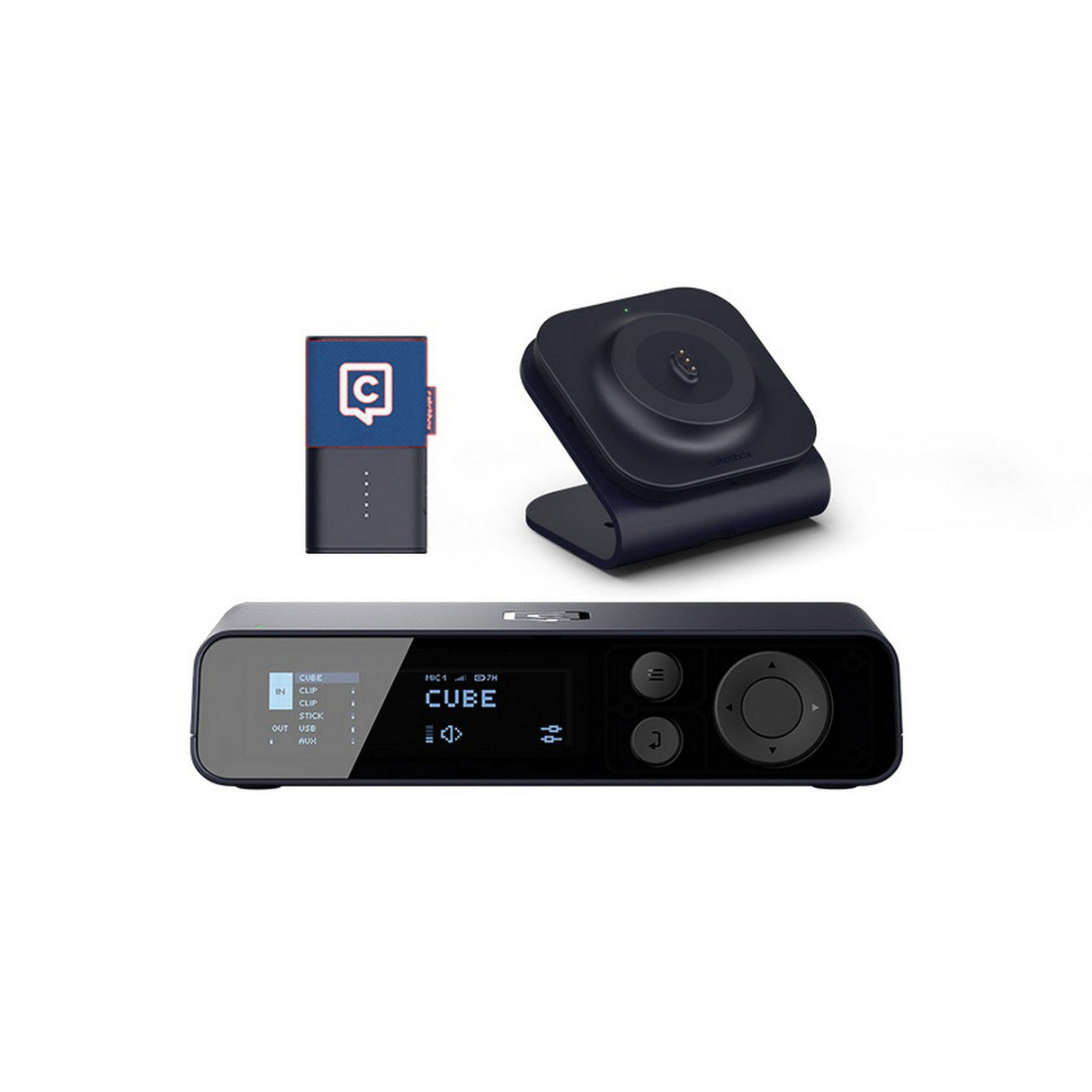

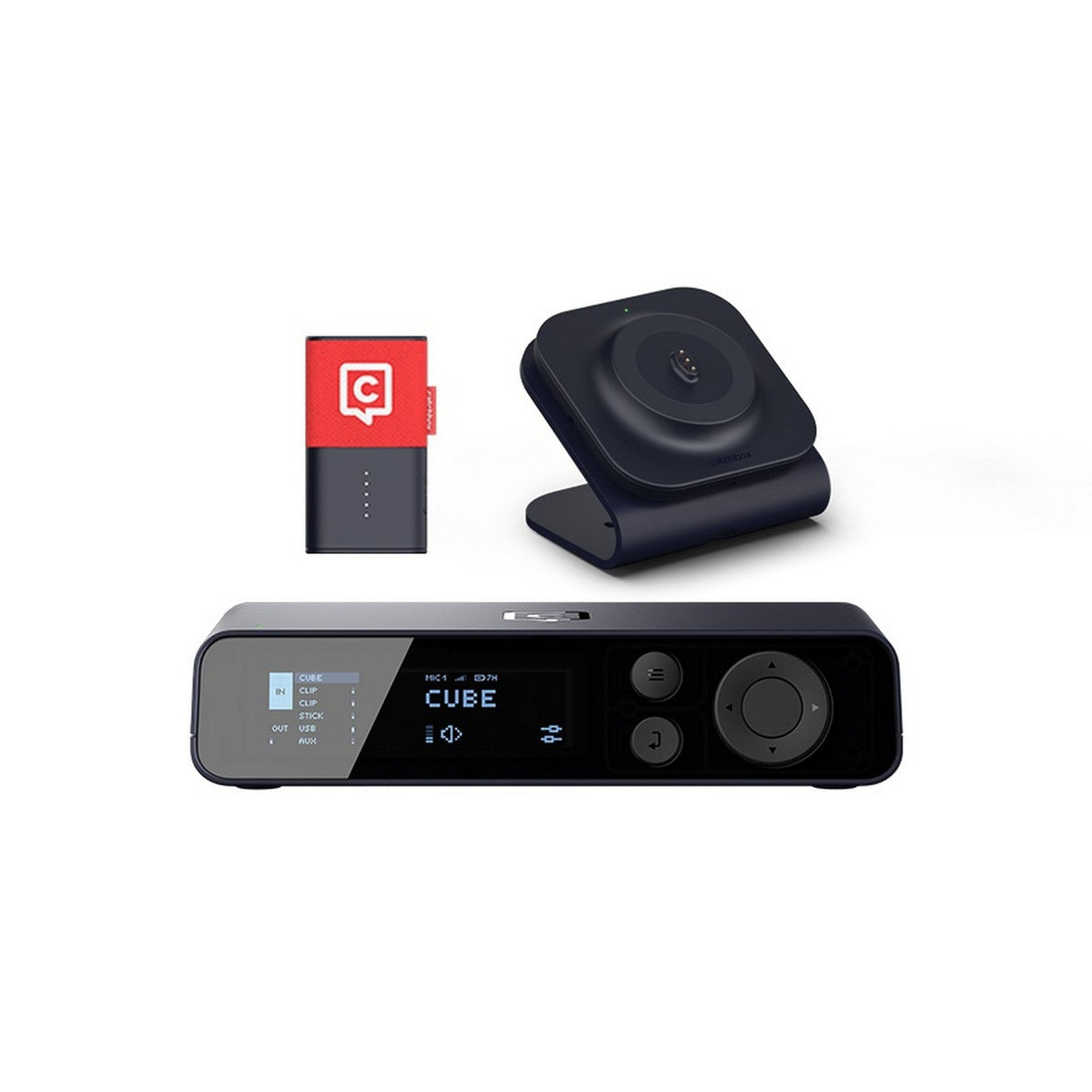

• Catchbox Plus Clip Wearable Mic
• Dimensions: 1.57 inches x 2.83 inches x 1.10 inches
• Weight: 2.01 oz
• Audio Frequency Response: 50 to 20000 Hz
• Microphone Element, Pick-up Pattern: Electret condenser, Focused omni-directional
• Sensitivity: 62.8 mV/Pa
• Self-noise: 18.5 dBA
• Max SPL: ≥ 125 dBSPL
• Quick-mute Function: Yes
• Battery Type: Serviceable, Li-ion, rechargeable
• Battery Life: Typical 8h
• Home Station - Charging Base Battery Charge Time: Catchbox dock: 2h, USB-C: 2h
• Attachment Types: Lever (clip on clothing), Lanyard (wear around the neck)

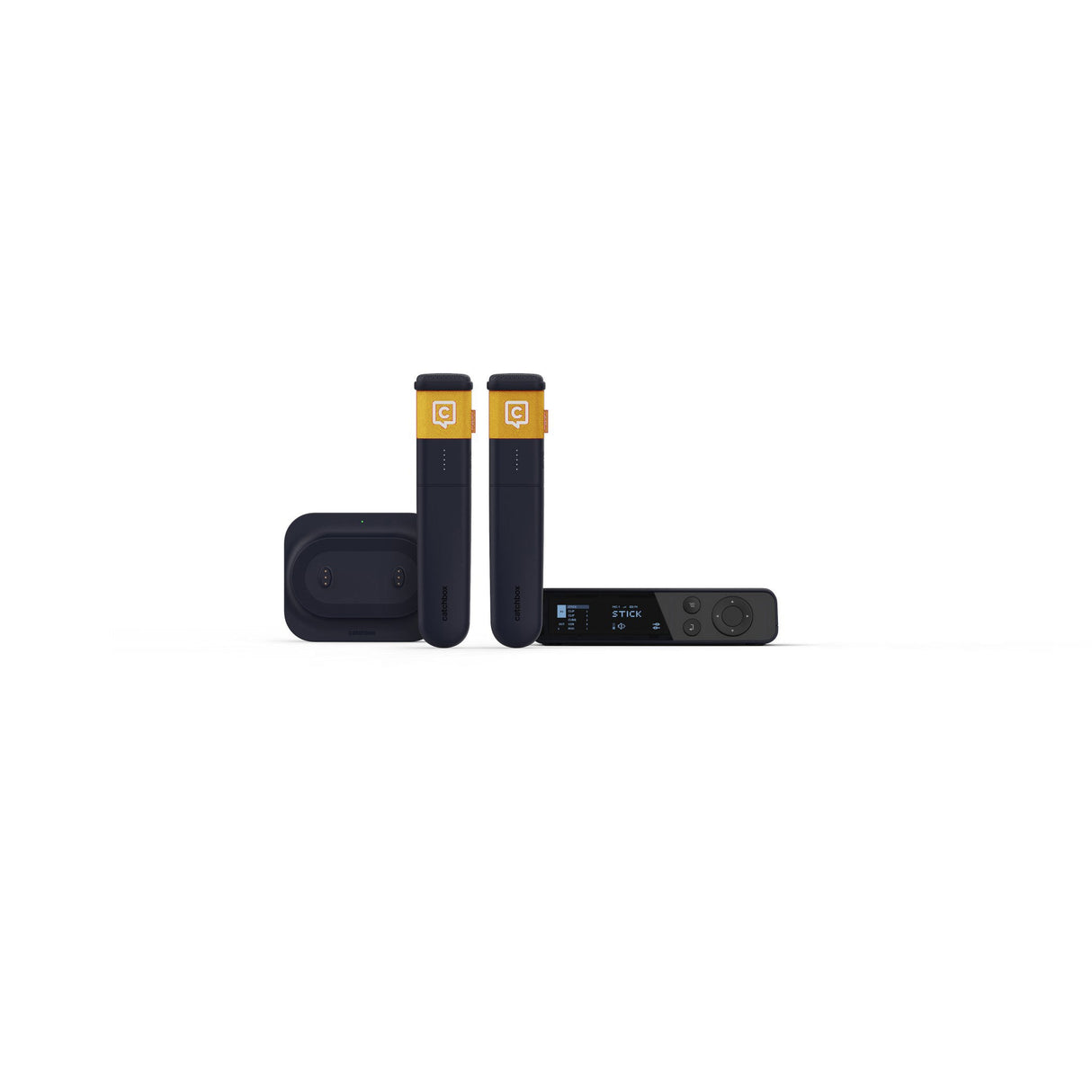

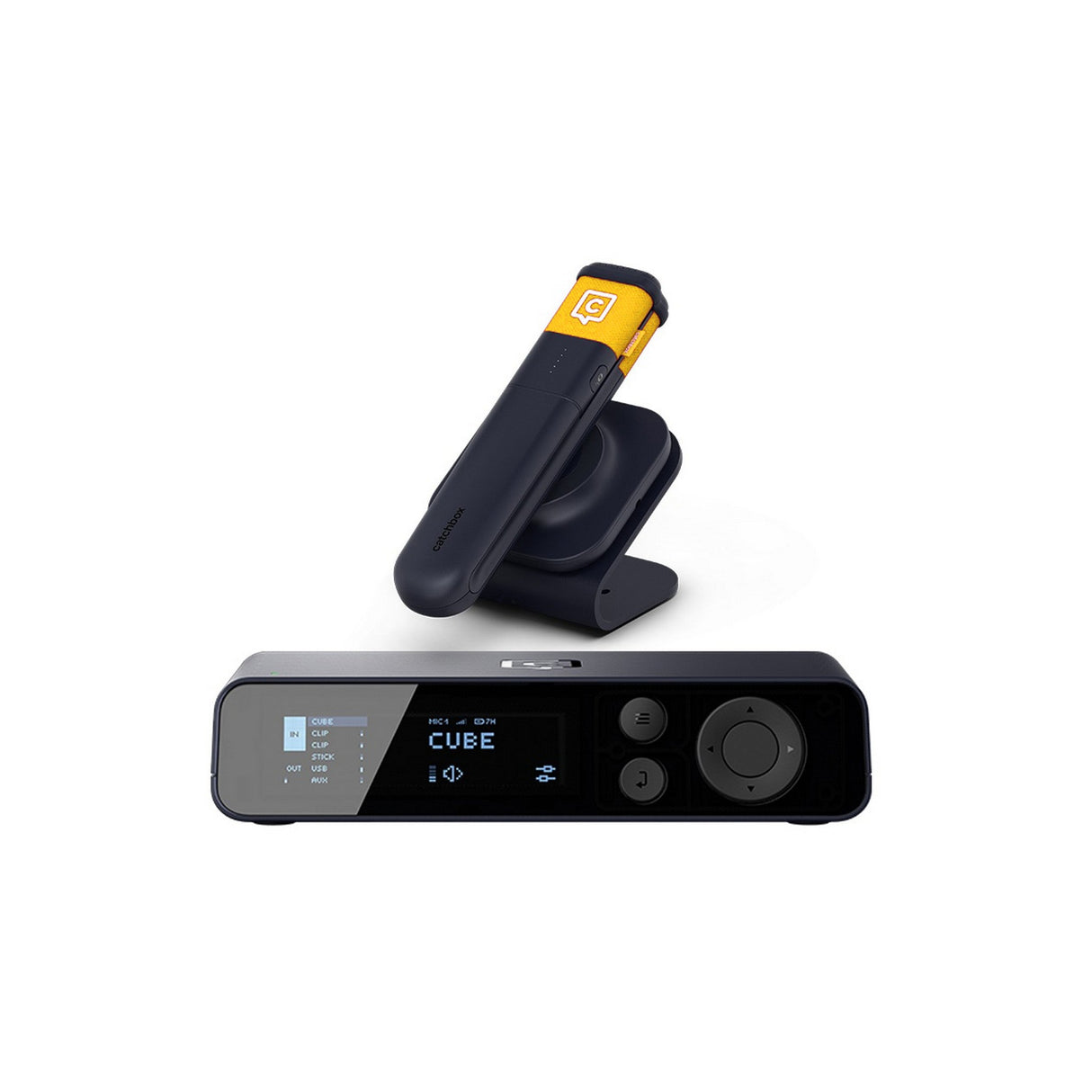

• Catchbox Plus Stick Handheld Mic
• Dimensions: 1.60 inches x 8 inches x 1.10 inches
• Weight: 8.18 oz
• Audio Frequency Response: 50 to 20000 Hz
• Microphone Element, Pick-up Pattern: Electret condenser, Focused omni-directional
• Sensitivity: 54.0 mV/Pa
• Self-noise: 23.5 dBA
• Max SPL: ≥ 130 dBSPL
• Quick-mute Function: Yes
• Battery Type: Serviceable, Li-ion, rechargeable
• Battery Life: Typical 8h
• Battery Charge Time: Catchbox dock: 2h, USB-C: 2h
• Attachment Types: None

• Charging Base for Cube
• Charging Protocol: Catchbox proprietary
• Compatible with Cube
• Power Supply: 5V 1A USB-C
• Weight: 13.6 oz
• Dimensions: 7.44 inches x 7.44 inches x 1.18 inches

• Charging Docks for Clip and Stick Mics
• Power Supply: 5V 1A USB-C
• Daisy Chain: Up to 6 single docks / charging slots
• Weight (Single): 5.29 oz
• Dimensions (Single): 3.76 inches x 3.76 inches x 0.98 inches
• Weight (Dual): 5.29 oz
• Dimensions (Dual): 4.57 inches x 3.76 inches x 0.98 inches

Package Contents (Dependent on Configuration Chosen)

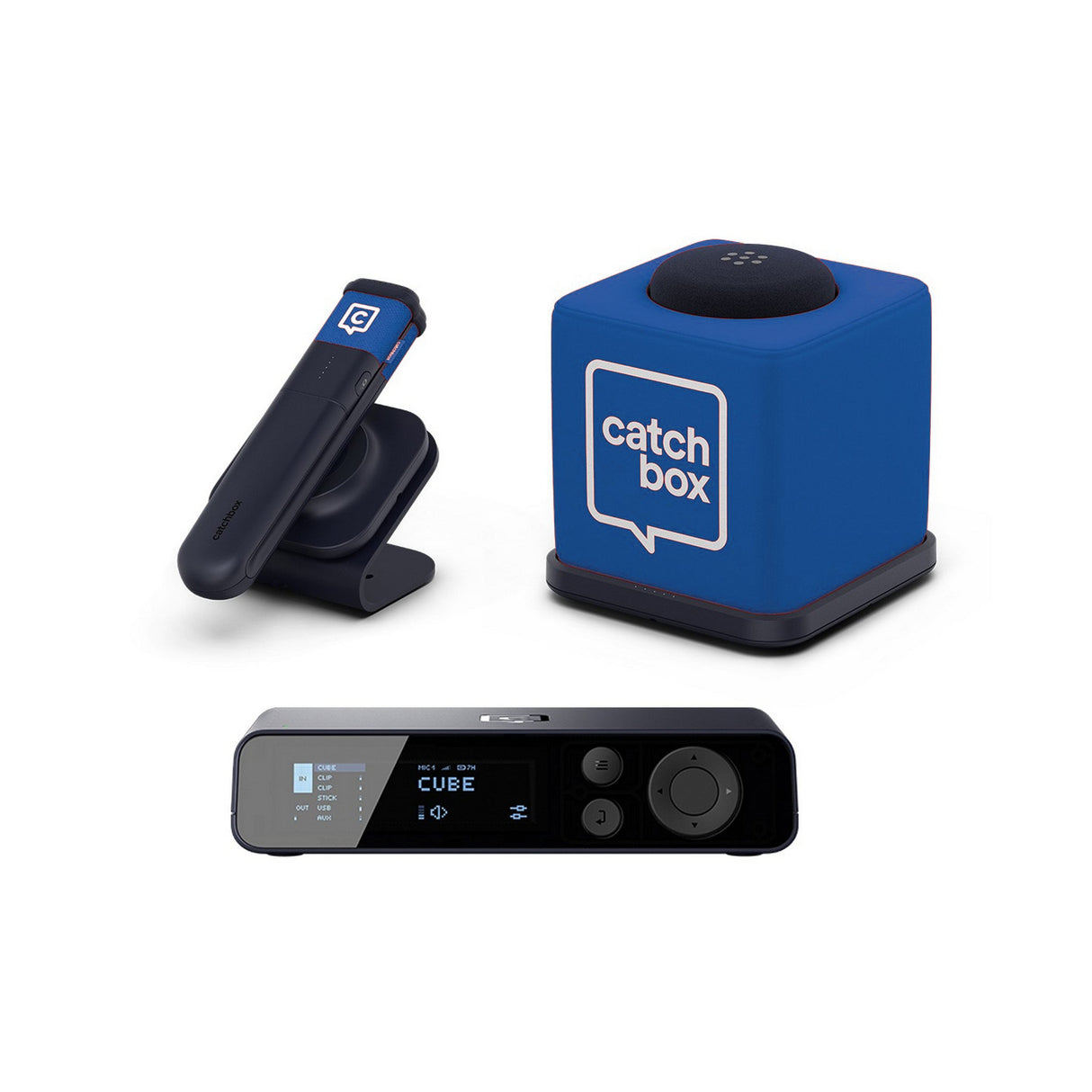

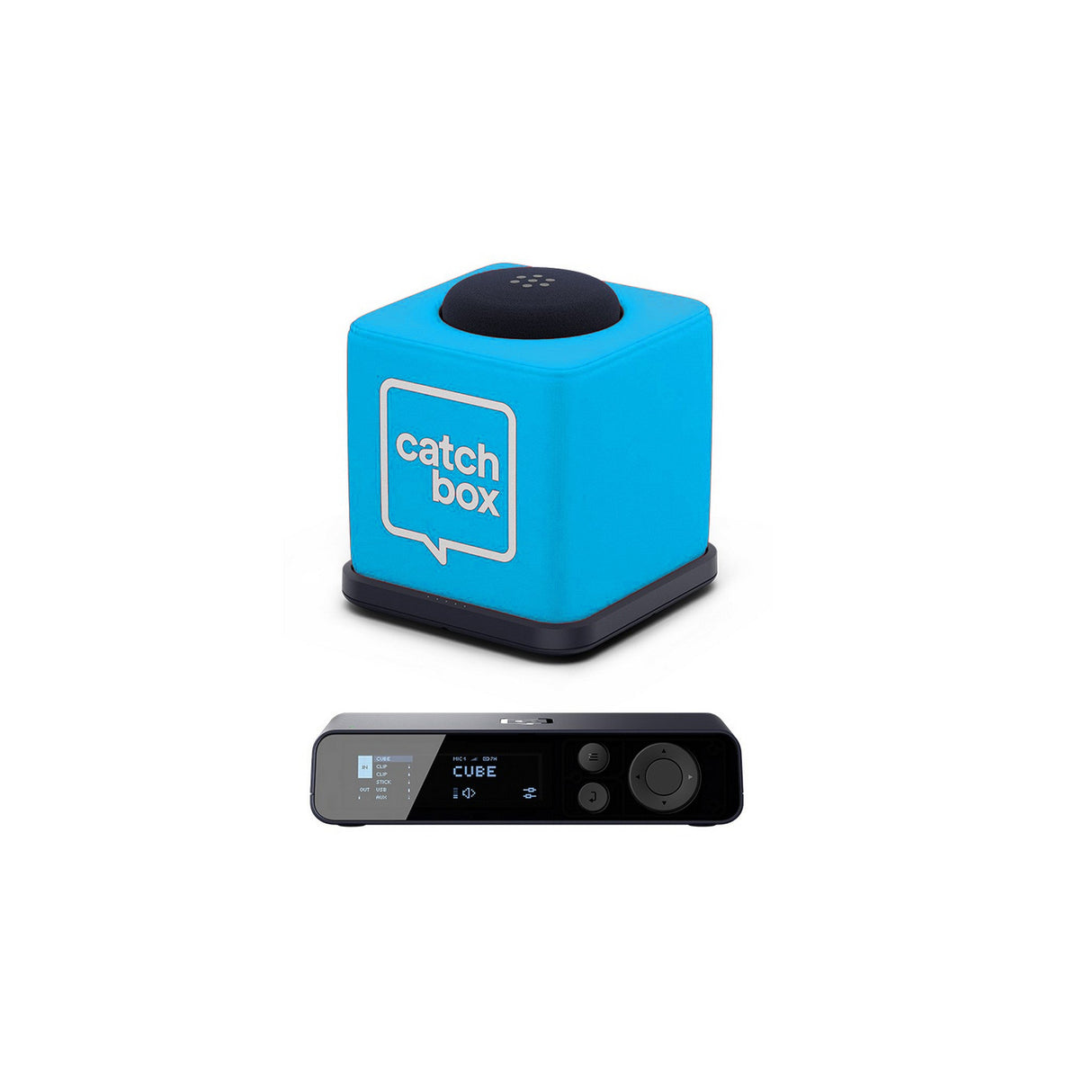

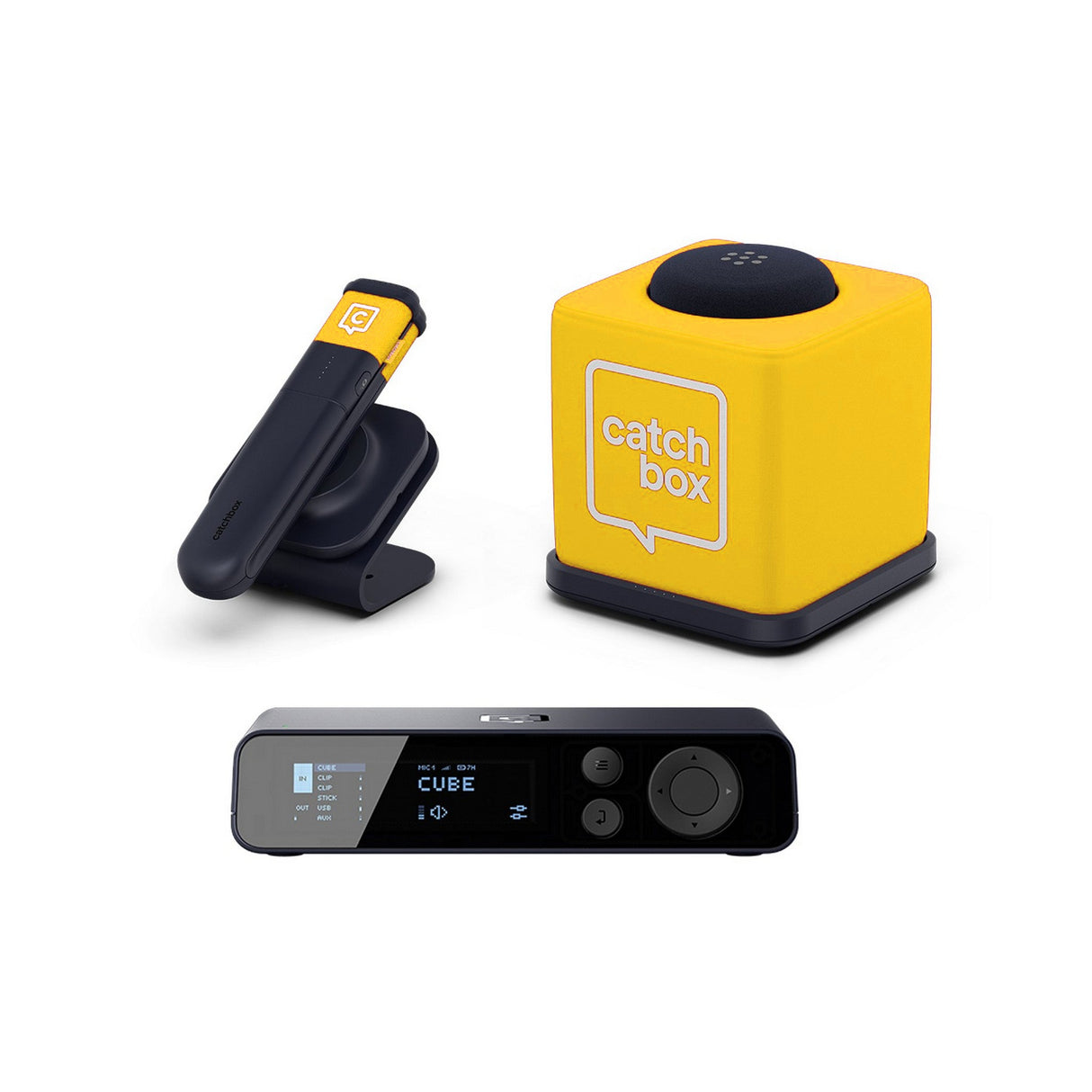

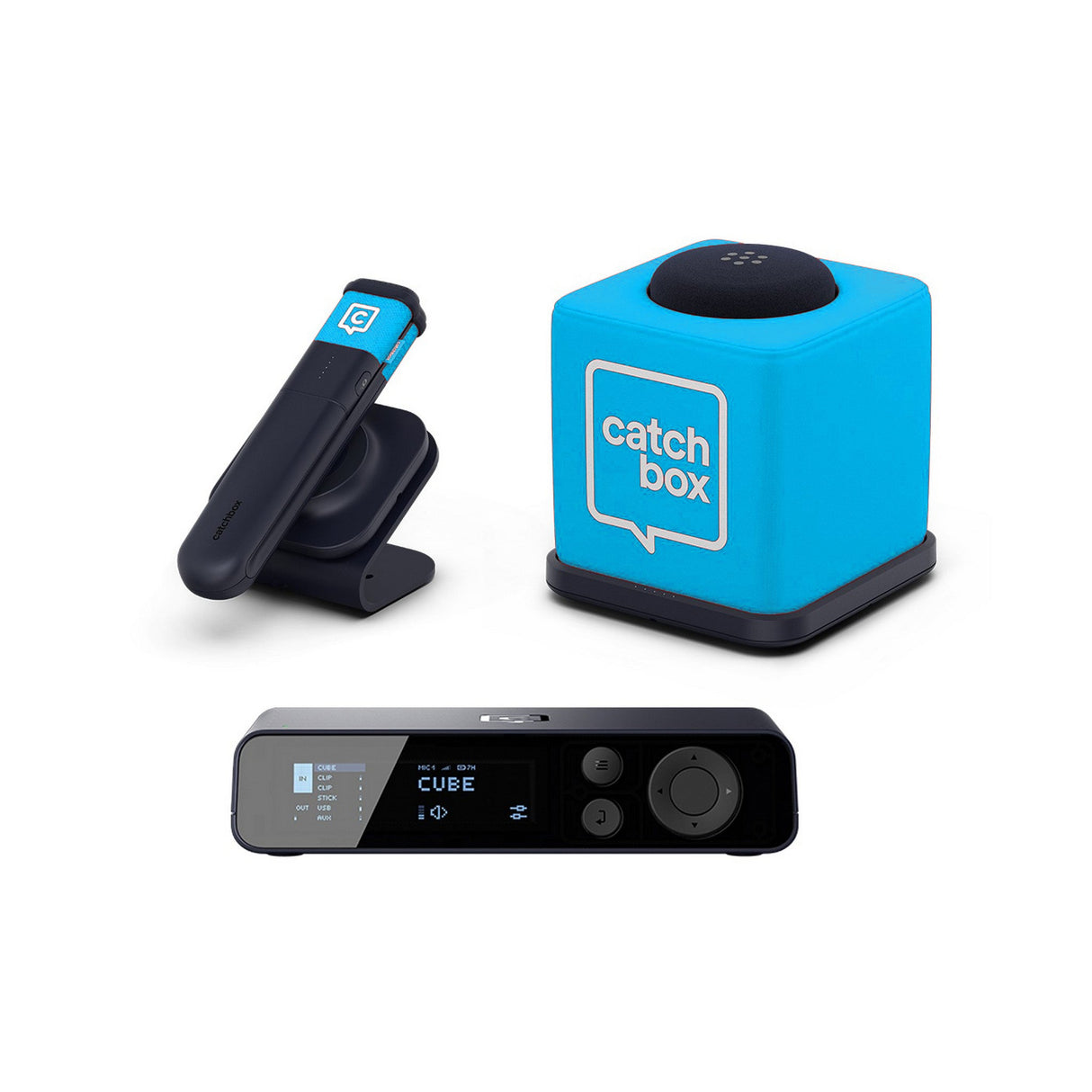

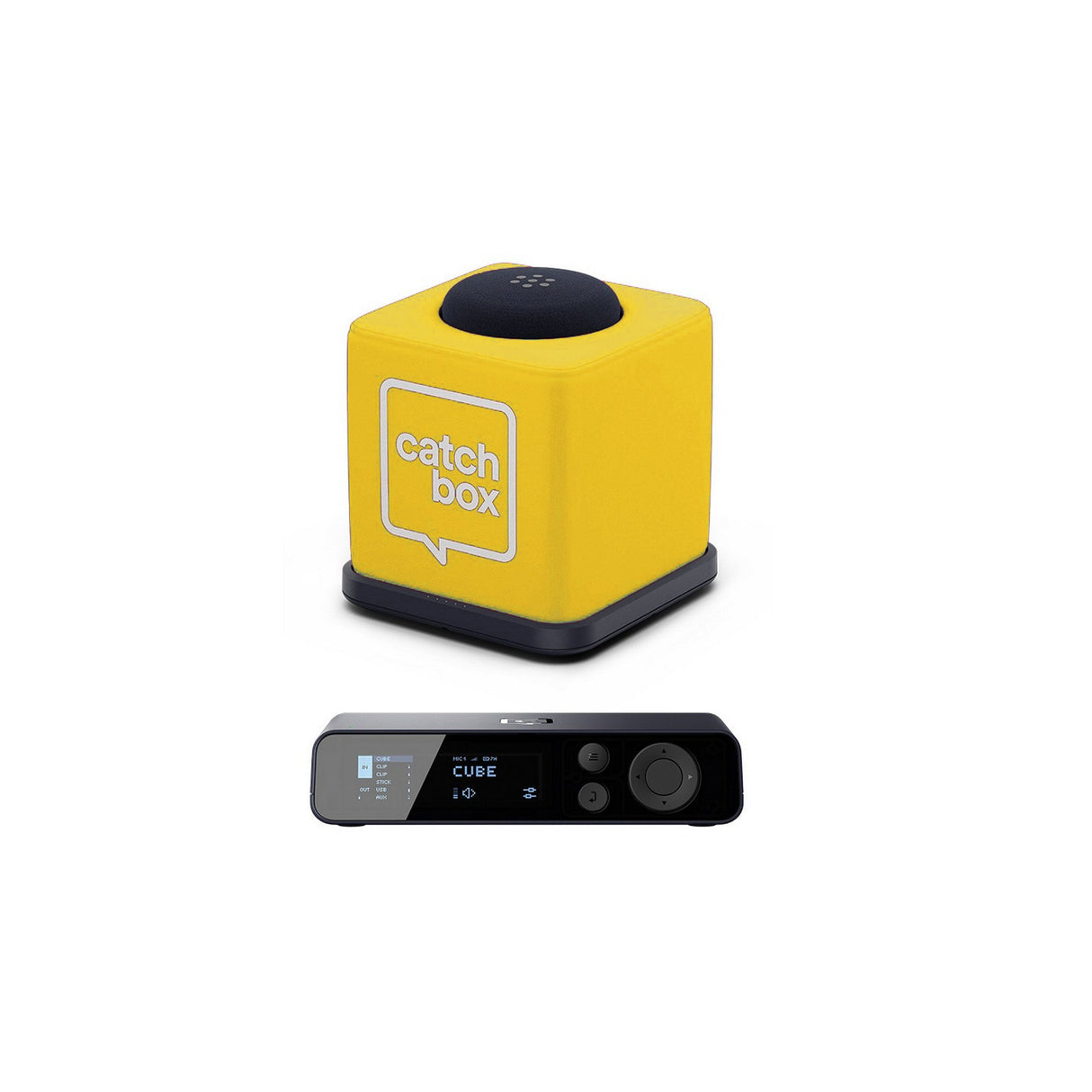

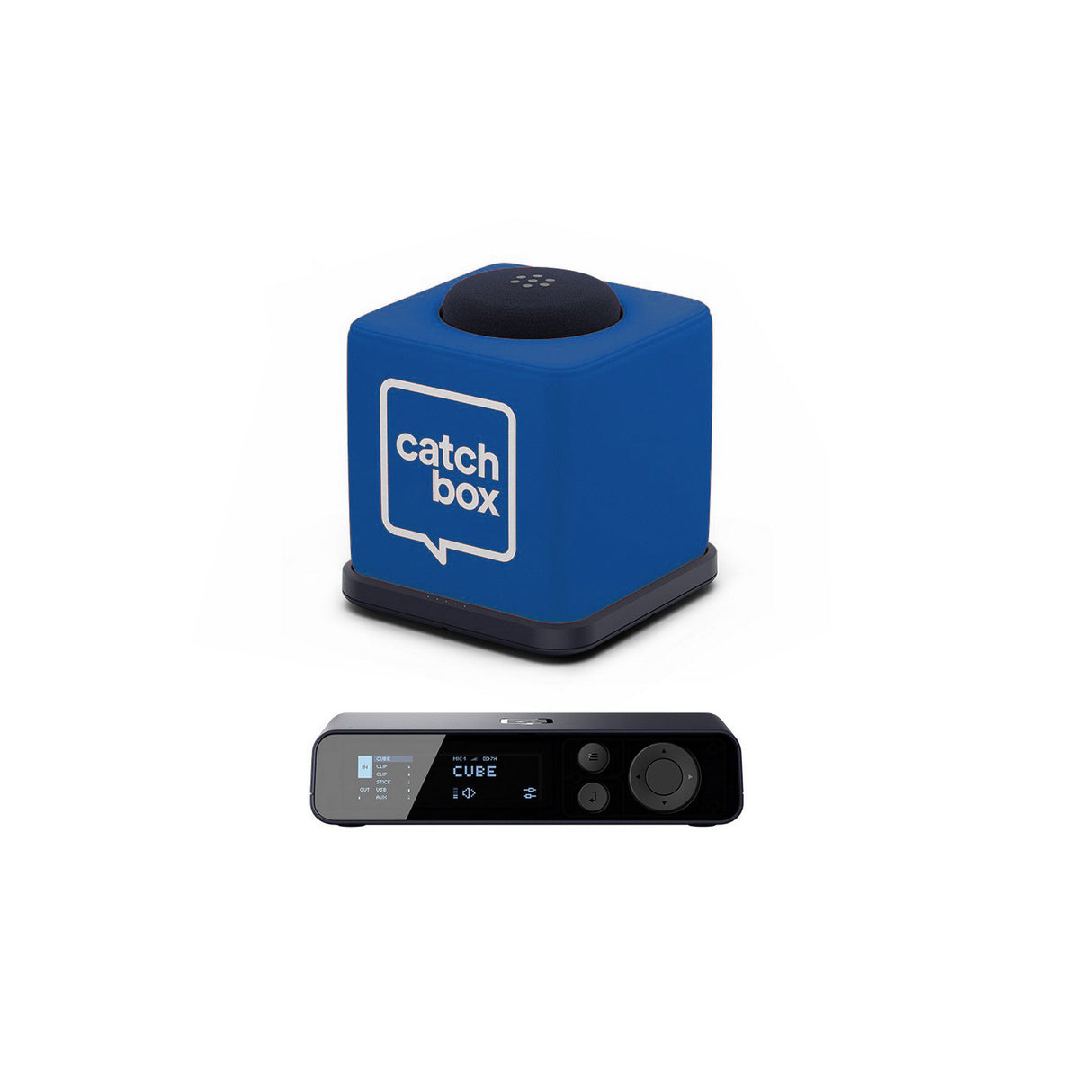

• 1x Cube Throwable Mic (Selected Configuration)

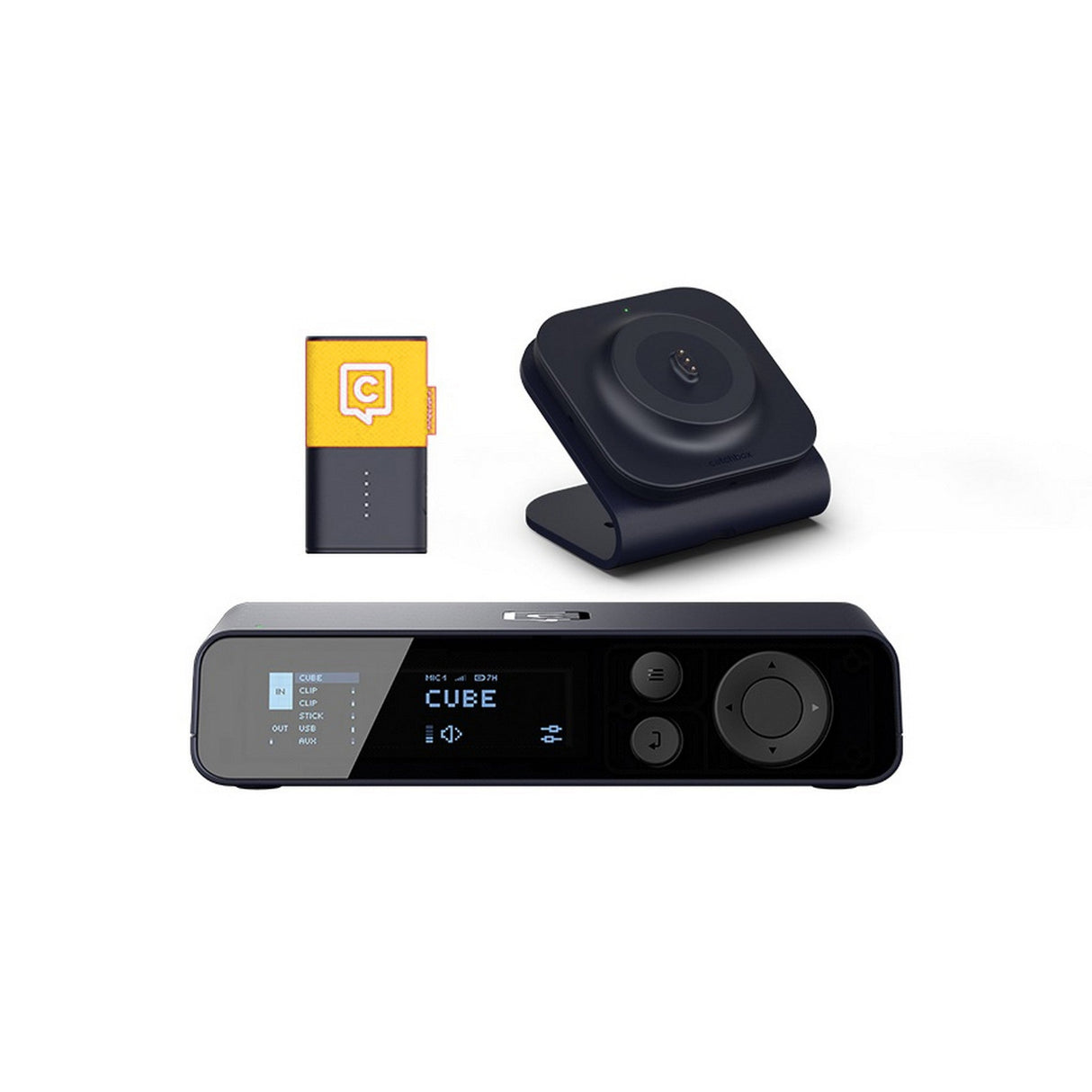

• 1x Clip Wearable Mic (Selected Configuration)
• 1x Stick Handheld Mic (Selected Configuration)
• 1x Charger for Cube (Selected Configuration)
• 1x Single Dock for Clip Mic (Selected Configuration)

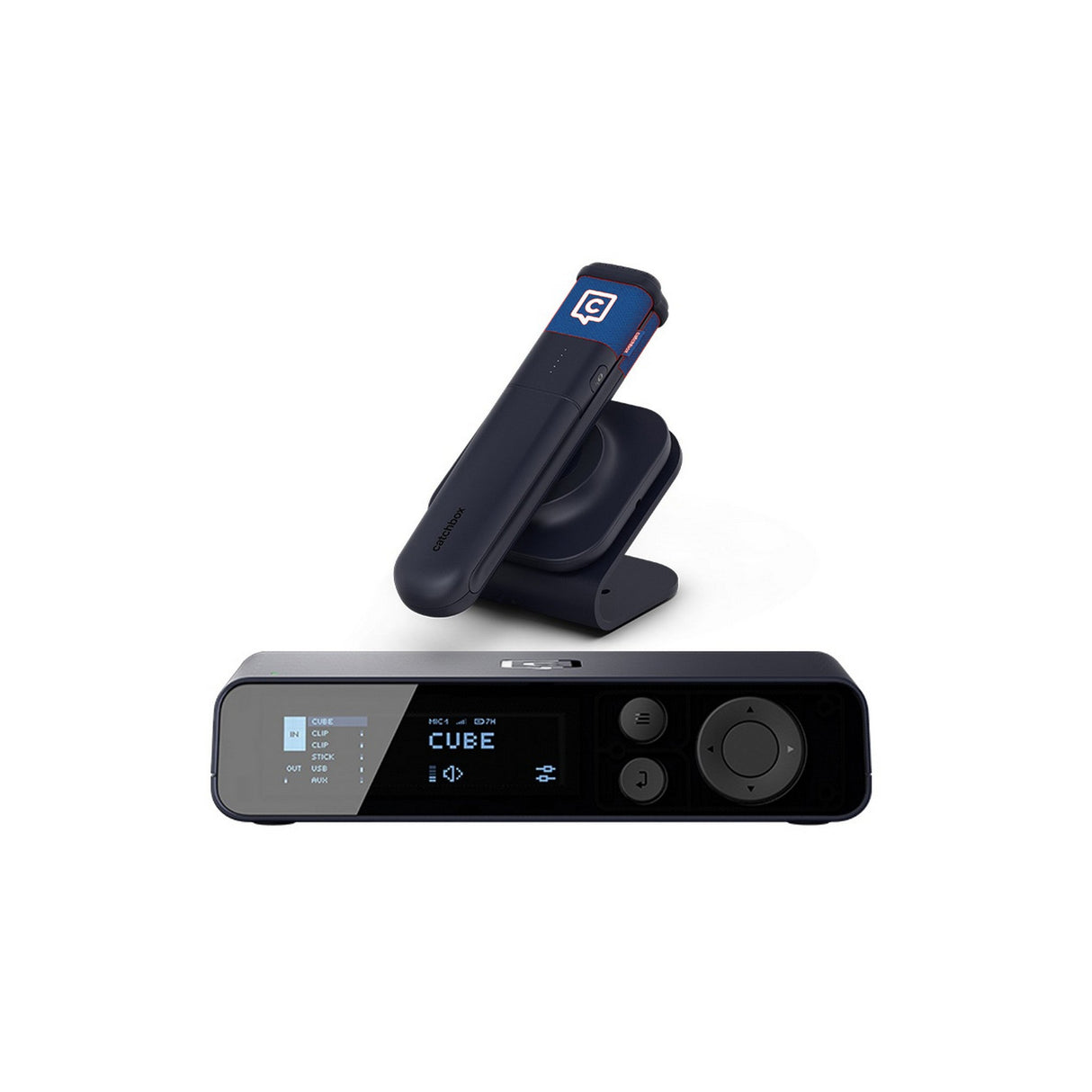

• 1x Single Dock for Stick Mic (Selected Configuration)

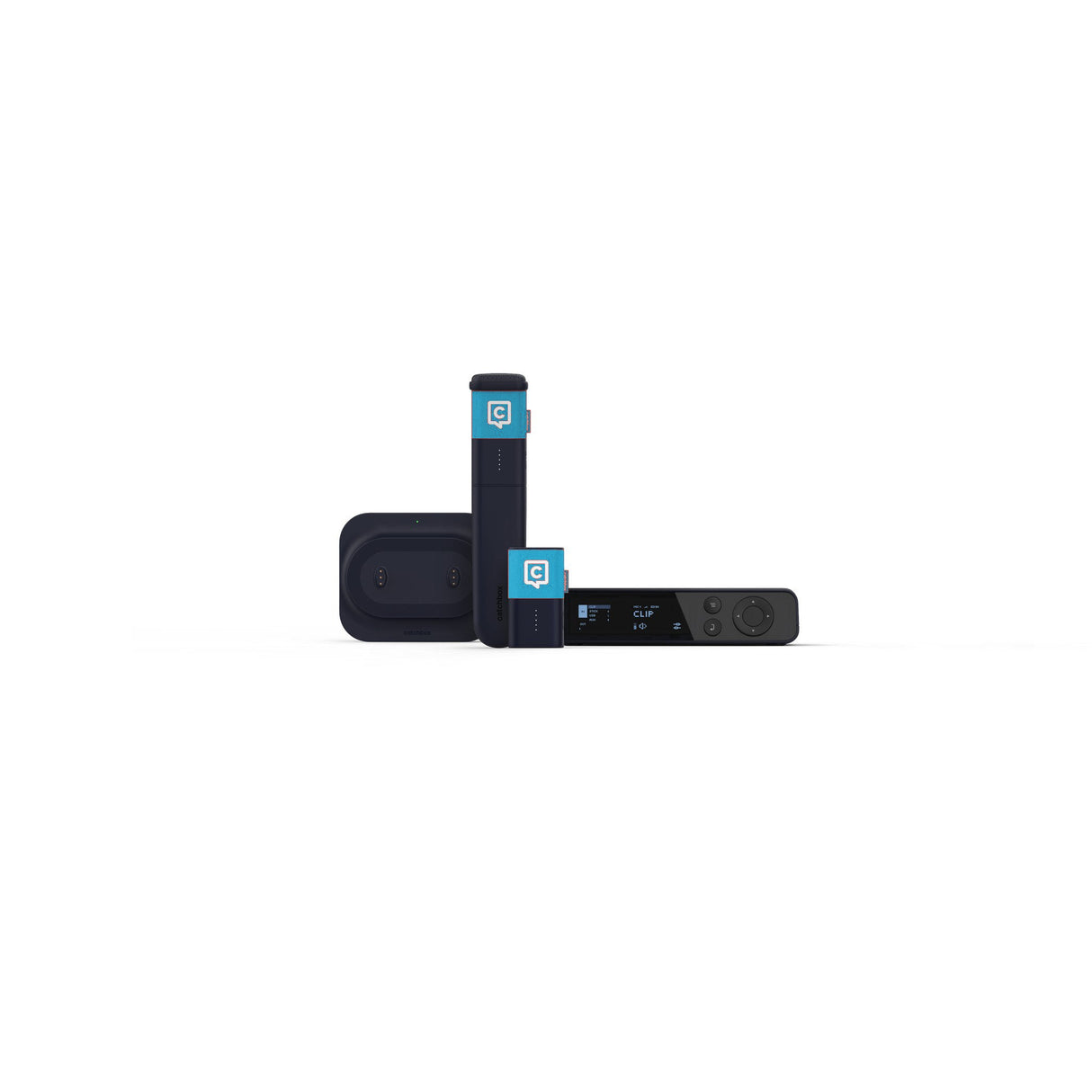

• 1x Duo Dock for Clip and Stick Mic (Selected Configuration)
• 1x Catchbox Plus Hub DSP Receiver (Selected Configuration)

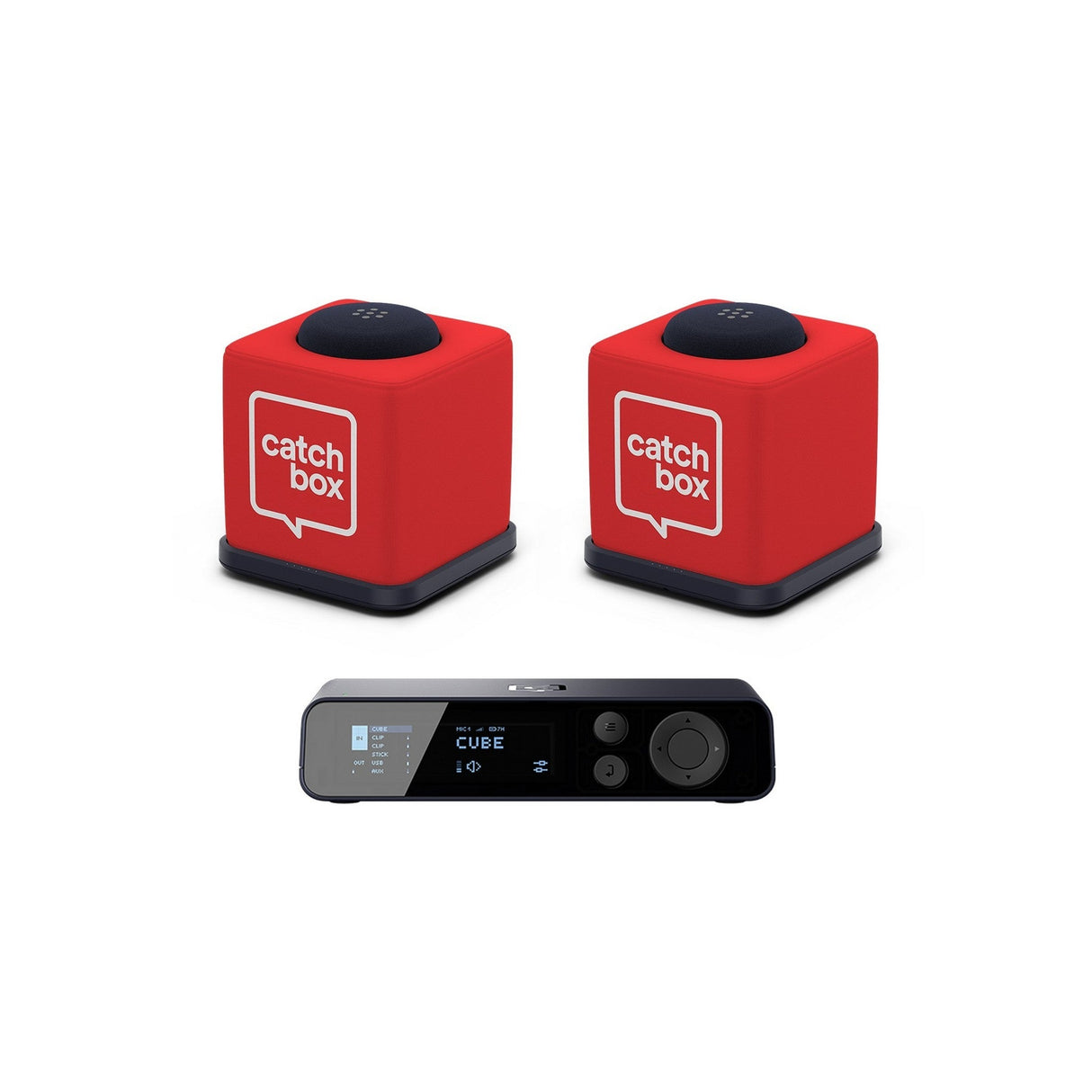

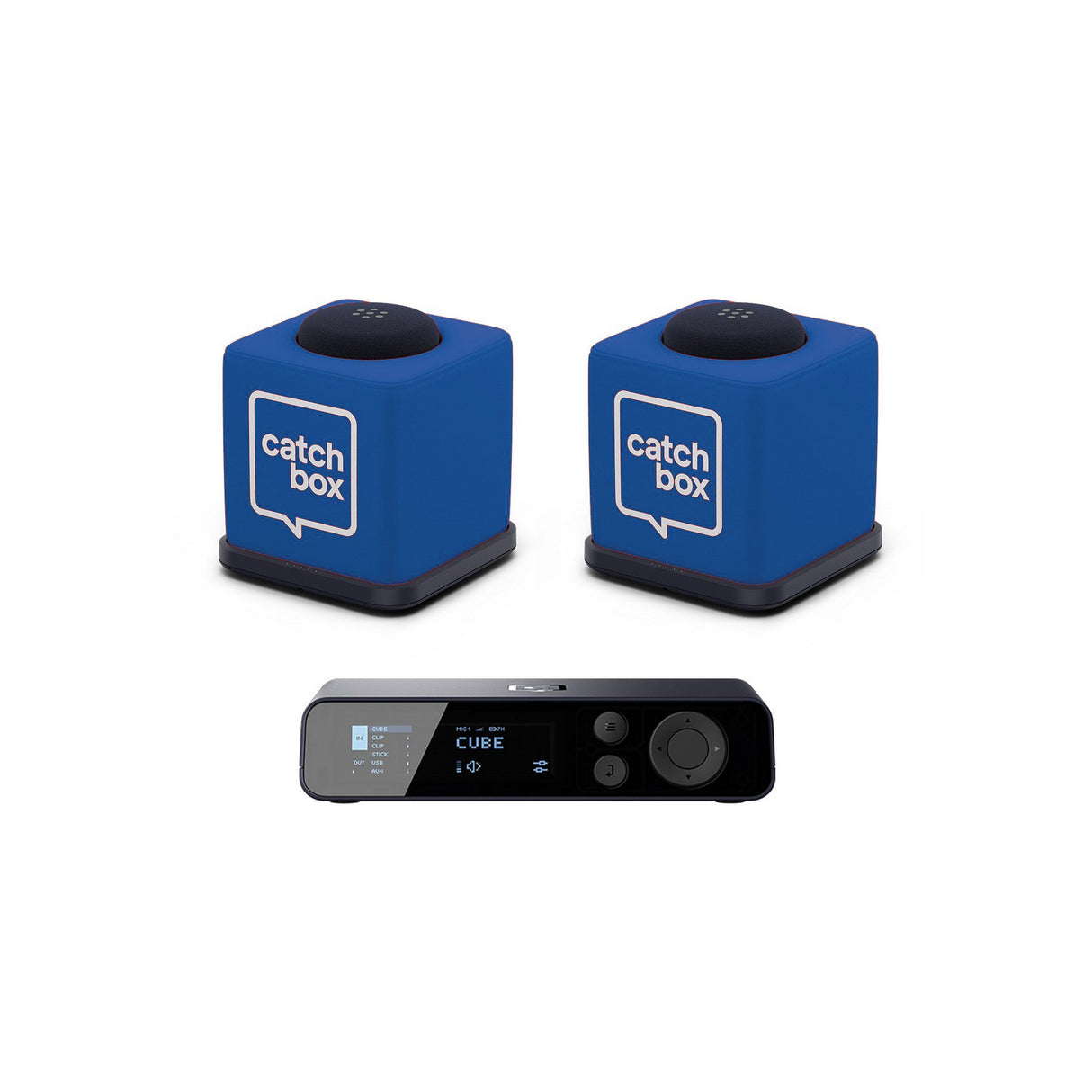

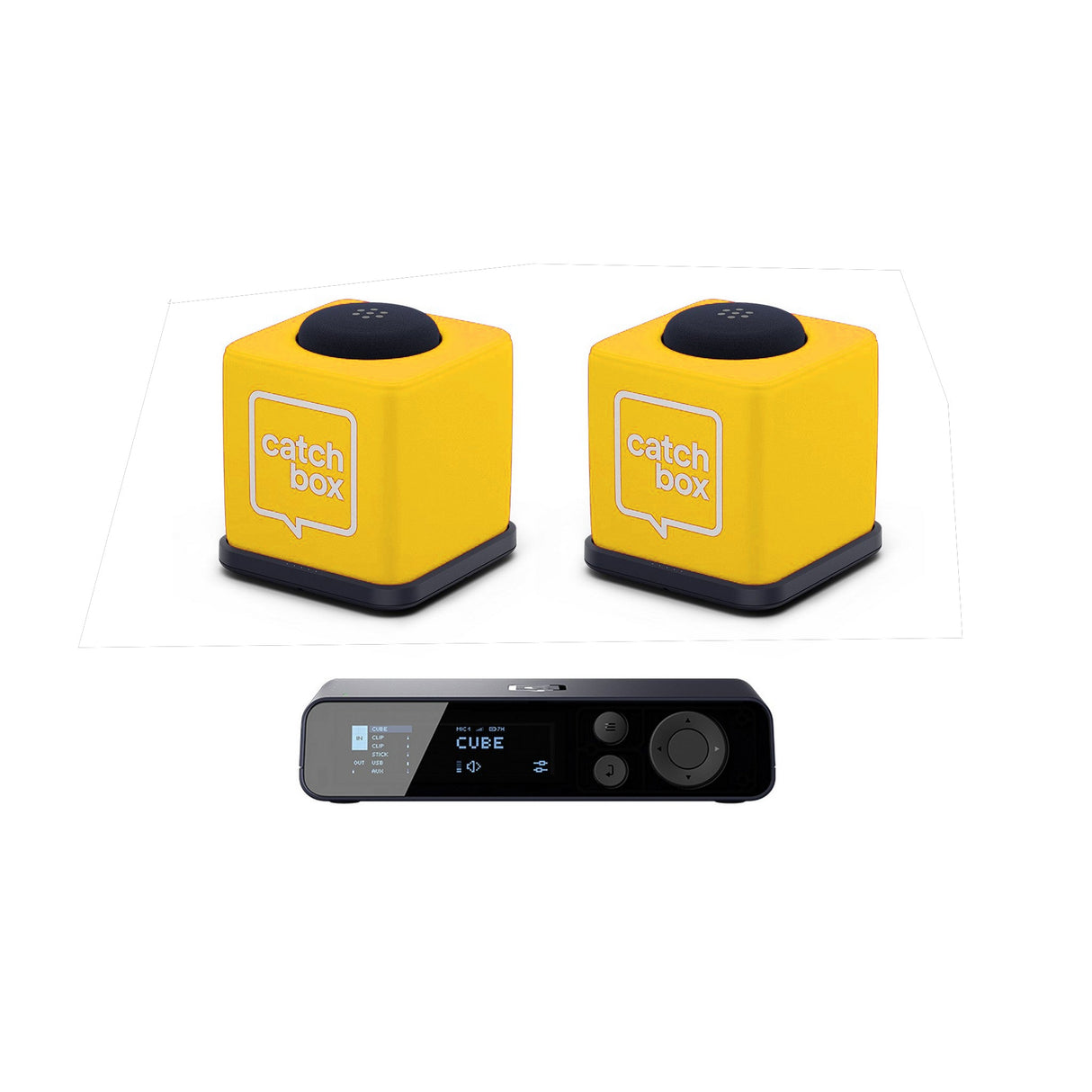

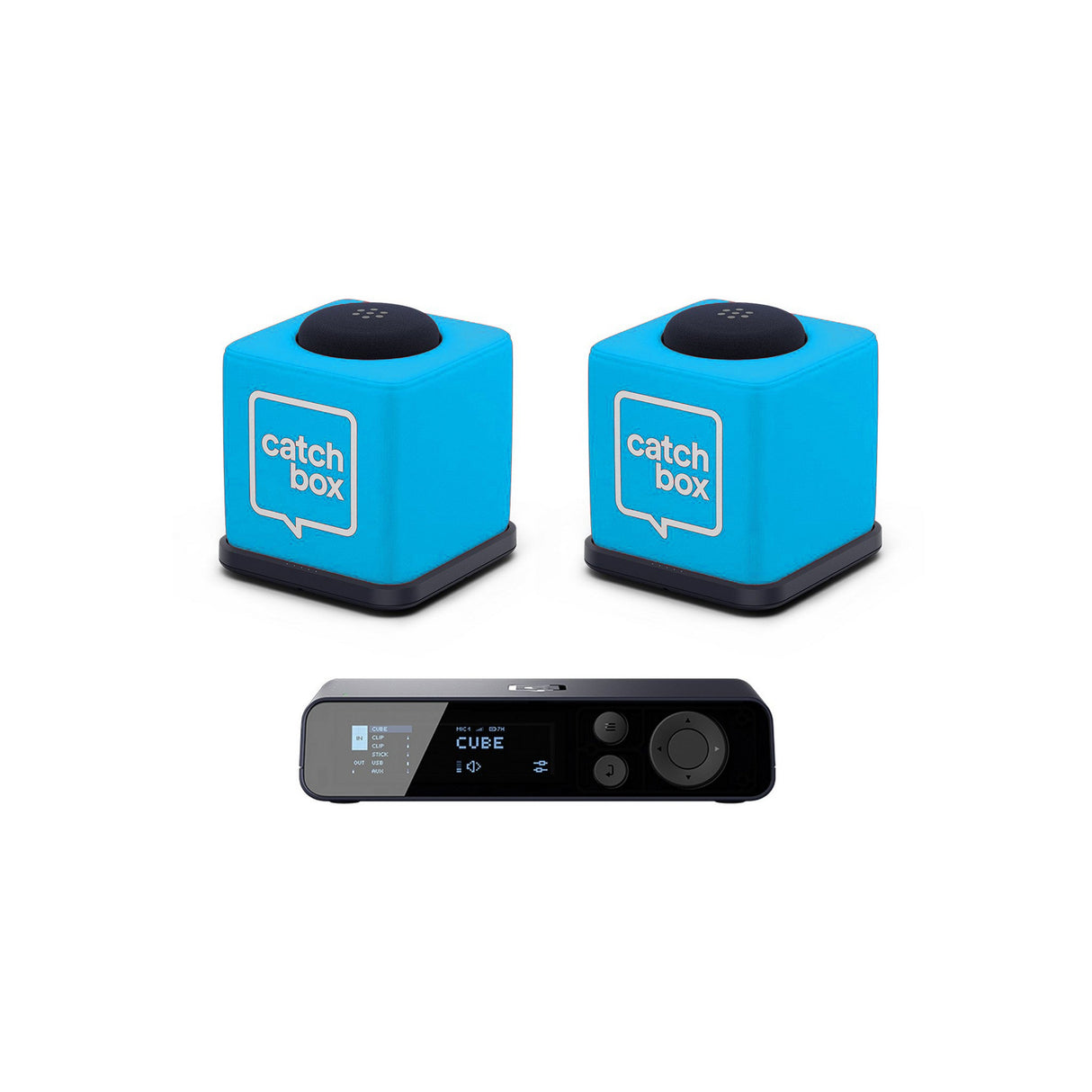

• 2x Cubes with 2 Chargers (Selected Configuration)

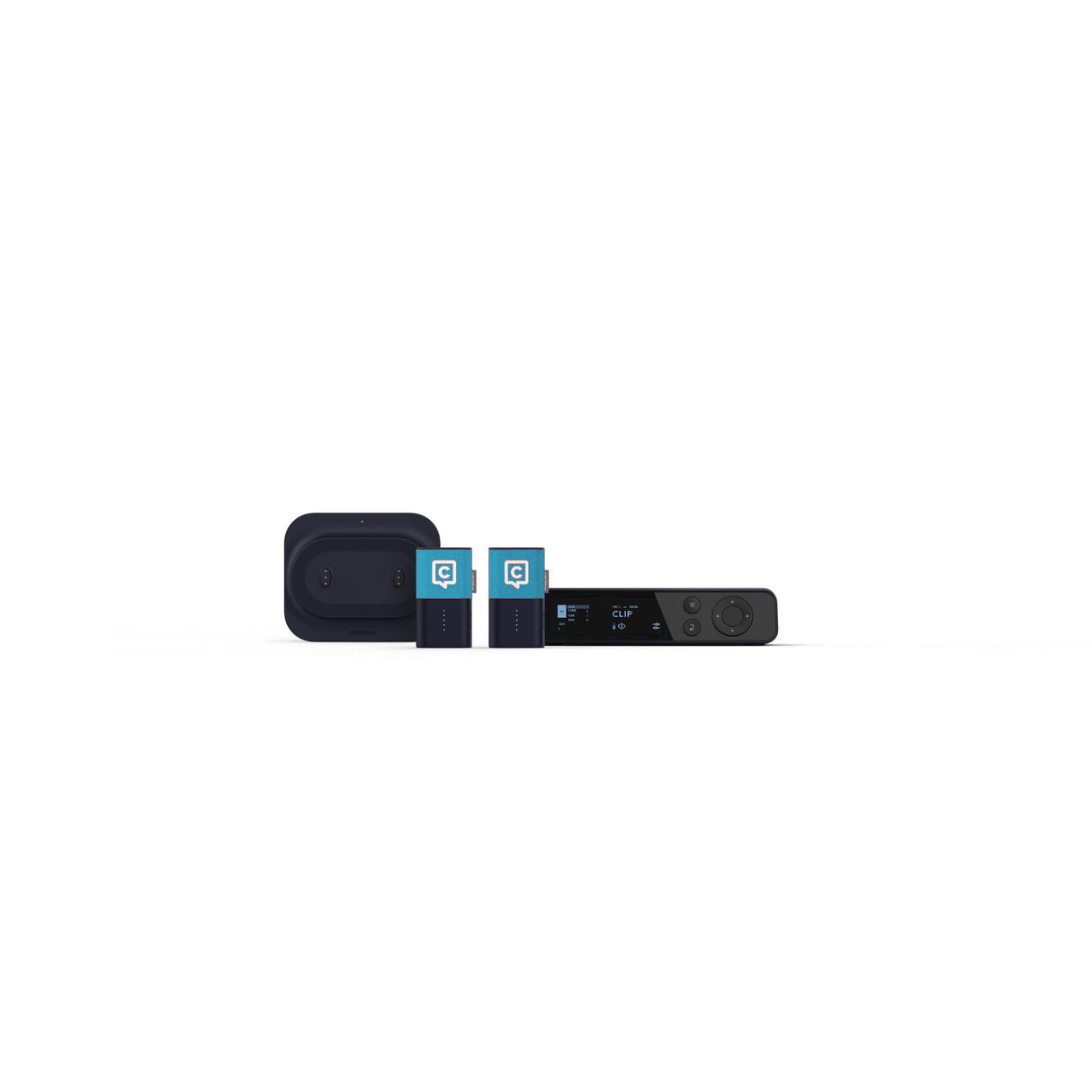

• 2x Clips with Duo Dock (Selected Configuration)
• 2x Sticks with Duo Dock (Selected Configuration)
• Customization options as chosen, please contact for custom color/logo. (Selected Configuration)
