Cerwin-Vega EL-36D 18-Inch Passive Folded Horn Subwoofer
Authorized Dealer
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

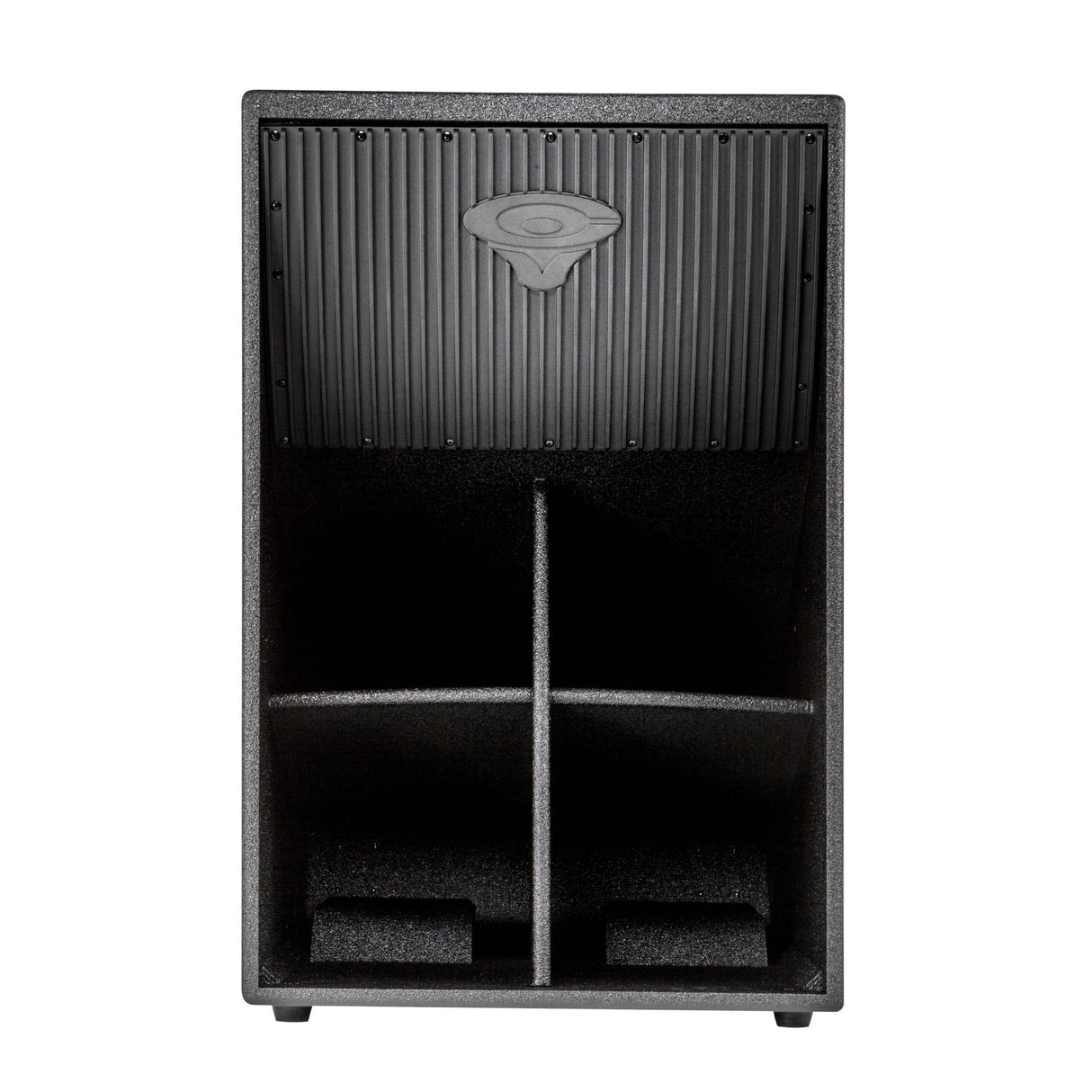

Cerwin-Vega EL-36D 18-Inch Passive Folded Horn Subwoofer
Introducing the Cerwin-Vega EL-36D 18-Inch Passive Folded Horn Subwoofer, a pinnacle of audio engineering drawing on over 65 years of industry-leading innovation. This top-of-the-line subwoofer boasts an impressive 2000 watts of power handling capability and delivers bass extension down to an astounding 36 Hz. A product of Cerwin-Vega's relentless drive for excellence, the EL-36D is designed to meet the demands of professional DJs, musicians, and audio engineers who require unparalleled performance and durability.
The EL-36D features Cerwin-Vega's renowned TourShield protective coating, ensuring that it can withstand the rigors of transport and live performances. Its sleek, all-black design makes it a visually appealing addition to any stage setup. Integrated handles and redesigned casters make it easy to move, making it equally suitable for onstage, club, or on-the-road use. With its robust construction and advanced audio technology, the Cerwin-Vega EL-36D consistently delivers thunderous, high-quality sound.
Designed for serious bass enthusiasts, the Cerwin-Vega EL-36D utilizes an 18-inch folded horn Earthquake Bass System, ensuring deep, resonant sound reproduction. The subwoofer employs acoustic impedance balancing, which reduces cone rocking and enhances overall sound clarity. Additional features such as a cast aluminum door that functions as a heat sink and a reinforced deep pole cup further enhance the performance and durability of this exceptional subwoofer.
Key Features
- 18-inch folded horn Earthquake Bass System: Delivers deep and efficient low-frequency output
- 500W program / 1000W peak power handling: Supports high-output sound reinforcement systems
- Maximum SPL of 141 dB: High acoustic output for large venues
- Extended low-frequency range: Down to 37 Hz for deep bass performance
- Acoustic impedance balancing: Reduces cone rocking and improves sound clarity
- TourShield protective coating: Enhances durability for transport and touring use
- Cast aluminum door heat sink: Improves thermal performance
- Reinforced deep pole cup: Supports stable speaker mounting
- Integrated handles and casters: Simplifies transport and setup
- Professional cabinet design: Built for live sound and mobile applications
Technical Specifications
-
General
- Product Type: Passive Folded Horn Subwoofer
- Model: EL-36D
-
Driver
- Driver Size: 18-inch
- System Design: Folded horn Earthquake Bass System
-
Performance
- Power Handling (Program): 500 W
- Power Handling (Peak): 1000 W
- Frequency Response: 45 Hz – 328 Hz
- Frequency Range: 37 Hz – 673 Hz
- Maximum SPL: 141 dB
- Nominal Impedance: 8 ohms
-
Connectivity
- Input Connectors: 1/4" and Speakon
-
Physical
- Dimensions (H × W × D): 26" × 38" × 39"
- Weight: 160 lbs (72.6 kg)
- Finish: TourShield protective coating
- Handles: Integrated
- Transport: Redesigned casters
- Pole Mount: Reinforced deep pole cup
-
Installation & Mounting
- Placement: Floor-standing subwoofer for PA systems
Use Case
The EL-36D is designed for professional sound reinforcement in live events, DJ systems, and large venues where high-output, low-frequency performance is required. Its folded horn design ensures efficient bass projection across wide areas.
Package Contents
- Cerwin-Vega EL-36D 18-Inch Passive Folded Horn Subwoofer
- Integrated Handles
- Redesigned Casters
- Instruction Manual
Frequently Asked Questions
Is the Cerwin-Vega EL-36D powered or passive?
The EL-36D is a passive folded horn subwoofer, so it requires an external amplifier.
What kind of sound system is the EL-36D designed for?
It is designed for professional sound reinforcement in live events, DJ systems, clubs, and large venues where high-output bass is required.
What makes the folded horn design useful for live sound?
The 18-inch folded horn Earthquake Bass System helps deliver efficient low-frequency output and strong bass projection for larger spaces.
How loud can the EL-36D get?
The maximum SPL is 141 dB.
What amplifier power should be considered for this subwoofer?
The EL-36D handles 500W program power and 1000W peak power at 8 ohms.
What connection types are available?
The EL-36D provides 1/4-inch and Speakon input connectors.
How does the cabinet support touring and mobile use?
The cabinet uses TourShield protective coating, integrated handles, redesigned casters, and a reinforced deep pole cup.
What does acoustic impedance balancing do in this subwoofer?
Acoustic impedance balancing helps reduce cone rocking and improves sound clarity during high-output bass reproduction.
