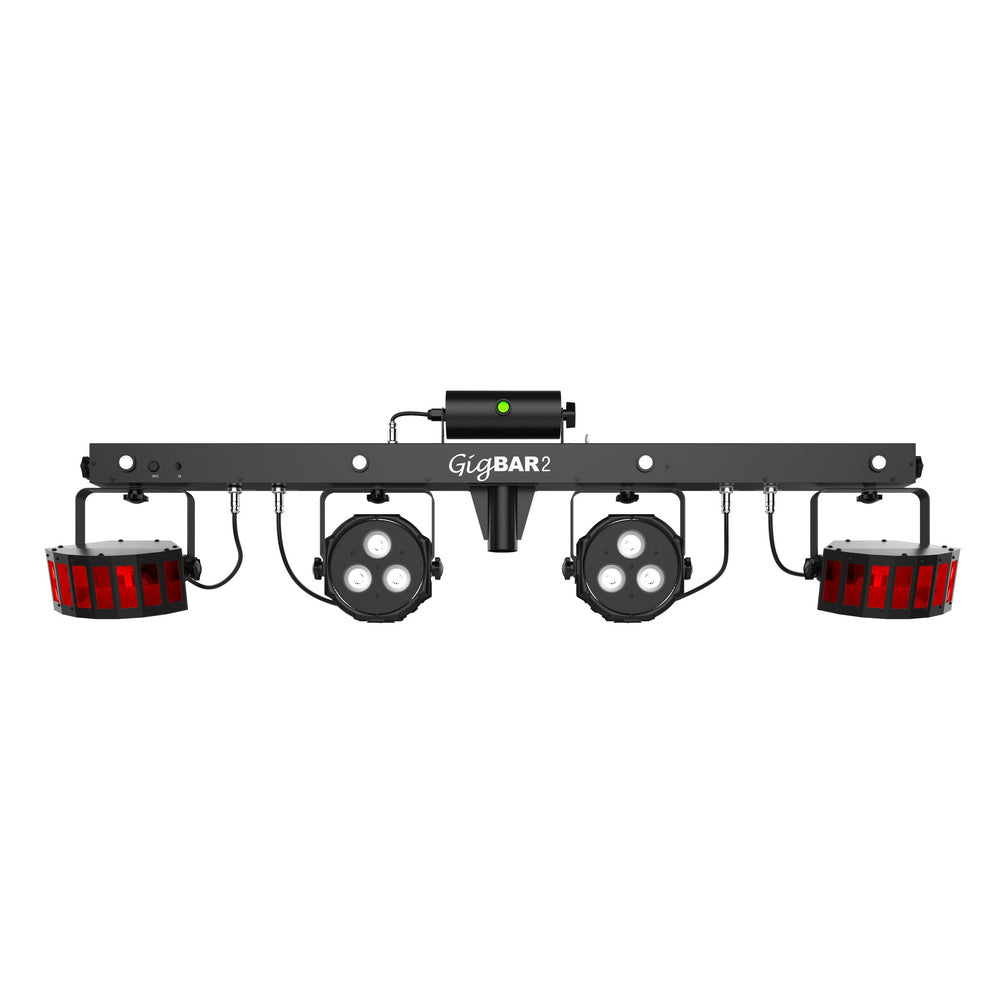

Chauvet DJ GigBAR 2 4-In-1 Lighting System

GigBAR 2 is the ultimate pack-n-go 4-in-1 lighting system including UV in its wash lights and strobes for better color mixing and effects. GigBAR 2 includes two LED Derby fixtures, LED wash lights, a laser, and 4 high-power, LED strobe lights all mounted on one bar. The unit features phenomenal built-in automated and sound-activated programs including all 4 effects. You can easily control the unit from the display, IRC-6 remote control, wireless foot switch or DMX to take your gig to a higher level. Master/slave multiple units and save time running cables and extension cords by power linking multiple units. Get in and get out quickly with the included tripod, wireless footswitch and FREE carry bags.

Key Features

• 4-in-1 light that includes a pair of LED derbies, LED pars, a laser, and strobe effect all mounted on one bar
• Added UV in pars and strobes for increased color mixing and effects
• Cover any room or stage with 4 individually adjustable and interchangeable heads

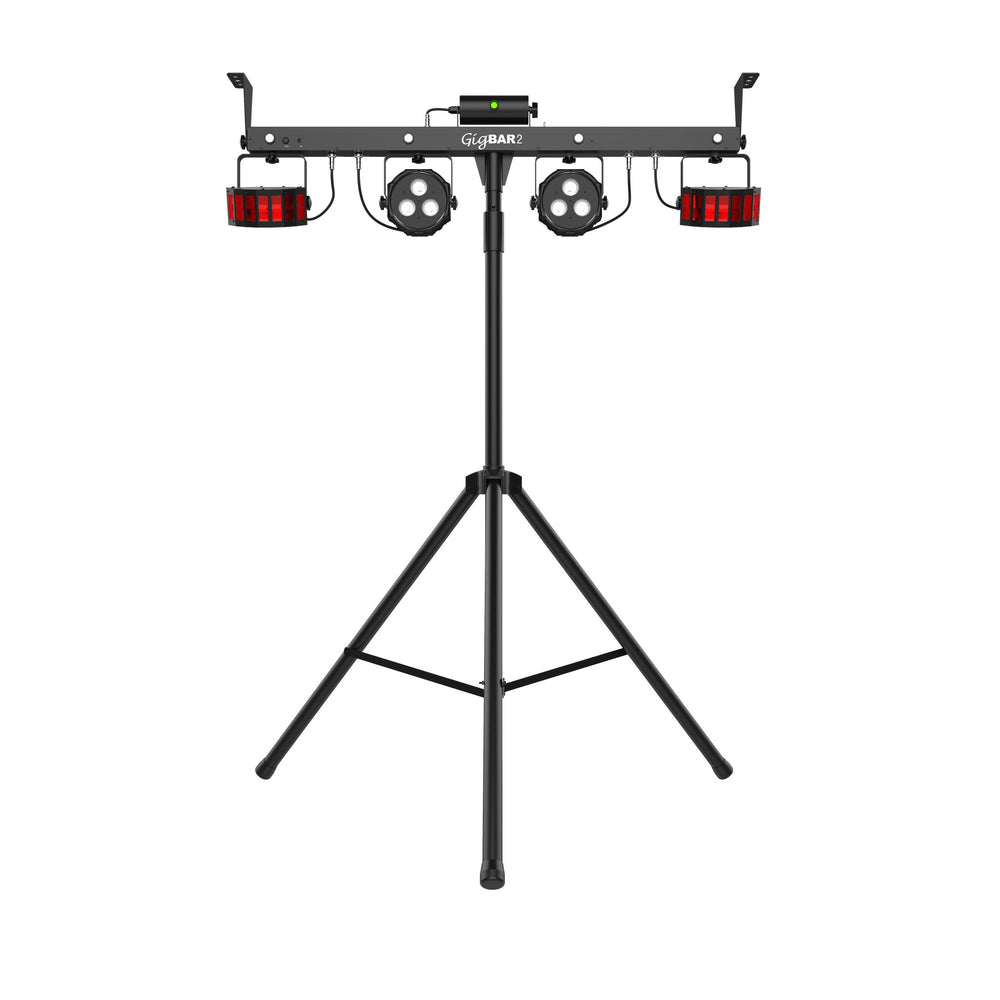

• Get in and get out quickly with the included tripod, wireless footswitch and FREE carry bags
• Ready for every application using the included mounting brackets to attach to truss
• 4 high-power, LED strobe lights create exciting chase and slow motion effects
• Adjustable red and green laser scatters hundreds of bright dots and beams in all the right directions.
• Phenomenal built in automated and sound-activated programs that include all 4 effects to make one complete show
• Easily control from the display, included IRC-6, wireless foot switch or DMX to take your gig to a higher level
• Master/slave multiple units under the control of a single IRC or wireless foot switch
• Save time running cables and extension cords by power linking multiple units
• Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

Technical Specifications

DMX Channels
3, 11 or 23
DMX Connectors
3-pin XLR
Light Source
(pars)
6 LEDs (Quad-color RGB+UV) 3.5 W (1 A), 50,000 hours life expectancy
(strobe)
4 LEDs (white & UV) 5 W (1.5 A), 50,000 hours life expectancy
(Derby)
6 LEDs (2 red, 2 green, 2 blue) 5 W (1.6 A), 50,000 hours life expectancy
650nm/100 mW (red) laser diode, 532nm/30 mW (green) laser diode
Strobe Rate
(strobe)
0 to 18 Hz
Beam Angle
(pars)
13°
(strobe)
8°
Field Angle
(pars)
24°
(strobe)
18
Coverage Angle
(laser)
93°
(Derby)
114°
Fits Tripod Size
37.4 mm
Illuminance
(pars)
1,205 lux @ 2 m (per head)
(strobe)
86 lux @ 2 m (per zone)
Power Linking
8 units @ 120 V; 15 units @ 230 V
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current
68 W, 1 A @ 120 V, 60 Hz
64 W, 0.5 A @ 230 V, 50 Hz
Weight
25.6 lb, (11.6 kg)
Size
1185 x 110 x 386.5 mm
Approvals
CE, FDA, FCC
Stand Height
1.5 to 2.5 m
Tripod leg width
1.2 m
Foot Switch Operating Frequency
433 MHz
Foot Switch Max Unobstructed Distance
30.5 m
Footswitch battery
12 V A23
WHAT'S INCLUDED
Power cord
IRC-6
Tripod
Tripod Carry bag
Wireless footswitch
Warranty card
User Manual
