Chauvet DJ Swarm Wash FX ILS – 4-in-1 Lighting Fixture

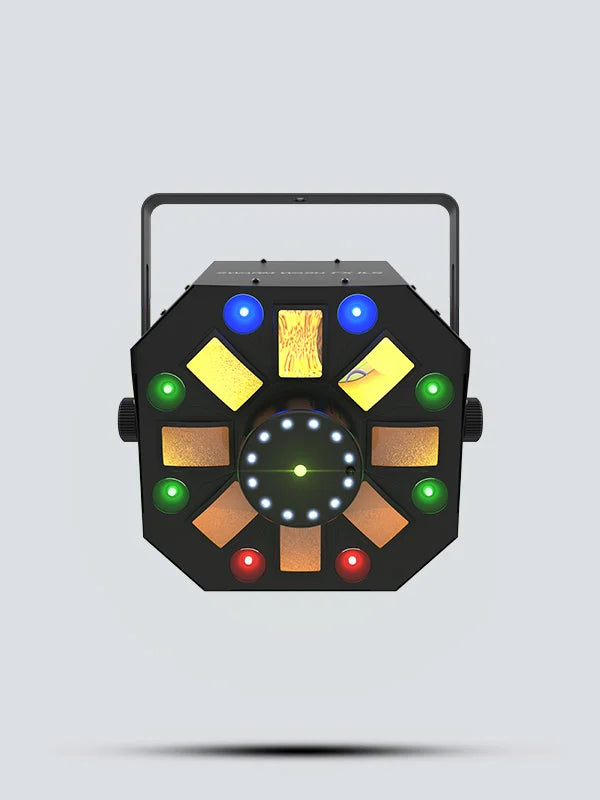

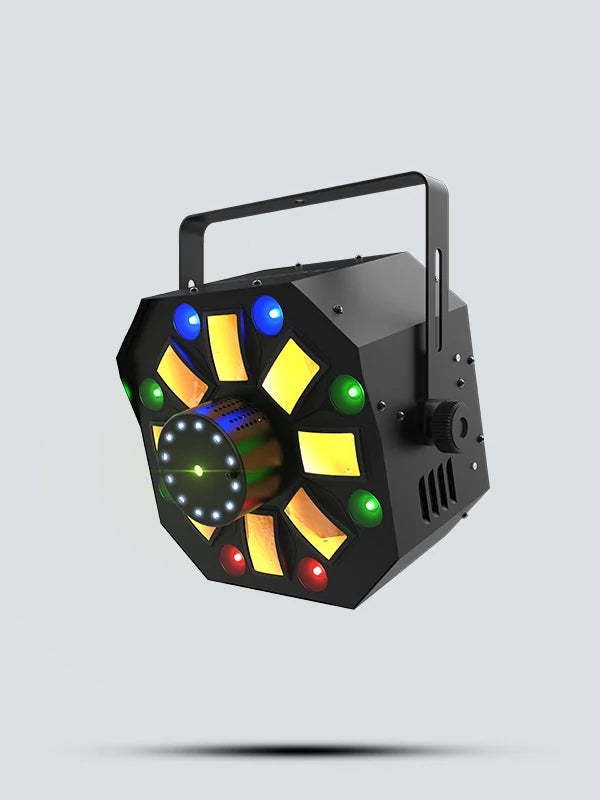

The Chauvet DJ Swarm Wash FX ILS is a compact, professional 4-in-1 LED fixture that combines an RGBAW rotating derby, RGB+UV wash, red/green laser, and a ring of white SMD strobes. Designed for DJs, clubs, and event spaces, it delivers thousands of laser beams and rich wash colors with flexible control options including ILS, DMX, IRC-6, and D-Fi USB (sold separately).

Key Features

• 4-in-1 Effects: Rotating derby, RGB+UV wash, red/green laser, and white SMD strobe ring in a single compact unit
• RGBAW Derby & RGB+UV Wash: Quad-color wash LEDs plus UV for vivid color mixing and bright washes
• Red/Green Laser: High-output red and green laser diodes that project thousands of beams
• SMD Strobe Ring: White SMD strobe array with adjustable rate (0–20 Hz)
• ILS Compatibility: Seamless syncing with other ILS fixtures for coordinated shows
• Multiple Control Modes: DMX (2 or 18 channels), IRC-6 remote, Master/Slave, sound-active, and auto programs
• Power Linking: Power link multiple units to simplify setup
• Transport Friendly: Fits inside the CHS-40 VIP gear bag

Specifications

• General
  • DMX Channels: 2 or 18
  • DMX Connectors: 3-pin XLR
  • Light Source: (Wash) 8 LEDs (quad-color RGB+UV) 1.5 W each, (Strobe) 12 white SMD LEDs 1 W each; (Laser) 650 nm/100 mW (red) & 520 nm/30 mW (green)
  • Strobe Rate: 0 to 20 Hz
• Power & Connectivity
  • Input Voltage: 100–240 VAC, 50/60 Hz (auto-ranging)
  • Power & Current: 51 W, 0.7 A @ 120 V, 60 Hz; 50 W, 0.4 A @ 230 V, 50 Hz
  • Power Linking: 11 units @ 120 V; 20 units @ 230 V

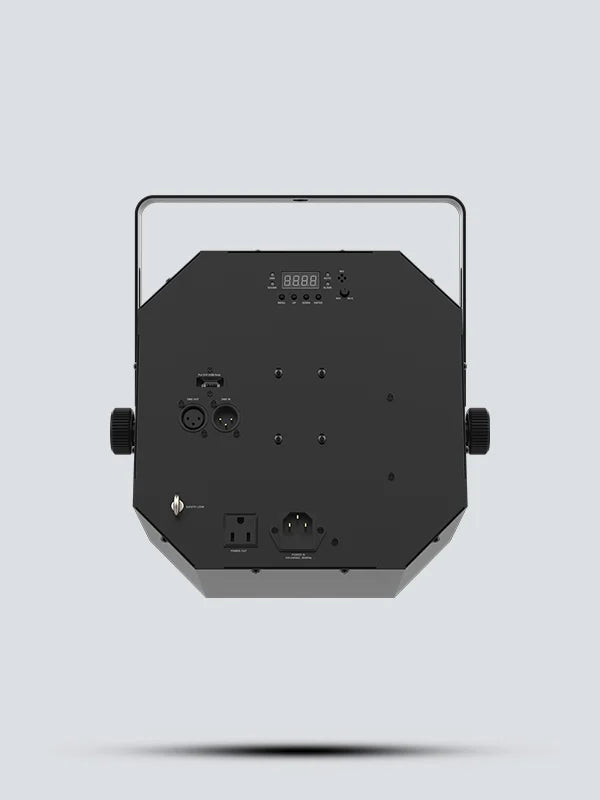

  • Connections: IEC power input/output, 3-pin DMX in/out (XLR)
• Physical & Compliance
  • Size: 13.1 x 13 x 9.4 in (335 x 332 x 241 mm)
  • Weight: 9.5 lb (4.3 kg)
  • Approvals: CE, FDA, RoHS, UKCA
  • Coverage Angles: Laser 82°; Swarm 65°; Strobe 71°; Wash 46°
  • Classification: EN/IEC 60825-1 (2014); Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 56, dated May 8, 2019

Installation / Use Cases

• Use as a compact 4-in-1 LED lighting fixture for DJs, clubs, event spaces, and mobile entertainment setups.
• Use the RGBAW rotating derby, RGB+UV wash, red/green laser, and white SMD strobe ring from one fixture.
• Suitable for creating coordinated light shows with other ILS-compatible fixtures.
• Use DMX control with 2 or 18 channels for simple or detailed lighting control.
• Use IRC-6 remote, Master/Slave, sound-active, or auto programs depending on the setup.
• Use D-Fi USB control when paired with the optional D-Fi USB accessory sold separately.
• Use power linking to connect multiple units and simplify cabling.
• Suitable for mobile setups because it fits inside the CHS-40 VIP gear bag.

Package Contents

• 1x: Chauvet DJ Swarm Wash FX ILS
• 1x: Power cord
• 1x: User manual
