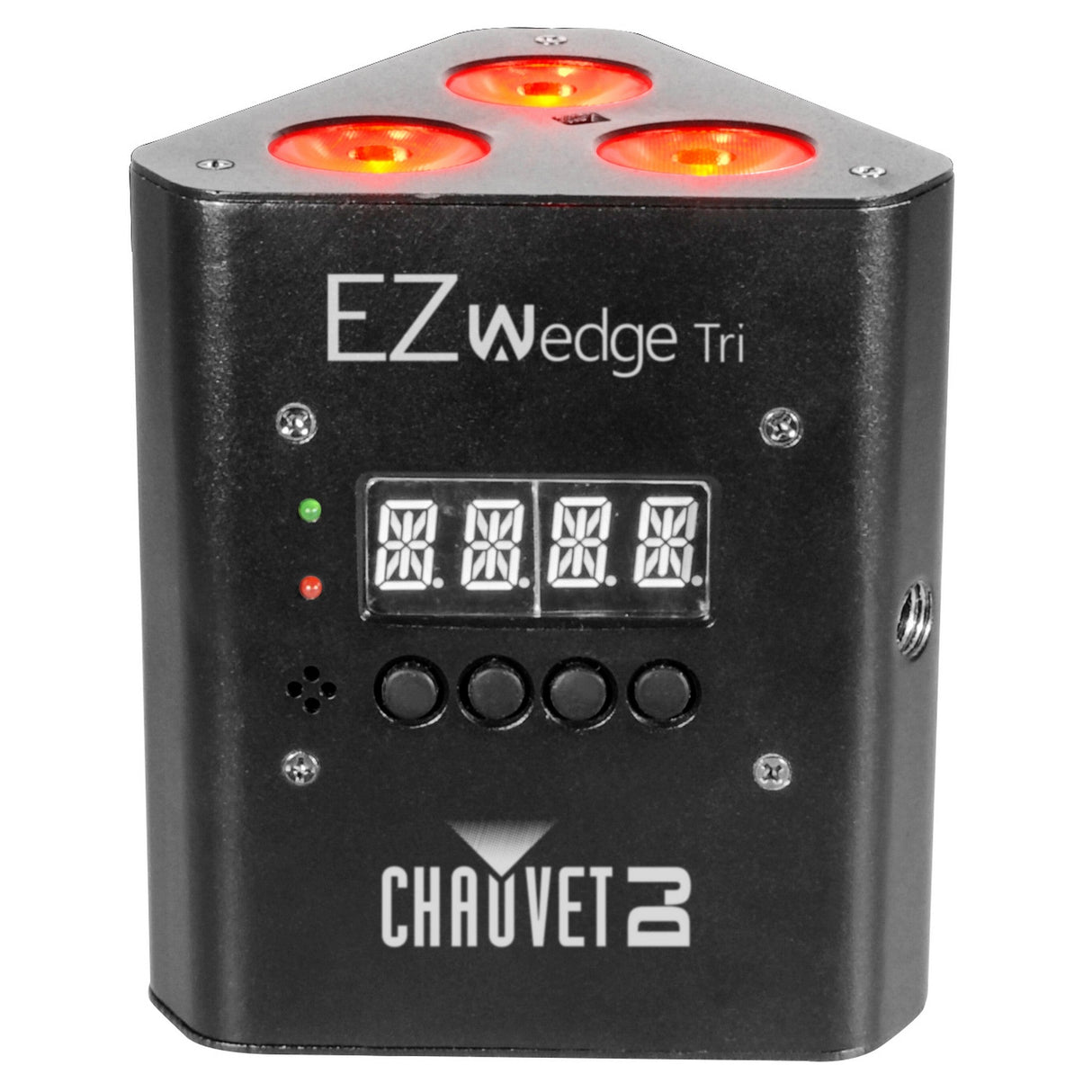

Chauvet Ezwedge Tri Battery Operated Tri-Color LED Wash Light

EZwedge Tri is a battery-operated, tri-color LED wash light that fits perfectly inside TRUSST Goal Post and Arch Kit truss systems. The rechargeable, lithium battery lasts up to 20 hours from a single charge, and you can easily check the battery status with the built-in battery life indicator. The EZwedge Tri attaches to 35-mm truss without the need for a bracket, using M10 or M12 threaded rig points. Its flicker-free operation is suitable for on-camera use and it provides smooth dimming with built-in dimming curves. Easily control static colors and automated programs with the included IRC-6 remote, or create any color without DMX by using the built-in digital display and build coordinated light shows by linking other tri-color LED fixtures in Master/Slave mode.

Key Features

• Battery-operated, tri-color LED wash light fits perfectly inside TRUSST Goal Post and Arch Kit truss systems
• Rechargeable, lithium battery lasts up to 20 hours from a single charge
• Easily check the battery status with the built-in battery life indicator
• Attaches to 35-mm truss without the need for a bracket, using M10 or M12 threaded rig points
• Easily control static colors and automated programs with the included IRC-6 remote
• Create any color without DMX by using the built-in digital display
• Smooth dimming with built-in dimming curves
• Flicker-free operation suitable for on-camera use
• Create coordinated light shows by linking other tri-color LED fixtures in Master/Slave mode

Technical Specifications

DMX Channels
3 or 8
DMX Connectors
3-pin XLR
Light Source
3 LEDs (tri-color RGB) 3 W (1,050 mA), 50,000 hours life expectancy
Strobe Rate
0 to 17 Hz
PWM Frequency
5.39 KHz
Beam Angle
16°
Illuminance
1,066 lux @ 2 m
Power Linking
33 units @ 120 V; 57 units @ 230 V
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current
17 W, 0.2 A @ 120 V, 60 Hz
16 W, 0.1 A @ 230 V, 50 Hz
Weight
2.8 lb (1.3 kg)
Size
4.3 x 4.3 x 5.4 in (108 x 108 x 136 mm)
Included Controllers
IRC-6
WHAT'S INCLUDED
Power Cord
IRC-6
Warranty Card
Quick Reference Guide
