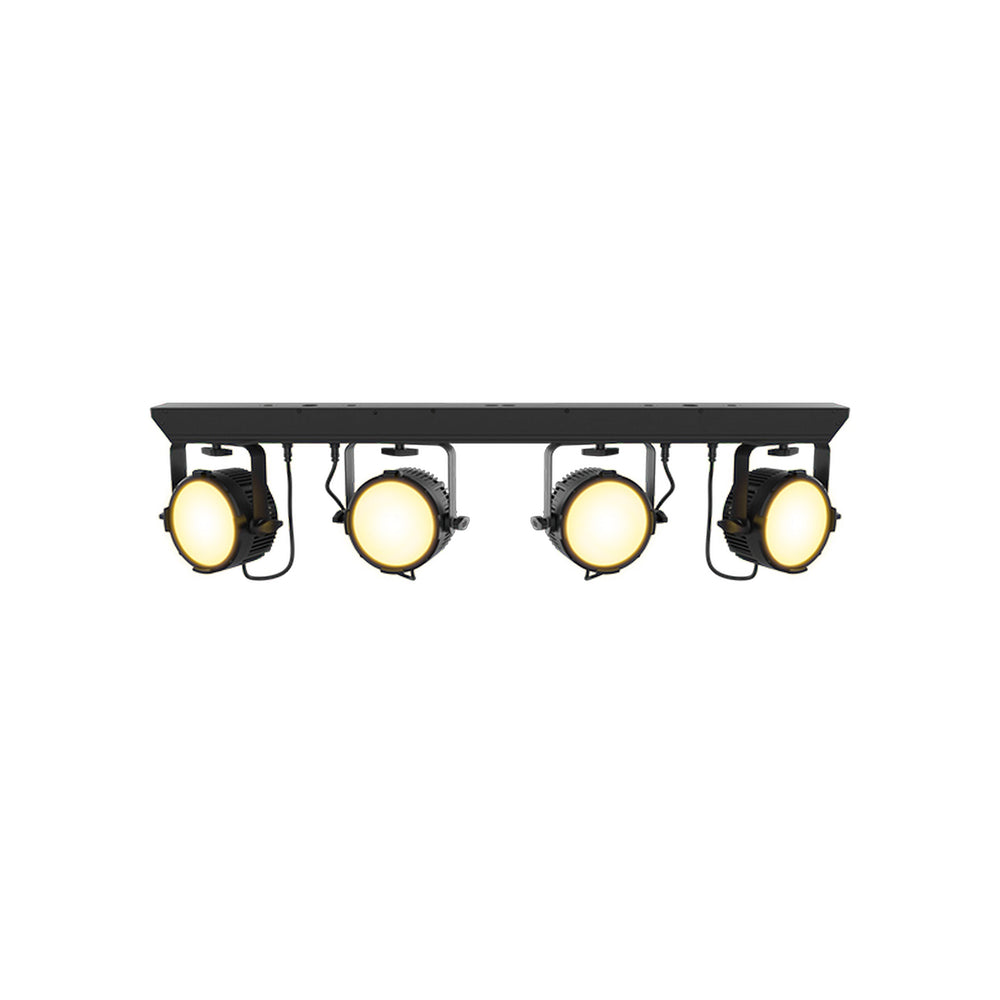

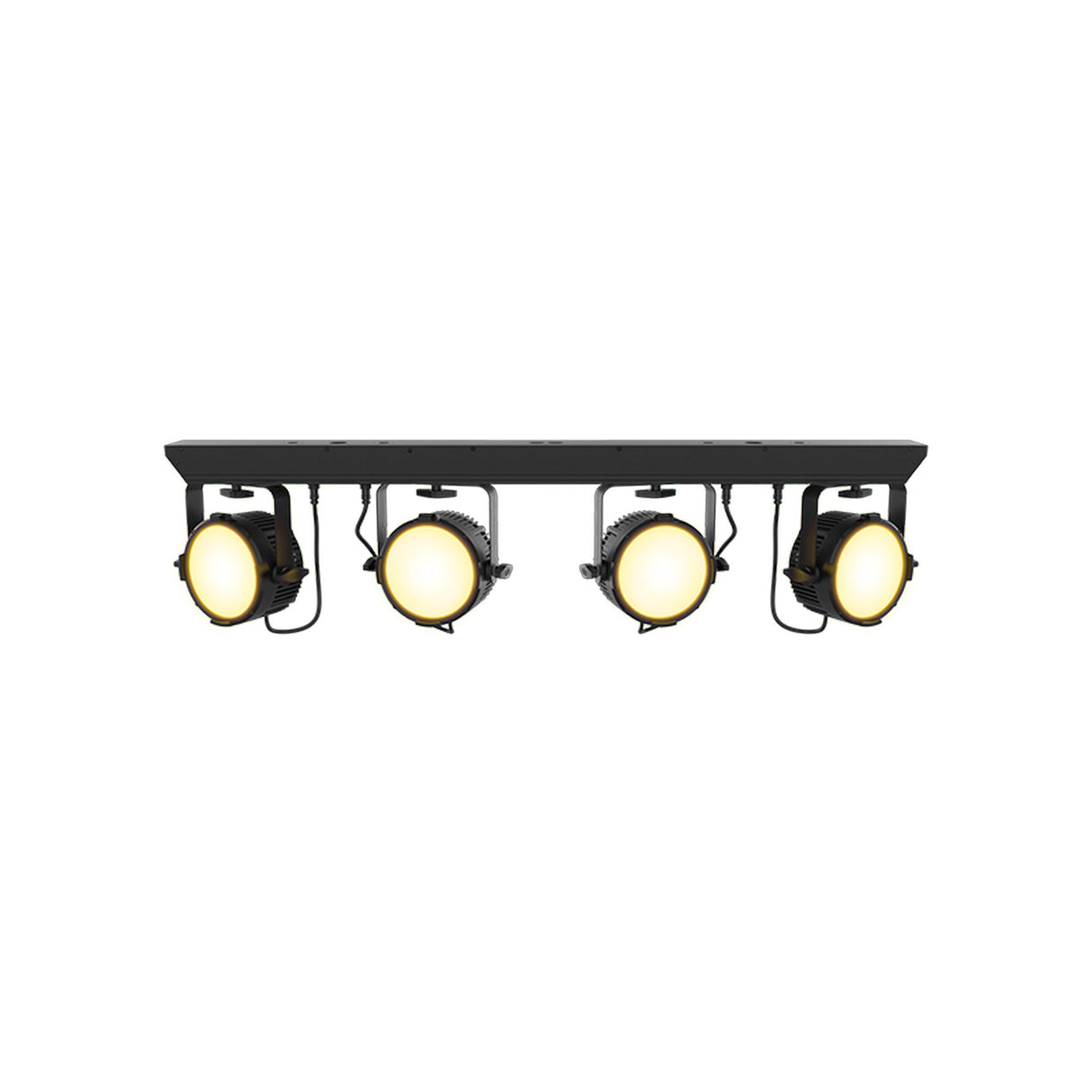

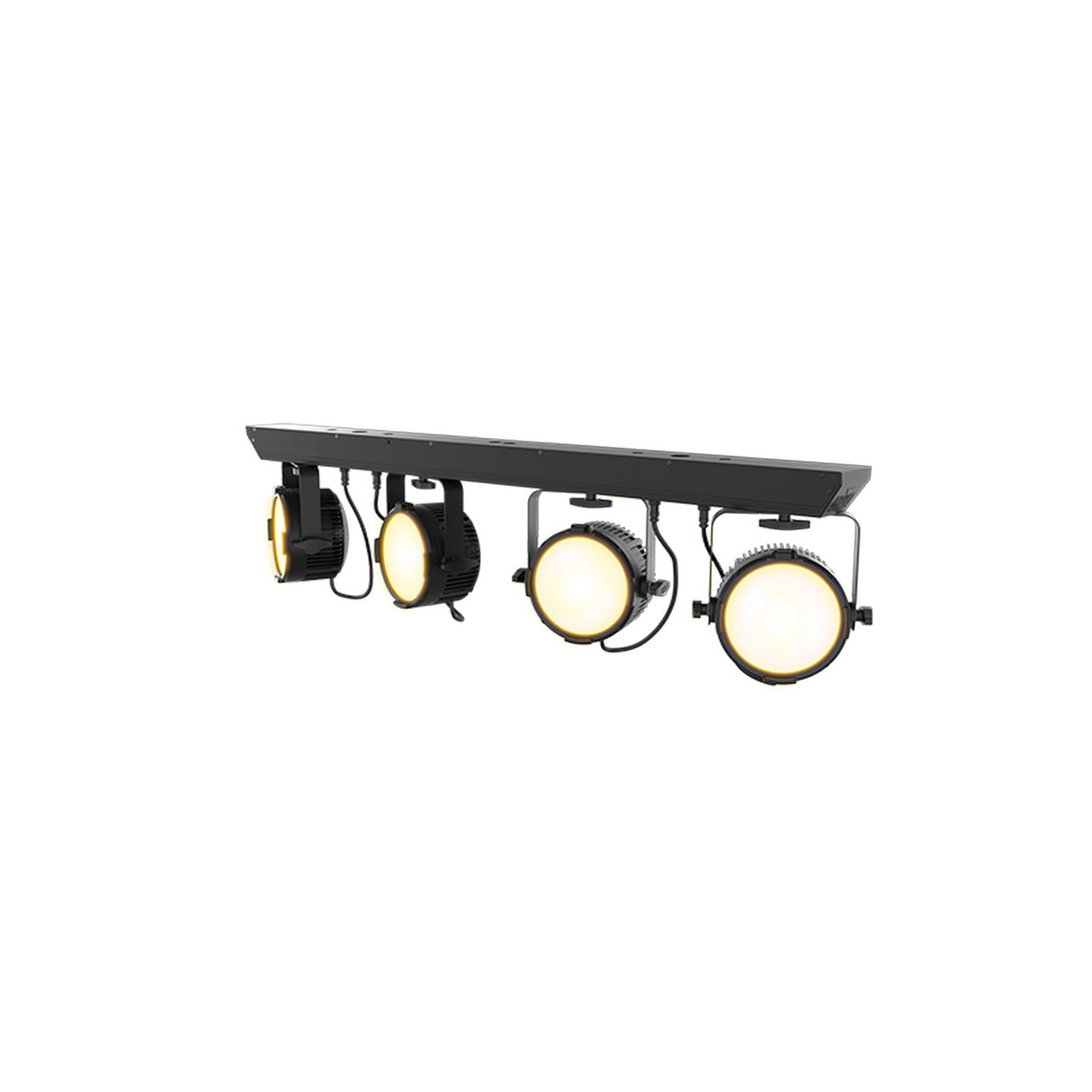

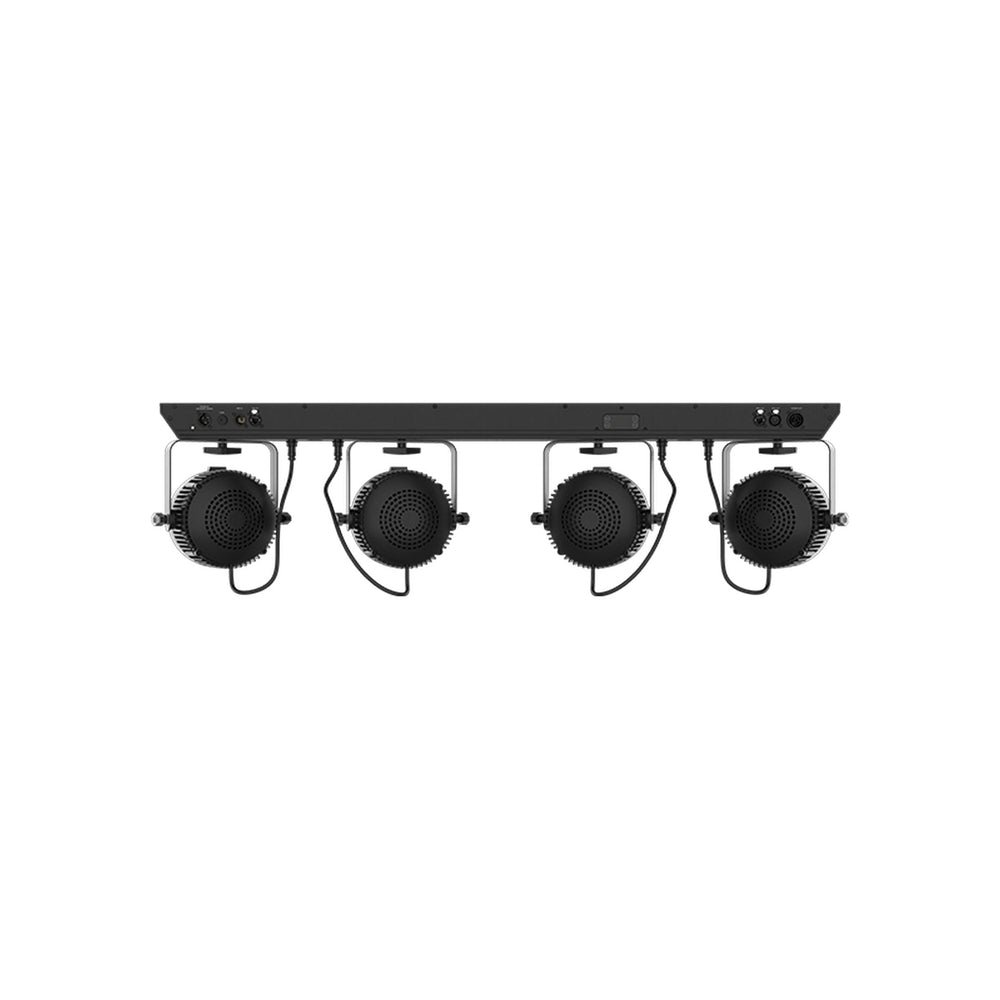

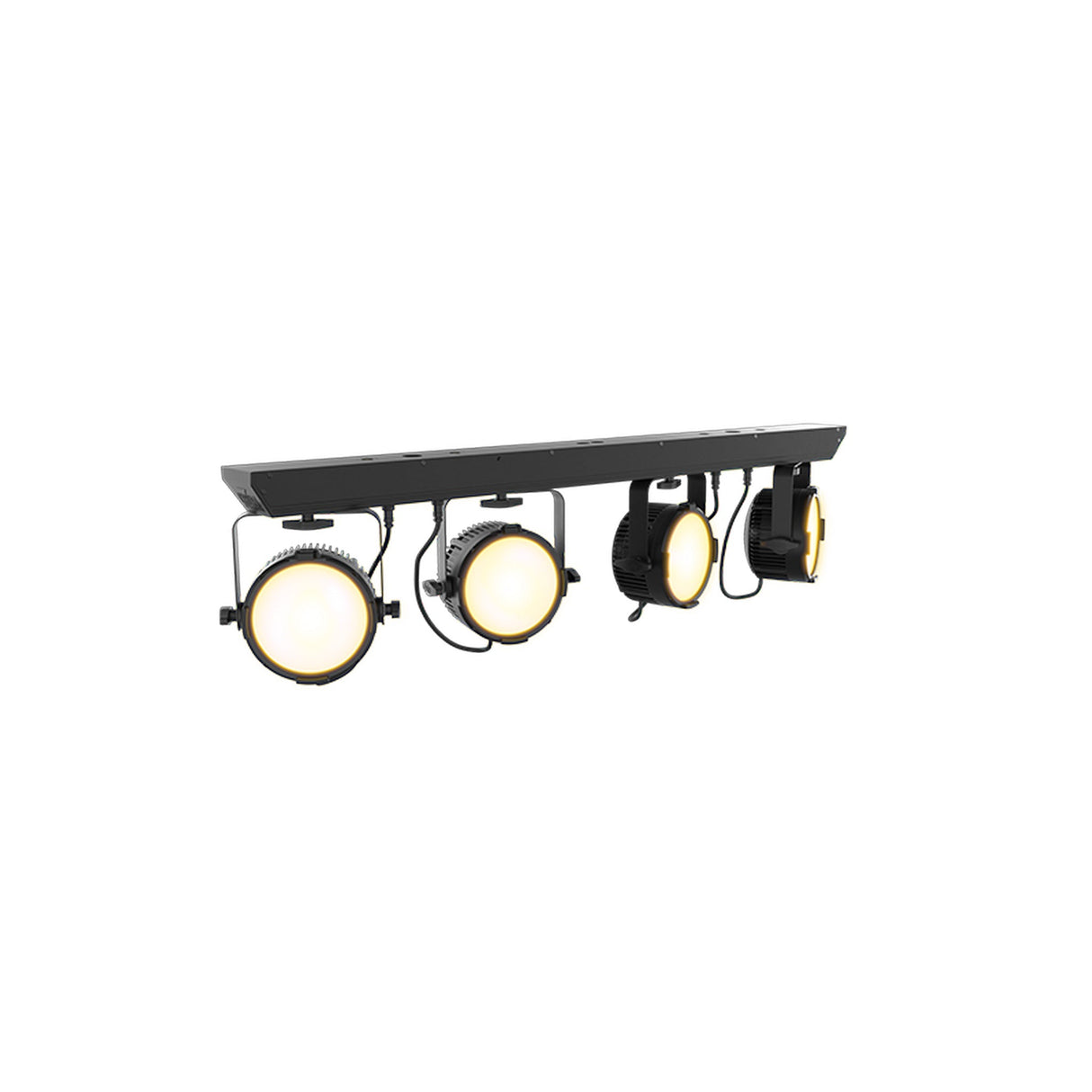

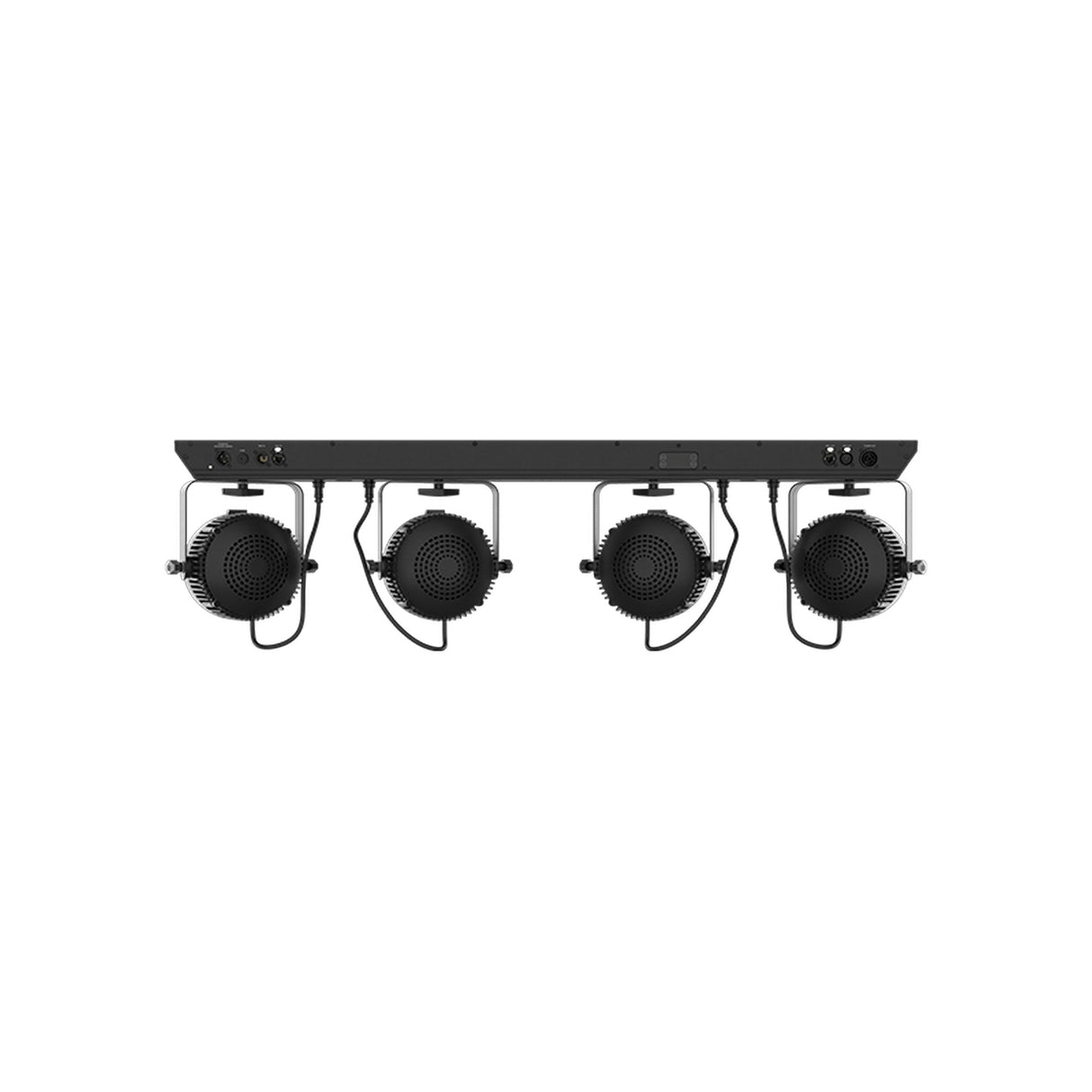

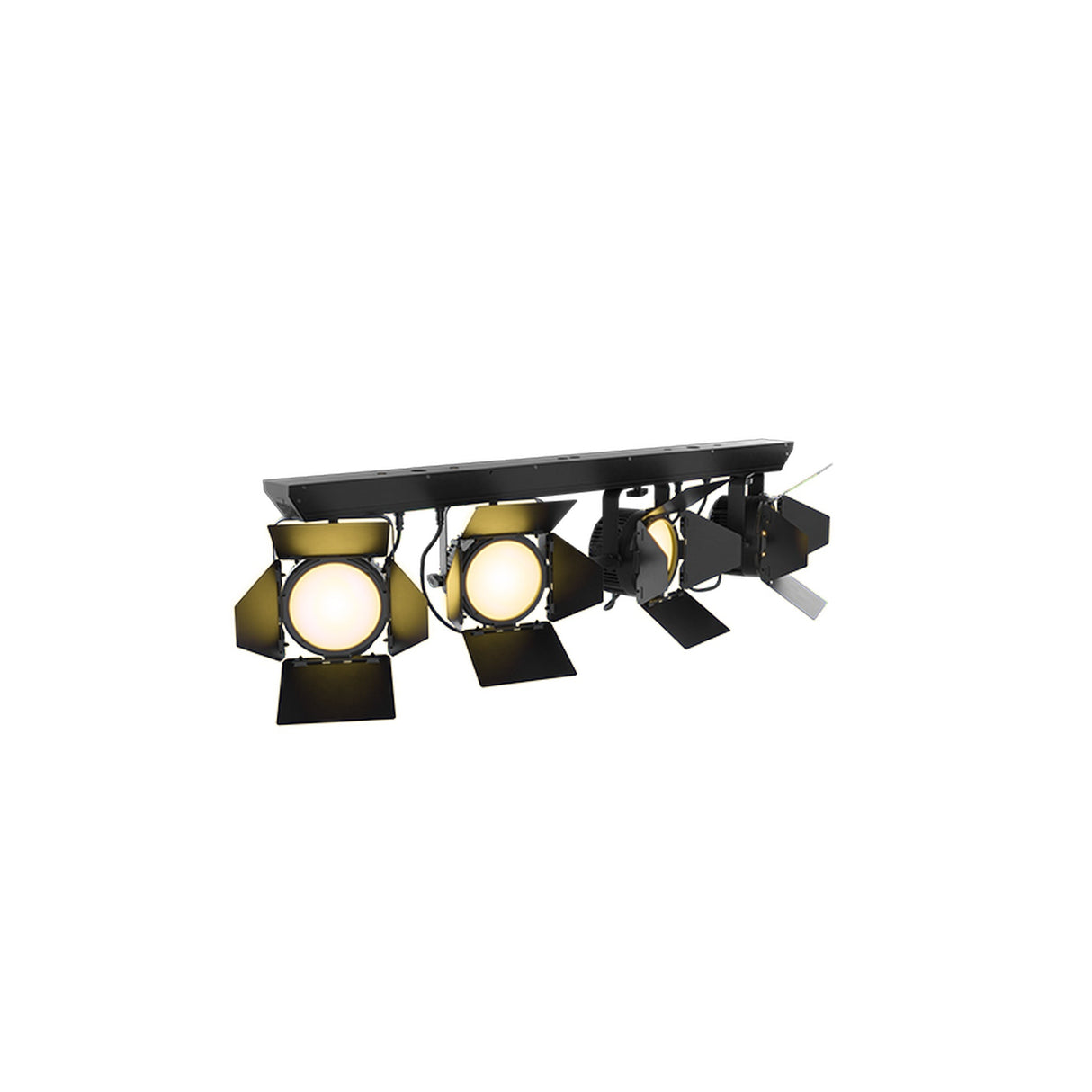

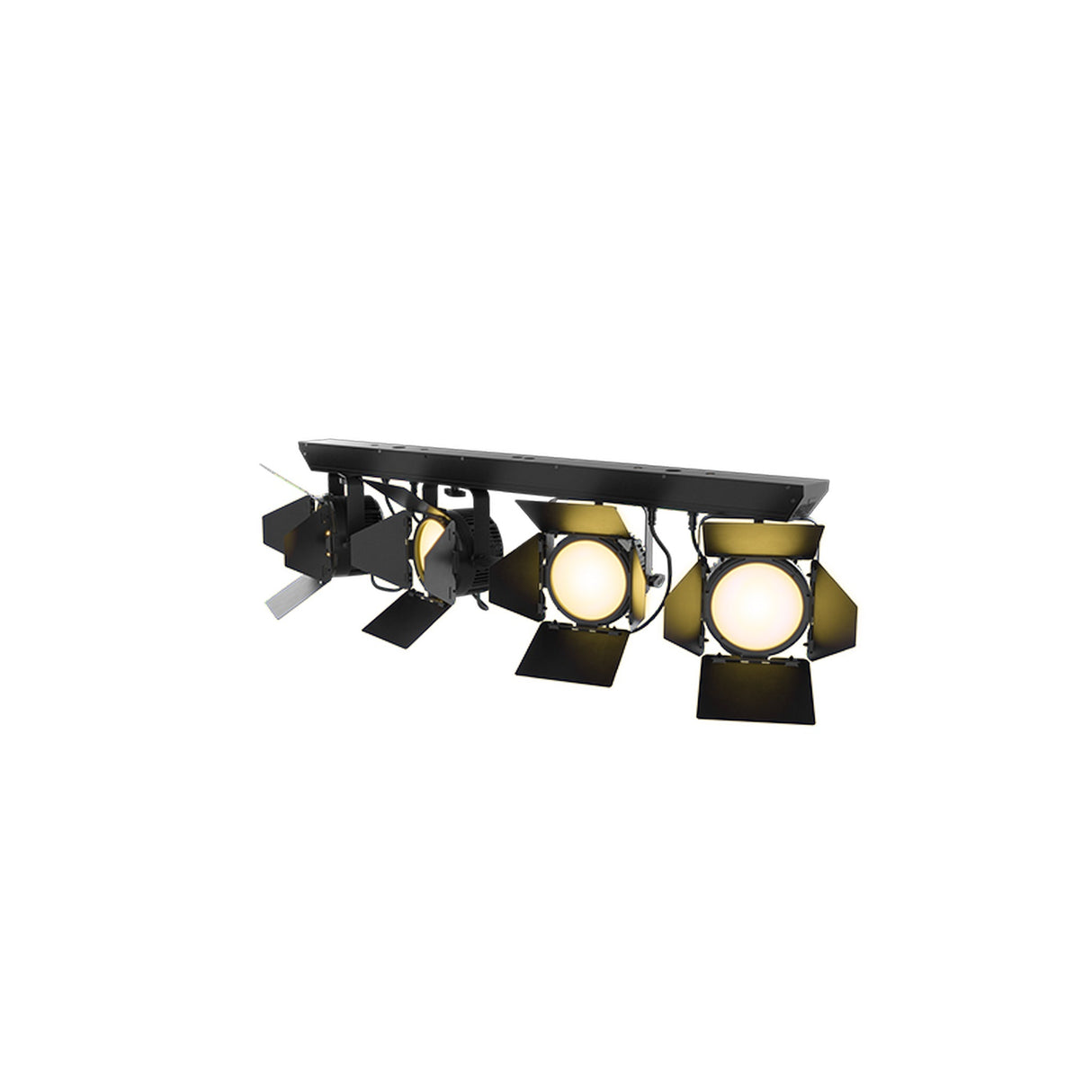

Chauvet Professional COLORdash PAR Bar 4 LED Wash Bar
Chauvet Professional COLORdash PAR Bar 4 is a multi-head LED wash bar designed for small theatres, events, and multi-use spaces. It enables adjustable wash coverage for lighting designers and venue operators, supporting flexible stage and room illumination workflows. This makes it ideal for applications where adaptable coverage and compact integration are critical.
The fixture combines four independently focusable RGBAW UV LED heads with selectable beam angles using included wide filters and barndoors. Adjustable pulse width modulation and selectable dimming curves support smooth fades and on-camera operation. Control connectivity is supported via DMX using 5 pin XLR or standard CAT6 Ethernet cable.
This wash bar is built to simplify setup and operation across varied environments. Multiple mounting options support floor, truss, and stand-based configurations. Integrated electronics and optics deliver consistent color mixing while maintaining operational reliability in dry indoor locations.
Key Features
- Four Head Wash System: Complete wash solution using four RGBAW UV LED heads.
- Independent Head Focus: Each head can be focused individually for customized coverage.
- Beam Angle Flexibility: Included wide filters expand coverage from narrow to wide beams.

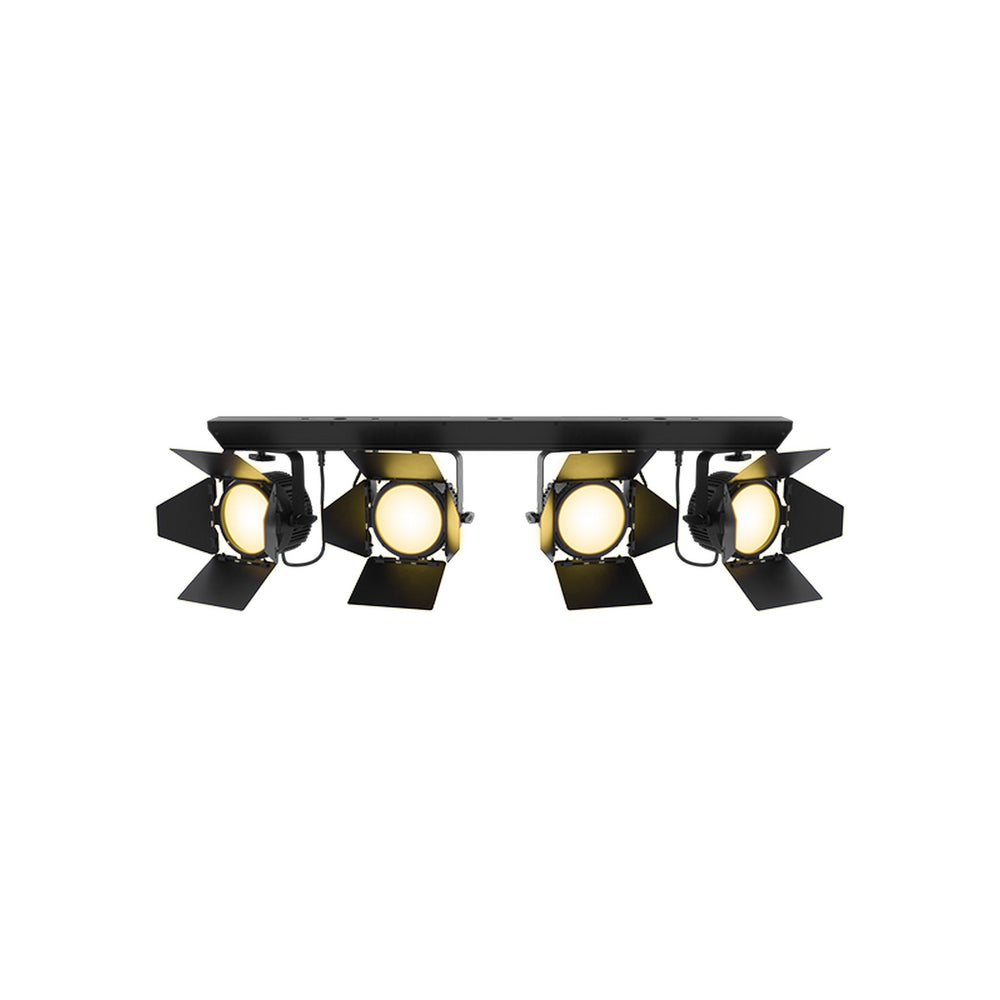

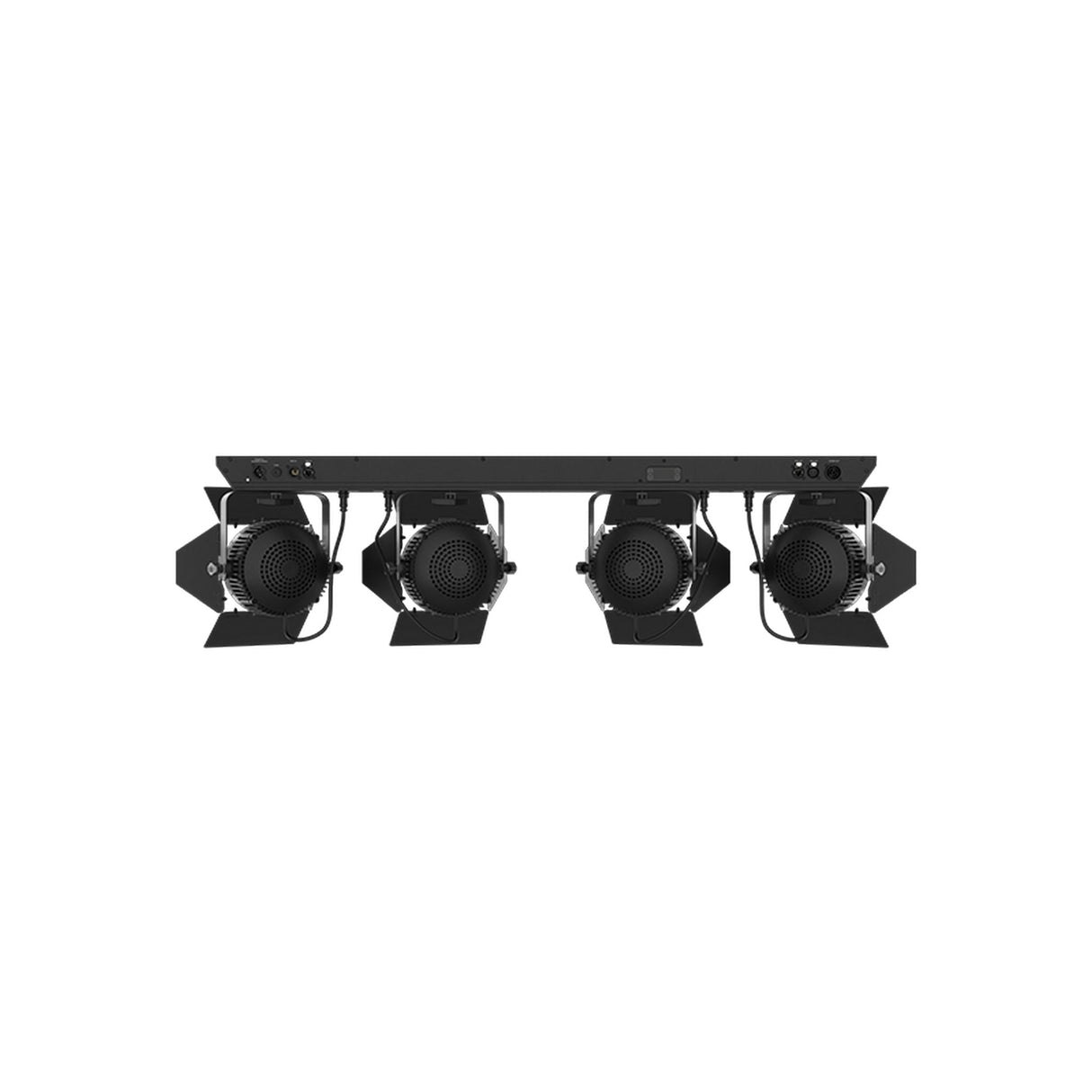

- Light Shaping Control: Four leaf barndoors help limit spill and shape output.
- Flexible Connectivity: Supports DMX via 5 pin XLR or CAT6 Ethernet cable.
- On Camera Performance: Adjustable PWM and selectable dimming curves support flicker free use.
Technical Specifications
OpticalLight Source: 1, RGBAW UV LED Array (per head)
Beam Angle narrow (Single Par): 15.3°
Field Angle narrow (Single Par): 29.8°
Beam Angle wide (Single Par): 30.4°
Field Angle wide (Single Par): 49.4°
Lumens (Single Par): 4305 lm
Lumens (All Pars): 17930 lm
Illuminance Narrow (Single Par): 1482 lux @ 5 m
Illuminance Wide (Single Par): 510 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects
Dimmer: Electronic
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built in Automated Programs: Yes
Construction / Physical
Dimensions: 45.3 x 5.16 x 11.08 in (1150.6 x 131 x 281.4 mm)
Weight: 28.8 lb (12 kg)
Exterior Color: Black
Housing Material: Aluminum Alloy
Connections
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5 pin XLR, Neutrik etherCON or Amphenol XLRnet (etherCON Compatible)
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: DMX, RDM
DMX Channels: 6, 8, 9, 14, 24, 32, 36, 41
Modes Personalities: 8 personalities (6, 8, 9, 14, 24, 32, 36, 41)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto ranging)
Power Linking: 2 units @ 100 V; 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V; 5 units @ 240 V
Power and Current: 557 W, 5.55 A @ 100 V, 60 Hz
Power and Current: 551 W, 4.63 A @ 120 V, 60 Hz
Power and Current: 546 W, 2.63 A @ 208 V, 60 Hz
Power and Current: 550 W, 2.41 A @ 230 V, 50 Hz
Power and Current: 559 W, 2.33 A @ 240 V, 50 Hz
Certifications / Qualifications
CE, MET, FCC, UKCA
IP Rating: IP20, dry location
Temperature (Ambient): 32 °F to 104 °F (0 °C to 40 °C)
What’s in the Box
(1) COLORdash PAR Bar 4(1) Seetronic Powercon IP65 power cord
(4) Wide Filter
(4) Barndoors
(1) Tripod mount
